Electronic Textile Test Equipment / Yarn Wrap Length Measuring Device
999.00 INR/Set
Product Details:
- Material MS
- Power Supply Electric
- Features Good Quality
- Frequency 50-60 Hertz (HZ)
- Hardness Yes
- Voltage 110-215 Volt (v)
- Automation Grade Semi-automatic
- Click to view more
X
Electronic Textile Test Equipment / Yarn Wrap Length Measuring Device Price And Quantity
- 1 Set
- 999.00 - 1999.00 INR/Set
- 999.00 INR/Set
Electronic Textile Test Equipment / Yarn Wrap Length Measuring Device Product Specifications
- Semi-automatic
- Hospital & Laboratory
- Yes
- 50-60 Hertz (HZ)
- 110-215 Volt (v)
- MS
- Electric
- Good Quality
Electronic Textile Test Equipment / Yarn Wrap Length Measuring Device Trade Information
- shenzhen
- Paypal, Telegraphic Transfer (T/T), Western Union
- 300 Set Per Month
- 7 Days
- Contact us for information regarding our sample policy
- Standard Exporting Package
- All India
- ISO
Product Description

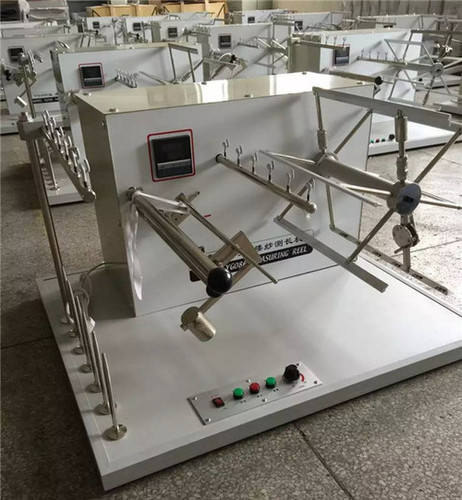

Digital Electronic Yarn Wrap Reel Testing Machine, Yarn Count Measuring Machine/ Instrument
Product application
This product is in conformity with the national standard GB4743 Textiles-Yarn from packages-Determination of linear density (mass per unit length) by the skein method.
Major specifications
- Number of bobbins measurable simultaneously: 6 bobbins
- Bobbin distance: 60 mm
- Reel circumference: 1,000mm +1mm
- Reel speed: (30-250) r/min, infinite variable speed
- Selectable number of turns in a skein: 2 - 9999 turns
- Reciprocal traverse movement range for reeling: 35mmTension range by single yarn reeling: (0-100) cN
- Power supply: voltage: 220 V, frequency: 50Hz
- Overall dimensions (L * W * H): 780mm * 660mm * 480mm
- Total weight of product: 55kg
Product Structure
1. Reel
The reel consists of 6 lobes, which enable the skein to get a hexagonal shape when the yarn is winded on the reel. One of the lobes is designed with a movable structure so that the skein can be taken down conveniently to avoid tension effect on the skein during doffing
2. Tension of reeling
A tension regulator consisting of two open-type parallel tension regulating rods is used to regulate
the tension of reeling through varying the wrapping angle of the yarn on the tension rod. And the tension is measured at the same time by a lever-type tension scale.
3. Drive system
The drive system is installed in a casing to prevent it from dust contamination and ensure its reliability during operation. The rotary movement of the reel and the reciprocal traverse movement for reeling are driven separately by two independent motors.
3.1 Reel drive
The reel is driven by an independent DC motor through a carrying shaft and a pair of belt pulleys. The rotational speed of the reel can be varied infinitely by the electric control. The reel can start smoothly and slow down by itself when entering into the last turn of a preset number of turns before it stops automatically at the preset number of turns. The reel can stop at a specified position properly and smoothly.
3.2 Reciprocal traverse movement for reeling
A cam is driven by an independent synchronous motor at a constant speed to push the traverse thread guide to make traverse movements reciprocally at a constant speed, so that the yarn is winded in a reciprocal traverse movement. The wide range of this reciprocal traverse movement makes it possible to reduce the number of overlapped layers in yarn winding.
4. Control device for the number of turns in a skein
The number of turns in a skein is preset by a manual dial on the computer. The number of turns that is being completed by the reel is picked up by a non-contact switch and converted into a signal, which is displayed in digital form on the counter as the number of turns realized by the reel. The precise counter ensures that the number of turns in a skein can be selected and controlled in a correct manner.
Advanced Semi-Automatic Measurement
The yarn wrap length measuring device boasts semi-automatic functionality, making textile testing faster and more refined. Automation minimizes manual intervention, thereby increasing the accuracy of results and improving laboratory productivity. Its good quality standards provide confidence for repeatable and reliable measurements every time, benefitting both small labs and large scale manufacturers.
Reliable Power and Sturdy Build
Operating on a standard electric supply within a 110-215 volt range and a frequency of 50-60 Hz, this equipment integrates seamlessly into varied lab settings. Constructed from durable mild steel (MS), it withstands intensive daily use, assuring extended service life and minimal maintenance requirements, making it an optimal choice for professionals in the textile industry.
Versatile Application Across Industries
Ideal for use in hospitals, laboratories, and textile testing centers, the device meets comprehensive assessment needs. Distributors, exporters, manufacturers, suppliers, and traders can rely on its precision for a wide range of textile materials, ensuring superior control of quality parameters at every production stage.
FAQ's of Electronic Textile Test Equipment / Yarn Wrap Length Measuring Device:
Q: How is the yarn wrap length measured using this semi-automatic device?
A: The device is designed to wrap yarn around a calibrated board or drum, with the semi-automatic mechanism managing the process to reduce manual error. Results are precisely determined according to standardized settings, helping users achieve consistent and repeatable measurements.Q: What are the key features that ensure the good quality of the measuring device?
A: Key features include its sturdy mild steel (MS) construction, the reliable electric operation within a safe voltage and frequency range, as well as automation for enhanced precision and reduction of operator fatigue, making it a dependable tool for textile testing.Q: Where is this equipment typically used?
A: This yarn wrap length measuring device is widely used in textile testing laboratories, hospitals, research institutes, and manufacturing facilities for quality control and experimental purposes where accurate measurement of yarn length is critical.Q: When should labs consider upgrading to a semi-automatic measurement device?
A: It is advisable to consider upgrading when manual measurement slows testing processes, or when enhanced accuracy and reduction in human error are necessary to meet industry standards and improve operational efficiency.Q: What process does the device follow to ensure accurate results?
A: The semi-automatic system ensures yarn is wrapped under controlled tension and consistent speed, with a precise count of revolutions, leading to standardized measurements every time.Q: What are the primary benefits of using this semi-automatic yarn wrap length measuring device?
A: Primary benefits include improved testing efficiency, lower risk of manual errors, enhanced reproducibility of results, robust device longevity, and suitability for diverse environments due to its wide operational voltage and sturdy material.Tell us about your requirement
