Double Rolling Mill Machine PVC Rubber and Plastic Lab Roll Mill
6615.0 USD ($)/Set
Product Details:
- Measuring Range 2 Celsius (oC)
- Dimension (L*W*H) 340*300*700 Millimeter (mm)
- Power Supply 3 , AC380V, 22A three-phase five-wire
- Voltage 380 Volt (v)
- Material color masterbatch
- Accuracy . C
- Features Good Quality
- Click to view more
X
Double Rolling Mill Machine PVC Rubber and Plastic Lab Roll Mill Price And Quantity
- 6615.0 USD ($)/Set
- 1 Set
Double Rolling Mill Machine PVC Rubber and Plastic Lab Roll Mill Product Specifications
- 3 , AC380V, 22A three-phase five-wire
- 340*300*700 Millimeter (mm)
- 2 Celsius (oC)
- Good Quality
- 375 Kilograms (kg)
- . C
- color masterbatch
- electricity
- 380 Volt (v)
Double Rolling Mill Machine PVC Rubber and Plastic Lab Roll Mill Trade Information
- shenzhen
- 300 Set Per Month
- 10 Days
- standard exporting wooden package
- All India
- ISO9001 2015
Product Description

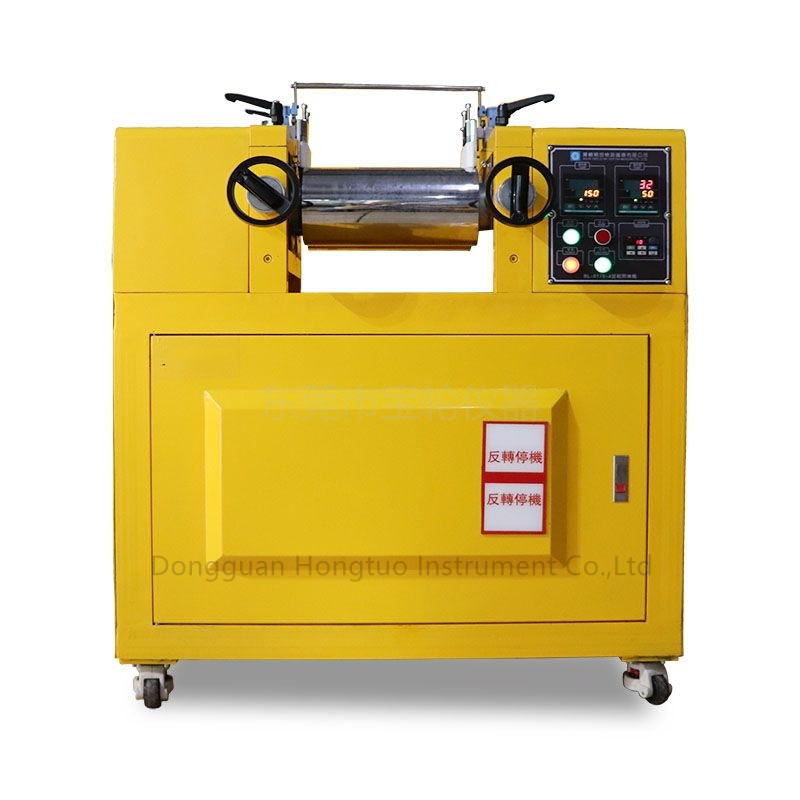

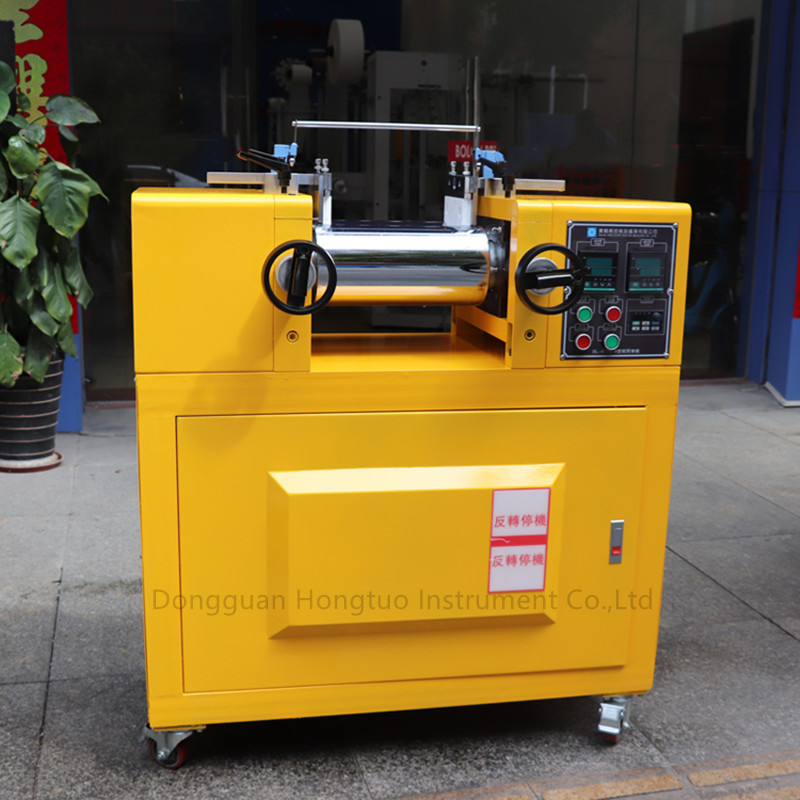

Double Rolling Mill Machine PVC Rubber and Plastic Lab Two Roll Mill for Sale
It is suitable for plasticizing and dispersing for color master batch, PVC, plastic and pigment. The machine adopts special mold for electric heating.
Tool, double-roller mirror chrome plating, uniform temperature. The frequency converter installed in this machine can adjust the roller's speed at will.
Speed to meet the dispersion of raw materials of different formulations.
Specification:
- Temperature range: normal temperature-300 degree
- Thermostat: LED digital display, key setting input, digital display output
- Heating method: imported electric heating tube (three-stage heating)
- Heating time: about 25min from room temperature to 200 degree
- Roller size: 120*L320mm
- Roller spacing: 0 - 6mm adjustable
- Roller speed: 0-28r/min single frequency converter speed regulation (Taiwan Zhongchen)
- Roller surface: HRC58-62 mirror chrome plating
- Rotation ratio: 1:1.27
- Power: 9KW (motor 1.5KW)
- Safety protection: pull rod emergency stop, knee top reversal and other security devices
- Volume: 990*430*1150 (W*D*H)mm
- Power supply: AC380V, 22A three-phase five-wire (customer-provided power connection port)
- Weight: about 375kg
Accessories:
1 scraper and 1 tray each;
1 copy of the product manual and 1 quality card;
1 oil gun.
Reliable Performance for Lab-Scale material Processing
The Double Rolling Mill Machine excels in laboratory applications due to its exceptional build quality and accurate temperature controls. Designed with efficient operations in mind, it seamlessly handles PVC, rubber, plastics, and color masterbatch materials. Its compact dimensions ensure a space-saving fit in most workspaces while maintaining robust performance for reliable, repetitive testing or sample creation.
User-Friendly, Electrically Controlled Operation
With a fully electric control system, this lab roll mill simplifies the process for users. The three-phase, five-wire AC380V power supply ensures stable and efficient operation, even during prolonged laboratory routines. Setup and usage are designed for straightforward operation, minimizing training time and maximizing productivity for lab technicians and researchers.
FAQ's of Double Rolling Mill Machine PVC Rubber and Plastic Lab Roll Mill:
Q: How is the Double Rolling Mill Machine used for processing materials in the lab?
A: The Double Rolling Mill Machine is primarily used for mixing, homogenizing, and processing materials such as PVC, rubber, plastic, and color masterbatch. By passing these materials between two rollers under controlled temperature and pressure, users can create uniform mixtures ideal for further analysis or production.Q: What features make this rolling mill suitable for laboratory work?
A: This machine offers controlled electronic operation, accurate temperature regulation within a 2C range, and a compact design (340*300*700 mm), making it particularly suitable for laboratory environments focused on research or quality testing.Q: When should I consider using this roll mill instead of a larger industrial model?
A: This roll mill is ideal when working with small batches, performing R&D, quality control, or creating material samples in a laboratory context, where precise process control and compact size are critical.Q: Where is this Double Rolling Mill Machine manufactured and distributed from?
A: The machine is manufactured, exported, and distributed by a reputable supplier based in China, serving global laboratories requiring advanced material mixing solutions.Q: What is the process for setting up and operating this machine?
A: To set up, connect the device to a three-phase, five-wire AC380V power supply and ensure proper grounding. After setup, operators can use the electronic control mode to set parameters like temperature and roller speed, then load materials for processing.Q: What are the main benefits of using this machine in laboratory settings?
A: Key benefits include precise and consistent mixing of materials, user-friendly electronic controls, reliable electric operation, and a sturdy design that ensures long-term use with minimal maintenance.Tell us about your requirement
