Water Resistance Waterproof Equipment Rain Spray Test Chamber

2399.00 - 7999.00 USD ($)/Set

Get a Price/Quote

Product Details:

Response Time 1 second
Test Range IPX1 IPX4
Port Size DN25
Specimen Size Max. 500500500 mm
Gas Pressure 0.5~0.8 MPa
Hardness Chamber Material: SUS304 Stainless Steel
Power Supply 220V / 50Hz
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Water Resistance Waterproof Equipment Rain Spray Test Chamber Price And Quantity

Price Range 2399.00 - 7999.00 USD ($)/Set
Minimum Order Quantity 1 Set

Observation Window Large Viewing Glass Window with Anti-fog Heater
Ambient Temperature Range +5°C to +35°C
Equipment Type Rain Spray Test Chamber
Data Output USB Data Export
Lighting Interior LED Lighting
Compliance Standards IEC 60529, ISO 20653, JIS D0203
Spray Nozzle Type Customizable (Compliant to IEC60529 and ISO20653)
Door Type Single Door with Sealed Gasket
Water Consumption Approximately 10-15 L/h
Chamber Material SUS304 Stainless Steel (Interior & Exterior)
Safety Protection Overload, Over-temperature, Water Leakage, Short Circuit
Spray Angle Adjustability 0° to 360°
Installation Requirement Level Floor, Water Inlet & Drainage Access
Timer Control Programmable Time Setting
Water Circulation System Equipped with Efficient Recycling Pump

Water Resistance Waterproof Equipment Rain Spray Test Chamber Product Specifications

Machine Weight Approx. 250 kg
Frequency 50 Hz
Display Type Digital Display, Touchscreen
Number of Specimens 1~6 positions
Operating Voltage 220V AC
Test Width 600 mm
Power Supply 220V / 50Hz
Usage IP Spray / Rain Test for Product Enclosures
Gas Pressure 0.5~0.8 MPa
Hardness Chamber Material: SUS304 Stainless Steel
Specimen Size Max. 500500500 mm
Test Range IPX1 IPX4
Response Time 1 second
Port Size DN25
Temperature RT +10C to 60C
Accuracy 1% Full Scale
Mounting Type Floor Standing
Max Height 1800 mm
Application Waterproof Testing for Electronic, Electrical Components, Automotive Parts
Capacity 200 Liters
Control Mode Touch Screen PLC Controller
Automation Grade Automatic
Interface Type RS232/USB
Measuring Range 0-999 minutes timer
Features High Accuracy, Programmable, Easy Operation, Multi-language Support
Equipment Type Water Resistance Waterproof Equipment Rain Spray Test Chamber
Test Stroke 0 - 500 mm
Resolution 0.1 mm
Humidity Adjustable, up to 98% RH
Test Speed Adjustable, 1-5 mm/min

Observation Window Large Viewing Glass Window with Anti-fog Heater
Ambient Temperature Range +5°C to +35°C
Equipment Type Rain Spray Test Chamber
Data Output USB Data Export
Lighting Interior LED Lighting
Compliance Standards IEC 60529, ISO 20653, JIS D0203
Spray Nozzle Type Customizable (Compliant to IEC60529 and ISO20653)
Door Type Single Door with Sealed Gasket
Water Consumption Approximately 10-15 L/h
Chamber Material SUS304 Stainless Steel (Interior & Exterior)
Safety Protection Overload, Over-temperature, Water Leakage, Short Circuit
Spray Angle Adjustability 0° to 360°
Installation Requirement Level Floor, Water Inlet & Drainage Access
Timer Control Programmable Time Setting
Water Circulation System Equipped with Efficient Recycling Pump

Water Resistance Waterproof Equipment Rain Spray Test Chamber Trade Information

FOB Port Shenzhen
Supply Ability 300 Set Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Water Resistance Waterproof Equipment Rain Spray Test Chamber

Specification

Name: IPX3/4/5/6 rain test chamber

Model number: DH-IPX3.4.5.6-1000

Internal dimensions: W1000 x H1000 x D1000mm (W stands for width, H stands for height, D stands for depth)

Weight: about 300kg

Power source: AC380V three-phase 50HZ

Technical Parameters

Test range: IEC60529 IPX3-IPX4-IPX5-IPX6

Water temperature range: The spray water level is the ambient temperature.

Spray method: IPX3-IPX4 pendulum rain, IPX5-IPX6 spray rain

Spray flow: IPX3, X4 water flow per hole 0.07L / min

Swing tube: semi-circular swing tube 180 degree

Swing tube radius: R300 mm

Swing tube inner diameter: 16mm

Swing tube swing: 90 degree front and back, the angle can be arbitrarily set within a total range of 180 degree

Spray pendulum tube cycle: 1 - 20 times / minute adjustable

Nozzle placement: The nozzles are distributed on 90 degree arcs on both sides of the vertical plane.

Nozzle pitch: 50mm

Nozzle aperture: IPX3, X4: 0.4mm IPX5: 6.3mm IPX6: 12.5mm

Sample turntable size: 350mm

Speed of sample turntable: 1 - 20r / min adjustable

Sample carousel load: 20kg

Versatile and Customizable Testing Capabilities

This rain spray chamber boasts a customizable spray nozzle arrangement, adjustable spray angle from 0 to 360, and test stroke up to 500 mm, ensuring full adaptation to various waterproof testing needs. Its advanced control mode via a responsive touchscreen PLC lets operators seamlessly set parameters for different compliance standards, from IEC60529 to ISO20653 and JIS D0203.

User-Centric Design with Enhanced Safety

Designed for easy observation, the large anti-fog glass window and bright interior LED lighting ensure clear specimen visibility throughout testing. The built-in overload, over-temperature, water leakage, and short-circuit protections guarantee safe operation, while the ergonomic single door with sealed gasket maintains an optimal test environment.

Efficient Data Management and Easy Operation

The chamber integrates a USB interface and RS232 port for straightforward data export, with a programmable digital display showcasing real-time conditions. Users benefit from intuitive, multi-language touch screen operation, precise control over humidity and temperature, and reliable automated test cycles, making it ideal for high-throughput laboratories and manufacturers.

FAQ's of Water Resistance Waterproof Equipment Rain Spray Test Chamber:

Q: How does the rain spray test chamber simulate real-world waterproof testing conditions?

A: The test chamber replicates rain spray and water ingress scenarios by using customizable spray nozzles and adjustable spray angles (0 to 360), delivering water at controlled rates from 10-15 L/h. Automated controls and programmable test speeds simulate a range of ambient and environmental conditions in line with IEC 60529, ISO 20653, and JIS D0203 standards.

Q: What materials and specimen types can be tested in this chamber?

A: The chamber is suitable for testing electronic devices, electrical components, and automotive parts that require waterproof certification. It can accommodate specimen sizes up to 500500500 mm, supporting up to six items simultaneously, and ensures robust testing with adjustable humidity and temperature settings.

Q: When should I use this chamber for my product validation process?

A: It is recommended to use the Rain Spray Test Chamber during product development and final quality assurance stages, especially before market launch or regulatory inspections. Early testing helps detect waterproofing weaknesses, ensuring compliance and reducing the risk of costly recalls or failures.

Q: Where can the chamber be installed, and what installation requirements must be met?

A: This equipment is designed for laboratories, manufacturing facilities, or quality control departments. Ensure installation on a level floor with appropriate water inlet and drainage connections, and convenient access to a 220V/50Hz power supply. The floor-standing design facilitates straightforward setup.

Q: What is the typical process for running a waterproof test using this chamber?

A: Testing involves mounting the specimen in the chamber, configuring parameters via the touchscreen controller (such as timer, spray angle, humidity, and temperature), and initiating the automated test cycle. Results are observed through the anti-fog window, with real-time data recorded for export or further analysis.

Q: How does the chamber's water circulation system benefit the testing process?

A: Equipped with an efficient recycling pump, the chamber minimizes water consumption while maintaining consistent spray conditions. This system supports continuous testing, reduces operating costs, and helps meet sustainability targets without sacrificing accuracy.

Q: What are the benefits of using this model compared to standard rain test equipment?

A: This chamber offers advanced programmability, high accuracy (1% full scale), large specimen capacity, adjustable environmental parameters, and multi-layered safety measures. It facilitates comprehensive and repeatable waterproof testing with convenient data management, making it ideal for compliance-driven industries.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Environmental Testing Chamber' category

Environmental Climatic Salt Spray Ageing Chamber 1200L Price Range : 1399.00 - 3999.00 USD ($)/Set Minimum Order Quantity : 1 Frequency : 50/60 Hz Power Supply : 220V/50Hz, single phase Temperature : Ambient to 60C Features : Multimode Test Cycles, Safety interlock, Overtemp Protection Number of Specimens : Up to 60 Operating Voltage : 220V AC Test Width : Internal chamber width: 1,200 mm Machine Weight : Approx. 250 kg Display Type : LCD Touch Screen Response Time : <3 seconds Test Range : NSS, CASS, and ACSS Method Port Size : Standard: 1 BSP Usage : Laboratory and Industrial Testing Specimen Size : Max 600 mm (L) x 400 mm (W) x 300 mm (H) Max Height : Internal Chamber Max Height: 600 mm Application : Corrosion, Paint, Plating, Coating Ageing Test Capacity : 1200 Liters Control Mode : Programmable Digital Controller Automation Grade : Automatic, programmable Mounting Type : Floormounted Accuracy : 0.5C Temperature; 2% Humidity Test Stroke : Variable; Customizable as per test program Resolution : 0.1C / 0.1% RH Humidity : 20%98% RH adjustable Test Speed : Adjustable, Standard up to 30 cycles/hour Interface Type : USB/RS232 Measuring Range : 0100% Salt Solution Concentration Equipment Type : Environmental Climatic Salt Spray Ageing Chamber Gas Pressure : 0.40.6 MPa Hardness : Corrosionresistant build

Send Inquiry

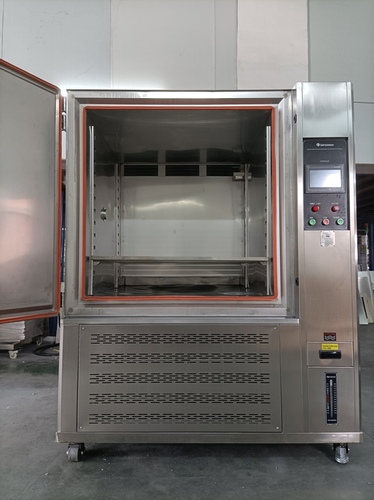

Top Quality Temperature and Climate Test Chambers Climatic Test Cabinet Price Range : 3599.00 - 8999.00 USD ($) Minimum Order Quantity : 1 Frequency : 50/60Hz Power Supply : AC 220V 10%, 50/60Hz Temperature : 0C/20C/40C/60C/70C~+100C(+150C) Features : Programmable, rapid cooling & heating, safety protection Number of Specimens : As per chamber size Operating Voltage : 220V AC single phase Test Width : 800 mm Machine Weight : Approx. 320 kg Display Type : 7 LCD touch screen display Response Time : Within 3 seconds Test Range : Temperature & Humidity Port Size : 50 mm (customizable) Usage : Electronics, automotive, aerospace testing Specimen Size : User defined Max Height : 1900 mm Application : Simulating environment for product reliability testing Capacity : 225 L Control Mode : PID microprocessor based control Automation Grade : Fully automatic Mounting Type : Floor mounted Accuracy : 0.3C; 2.5% RH Test Stroke : Adjustable Resolution : 0.1C / 1% RH Humidity : 20%RH98%RH Test Speed : 0.5C 10C/min (programmable) Interface Type : RS485/USB/Ethernet Measuring Range : 70C to +150C / 10% to 98% RH Equipment Type : Climatic Test Cabinet Gas Pressure : 0.05 0.2 Mpa Hardness : Stainless steel chamber (SUS304)
