Constant Temperature and Humidity Controlled Test Chamber Price

999.00 - 5999.00 USD ($)

Get a Price/Quote

Product Details:

Humidity 20%RH-98%RH
Gas Pressure Atmospheric, not pressurized
Port Size 50 mm (Cable Port)
Interface Type RS232/USB/Ethernet (optional)
Accuracy 0.5C (temp), 2% RH (humidity)
Operating Voltage 220V AC
Number of Specimens Multiple (as per tray arrangement)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Constant Temperature and Humidity Controlled Test Chamber Price Price And Quantity

Price Range 999.00 - 5999.00 USD ($)
Minimum Order Quantity 1 Set

Constant Temperature and Humidity Controlled Test Chamber Price Product Specifications

Operating Voltage 220V AC
Accuracy 0.5C (temp), 2% RH (humidity)
Humidity 20%RH-98%RH
Gas Pressure Atmospheric, not pressurized
Test Width 600 mm
Port Size 50 mm (Cable Port)
Interface Type RS232/USB/Ethernet (optional)
Test Stroke Adjustable
Display Type Digital LCD Touch Screen
Test Speed Variable, 0.1 - 5C/min (temp), 1%RH - 5%RH/min (humidity)
Response Time Within 30 seconds (for step change)
Number of Specimens Multiple (as per tray arrangement)
Temperature 0°C/-20°C/-40°C/-60°C/-70°C~+100°C(+150°C)
Resolution 0.1C / 0.1% RH
Power Supply AC 220V/50Hz
Frequency 50 Hz
Capacity 150 Liters
Automation Grade Automatic
Machine Weight 120 kg (approx)
Specimen Size Max 400 x 500 mm
Mounting Type Floor standing
Application Environmental testing for electronics, materials, pharma, etc.
Control Mode Microcontroller Digital Controller
Features Programmable, Over-temp protection, Safety Circuit, Viewing window, Internal lighting
Measuring Range Temp: -40C to +150C; Humidity: 20%-98% RH
Test Range Programmable for temperature/humidity cycling
Equipment Type Constant Temperature and Humidity Controlled Test Chamber
Usage Quality & reliability testing for environmental compliance
Max Height 1400 mm

Insulation Material Polyurethane Foam
Data Logging Inbuilt with external download
Refrigeration System Hermetic Sealed Compressor (CFC Free)
Operating Ambient Temp 5C to 35C
Alarm System Audio-Visual Over-temperature and Humidity Deviation Alarms
Humidity Generation Steam Generator
Chamber Material Stainless Steel (Inner), Powder Coated Steel (Outer)
Water Supply Mode Automatic with Water Tank
Cooling Medium R134a/R404A (environment friendly)
Caster Wheels Heavy Duty with Brakes
Shelf Type Stainless Steel Adjustable Shelves
Heater Type Nichrome Wire Heating Element
Door Type Single Door with Observation Window

Constant Temperature and Humidity Controlled Test Chamber Price Trade Information

FOB Port Shenzhen
Supply Ability 300 Set Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

Constant Temperature and Humidity Controlled Test Chamber Price

Product description

This equipment can keep the temperature and humidity setup by users.Its' value can be alternative changed through the software.The device is application to test and confirm the property of heat-resisting,cold-resisting,drying-resisting,humidity-resisting.,etc.It is widely used in the field of electron,electric equipment, communication, instrument, car, plastic,metal,food,chemical,building materials,medical,spaceflight.,etc.

Product features

(1)The outer case is made up of SUS304 steel plate.CNC processing molding,Beautiful design,Reacionless holder,easy operation

(2)Large LCD touching screen

(3)Adopt micro-computer temperature humidity controller.accuracy and reliability

(4)Large watching window;floodlight,of which can keep inside of chamber light;3 layers of vacuum glasses;can observe the status at any time

(5)Individual temperature limitation alarm system;automatically cut off when exceed temperature limitation;which can assure the safe testing

(6)Equipped with the testing hole with the diameter of 50mm at the both side of testing chamber.can be connected with outer power cable or signal cable

(7)Adopt high quality fixed PU running wheel in the bottle of machine

(8)New program temperature humidity chamber can save power more than 45% compared than the traditional type.can save responding time be around 50%.can deduct water consumption be around 80%

Main technical parameters

Model: DH-150

Interior dimensions: 50X60X50cm

Exterior dimenstions: 107X146X107cm

Internal volume(L): 150

Refrigerator: R404A R23 U.S.A HONEYWELL

Heater: Iron-chrome wire heater

Humidifier: Stainless steel sheathed heater

Water supply method: Water pump out system

Advanced Temperature and Humidity Control

This test chamber utilizes a microcontroller-based digital controller for highly accurate temperature and humidity regulation. The programmable cycling feature allows users to simulate a wide spectrum of environmental conditions, ensuring compliance for product testing amidst changing climates. The chamber covers a temperature range from -40C to +150C and a humidity span of 20% to 98% RH, offering exceptional flexibility for both standard and rigorous testing protocols.

Robust Construction and Smart Design

Designed with a stainless steel inner chamber and powder-coated steel exterior, the test chamber is insulated with high-performance polyurethane foam for optimal thermal efficiency. The single door features an observation window for easy monitoring, and the chamber is equipped with heavy-duty casters for mobility and brakes for stability. Stainless steel adjustable shelves and internal lighting enhance usability, while the inbuilt alarm and comprehensive safety circuits maximize operational protection.

Effortless Operation and Reliable Data Management

Operation is streamlined with automatic water supply, intuitive touch screen controls, and user-friendly sample access. Data logging is built-in, allowing secure recording and convenient external download. Additional interfaces such as RS232, USB, and Ethernet provide broad compatibility for remote monitoring and data integration, empowering users to achieve precise documentation of test cycles and results for quality assurance and traceability.

FAQ's of Constant Temperature and Humidity Controlled Test Chamber Price:

Q: How does the constant temperature and humidity test chamber ensure environmental stability during testing?

A: The chamber employs a microcontroller digital controller, a hermetically sealed compressor (using CFC-free refrigerants like R134a/R404A), and a steam generator for humidification. This combination delivers precise programmable temperature and humidity control with resolutions of 0.1C and 0.1% RH, maintaining environmental stability even during rapid cycling.

Q: What procedures are involved in setting up and operating the test chamber?

A: To operate the chamber, connect it to a 220V AC/50Hz mains supply, use the intuitive LCD touch screen to set test parameters, and load specimens on adjustable stainless steel shelves. The chamber's automatic water tank ensures consistent humidity, while alarms and safety circuits guard against deviations. The chamber is ready for use once desired cycling and safety parameters are established.

Q: When should this test chamber be used in the product development process?

A: The chamber is crucial during the quality assurance and reliability testing stages. By exposing products to controlled climate cycles, users can identify design flaws, material weaknesses, or component failures before products go to market, ensuring compliance with environmental standards.

Q: Where is the constant temperature and humidity test chamber most beneficial?

A: This equipment is most beneficial in electronic, material, pharmaceutical, research laboratories, and manufacturing quality control departments. It is suitable for any facility requiring precise climate conditions to validate product performance or durability under varying environmental challenges.

Q: What are the primary benefits of using this environmental test chamber?

A: Key benefits include improved product reliability, compliance with environmental standards, efficient testing due to fast response, and programmable cycles. Its robust construction, advanced safety systems, and versatile data management contribute to safe and accurate long-term operations.

Q: How is data recorded and retrieved from the chamber during testing?

A: The test chamber features an inbuilt data logging system for comprehensive parameter recording throughout test cycles. Data can be easily retrieved externally via RS232, USB, or Ethernet ports, allowing convenient analysis, audit, and reporting.

Q: What types of products and test specimens can be accommodated in the chamber?

A: The chamber accommodates multiple specimens, up to a maximum size of 400 x 500 mm, as arranged per tray. Its 150-liter capacity and adjustable shelves make it suitable for a broad range of product sizes across different industries.

Other Products in 'Environmental Testing Chamber' category

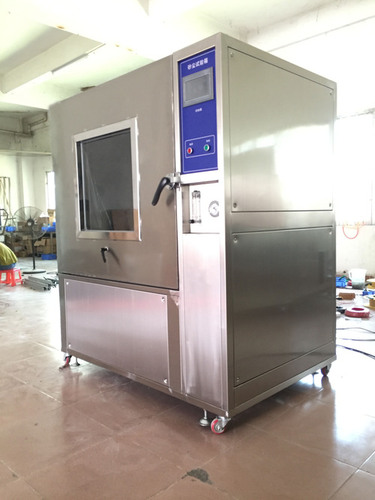

Sand Dust Proof Resistance Test Chamber Sand and Dust Test Equipment Price Range : 1399.00 - 5099.00 USD ($)/Set Minimum Order Quantity : 1 Automation Grade : Automatic Usage : Laboratory, Industrial Power Supply : AC 220V±10%, 50Hz Frequency : 50 Hz Control Mode : Programmable Touch Screen Controller Features : Programmable, Realtime Monitoring, Stainless Steel Chamber interior Operating Voltage : 220V AC Hardness : Chamber interior Shore D ≥ 70 Machine Weight : Approx. 150 kg Specimen Size : ≤ 500 mm × 500 mm × 500 mm Capacity : 1000 Liters Equipment Type : Sand Dust Proof Resistance Test Chamber Max Height : 1200 mm Application : Sand and Dust Resistance Testing for Electrical, Electronic, and Automotive Components Mounting Type : Floor Standing Test Range : IEC 60529, MILSTD810 standard Measuring Range : 0 ~ 10,000 particles / m³ Humidity : 35% ~ 85%RH Port Size : 100 mm Dia. Test Width : 600 mm Interface Type : RS232/USB Accuracy : ±2% Number of Specimens : Up to 8 specimens per test Response Time : ≤ 2 seconds Temperature : Ambient to 60°C adjustable Resolution : 0.01 mm Test Speed : Adjustable 0.1 ~ 8 m/min Display Type : Digital LCD Test Stroke : 500 mm
