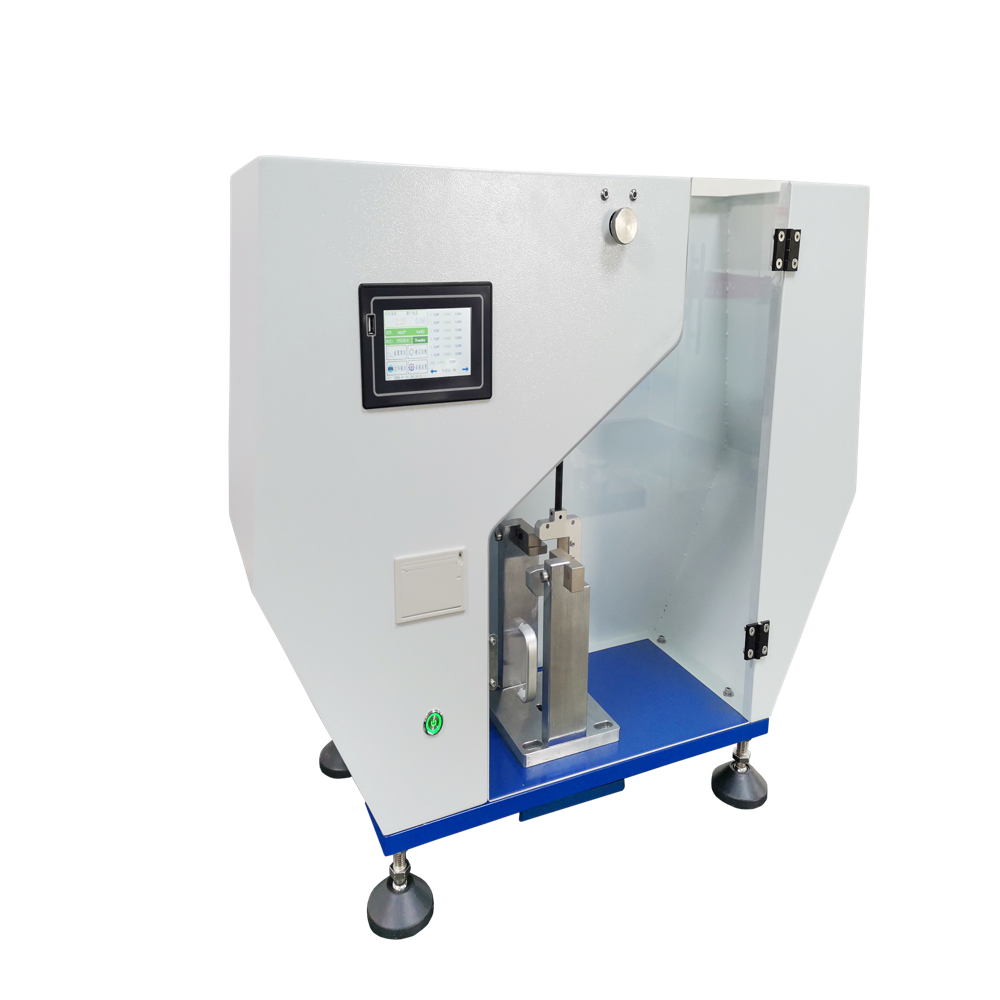

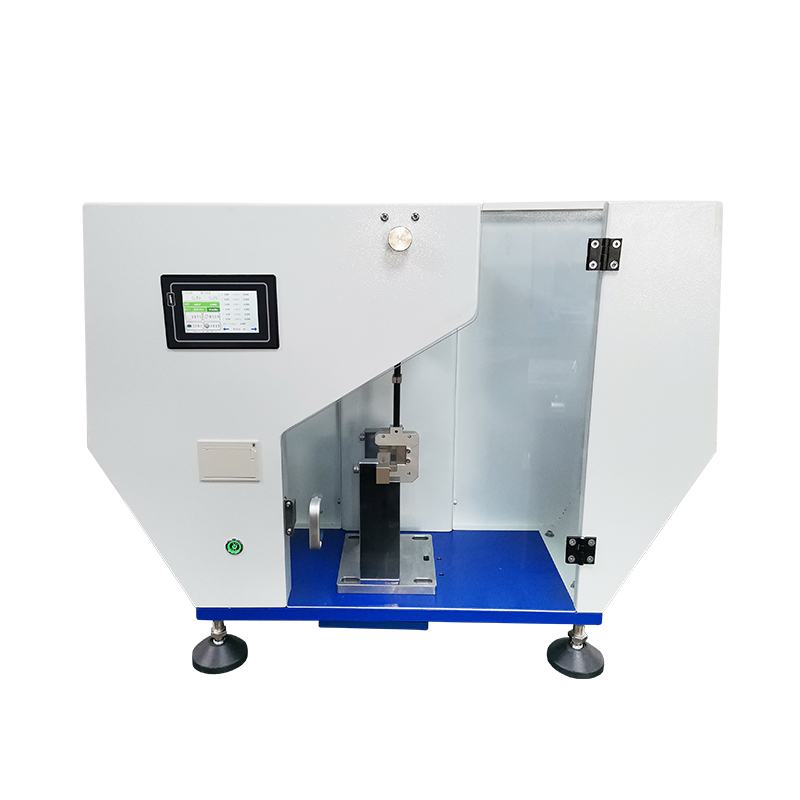

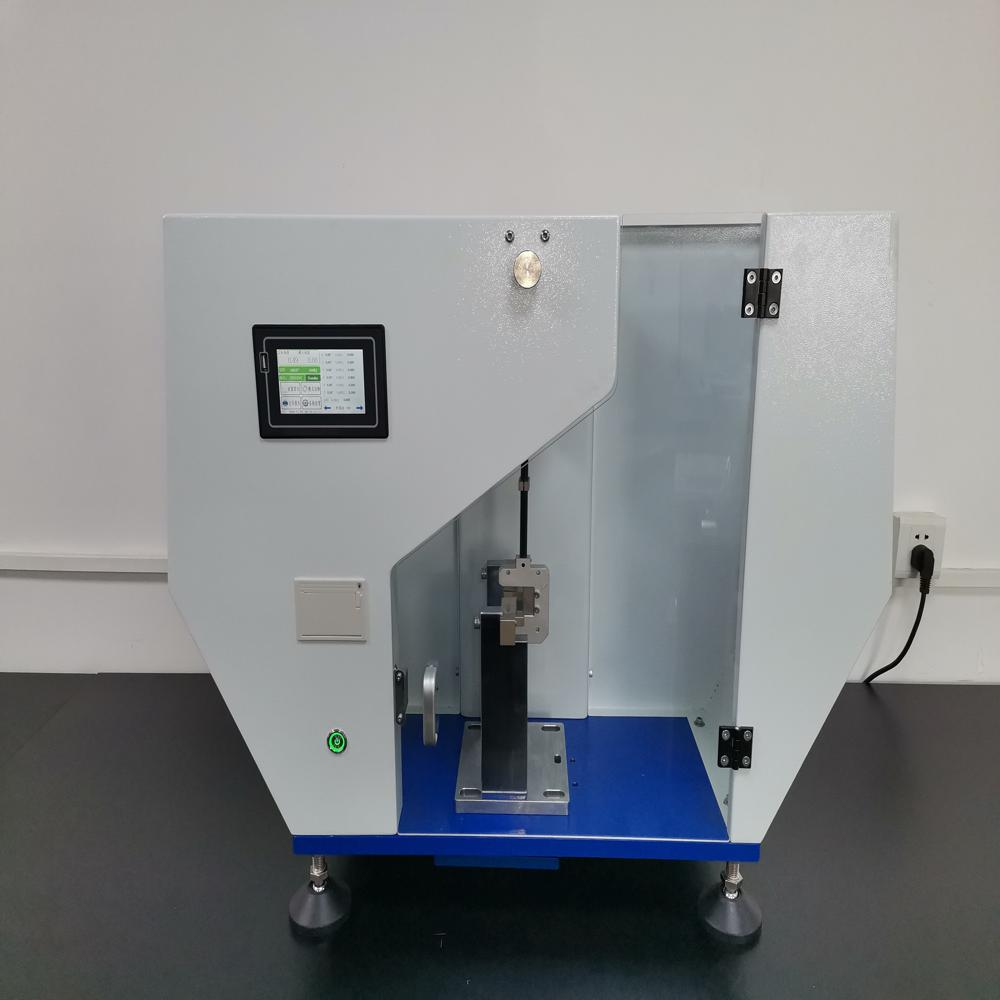

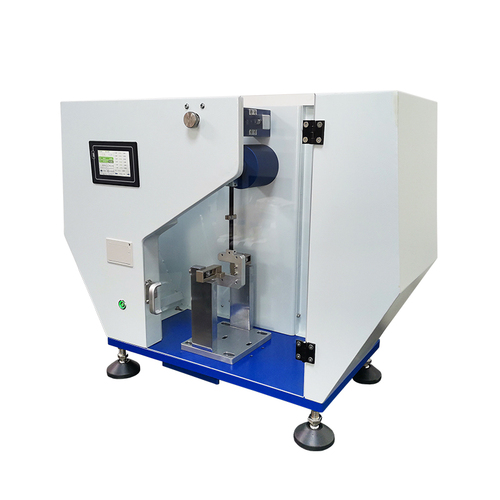

HT-1043-50D Popular Supplier Digital Plastic Charpy Impact Testing Machine

HT-1043-50D Popular Supplier Digital Plastic Charpy Impact Testing Machine

Name: HT-1043-50D Popular Supplier Digital Plastic Charpy Impact Testing Machine
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 1349.0 USD
Availability: InStock

1349.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Application Impact Testing of Plastic Materials
Number of Specimens 1
Frequency 50 Hz
Display Type LCD Digital Display
Temperature 5C ~ 40C
Port Size Standard
Resolution 0.01J
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

HT-1043-50D Popular Supplier Digital Plastic Charpy Impact Testing Machine Price And Quantity

Minimum Order Quantity 1 Unit
Price 1349.0 USD ($)/Unit
Price Range 999.00 - 2499.00 USD ($)/Unit

Data Output Support for Printer & PC Transfer
Fixture Type Adjustable Vee Block
Safety Protection Automatic Braking, Enclosed Structure
Net Weight 100 kg
Impact Blade Radius 2 mm
Dimension (LxWxH) 900 x 400 x 900 mm
Pendulum Angle 150
Pendulum Pre-lifting Mode Manual/Electric Optional

HT-1043-50D Popular Supplier Digital Plastic Charpy Impact Testing Machine Product Specifications

Operating Voltage 220V
Accuracy 1% F.S.
Automation Grade Automatic
Test Width 10 mm
Usage impact testing machine
Humidity 85% RH
Specimen Size 80 x 10 x 4 mm
Measuring Range 0.1J~50J
Power Supply 220V
Interface Type RS232/USB
Color white and blue
Test Range 0.5~50J
Max Height 700 mm
Response Time Instantaneous
Features Microcomputer Control, Auto Calculation
Equipment Type Digital Plastic Charpy Impact Testing Machine
Mounting Type Bench-top
Display Type LCD Digital Display
Frequency 50 Hz
Temperature 5C ~ 40C
Capacity 50J
Control Mode Digital
Port Size Standard
Resolution 0.01J
Test Speed 2.9 m/s
Application Impact Testing of Plastic Materials
Test Stroke 320 mm
Number of Specimens 1
Machine Weight 120 kg

Data Output Support for Printer & PC Transfer
Fixture Type Adjustable Vee Block
Safety Protection Automatic Braking, Enclosed Structure
Net Weight 100 kg
Impact Blade Radius 2 mm
Dimension (LxWxH) 900 x 400 x 900 mm
Pendulum Angle 150
Pendulum Pre-lifting Mode Manual/Electric Optional

HT-1043-50D Popular Supplier Digital Plastic Charpy Impact Testing Machine Trade Information

FOB Port shenzhen
Supply Ability 300 Unit Per Month
Delivery Time 7 Days
Packaging Details standard exporting wooden package
Main Export Market(s) Middle East, Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

Popular Supplier Digital Plastic Charpy Impact Testing Machine

Application:

This series of digital impact testing machine is mainly used for the

determination of impact toughness of non-metallic materials such as rigid plastics, reinforced nylon, FRP, ceramics, cast stone, electrical insulating materials, etc. It is the ideal testing equipment for the chemical industry, research institutes, universities, quality inspection, etc.

Features:

1. This series of impact testing machine is an intelligent digital display impact testing machine developed by micro-computer technology. It can automatically correct the energy loss caused by friction and wind resistance, and get rid of the numerical chart of energy correction due to the influence of resistance. (The detection of the residual energy of the pendulum and the correction of the energy loss after the sample breaks are completed once in the impact process).

2. This series of impact testing machines adopts electronic display test results to make the readings more intuitive and improve the accuracy and accuracy of the impact machine.

3.Using rotary encoder garden grating angle measurement technology, with advantage of high precision, good stability and large measurement range, digital displaying the thrust energy, impact strength, pre-elevation angle, elevation angle, average value, and energy loss automatic correction.

4.The swing arm is made of new carbon fiber material, the strength is higher than steel, and the weight is lighter than aluminum.

Standards:

The main technical parameters are in full compliance with the requirements of IS0 179-2000, GB/T 1043-2008, JB/T 8762-1998, GB/T 1451-2005, GB/T18743-2002

Specification:

Model: HT-1043-50D

Pendulum energy: 25J, 50J

Test angle: 150A

Impact speed: 3.8m/s

Pendulum center distance: 380mm

Impact blade angle: 30A

Jaw support spacing: 40mm, 60mm, 70mm, 95mm

Support blade corner radius: R=1mm

Advanced Digital Control for Accurate Impact Testing

The HT-1043-50D features a digital control system and microcomputer automation. Its LCD display delivers instant, precise readings, while the auto calculation feature simplifies result processing. This advanced setup ensures high accuracy in impact testing for plastic materials, meeting a wide range of laboratory and quality control requirements.

Versatile Pendulum Pre-lifting and Safety Mechanisms

With both manual and electric pendulum pre-lifting options, users can choose the method that suits their workflow best. Safety is prioritized through enclosed construction and automatic braking, offering secure testing of specimens and minimizing operator risk during impact measurements.

Flexible Data Output and Easy Integration

This machine supports effortless data transfer via RS232/USB interfaces and includes options for direct printer support. It integrates easily with laboratory IT infrastructure, enabling quick archiving and sharing of test results. The bench-top design and adjustable fixtures accommodate various specimen sizes, enhancing laboratory versatility.

FAQ's of HT-1043-50D Popular Supplier Digital Plastic Charpy Impact Testing Machine:

Q: How do I operate the HT-1043-50D for Charpy impact testing of plastics?

A: To operate the HT-1043-50D, prepare a specimen (80 x 10 x 4 mm) and secure it on the adjustable vee block fixture. Select the preferred pendulum pre-lifting mode (manual or electric), close the enclosure for safety, and use the digital control interface to initiate the test. Results are displayed instantly on the LCD screen.

Q: What data output and connectivity options are available for this machine?

A: The HT-1043-50D supports data output via RS232 and USB interfaces, allowing users to transfer test results to a computer or printer for documentation and further analysis. This facilitates data management and sharing in laboratory and industrial environments.

Q: When is this Charpy impact tester typically used in a laboratory?

A: This machine is commonly employed during quality control and research stages to assess the impact resistance of plastic materials. It is especially useful when standardized, repeatable measurements are required, such as before or after material modification or in compliance verification.

Q: Where can I place or install the HT-1043-50D testing machine?

A: Designed as a bench-top unit with compact dimensions (900 x 400 x 900 mm), the HT-1043-50D fits conveniently in laboratory or quality control workspaces. Ensure the area is dry, within the temperature range of 5C to 40C, and supplied with 220V, 50 Hz power.

Q: What is the process for changing from manual to electric pendulum pre-lifting mode?

A: You can switch between manual and electric pendulum pre-lifting modes via the control settings on the machine. Refer to the user manual for detailed instructions on safely changing modes and ensure the pendulum is at rest before making any adjustments.

Q: How does the HT-1043-50D improve the testing process compared to traditional models?

A: With its microcomputer control, automatic safety features, and precise digital display, this model streamlines the testing process. The auto calculation of results and flexible data transfer options reduce operator workload and minimize errors, enhancing efficiency and reliability in routine impact tests.

Q: What benefits does using this machine offer for quality control or research applications?

A: The HT-1043-50D provides rapid, accurate, and repeatable results for impact testing of plastics. Its robust safety features, automated controls, and support for data integration make it ideal for manufacturers, researchers, and exporters seeking reliable quality assessment and material profiling.
