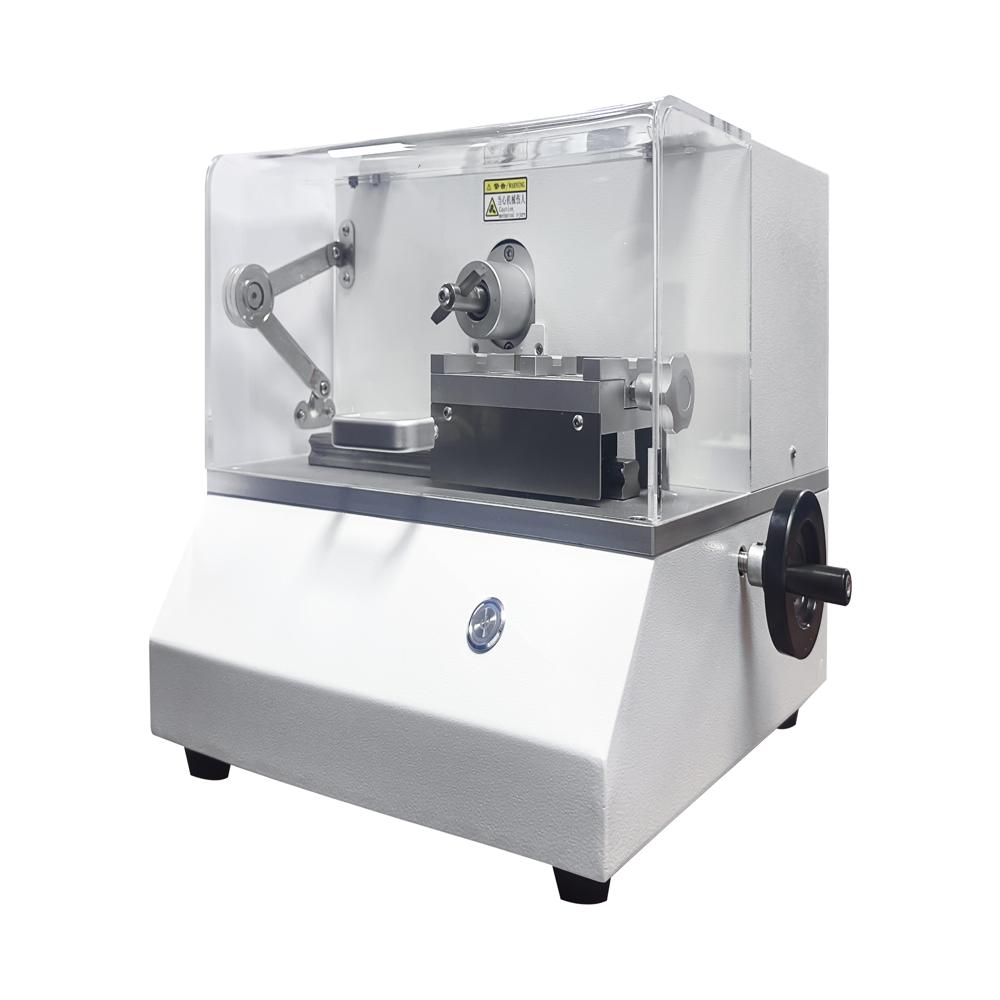

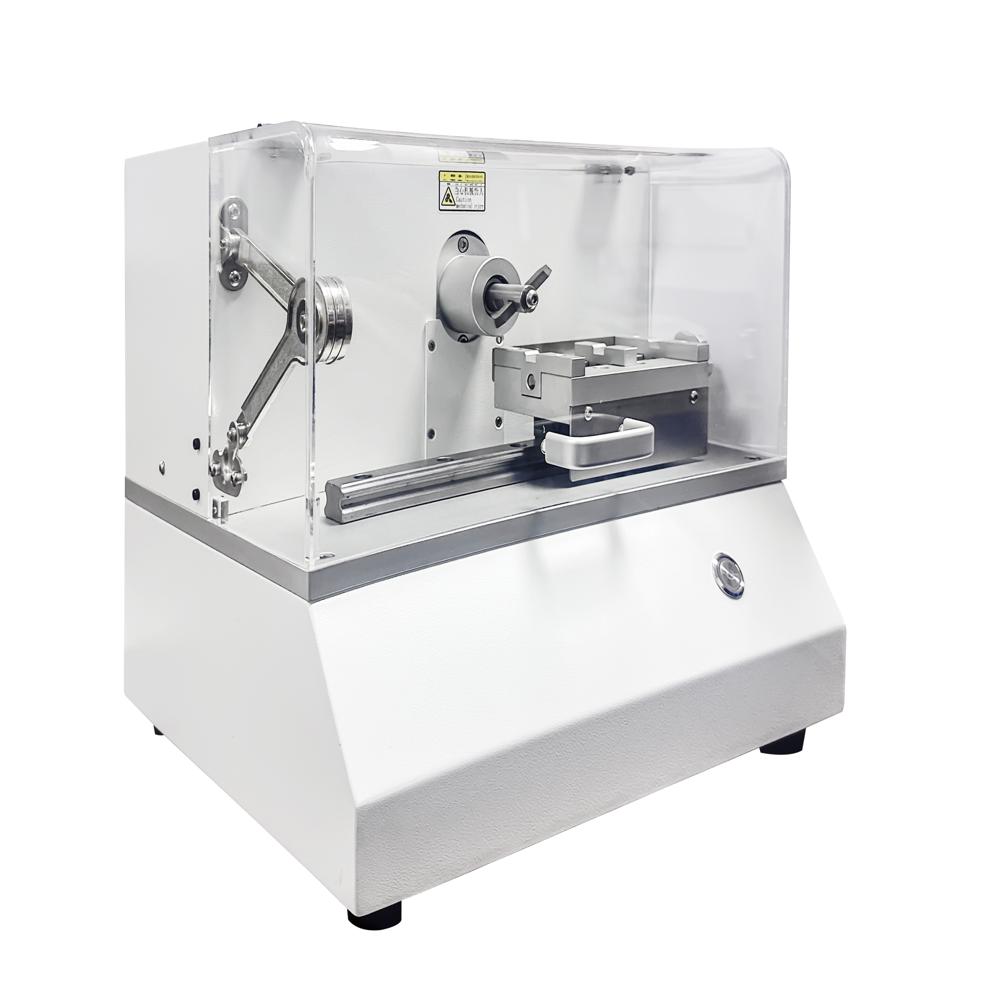

HT-1600-EL Electronic Notch Sampler Machine

HT-1600-EL Electronic Notch Sampler Machine

Name: HT-1600-EL Electronic Notch Sampler Machine
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 857.0 USD
Availability: InStock

857.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Features Precision notch cutting, Electronic microprocessor control, Robust construction
Display Type Digital (LCD)
Hardness Applicable to non-metals only
Equipment Type Electronic Notch Sampler Machine
Mounting Type Bench-top
Number of Specimens 1 per cycle
Test Range Varies with specimen type
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

HT-1600-EL Electronic Notch Sampler Machine Price And Quantity

Minimum Order Quantity 1 Unit
Price 857.0 USD ($)/Unit

Safety Emergency stop switch
Dimensions 350 × 300 × 210 mm
Noise Level <70 dB
Cutting Tool Type High-speed steel blade
Drive Type Stepper motor driven
Operation Mode Single/Groove cutting
Sample Placement Manual clamping
Motor Power 20W
Net Weight 25 kg
Cutting Depth 2.54 mm standard

HT-1600-EL Electronic Notch Sampler Machine Product Specifications

Humidity 80% RH
Gas Pressure 0.5 MPa
Interface Type Keypad control
Accuracy 0.02 mm
Application Notching of non-metallic material specimens (plastic, polymer, composite, etc.)
Test Width Notch Width: 2 mm
Specimen Size 80 10 4 mm (Standard)
Test Speed 30mm/min
Port Size 6 mm
Automation Grade Semi-automatic
Measuring Range 060 mm
Control Mode electronic
Usage Laboratory testing, material analysis
Power Supply 220 V AC
Max Height 200 mm
Product Type Non-metallic materials
Machine Weight 25 Kilograms (kg)
Resolution 0.01 mm
Temperature 10C 35C
Test Stroke 60 mm
Response Time Instantaneous
Operating Voltage 220V AC, 50/60 Hz
Mounting Type Bench-top
Number of Specimens 1 per cycle
Test Range Varies with specimen type
Frequency 50/60 Hz
Voltage 220 Volt (v)
Features Precision notch cutting, Electronic microprocessor control, Robust construction
Display Type Digital (LCD)
Capacity 1 sample
Hardness Applicable to non-metals only
Equipment Type Electronic Notch Sampler Machine

Safety Emergency stop switch
Dimensions 350 × 300 × 210 mm
Noise Level <70 dB
Cutting Tool Type High-speed steel blade
Drive Type Stepper motor driven
Operation Mode Single/Groove cutting
Sample Placement Manual clamping
Motor Power 20W
Net Weight 25 kg
Cutting Depth 2.54 mm standard

HT-1600-EL Electronic Notch Sampler Machine Trade Information

FOB Port Shenzhen
Payment Terms Telegraphic Transfer (T/T)
Supply Ability 10 Unit Per Week
Delivery Time 7 Days
Sample Available No
Sample Policy Contact us for information regarding our sample policy
Packaging Details Wooden box
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal
Certifications CE,FCC

Product Description

1. Product Model: HT-1600-EL

2. Application Field:

The electronic notching machine is used for the sample preparation of the non-metallic material when it is did the impact toughness testing by izod impact tester or the charpy impact tester, can be used for scientific research institutions, universities and colleges, non-metallic materials production plants and other units of the laboratory to make notch samples.

3. Basic Standard:

ISO180 "Plastics - Determination of Izod Impact Strength of Rigid Materials"

GB/T1843 "Izod Impact Test Method for Rigid Plastics"

JB/T8761 "Plastic Izod Impact Testing Machine"

ASTM D256 "Test method for determining the impact strength of plastic IZOD pendulum"

ISO179 "Plastics - Determination of Charpy Impact Strength of Rigid Materials"

GB/T1043 "Rigid Plastic Charpy Impact Test Method"

JB/T8762 "Plastic Charpy Impact Testing Machine"

4.Specifications:

1.Workbench stroke: 90mm

2.Feed speed: 30mm/min

3.Sample type:model, model, model

4.Notch type: A Model, B Model (optional), C Model (optional)

5.Cutting tool parameters of notching machine:

A Model 451 r=0.25mm0.05mm

B Model 451 r=1.0mm0.05mm

C Model 451 r=0.1mm0.02mm

Precision Notching with Advanced Control

The HT-1600-EL ensures exceptional notch cutting with its high-speed steel blade and stepper motor-driven mechanism. Electronic microprocessor management and a digital display provide instant feedback and easy control, enabling accurate sample preparation every time. The robust construction and precise control make it a reliable addition to any materials laboratory, supporting consistent specimen testing.

Safety and Ease of Use for Laboratory Environments

Designed with user safety in mind, the HT-1600-EL features an emergency stop switch and noise levels below 70 dB, creating a secure and quiet work area. Semi-automatic functionality paired with manual clamping gives users full control over sample handling, while intuitive keypad controls and clear LCD feedback streamline the entire notching process.

Versatile Application Across Non-Metallic Materials

Supporting a test range tailored to various specimen types, the HT-1600-EL is suited for laboratories handling plastics, polymers, and composite materials. With its adjustable cutting settings and precise measurements, the machine is ideal for distributors, exporters, manufacturers, suppliers, and traders focused on rigorous material analysis in compliance with modern laboratory standards.

FAQ's of HT-1600-EL Electronic Notch Sampler Machine:

Q: How does the HT-1600-EL Electronic Notch Sampler Machine operate?

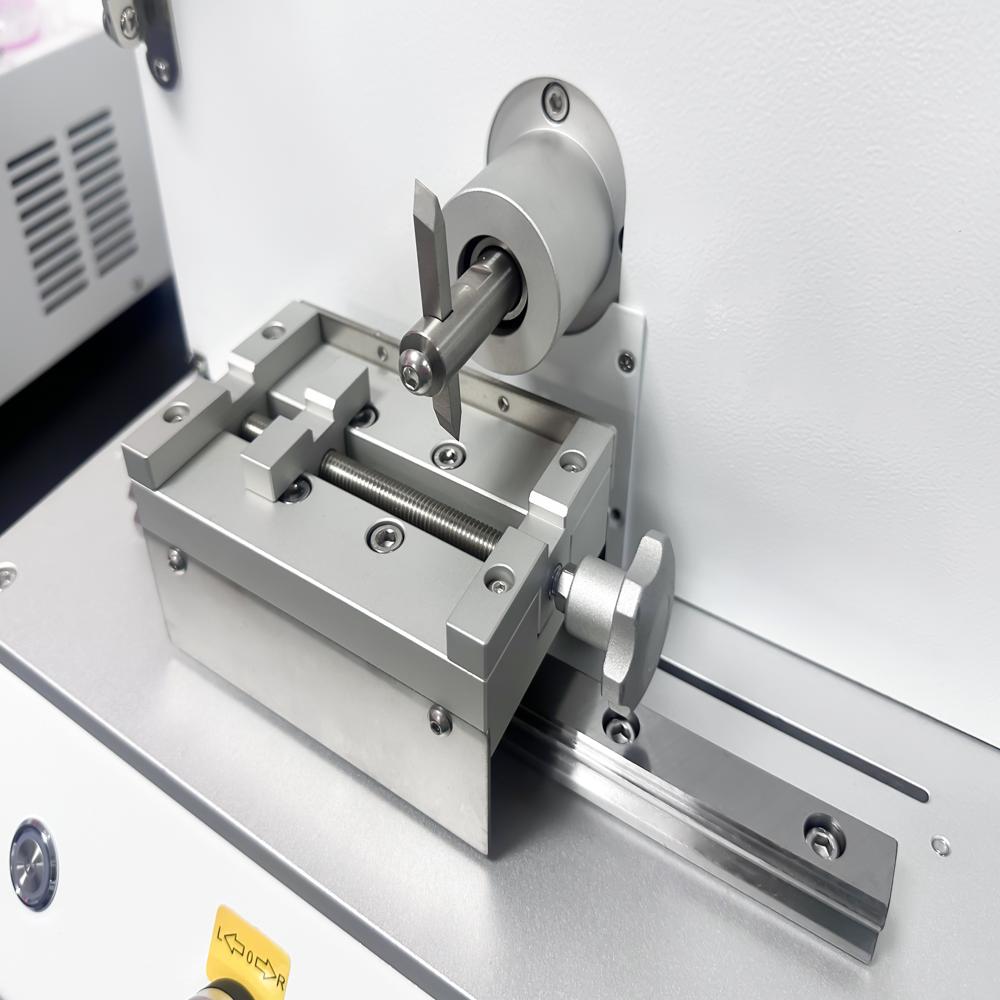

A: The machine utilizes a stepper motor to drive a high-speed steel blade, allowing for precise notch cutting in non-metallic specimens. Sample placement is achieved through manual clamping, and the process is controlled electronically via a digital LCD interface and keypad control for accuracy and ease of use.

Q: What materials can be tested with this notch sampler?

A: The HT-1600-EL is designed for notching non-metallic material specimens such as plastics, polymers, and composite materials. It is not suitable for metallic specimens due to its specialized blade and hardness capabilities.

Q: When should I use the single or groove cutting operation mode?

A: Single cutting mode is ideal when preparing individual notches in a specimen, while groove cutting is applicable if your testing protocol requires a continuous groove. Selection depends on your specific testing requirements and standards for your material analysis.

Q: Where can the HT-1600-EL be installed in a laboratory setup?

A: With its compact dimensions (350 300 210 mm) and bench-top mounting design, the HT-1600-EL is suitable for installation on any sturdy laboratory work surface, ensuring convenient access and safe operation within standard laboratory environments.

Q: What is the specimen capacity and size for each test cycle?

A: The HT-1600-EL is designed for single specimen testing per cycle, with a standard specimen size of 80 10 4 mm. This setup ensures precise and repeatable results for every sample processed.

Q: How does the machine ensure safe and reliable operation?

A: The machine incorporates an emergency stop switch for immediate shutdown, has a noise level below 70 dB for a comfortable environment, and features robust construction. Electronic microprocessor control enhances reliability and minimizes user errors during operation.

Q: What benefits does the HT-1600-EL offer for laboratory testing?

A: The machine delivers precision notch cutting with high accuracy (0.02 mm) and allows for rapid, repeatable specimen preparation. Digital controls and instantaneous response simplify operation, while semi-automatic features and robust safety mechanisms contribute to efficient and reliable laboratory workflows.
