DH-BTG Bottle Wall Thickness Tester

714.0 USD ($)/Set

Get a Price/Quote

Product Details:

Test Range 0-12.7mm
Accuracy 0.001 mm
Power No electricity need Watt (w)
Specimen Size No requirement Millimeter (mm)
Voltage No electricity need Volt (v)
Measuring Range / Rankine
Machine Weight 15 Kilograms (kg)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

DH-BTG Bottle Wall Thickness Tester Price And Quantity

Price 714.0 USD ($)/Set
Minimum Order Quantity 1 Set

DH-BTG Bottle Wall Thickness Tester Product Specifications

Machine Weight 15 Kilograms (kg)
Accuracy 0.001 mm
Test Range 0-12.7mm
Power No electricity need Watt (w)
Measuring Range / Rankine
Voltage No electricity need Volt (v)
Specimen Size No requirement Millimeter (mm)

DH-BTG Bottle Wall Thickness Tester Trade Information

FOB Port Shenzhen
Payment Terms Telegraphic Transfer (T/T)
Supply Ability 10 Set Per Week
Delivery Time 7 Days
Sample Policy Contact us for information regarding our sample policy
Packaging Details Carton box
Main Export Market(s) Middle East, Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe
Main Domestic Market All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal
Certifications CE,FCC

Product Description

Introduction:

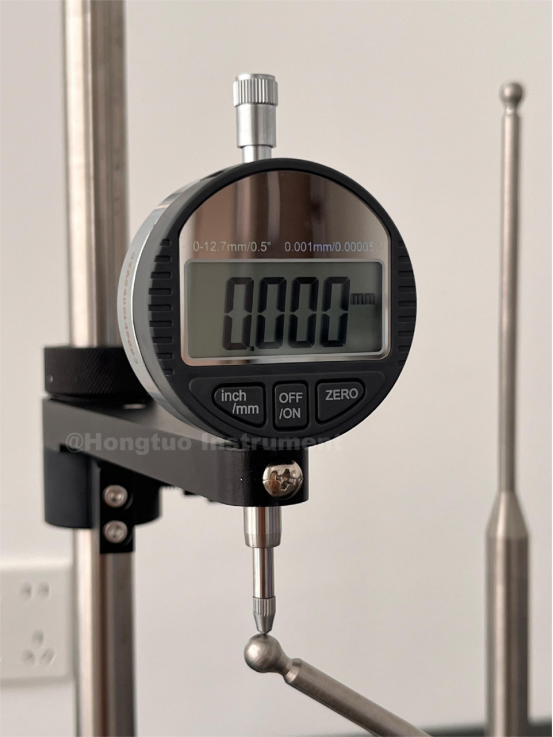

DH-BTG bottle wall thickness tester is an ideal measuring instrument for PET beverage bottles, cans, glass bottles, aluminum cans and other packaging containers; it is suitable for accurate measurement of wall thickness and bottom thickness of packaging containers with complicated texture. It has the advantages of convenience, durability, high accuracy, and low price. Widely used in glass bottle, plastic bottle / barrel manufacturing enterprises and pharmaceutical, health care products, cosmetics, beverages, edible oil, alcoholic beverage manufacturing enterprises.

Standards:

GB2637-1995,GB/T2639-2008,YBB00332002

Features:

1.Customized measuring rods for irregular specimens

2.Suitable for glass bottles, mineral water bottles, etc.

3.Bottle bottom and bottle wall thickness test completed in one machine

4.Super standard high precision meter

5.Mechanical design is simple and durable

6.Flexible measurement of large and small samples

7.LCD digital displaying

Specification:

Measuring range:0-12.7mm(other thickness can be custom made),0-25.4mm(optional)

Resolution: 0.001mm

Diameter of sample:<=150mm

Height of sample:<=300mm

Weight:15kg

Dimension:400*220*600mm
