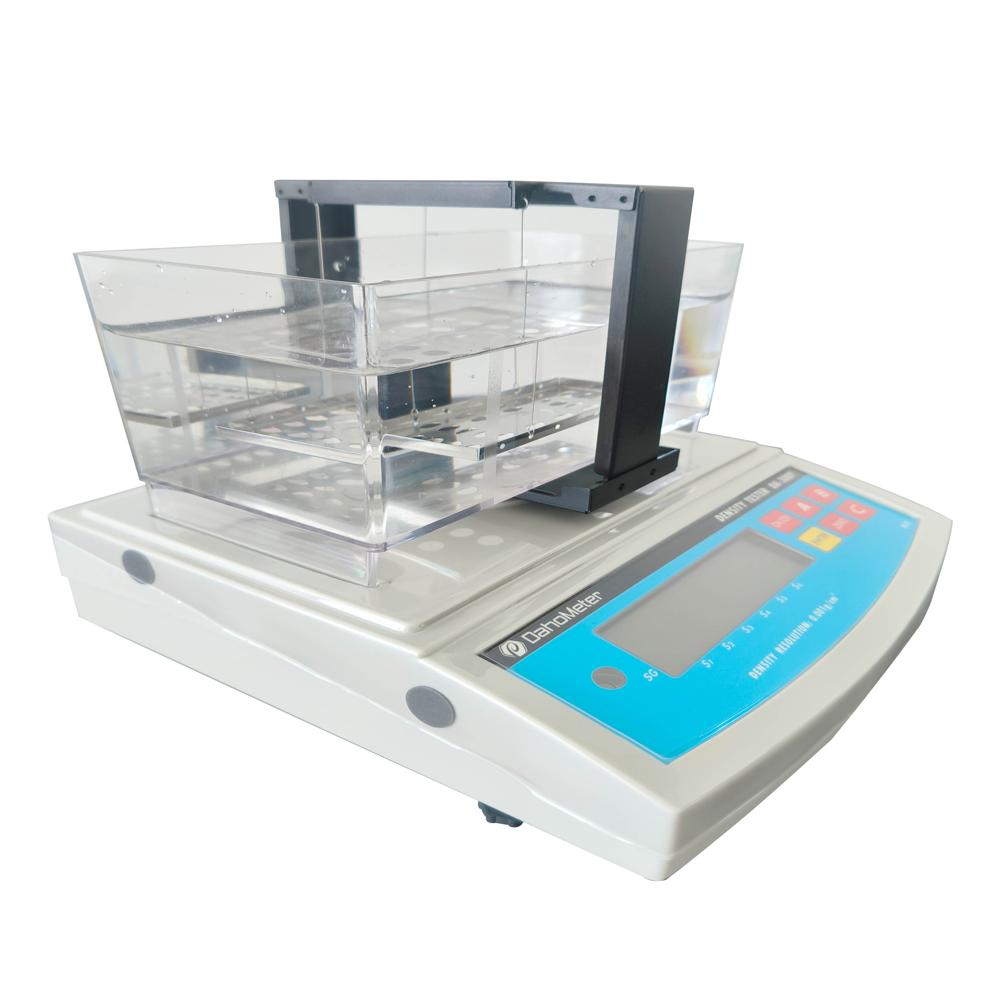

DA-M Series Quick Measuring Solids Density Meter Electrical Test Equipment

Product Description

DA-M Series Quick Measuring Solids Density Meter Electrical Test Equipment

Shorter measuring time,Multifunction,0.001 g/cm3 density resolution,Can be applied to porous material.

Application:

Rubber,Plastic,Wire and Cable,Tire,Powder,Ceramic,Magnetic Material,Field of quality management,cost control, rapid density test in site.Hard Alloy,New Material.

Standards:

In accordance with ASTM D792,ASTM D297,GB/T1033,GB/T2951,JIS K6268,ISO 2781,ISO 1183,GB/T208,JB/T7780 standards etc.

No need to open and close the lid with the completed aluminum alloy measuring table; Simple operation and conform to the new materials laboratory operation

specification; automatically judge whether the sample is qualified or not; Function of warning and measuring the volume abrasion value DIN of rubber,of Akron,and

expansibility; Measuring the true density with pycnometer method for powder material; Function of waterproofing treatment with boiling saturation method,impregnated saturation method,vacuum saturation method,surface sealing wax covering method,and surface vaseline covering method,and automatic measuring the porosity,oil content and water absorption; The purity of the main material in two kinds of mixture also can be measured.

Specification:

DA-300M

Measuring range: 0.001-99.999g/cm3

Minimum weight: 0.005g

Maximum weight: 300g

Resolution: 0.001 g/cm3

DA-600M

Measuring range: 0.001-99.999g/cm3

Minimum weight: 0.005g

Maximum weight: 600g

Resolution: 0.001 g/cm3

DA-900M

Measuring range: 0.001-9.999g/cm3

Minimum weight: 0.01g

Maximum weight: 900g

Resolution: 0.001 g/cm3

DA-1200M

Measuring range: 0.001-99.999g/cm3

Minimum weight: 0.01g

Maximum weight: 1200g

Resolution: 0.001 g/cm3

Features:

(1)No need to open and close the lid; Simple operation;Shorter time; According to the specification of new materials laboratory.

(2)Show the percentage composition of mixed samples for researching and developing new materials.Suitable for powder metallurgy,magnetic materials,ceramics,fireproofing materials,precious metal and so on.

(3)Automatically judge whether the sample is qualified or not;prompt alarm.

(4)Function of solution compensation.either water or liquid can be used as medium.

(5)Function of setting actual water temperature,measuring medium density,and water proof medium density.

(6)Function of setting aerostatic buoyancy compensation and the bound of density.

(7)Adopt the completed high-capacity measuring accessories with the transparent injection mould sink,which can resist wear,fall off,and corrosion.

(8)Adopt the completed special windproof and dustproof cover,which makes the instrument convenient and durable.

(9)Interface of RS-232C is included.the printer of DE-40 will be available to connect PC with the instrument.

Standard Accessories:

Host,Sink,Testing board,Tweezer,Thermometer,100G weight,Windproof and dustproof cover,A set of measuring granule accessories,A set of measuring floating body accessories,Power transformer

Measurement Procedure of Non-hydroscopicity Products:

(1) Place sample on testing board to measure weight in air,press ENTER key.

(2)Place sample into water to measure weight in water,press ENTER key.Density value will be displayed.

Measurement Procedure of Hydroscopicity Products:

(1)Place sample on testing board to measure weight in air,press ENTER key.

(2)Place sample that did waterproof treatment on testing board to measure weight in air.press ENTER key.

(3) Place sample that did waterproof treatment into water to measure weight in water,press ENTER key.Density value will be displayed.

Advanced Density Testing for Industry

The DA-M Series Density Meter offers innovative technology for quick and accurate measurement of solid materials. Its fully automatic operation ensures minimal user intervention while maintaining high precision. This equipment is fabricated using robust MS materials, making it durable for long-term industrial use. Designed to operate with a stable electric supply (220-240V), it is suitable for diverse manufacturing and testing sectors.


User-Friendly and Reliable Operation

Weighing just 4.5 kilograms, the DA-M Series is highly portable and easy to install in various laboratory or production line settings. Automatic features streamline testing, reducing manual errors and optimizing workflow efficiency. Adapted for different industrial applications, this device is a reliable choice for professionals seeking dependable measurement tools.
