Color Screen Digital Electronic Ultrasonic Thickness Meter

Color Screen Digital Electronic Ultrasonic Thickness Meter

299.00 - 599.00 USD ($)

Get a Price/Quote

Product Details:

Interface Type Probe Interface, USB (optional)
Test Range 1.2-225mm (in steel)
Application Measure the thickness of metals, pipes, and other ultrasonic conductive materials
Humidity 85% RH
Features Portable, high-contrast color display, data hold, auto power-off, low battery indication
Temperature -10C ~ 60C
Equipment Type Digital Electronic Ultrasonic Thickness Meter
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Color Screen Digital Electronic Ultrasonic Thickness Meter Price And Quantity

Minimum Order Quantity 1 Set
Price Range 299.00 - 599.00 USD ($)

Case Material ABS engineering plastic
Battery Life Up to 50 hours continuous use
Display Size 2.4 inch color TFT LCD
Memory Function Stores up to 500 readings
Operating Modes Normal and Scan modes
Alarm Function High and low thickness limit alarm
Backlight Adjustable LCD backlight
Data Output Optional USB data transfer for PC analysis
Material Compatibility Metals, plastics, ceramics, glass, and other ultrasonic conductive materials
Dimension 150 x 74 x 32 mm
Calibration Single point and two-point calibration

Color Screen Digital Electronic Ultrasonic Thickness Meter Product Specifications

Frequency 5 MHz (standard probe)
Usage Non-destructive thickness measurement
Machine Weight 5 Kilograms (kg)
Measuring Range 1.2 - 225 mm (in steel)
Response Time Instantaneous (1s)
Control Mode Manual and Automatic
Operating Voltage 3V (2 x 1.5V AA batteries)
Mounting Type Handheld
Power Supply 2 x 1.5V AA batteries
Number of Specimens Single or Continuous Measurement
Application Measure the thickness of metals, pipes, and other ultrasonic conductive materials
Temperature -10C ~ 60C
Humidity 85% RH
Features Portable, high-contrast color display, data hold, auto power-off, low battery indication
Interface Type Probe Interface, USB (optional)
Test Range 1.2-225mm (in steel)
Equipment Type Digital Electronic Ultrasonic Thickness Meter
Display Type Color LCD Screen
Test Speed 0.8~9.0 m/s (adjustable)
Port Size Standard probe connection port
Capacity Digital Surface Roughness Tester Kilogram(Kg)
Resolution 0.01 mm
Automation Grade Semi-Automatic
Accuracy (1%H+0.1)mm
Specimen Size Minimum 20mm x 20mm area

Case Material ABS engineering plastic
Battery Life Up to 50 hours continuous use
Display Size 2.4 inch color TFT LCD
Memory Function Stores up to 500 readings
Operating Modes Normal and Scan modes
Alarm Function High and low thickness limit alarm
Backlight Adjustable LCD backlight
Data Output Optional USB data transfer for PC analysis
Material Compatibility Metals, plastics, ceramics, glass, and other ultrasonic conductive materials
Dimension 150 x 74 x 32 mm
Calibration Single point and two-point calibration

Color Screen Digital Electronic Ultrasonic Thickness Meter Trade Information

FOB Port shenzhen
Supply Ability 300 Set Per Month
Delivery Time 7 Days
Packaging Details standard exporting package
Main Domestic Market All India

Product Description

Features:

Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasonic thickness.
Can be equipped with a variety of different frequency, chip size, double crystal probe use.
Have probe zero calibration, a two-point calibration function, can be automatically on system error correction.
Thickness can be known the sound velocity measurement, in order to improve the accuracy of measurement.
With functions of coupling status alerts.
With LED backlight, convenient to use in dark environment.
The battery indicator function, can real-time display the battery remaining power.
With automatic power saving function dormancy, automatic shutdown, etc.
Small, portable, high accuracy, suitable for bad operating environment, vibration, impact resistance and electromagnetic interference.

Specification:

Measuring range:0.75-300mm (0.03-11.8inch) depends on probe;
Temperature available:-10-60 degree;
PC connecting and software:YES;
Sound velocity range:1000-9999m/s (0.039-0.394in/us);
Display resolution:0.01mm or 0.1mm(lower than 100.0mm) 0.1mm(more than 99.99mm);
Data Memory:5 files(up to 100 values for each file)of stored values 5 Sound Velocity of stored values;
Power:2pcs 1.5V AA size,batteries. 100 hours typical operating time(LED back light off) ;
Continuous working time:250 hours (with backlight off);
Size:150*74*32mm;Weight:238g

Advanced Measurement Capabilities

Utilizing a standard 5 MHz probe, this ultrasonic thickness meter measures a diverse range of materials, including metals, plastics, ceramics, and glass, within a thickness range of 1.2 to 225 mm (in steel). The instrument features both single and continuous measurement modes, offering flexibility for different testing scenarios and specimen sizes.

User-Centric Design and Functionality

This device is designed with operator convenience in mind. The high-contrast 2.4-inch color display, adjustable backlight, and instant (1s) response time enhance usability. Memory storage of up to 500 readings and optional USB output streamline data management, while alarm functions ensure measurement reliability. Its light weight and ergonomic ABS case make it comfortable to operate wherever needed.

FAQ's of Color Screen Digital Electronic Ultrasonic Thickness Meter:

Q: How does the ultrasonic thickness meter measure material thickness?

A: The meter uses ultrasonic pulses emitted by a probe to travel through the material. It calculates thickness by measuring the time it takes for the sound waves to reflect back from the material's opposite surface, converting this travel time into a precise thickness value.

Q: What materials can this ultrasonic thickness meter accurately assess?

A: This device is compatible with metals, plastics, ceramics, glass, and any materials that can conduct ultrasonic waves, making it suitable for a variety of industrial and laboratory applications.

Q: When should calibration be performed on the device?

A: Calibration should be conducted before first use, after changing the probe, or if abnormal readings are observed. The instrument supports both single-point and two-point calibration for enhanced accuracy.

Q: Where can data be exported for further analysis?

A: Stored measurement data (up to 500 readings) can be exported via the optional USB interface to a PC, where it can be archived or analyzed using compatible software.

Q: What is the process for using the thickness meter in scan mode?

A: In scan mode, place the probe on the material and slide it across the surface. The device continuously records thickness values in real time, ideal for detecting variations or thin spots over larger areas.

Q: What are the practical benefits of using this thickness meter?

A: It enables non-destructive, highly accurate thickness measurement, helps monitor corrosion, ensures quality control, and supports efficient data management, boosting safety and efficiency in industrial maintenance and manufacturing.

Q: How long can the device operate on a full battery?

A: With two AA batteries, the device can provide continuous measurement for up to 50 hours, ensuring reliable performance for extended field or workshop operations.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'NDT Machine ' category

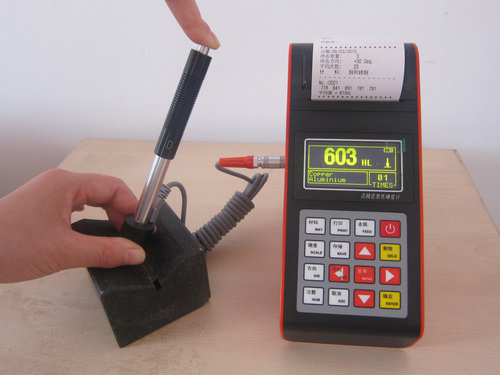

Portable Hardness Measurement Hardness Testing Device Price Range : 299.00 - 599.00 USD ($) Minimum Order Quantity : 1 Power Supply : Rechargeable Lithiumion Battery / USB Powered Usage : OnSite, Lab, Workshop Machine Weight : 5 Kilograms (kg) Automation Grade : SemiAutomatic Features : Lightweight, Data Storage, Auto Power Off, Calibration, Backlit Display Response Time : 2 seconds Control Mode : Manual / Automatic Operating Voltage : DC 3.7V Number of Specimens : 1 at a time Mounting Type : Handheld Measuring Range : 170960 HL Resolution : 1 HL Test Width : Unlimited (depends on specimen size) Accuracy : 4 HL (0.5% RD) Specimen Size : Min. 10 x 10 x 3 mm (customizable with probe) Application : Metal Hardness Measurement (Steel, Alloys, Cast Iron, Aluminum, Copper) Temperature : 0C to +40C Humidity : 85% RH Test Range : Leeb 170960 HL / Rockwell 2070 HRC / Brinell 20650 HB Interface Type : USB, Bluetooth Capacity : Portable Hardness Tester Kilogram(Kg) Equipment Type : Portable Hardness Tester Display Type : Digital LCD Test Speed : 0.5 2 seconds/test Port Size : USB TypeC Test Stroke : Up to 15 mm Frequency : 50/60 Hz Hardness : HL, HRC, HB, HV, HRB, HS Max Height : Unlimited (determined by specimen size and probe)
