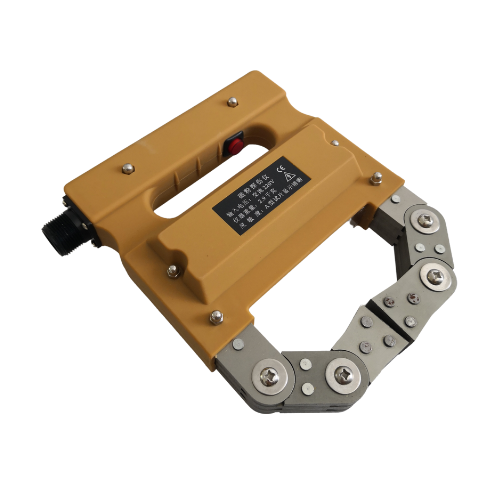

KD-220AC Portable Magnetic Particle Yoke Flaw Detector MT Flaw Detectors

Name: KD-220AC Portable Magnetic Particle Yoke Flaw Detector MT Flaw Detectors
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 353.0 USD
Availability: InStock

353.0 USD ($)/Set

Get a Price/Quote

Product Details:

Features Good Quality
Usage Industrial
Automation Grade Semi-automatic
Power Supply Manual
Hardness Yes
Material MS
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

KD-220AC Portable Magnetic Particle Yoke Flaw Detector MT Flaw Detectors Price And Quantity

Price 353.0 USD ($)/Set
Minimum Order Quantity 1 Set

KD-220AC Portable Magnetic Particle Yoke Flaw Detector MT Flaw Detectors Product Specifications

Features Good Quality
Usage Industrial
Power Supply Manual
Automation Grade Semi-automatic
Material MS
Hardness Yes

KD-220AC Portable Magnetic Particle Yoke Flaw Detector MT Flaw Detectors Trade Information

FOB Port Shenzhen
Payment Terms Paypal, Telegraphic Transfer (T/T), Western Union
Supply Ability 300 Set Per Month
Delivery Time 7 Days
Packaging Details standard exporting package
Main Domestic Market All India

Product Description

KD-220AC Portable Magnetic Particle Yoke Flaw Detector MT Flaw Detectors

I - Summary

Hongtuo series magnetic yoke flaw detector, a portable magnetic particle inspection equipment for the magnetization of the ferromagnetic workpiece by magnetic yoke, magnetic on various parts, suitable for oil, shipbuilding, coal, machinery, internal combustion engine parts, standard parts, aircraft manufacturing, auto parts, boiler and pressure vessel, the railway industry, surface and the near surface defect caused by forging, quenching, welding, fatigue, such as boilers and pressure vessels, steel, forging, casting, welding, machining parts etc..

The magnetic yoke flaw detector with AC power supply, The AC power supply with 220V power supply input directly, without any other instrument, simple operation, light weight, easy to carry, so the instrument widely used.

II - Technical parameter

Model Number: KD-220AC

Electric source: 220V50Hz

Working current: AC1.5A

The time of work intervals: Only a minute to open or close

Magnetic moment: 50-215mm

Weight:Probe 3.1kg

Outline dimension: Probe 208*52*146mm

Precision Flaw Detection

The KD-220AC is engineered to deliver accurate identification of cracks, laps, and inclusions in metal components, enhancing safety and reliability in industrial operations. Its portable design allows effective use in various environments, ensuring comprehensive inspection results.

Durable and User-Friendly Design

Constructed from high-quality MS material, this flaw detector provides excellent durability and resilience to wear. The semi-automatic mode simplifies the inspection process, making it user-friendly for operators while maintaining high standards in flaw detection.

FAQ's of KD-220AC Portable Magnetic Particle Yoke Flaw Detector MT Flaw Detectors:

Q: How does the KD-220AC Portable Magnetic Particle Yoke Flaw Detector operate?

A: The KD-220AC utilizes a magnetic yoke to induce a magnetic field within ferromagnetic materials. When testing is carried out, magnetic particles applied to the surface reveal flaws by clustering around any discontinuities, making defects clearly visible for evaluation.

Q: What types of industries commonly use this flaw detector?

A: This device is primarily used in industrial sectors where the integrity of metal components is critical, such as manufacturing, construction, railways, and heavy engineering. It is suitable for both automated systems and manual inspection routines.

Q: When should this detector be employed during the inspection process?

A: It is recommended to use the KD-220AC during routine maintenance checks, production quality control, and after repairs, to verify that no undetected flaws persist in ferromagnetic structures or equipment.

Q: Where is the KD-220AC manufactured and can it be sourced globally?

A: The KD-220AC is manufactured in China and is available for global distribution. It can be sourced through distributors, exporters, and suppliers catering to international clients in various industrial fields.

Q: What is the process for using the KD-220AC flaw detector?

A: To use the device, position the magnetic yoke across the area to be tested, energize the yoke with manual controls, and apply magnetic particles to the surface. Visual examination reveals surface or near-surface flaws as the particles accumulate around irregularities.

Q: What are the benefits of using the KD-220AC for flaw detection?

A: Benefits include reliable detection of even subtle defects, portability for inspections across different sites, sturdy material construction for longevity, and semi-automatic operation for ease of use and time efficiency.
