DH-2010F Optical Manual Image Visual Image Measuring Instrument

1699.00 - 3999.00 USD ($)/Set

Get a Price/Quote

Product Details:

Mounting Type Benchtop
Test Range 200x100x200 mm (XYZ axes)
Frequency 50/60 Hz
Interface Type USB
Operating Voltage 110V/220V
Specimen Size Max. 200x100 mm
Display Type Color LCD
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

DH-2010F Optical Manual Image Visual Image Measuring Instrument Price And Quantity

Minimum Order Quantity 1 Set
Price Range 1699.00 - 3999.00 USD ($)/Set

Repeatability 2 m
Origin Point Reset Support for quick zero reset
Software Functions Geometric measurement, data analysis, report generation
Lens Type Continuous zoom lens
Image Processing Image edge and surface measuring capability
Optical Magnification 0.7x~4.5x (objective), digital magnification available
Supported OS Windows 7/8/10
Image Format Output JPG, BMP compatible
Camera High resolution CMOS, 1.3M pixels
Data Output USB, RS232 (optional)
Working Table Glass with grid, precision ground
Lighting LED ring light and bottom light, adjustable brightness
Movement Method Manual fine-tuning, micrometer heads for X/Y

DH-2010F Optical Manual Image Visual Image Measuring Instrument Product Specifications

Mounting Type Benchtop
Test Speed Manual
Frequency 50/60 Hz
Test Range 200x100x200 mm (XYZ axes)
Interface Type USB
Operating Voltage 110V/220V
Specimen Size Max. 200x100 mm
Capacity Up to 20 kg
Display Type Color LCD
Control Mode Manual operation
Response Time Instantaneous
Number of Specimens Single
Test Width 200 mm
Application Measurement of 2D/3D dimensions in electronics, precision parts, hardware, plastics, die, tooling, etc.
Hardness
Measuring Range 200x100x200 mm (XYZ)
Humidity 40~70% RH
Usage Visual and dimensional measurement
Test Stroke 100 mm (X axis), 200 mm (Y axis)
Equipment Type Optical Manual Image Visual Measuring Instrument
Accuracy 3 m
Machine Weight Approx. 180 kg
Max Height 200 mm (Z axis)
Temperature 10C~30C (operating)
Features High precision CMOS camera, LED ring light illumination, X/Y glass scales
Power Supply AC 110V/220V 10%, 50/60Hz
Resolution 0.001 mm
Automation Grade Manual
Port Size Standard USB

Repeatability 2 m
Origin Point Reset Support for quick zero reset
Software Functions Geometric measurement, data analysis, report generation
Lens Type Continuous zoom lens
Image Processing Image edge and surface measuring capability
Optical Magnification 0.7x~4.5x (objective), digital magnification available
Supported OS Windows 7/8/10
Image Format Output JPG, BMP compatible
Camera High resolution CMOS, 1.3M pixels
Data Output USB, RS232 (optional)
Working Table Glass with grid, precision ground
Lighting LED ring light and bottom light, adjustable brightness
Movement Method Manual fine-tuning, micrometer heads for X/Y

DH-2010F Optical Manual Image Visual Image Measuring Instrument Trade Information

FOB Port Shenzhen
Supply Ability 300 Set Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

DH-2010F Optical Manual Image Visual Image Measuring Instrument

Product Features:

1.High precision and high strength machine:00 marble base/upright column/workable,high precision and good stability.

2.XYZ three axis imported precision V type guide rail/imported optic axis drive system.long service life.good stability.

3.High precision grating ruler 0.5um

4.WM continuous zoom optical lens,different frames,different magnification,without zoom correction.

5.HD Japanese SONY CCD camera,high quality measuring screen.

6.Auxiliary focusing measurement,optical measuring altitude and flatness.and can be equipped with the British RENISHAW contact probe.

7.Surface light,LED profile light,coaxial light.Choose match programmable three ring eight area light.

8.The laser pointer indicated the position of measuring,rapid positioning and convenient measurement.

9.Can match foot switch,easy to operate at any place.

Specification:

Model: DH-2010F
Metal table size(mm): 350*220
Glass table size(mm): 230*130
X/Y axis travel(mm): 200*100
Z axis travel: Effective space is 245mm,focusing stroke is 200mm,and working distance is 95mm
Drive type: X/Y axis rod drive,Z axis optical axis drive
LIght system: Surface light and projection light,cold light,long life,brightness adjustable,Surface light and transmission light are used LED, Power:220/110V(AC),50HZ 30W

Precision Visual Measurement Made Simple

The DH-2010F delivers exceptionally accurate image-based measurements with a high-resolution CMOS camera and precision ground glass stage. Its continuous zoom lens and repeatability of 2 m make it ideal for analyzing even the most minuscule components. With compatibility for multiple image formats and an intuitive color LCD display, this instrument streamlines your measurement process for a wide range of applications.

Versatile and User-Friendly Operation

This instrument's manual fine-tuning and quick zero reset allow for meticulous positioning and efficient workflows. Adjustable LED ring and bottom lighting create optimal visibility for various specimen types. The ergonomic benchtop design and clear digital interface further enhance ease of use, accommodating both novice and experienced operators.

Comprehensive Software Capabilities

Integrated software offers robust geometric measurement, data analysis, and report generation tools, ensuring all measurement tasks are accurately documented. The system supports JPG and BMP output and is compatible with Windows 7/8/10, making data management and reporting easily accessible. USB and optional RS232 ports ensure flexible data transfer.

FAQ's of DH-2010F Optical Manual Image Visual Image Measuring Instrument:

Q: How does the DH-2010F Optical Manual Image Visual Measuring Instrument ensure measurement accuracy?

A: The DH-2010F features a high-resolution 1.3M pixel CMOS camera, continuous zoom lens (0.7x-4.5x), and precision glass scales for X/Y movement. These features, combined with manual micrometer heads and repeatability of 2 m, ensure highly accurate and reliable measurements.

Q: What types of specimens and industries are suitable for this measuring instrument?

A: This instrument is designed for versatility, accommodating specimens up to 200x100 mm and 20 kg. It is widely used in electronics, precision parts manufacturing, hardware, plastics, die, and tooling industries for 2D and 3D dimension measurement.

Q: When should I use the adjustable LED ring light or bottom light?

A: Use the adjustable LED ring light for top illumination to enhance surface details and contours. The bottom light is ideal for transparent or semi-transparent specimens, highlighting silhouettes and edges for clearer measurements.

Q: Where can measurement and image data be exported from the DH-2010F?

A: Data can be exported via standard USB and optional RS232 ports. Compatible formats include JPG and BMP for images, and the system integrates easily with Windows 7/8/10, facilitating straightforward data management and report generation.

Q: What is the operating process for measuring a part with this device?

A: Place the specimen on the precision-ground glass table, adjust the lighting for optimal clarity, and use the manual fine-tuning micrometer heads for X and Y positioning. The integrated software assists with image edge and surface measurements, data analysis, and report generation.

Q: What are the main benefits of using the DH-2010F in quality control environments?

A: The DH-2010F enhances measurement precision, increases inspection efficiency, and improves documentation accuracy. Instantaneous response and comprehensive software enable fast, reliable reporting, which is crucial for quality control and production environments.

Q: How does the origin point reset feature improve the measurement workflow?

A: The origin point reset enables quick zeroing of the coordinates before each measurement, streamlining the process and minimizing setup errors for more consistent and repeatable results.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Optical Measuring Machine' category

Electronic CNC Control Fully-Auto Vision Image Measuring Machine Price Range : 4999.00 - 13999.00 USD ($)/Set Minimum Order Quantity : 1 Usage : Dimensional Inspection Power Supply : AC 220V 10%, 50/60 Hz Features : Auto focus, CNC control, Vision image processing Frequency : 50/60 Hz Operating Voltage : AC 220V Accuracy : 2 m Machine Weight : 450 kg Max Height : 150 mm Resolution : 0.001 mm Temperature : 10C 30C Port Size : USB 2.0, Ethernet Automation Grade : Fully Automatic Mounting Type : Floor Stand Interface Type : USB, Ethernet, RS232 Test Range : 0 mm 200 mm Test Speed : Configurable, up to 250 mm/s Capacity : Varies by fixture, up to 10 kg Specimen Size : Max 200 mm 100 mm Gas Pressure : 0.5 0.8 MPa Display Type : HighResolution LCD Touchscreen Test Width : 300 mm Control Mode : Electronic CNC Control Response Time : < 1 s Number of Specimens : Single or Multiple Application : Precision measurement in electronics, hardware, plastics Test Stroke : 200 mm (Xaxis), 100 mm (Yaxis) Humidity : 40% 90% RH Measuring Range : 200 mm 100 mm 150 mm (XYZ) Equipment Type : FullyAuto Vision Image Measuring Machine

Send Inquiry

High Precision Manual Video Measuring Machine DH-3020F Price Range : 2689.00 - 4599.00 USD ($)/Set Minimum Order Quantity : 1 Usage : Quality inspection, dimensional measurement Power Supply : AC 110~220V, 50/60Hz Features : High accuracy, manual control, video measuring system, LED illumination Frequency : 50/60 Hz Operating Voltage : 110~220V AC Accuracy : (3+L/200) m Machine Weight : Approx. 160 kg Max Height : 200 mm (ZAxis) Resolution : 0.001 mm (1 m) Temperature : 20C 2C (optimal for precision) Port Size : Standard USB/RS232 interface Automation Grade : Manual Mounting Type : Benchtop Interface Type : USB, RS232 Test Range : 300 mm (X) 200 mm (Y) Test Speed : Manual, usercontrolled Capacity : N/A (measurement instrument) Specimen Size : Up to 300200 mm on stage Gas Pressure : N/A (manual type, no pneumatic requirements) Display Type : Digital display with video output Test Width : 200 mm (XAxis) Control Mode : Manual operation (nonautomatic) Response Time : Instantaneous, depends on manual operation Number of Specimens : Single specimen measurement Application : 2D/3D dimensional measurement, PCB, electronics & precision parts Test Stroke : 300 mm (XAxis) x 200 mm (YAxis) x 200 mm (ZAxis) Humidity : 45%~75% RH, noncondensing Measuring Range : 300 x 200 x 200 mm (XYZ) Equipment Type : High Precision Manual Video Measuring Machine

Send Inquiry

Large Scale CNC Type Video Measuring Machine Price Range : 8599.00 - 20999.00 USD ($)/Set Minimum Order Quantity : 1 Usage : Lab and industrial metrology Power Supply : AC 220V 10%, 50/60Hz Features : Auto edge detection, 3D measurement, Program storage, Report output Frequency : 50/60 Hz Operating Voltage : AC 220V 10% Accuracy : 2.5 + L/200 m Machine Weight : About 1800 kg Max Height : 200 mm (Z Axis) Resolution : 0.001 mm (1 micron) Temperature : 20C 2C Port Size : Standard USB/RS232 Automation Grade : CNC Automated Mounting Type : Floormounted Interface Type : USB/RS232 Test Range : 01000 mm Test Speed : 0.1 mm/s to 150 mm/s Capacity : Max Load 60 kg Specimen Size : Max 1200 x 1500 mm Gas Pressure : 0.50.7 MPa Display Type : Industrial LCD Monitor Test Width : Up to 1200 mm Control Mode : CNC Automatic Response Time : <0.5 seconds Number of Specimens : 1 (Single Test) Application : Precise dimensional measurement of large components Test Stroke : XY Axis 1000 x 1500 mm Humidity : 40%70% RH (Noncondensing) Measuring Range : 1000 x 1500 x 200 mm (XYZ) Equipment Type : Large Scale CNC Video Measuring Machine

Send Inquiry

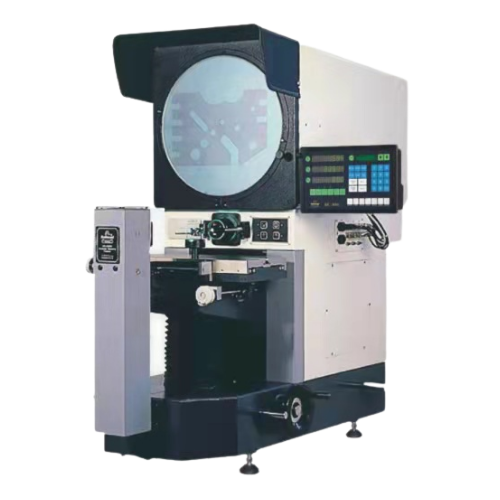

CPJ-4025W Horizontal Profile Projector Optical Comparator Measuring Instruments Price : 6778.0 USD ($)/Set Minimum Order Quantity : 1 Usage : Hospital & Laboratory Power Supply : Electric Frequency : 5060 Hertz (HZ) Operating Voltage : 110215 Volt (V) Material : MS
