DF-1-06 Method A Plastic Apparent Density Meter Powder Apparent Density Tester

DF-1-06 Method A Plastic Apparent Density Meter Powder Apparent Density Tester

Name: DF-1-06 Method A Plastic Apparent Density Meter Powder Apparent Density Tester
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 699.0 USD
Availability: InStock

699.0 USD ($)/Set

Get a Price/Quote

Product Details:

Hardness Yes
Automation Grade No
Features Good Quality
Usage Hospital & Laboratory
Power Supply Manual
Material SS
Color Silver
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

DF-1-06 Method A Plastic Apparent Density Meter Powder Apparent Density Tester Price And Quantity

Minimum Order Quantity 1 Set
Price 699.0 USD ($)/Set
Price Range 399.00 - 999.00 USD ($)/Set

DF-1-06 Method A Plastic Apparent Density Meter Powder Apparent Density Tester Product Specifications

Color Silver
Material SS
Automation Grade No
Features Good Quality
Power Supply Manual
Usage Hospital & Laboratory
Hardness Yes

DF-1-06 Method A Plastic Apparent Density Meter Powder Apparent Density Tester Trade Information

Payment Terms Paypal, Telegraphic Transfer (T/T), Western Union
Packaging Details Standard Exporting Package
Main Domestic Market All India

Product Description

DF-1-06 Method A Plastic Apparent Density Meter Powder Apparent Density Tester

DF-1-06 can be used to measure the apparent density,bulk factor,and pourability of plastic materials.This instrument is produced in accordance with the method A of standard of ASTM D1895.As for the apparent density,DF-1-06 is more suitable for fine granule and powder.also can be poured readily through a small funnel.

Application:

This instrument is applicable to measure the plastic materials in the form of fine granule and powder.

Standard Accessories:

Holder,funnel,measuring cup,height pad,scraper blade,striker plate,tool and sample spoon.

Standards:

ASTM D1895,ISO60

Specification:

Model:DF-1-06

Test Method:Method A

Inner Dia.:39.9mm

Height:79.8mm

Sampling quantity:110-120ml

Dia. of lower mouth:9.5mm

Height:114mm

Distance between cap can funnel:38mm

Superior Quality Build

The DF-1-06 Apparent Density Meter boasts a stainless steel construction that enhances its longevity and resistance to wear. Its silver finish not only ensures an appealing look but also contributes to ease of cleaning and maintenance, a critical factor in laboratory and hospital environments where cleanliness is paramount.

User-Friendly Manual Operation

As a manually operated tester, the DF-1-06 eliminates the need for external power sources, enhancing its convenience and portability. Users can operate the device effortlessly with simple mechanisms, making it ideal for facilities seeking straightforward and reliable testing equipment without the complexity of digital systems.

FAQ's of DF-1-06 Method A Plastic Apparent Density Meter Powder Apparent Density Tester:

Q: How is the DF-1-06 Method A Plastic Apparent Density Meter used in laboratories and hospitals?

A: The DF-1-06 is utilized to determine the apparent density of plastic powders in laboratory and hospital environments. Users manually add the powder to the meter and follow the outlined process to obtain precise and repeatable density readings, assisting in quality control and research activities.

Q: What materials are used in the construction of the DF-1-06 density tester?

A: The device is made from high-quality stainless steel, offering strength, resistance to corrosion, and an extended lifespan that suits the rigorous demands of laboratory and hospital use.

Q: When is it recommended to measure the apparent density of plastic powders?

A: Measuring apparent density is essential during quality control checks, research and development, and when evaluating powder properties for various applications. Regular testing helps ensure consistency and compliance with industry standards.

Q: Where can I source the DF-1-06 density meter?

A: This device is available through distributors, exporters, manufacturers, suppliers, and traders in China. It is widely accessible to professionals in need of reliable testing equipment.

Q: What is the process for using the DF-1-06 density meter?

A: To use the meter, simply load the powder sample into the chamber, follow the specific manual instructions provided, and record the measured density. As it is a manual device, no electrical power is required.

Q: What are the benefits of the DF-1-06 for professional users?

A: Professionals benefit from its durable stainless steel construction, ease of manual operation, and reliable, accurate measurements. Its lack of automation makes it straightforward to use and maintain, promoting consistency in quality assurance procedures.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Powder Testing Equipment' category

Density Meter for Chemical Powder Price Range : 499.00 - 999.00 USD ($) Minimum Order Quantity : 1 Automation Grade : Semiautomatic Power Supply : 220V AC, 50Hz Features : Automatic powder compaction, Digital display, Data Logging Usage : Laboratory and industrial quality control Humidity : 10% to 90% RH (noncondensing) Hardness : N/A (not applicable for powder testing) Accuracy : 0.01 g/cm Response Time : <5 seconds Equipment Type : Density Meter for Chemical Powder Number of Specimens : Single Specimen Operating Voltage : 220V AC Capacity : Maximum 150g powder per test Interface Type : RS232 / USB Test Stroke : Standard stroke for powder density testing, up to 100mm Measuring Range : 0.01 to 5 g/cm Temperature : 10C to 40C operating range Control Mode : Microprocessor based automatic control Application : Measuring apparent and tapped density of chemical powder Resolution : 0.001 g/cm Test Speed : Adjustable, typically up to 60 tests/hour Machine Weight : 15 kg Mounting Type : Benchtop Specimen Size : Up to 100g powder bowl capacity Display Type : Digital LCD Test Range : 0.1 to 3.0 g/cm Max Height : 400mm (with sample holder) Frequency : 50 Hz Port Size : Standard powder inlet, 15mm diameter Test Width : Standard test width for powder specimen holders Gas Pressure : Adjustable, up to 0.8 MPa (for airjet type)

Send Inquiry

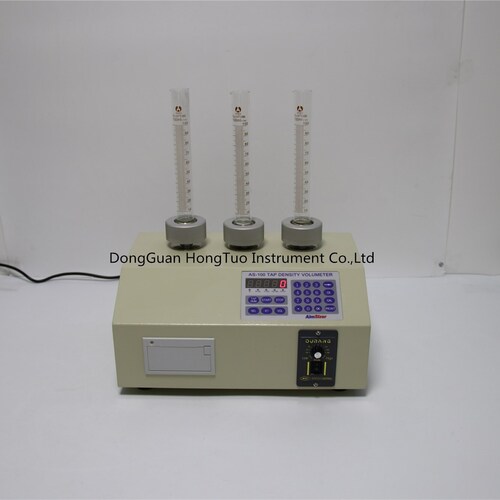

Tap Density Measurement Instrument Price Range : 499.00 - 1999.00 USD ($) Minimum Order Quantity : 1 Automation Grade : Semiautomatic Power Supply : 230V AC, 50Hz (Standard) Features : Programmable tap number, auto stop, reset function, microprocessor control, adjustable tap stroke distance Usage : Pharmaceutical, Chemical, and Material Laboratories Humidity : Max 80% RH (Noncondensing) Accuracy : 1% of full scale Response Time : Realtime measurement Equipment Type : Tap Density Measurement Instrument Number of Specimens : 1 or 2 Cylinder Simultaneous Testing Operating Voltage : 230V AC Capacity : 2 samples per run Interface Type : RS232C Serial Interface Test Stroke : 3 mm or 14 mm selectable Measuring Range : 0.01 g/cm to 10 g/cm Temperature : 10C to 40C (Operating) Control Mode : Digital Microprocessor Control Application : Measurement of tapped density of powders and granules Resolution : 0.01 g/cm Test Speed : 300 400 taps/min adjustable Machine Weight : Approx. 12 kg Mounting Type : Benchtop Specimen Size : Typically 100 ml or 250 ml cylinders Display Type : Digital LCD Display Test Range : Up to 250 ml cylinder volume Max Height : 350 mm (Instrument Height) Frequency : 50 Hz Port Size : Standard cylinder port, 15 mm diameter Test Width : 70 mm (Platform Width) Gas Pressure : Ambient (No external gas required)
