Bulk Density Apparatus

Name: Bulk Density Apparatus
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 599.0 USD
Availability: InStock

599.0 USD ($)/Set

Get a Price/Quote

Product Details:

Operating Voltage 230V AC
Display Type Analog/Scale
Application Measurement of bulk density of powders and granules
Specimen Size Cylinders - 50/100/250 ml
Features Three cylinder holders, Sturdy construction, Transparent shield for safety
Automation Grade Manual
Mounting Type Bench Top
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Bulk Density Apparatus Price And Quantity

Price 599.0 USD ($)/Set
Minimum Order Quantity 1 Set

Timer Mechanical Timer Included
Safety Features Transparent front panel to prevent spillage
Cylinder Material Borosilicate Glass
Body Material Mild Steel with Powder Coating
Dimensions 350 x 300 x 330 mm (L x W x H)
Compliance Standards Conforms to USP & IP Standards

Bulk Density Apparatus Product Specifications

Accuracy 1% of reading
Equipment Type Bulk Density Apparatus
Power Supply 230V AC, 50 Hz
Control Mode Manual
Resolution 0.01 g/cm3
Frequency 25-30 taps/min
Test Range Bulk Density of Powders up to 3.0 g/cm3
Temperature Room Temperature (10C to 40C)
Response Time Immediate upon operation
Number of Specimens 3 cylinders
Interface Type Manual (not digital)
Usage Pharmaceutical, Chemical, Food, and Material Laboratories
Display Type Analog/Scale
Operating Voltage 230V AC
Mounting Type Bench Top
Automation Grade Manual
Features Three cylinder holders, Sturdy construction, Transparent shield for safety
Application Measurement of bulk density of powders and granules
Test Speed Fixed 25-30 strokes per minute
Specimen Size Cylinders - 50/100/250 ml
Test Stroke 14 mm (approx.)
Capacity Up to 250 ml
Humidity Up to 90% RH (Non-condensing)
Measuring Range 0.01 to 3.0 g/cm3
Max Height Approx. 330 mm
Machine Weight Approx. 7 kg

Timer Mechanical Timer Included
Safety Features Transparent front panel to prevent spillage
Cylinder Material Borosilicate Glass
Body Material Mild Steel with Powder Coating
Dimensions 350 x 300 x 330 mm (L x W x H)
Compliance Standards Conforms to USP & IP Standards

Bulk Density Apparatus Trade Information

FOB Port shenzhen,guangzhou
Payment Terms Paypal, Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)
Supply Ability Per Month
Delivery Time 3 Days
Packaging Details standard exporting package
Main Domestic Market All India

Product Description

Bulk Density Apparatus

In accordance with ASTM B213,ISO4490,ISO 3923,GB/T1482,GB/T1479,hall flowability tester has been widely applicated to determain flowability and bulk density for metal powder or other powder.Any powder can pass through funnel with 2.5mm standard diameter aperture.it can be tested by using this machine.

Principle:The flowability of metal powder can be indicated as the time needs when 50g metal powder pass through standard funnel with specified aperture.

Structure:

(1)Funnel(diameter of aperture 2.5mm,5mm)

The funnel is made up of brass.the inner surface has been polished specially.which makes it very smoothly.Besides,sufficient thickness and hardness can avoid from transformation and excessive wear.

2.5mm aperture for measuring flowability,5.0mm aperture for measuring bulk density.

(2)Holder,base and receiver

Holder is used to fix funnel.Base is used to install holder and receiver.

(3)Digital scale:maximum weight is 1kg.weight resolution is 0.02g.

(4)Chronograph:0.1s

(5)Measuring cup

Diameter 31mm 25ml brass measuring cup.

Standard Accessories:
One set of stand;one piece of diameter 2.5mm funnel;one piece of diameter 5.0mm funnel;one piece of diameter 31mm 25ml measuring cup;one piece of chronograph;one piece of overflow pan;one piece of brush;one piece of steel ruler;

Engineered for Precision and Safety

Manufactured with sturdy powder-coated mild steel, this Bulk Density Apparatus boasts premium durability. The transparent front panel shields users from accidental spillage, ensuring maximum safety while handling powders. The borosilicate glass cylinders withstand chemical reactions, further enhancing reliability during routine testing in laboratories.

Versatile Applications Across Industries

This instrument is expertly crafted for pharmaceutical, chemical, food, and material laboratories. Its flexible specimen capacity and robust construction accommodate demanding lab environments. From quality control to research settings, it easily measures the bulk density of powders and granules, confirming to both USP and IP standards.

User-Friendly Manual Operation

Featuring a manual control mode and a mechanical timer, the apparatus offers straightforward, hands-on operation. With an immediate response time and fixed test speed, users can efficiently conduct tests without complex programming, optimizing workflow and minimizing downtime in busy labs.

FAQ's of Bulk Density Apparatus:

Q: How is bulk density measured with this apparatus?

A: Bulk density is measured by placing the powder sample in one of the borosilicate glass cylinders, which is then tapped at 25-30 taps per minute by the apparatus. The cylinder volume and sample mass are used to calculate bulk density, and results are read using the analog scale.

Q: What safety features does the Bulk Density Apparatus provide?

A: The apparatus incorporates a transparent front panel to prevent spillage and protect the user during operation. Additionally, the sturdy construction of powder-coated mild steel and premium glass cylinders ensure long-term safety and durability in laboratory use.

Q: When should this apparatus be used in the laboratory testing process?

A: Use this apparatus whenever you need to determine the bulk density of powders or granules, such as during material quality control, formulation development, or research analysis, especially when compliance with USP and IP standards is required.

Q: Where is the Bulk Density Apparatus best installed and used?

A: This device is designed for bench-top mounting and is ideal for controlled laboratory environments in pharmaceutical, chemical, and food industries. Its compact footprint (350 x 300 x 330 mm) fits conveniently on most laboratory benches.

Q: What is the sample capacity and measuring range of the apparatus?

A: The apparatus can hold up to three specimens using 50 ml, 100 ml, or 250 ml cylinders. It measures bulk density in the range of 0.01 to 3.0 g/cm3, with a resolution of 0.01 g/cm3 for high-precision requirements.

Q: How does manual control benefit laboratory users?

A: Manual operation allows users direct oversight of the testing process, ensuring flexibility and quick adjustments when needed. The immediate response and fixed tapping speed facilitate efficient, repeatable testing in fast-paced or high-throughput laboratories.

Q: What are the advantages of having a mechanical timer included?

A: The mechanical timer ensures precise control over tapping time without additional electronic programming, making it easy to reproduce standard test protocols and improve the reliability of test results.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Powder Testing Equipment' category

Natural Stacking Density Meter Price Range : 499.00 - 999.00 USD ($) Minimum Order Quantity : 1 Usage : Laboratory/Industrial Automation Grade : Manual Features : Compact, lightweight, easy to clean Power Supply : 220V AC 10%, 50Hz Capacity : Up to 500 g Max Height : 250 mm Humidity : 5% 85% RH, non condensing Measuring Range : 0.01 2.0 g/cm Machine Weight : Approx. 20 kg Display Type : Digital LCD Mounting Type : Benchtop Test Speed : Standard Specimen Size : Standard (customizable on request) Port Size : 60 mm Application : Measurement of powder stacking density (untapped) Test Range : 0.01 2.0 g/cm Temperature : 10C 50C Response Time : Instant read Number of Specimens : 1 at a time Accuracy : 0.01 g/cm Control Mode : Manual operation Resolution : 0.01 g Interface Type : Basic, No external interface Equipment Type : Natural Stacking Density Meter Test Width : 100 mm

Send Inquiry

Hall Flow Meter Price Range : 499.00 - 999.00 USD ($) Minimum Order Quantity : 1 Usage : Metal powder laboratory testing Automation Grade : Manual Features : Simple operation, precise measurement Power Supply : Not required (mechanical device) Capacity : up to 50 g Max Height : Approx. 200 mm Humidity : Operating range: 40% to 85% Measuring Range : 10 s to 300 s Machine Weight : Approx. 5 kg Display Type : Analog stopwatch Mounting Type : Tabletop Test Speed : Standardized as per ASTM B213 Specimen Size : 50 g powder sample Port Size : 50 mm Application : Determination of flowability of metallic powders Test Range : 10 s to 300 s Temperature : Operating range: 10C to 40C Response Time : Immediate Number of Specimens : Single test per run Accuracy : 2 s Control Mode : Manual Resolution : 1 second Interface Type : Manual Equipment Type : Powder Flow Measurement Equipment Test Width : Suitable for powder flow

Send Inquiry

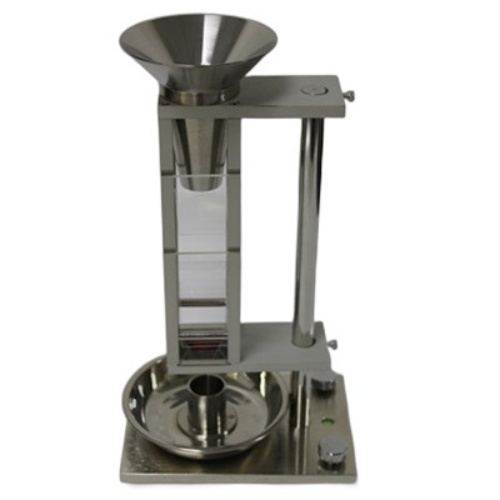

Scott Volumeter Apparent Density Tester Meter Price Range : 499.00 - 999.00 USD ($) Minimum Order Quantity : 1 Usage : Laboratory, industrial, research Automation Grade : Manual Features : Stainless steel construction, easy to dismantle and clean, precision funnel Power Supply : Not required (manual type) Capacity : Up to 250 ml (graduated measure) Max Height : Approx. 300 mm Humidity : 10% to 85% RH, noncondensing Measuring Range : 0.01 to 3 g/cm Machine Weight : Approximately 5.5 kg Display Type : Graduated glass cylinder (visual measurement) Hardness : Not specified (dependent on material construction) Mounting Type : Benchtop Test Speed : Manual operation Specimen Size : As per ASTM B329 (typically 2550g sample) Port Size : Standard funnel opening (as per Scott Volumeter specifications) Application : Determination of apparent density of freeflowing powders (metallic/nonmetallic) Test Range : 0.05 to 2 g/cm apparent density Temperature : 15C to 40C operating range Response Time : Immediate/manual reading Number of Specimens : Single specimen per test Accuracy : 0.01 g/cm Control Mode : Manual Resolution : 0.01 g/cm Equipment Type : Apparent Density Tester (Scott Volumeter)
