ardboard Carton Edge Crush Strength Tester

ardboard Carton Edge Crush Strength Tester

800 USD ($)

Get a Price/Quote

Product Details:

Max Height 320 mm
Dimension (L*W*H) 360mm 330mm 550mm Millimeter (mm)
Power Supply AC 220V, 50Hz
Mounting Type Floor Standing
Humidity 20% - 85% RH
Number of Specimens 1 at a time
Features Automatic force reset, peak value hold, real-time test data display
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

ardboard Carton Edge Crush Strength Tester Price And Quantity

Price 800 USD ($)
Minimum Order Quantity 1 Set
Price Range 719.00 - 1999.00 USD ($)

Data Output USB/RS232
Test Fixture Material Hardened Steel
Overload Protection Yes
Safety Features Over-travel protection & emergency stop switch
Package Size 73 x 42 x 65 cm
Body Material Mild Steel with anti-corrosive coating
Sample Type Corrugated Board, Carton Paper, Fiberboard
Finish Powder Coated
Calibration Push-button zero calibration

ardboard Carton Edge Crush Strength Tester Product Specifications

Operating Voltage 220V AC
Measuring Range 0 - 1000 N
Equipment Type Edge Crush Tester
Resolution 0.1 N
Port Size Standard 16 mm pneumatic
Application Measuring edgewise compressive strength of carton board and corrugated cardboard
Frequency 50 Hz
Response Time 1 second
Temperature 10C - 40C
Specimen Size 100 x 25 mm
Automation Grade Semi Automatic
Machine Weight 68 kg
Test Width 100 mm
Usage Edge Crush Test (ECT), Ring Crush Test (RCT), Flat Crush Test (FCT)
Interface Type RS232
Features Automatic force reset, peak value hold, real-time test data display
Number of Specimens 1 at a time
Humidity 20% - 85% RH
Dimension (L*W*H) 360mm 330mm 550mm Millimeter (mm)
Power Supply AC 220V, 50Hz
Mounting Type Floor Standing
Capacity 200 kg
Max Height 320 mm
Display Type Digital LED Display
Test Stroke 70 mm
Hardness HRC 50-60 (fixtures)
Test Range 03000N(0-30000N/M)
Control Mode Digital Microprocessor
Test Speed 12.5 mm/min
Gas Pressure 0.6 MPa
Accuracy 1% of reading

Data Output USB/RS232
Test Fixture Material Hardened Steel
Overload Protection Yes
Safety Features Over-travel protection & emergency stop switch
Package Size 73 x 42 x 65 cm
Body Material Mild Steel with anti-corrosive coating
Sample Type Corrugated Board, Carton Paper, Fiberboard
Finish Powder Coated
Calibration Push-button zero calibration

ardboard Carton Edge Crush Strength Tester Trade Information

FOB Port Shenzhen
Supply Ability 300 Set Per Month
Delivery Time 7 Days

Product Description

The automatic intelligent computer monitoring and controlling paperboard compression strength tester is an efficient and easy-to-use instrument. Mainly used to test the corrugated paper, cardboard (kraft liner), corrugated cardboard.It is improved on the basis of the ordinary compressing tester ,can test the RCT,ECT,PAT,FCT,CCT and CMT .It is a high-precision compression tester. The instrument adopts the mechanical and electrical integration structure, uses the modern mechanical design and computer processing technology, Instruments use the fixed platen ,which make it has high precision and powerful data processing capabilities Besides the data can be directly obtained and can automatically reset.Equipped with the following accessories can test other parameter.

With the adhesive sampler and auxiliary guide can have Edge Crush Test(ECT)
With the peel tester frame to test the peel strength (PAT)
Equipped with flat compression sampler to test the strength of flat compression (FCT)
With groove and auxiliary appliance to test CCT and CMT

Standards

ISO 12192 ISO 12192 ISO 7263 ISO 3035 ISO 12048 GB/T 2679.8 GB/T 6546
GB/T 6548 GB/T 2679.6 GB/T 2679.6 GB/T 4857.3 GB/T 4857.4

Main Characters

Instrument function host ,the user can order separately according to actual conditions corresponding accessories, to achieve a variety of base paper and corrugated board strength test
Statistical processing with test data can be printed out 3.Mechatronics design, compact structure, nice appearance, easy maintenance

Advanced Precision and Durability

Equipped with hardened steel fixtures and a robust, powder-coated mild steel body, this tester withstands demanding industrial use while ensuring precise and repeatable results. Anti-corrosive coatings extend its operational life in varied environments, making it suitable for rigorous quality checks.

User-Friendly Operation and Data Handling

With intuitive push-button zero calibration, a digital LED display for real-time data, and automatic peak value holding, this edge crush tester simplifies testing procedures. USB/RS232 connectivity streamlines data transfer, while microprocessor controls guarantee accurate readings for each test.

Comprehensive Safety and Reliability Features

Safety is prioritized through overload protection, over-travel detection, and an emergency stop mechanism. Its built-in protections safeguard both the operator and the machine, supporting safe, uninterrupted operation across quality control laboratories and production lines.

FAQ's of ardboard Carton Edge Crush Strength Tester:

Q: How is the Cardboard Carton Edge Crush Strength Tester operated?

A: The tester is semi-automatic and features a digital microprocessor control. It uses push-button zero calibration, automatic force reset, and real-time data display, making operation straightforward and efficient for users.

Q: What types of materials and samples can the device test?

A: This equipment is designed to test a variety of packaging materials such as corrugated board, carton paper, and fiberboard, accommodating standard sample sizes like 100 x 25 mm for edge, ring, and flat crush tests.

Q: When should the calibration process be performed?

A: Calibration should be carried out whenever the device's accuracy needs verification, typically before commencing a new testing batch or as per regular maintenance schedules. The push-button zero calibration feature simplifies this process.

Q: Where can this tester be used within an industry setup?

A: The tester's floor-standing design and robust construction make it ideal for quality assurance labs, production floors, and research departments in packaging, paperboard manufacturing, and related industries.

Q: What is the typical testing process using this machine?

A: Place the prepared specimen in the fixture, select the appropriate test type (edge, ring, or flat crush), and initiate the test via the control panel. The machine applies force at a speed of 12.5 mm/min, displaying real-time results and storing peak values for analysis.

Q: How does the equipment ensure safety during testing?

A: It incorporates safety mechanisms like overload and over-travel protection, along with an emergency stop switch, providing multiple layers of safety to prevent mishaps or equipment damage during operation.

Q: What are the main benefits for manufacturers and quality controllers?

A: This tester offers high accuracy (1% of reading), rapid response time (1 second), robust durability, and convenient data output. It supports quality assurance by providing reliable, repeatable results essential for evaluating packaging material strength and performance.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Paper Testing Machine' category

Digital Cardboard Bursting Strength Tester Price : 900 USD ($) Minimum Order Quantity : 1 Automation Grade : SemiAutomatic Power Supply : 230V AC, 50 Hz Usage : Laboratory, Industrial Testing Hardness : 6065 HRC (Diaphragm Plate) Features : Auto stop, Peak Hold, Data Recording, Overload Protection Resolution : 0.01 kg/cm2 Port Size : Standard 1/4 inch BSP Application : Cardboard, Corrugated Box, Paper Testing Measuring Range : 0 40 kg/cm2 Operating Voltage : 220240 V AC Equipment Type : Digital Bursting Strength Tester Temperature : 5C 45C Response Time : < 3 seconds Specimen Size : 100 mm x 100 mm Mounting Type : Table Top Max Height : 450 mm Capacity : 0 35 kg/cm2 Test Width : 100 mm Machine Weight : Approximately 60 kg Interface Type : RS232 Serial Interface Humidity : 20% 85% RH Number of Specimens : Single or Multiple Test Speed : 95 mm/min Accuracy : 0.1 kg/cm2 Display Type : Digital LCD Display Test Stroke : Up to 25 mm Test Range : 0 40 kg/cm2 Control Mode : Digital Microprocessorbased Frequency : 50 Hz Gas Pressure : Maximum 4 kg/cm2

Send Inquiry

Carton Box Paper Testing Equipment / Clamp Force Tester For Transport Minimum Order Quantity : 1 Automation Grade : Automatic Power Supply : AC 220V/50Hz Usage : Packing Clamp Test Machine Hardness : Industrial Grade Features : Clamping Force Test, Compression Hold, Auto Reset, Safety Interlock Resolution : 0.01 kN Port Size : Customizable Application : Carton Box, Corrugated Paper Board Transport Simulation Testing Measuring Range : 0 30 kN Operating Voltage : 220V / 50Hz Equipment Type : Clamp Force Tester Temperature : 10C 35C Response Time : <1s Specimen Size : Standard: 1200 x 1200 mm Mounting Type : Floor Mounted Max Height : 2000 mm Capacity : Max Load 3000 kg Test Width : 200 2000 mm Machine Weight : Approx. 500 kg Interface Type : RS232 / USB Port Humidity : 35% 65% RH Number of Specimens : 1 Test Speed : 5 500 mm/min (adjustable) Accuracy : 1% FS Display Type : Digital Display / LCD Touch Screen Test Stroke : 0 1200 mm Test Range : 0 30 kN Control Mode : Microcomputer / Touch Screen Control Frequency : 50 Hz Gas Pressure : 0.6 MPa

Send Inquiry

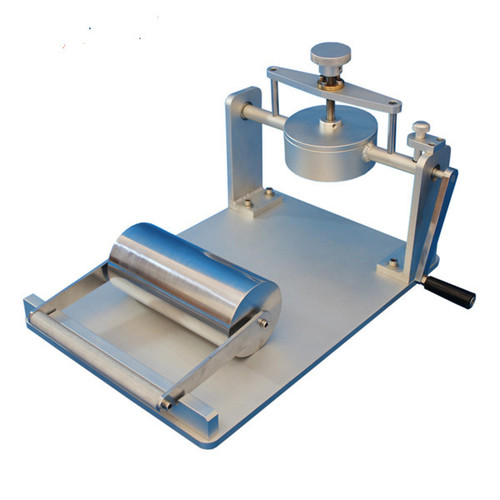

DH-WA-01 Cobb Paper Water Absorption Performance Tester Price : 539.0 USD ($)/Set Minimum Order Quantity : 1 Automation Grade : Manual Power Supply : Not required (manual) Usage : Paper absorbency testing Hardness : Metal body, corrosionresistant Features : Sturdy construction, corrosionresistant, easy to operate, complies with TAPPI/ISO standards Resolution : 0.1 GSM Port Size : Standard Cobb port, 112.8 mm diameter Application : Determining the water absorption (Cobb value) of paper, paperboard and corrugated fiberboard Measuring Range : 0200 GSM Operating Voltage : Not applicable (manual device) Equipment Type : Cobb Paper Water Absorption Performance Tester Temperature : Applicable (test under standardized temperature conditions) Response Time : Within 2 minutes Specimen Size : 125 mm diameter or as per standard requirements Mounting Type : Table top Max Height : Approx. 220 mm (device height) Capacity : up to 200 ml water reservoir Test Width : 100 mm Machine Weight : 8.5 kg Interface Type : Not applicable (manual device) Humidity : Applicable (test under standardized humidity conditions) Number of Specimens : 1 at a time Test Speed : Manual operation Accuracy : 0.5 GSM Display Type : Analog scale Test Stroke : 210 mm Test Range : 0200 GSM Control Mode : Manual
