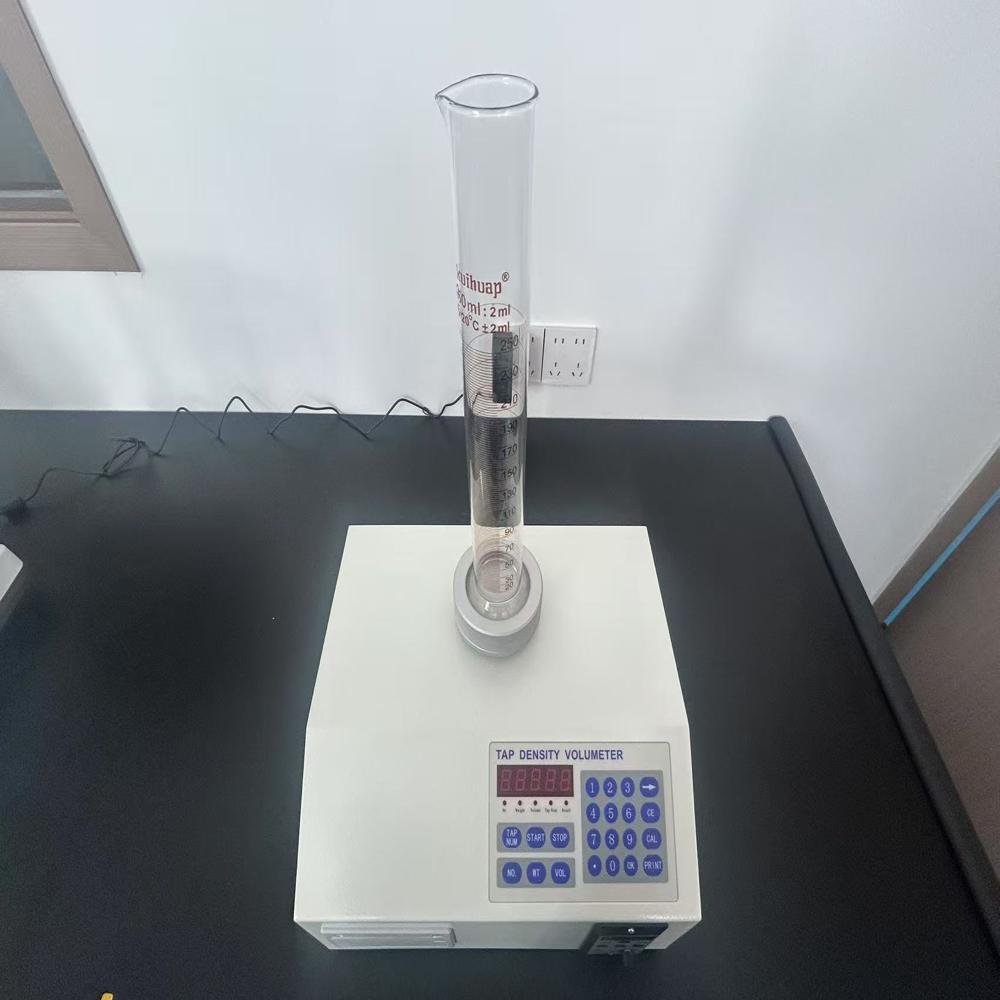

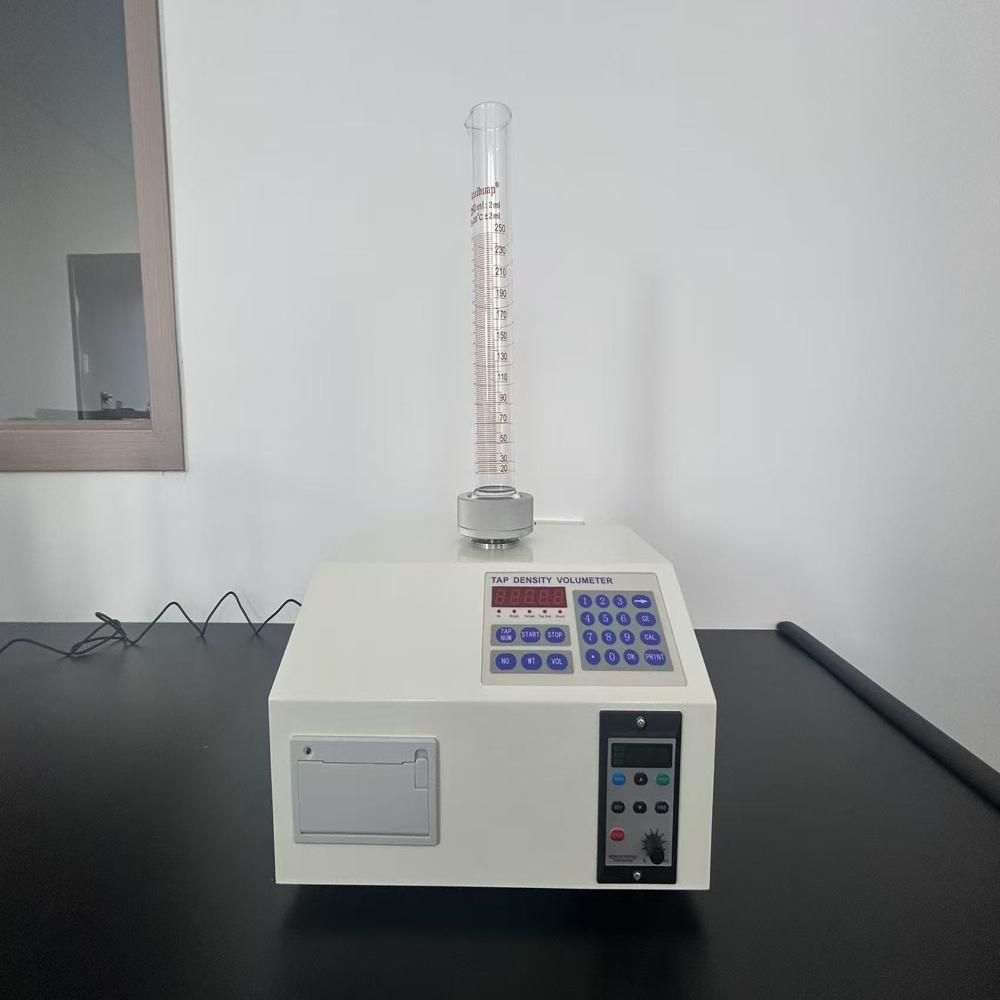

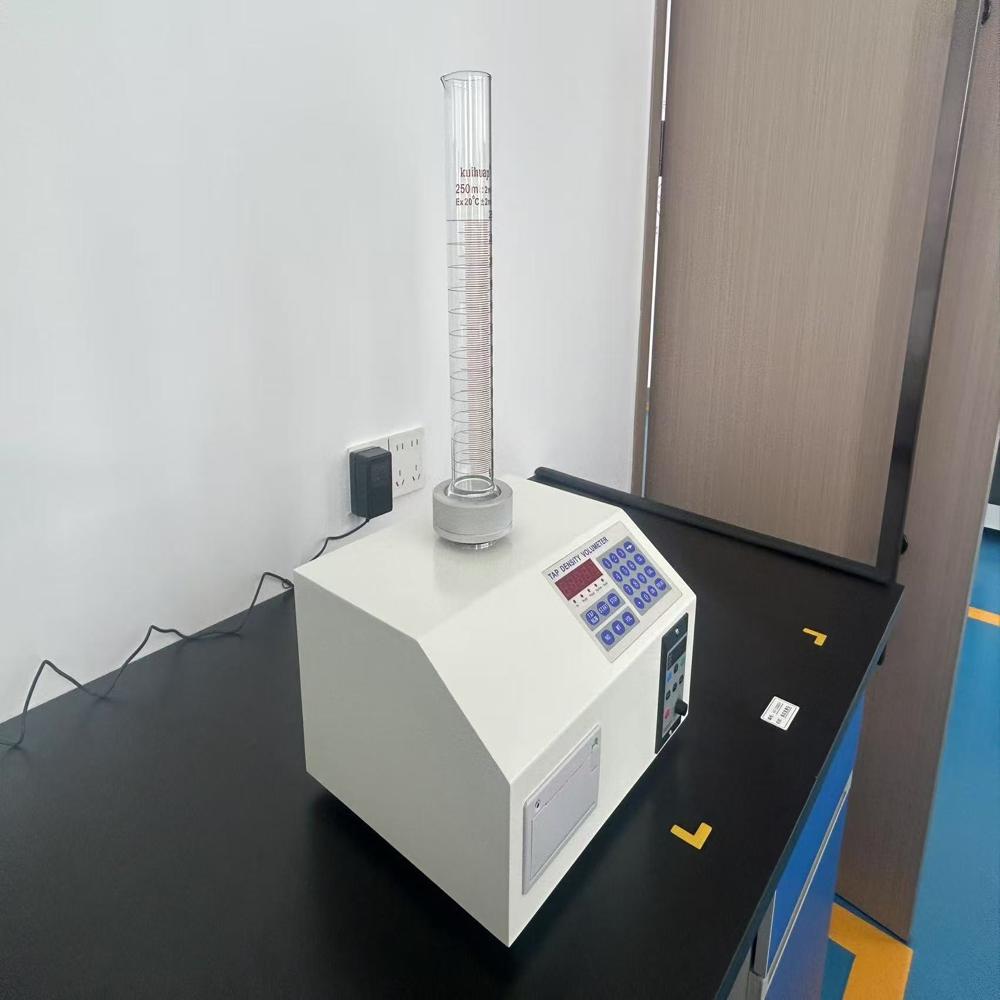

DY-100A Tap Density Tester

Product Description

Introduction:

    DY-100A Powder density tester is based on GB/T5162-2006/ISO3953:1993(tap density measuring of metal powder).For non-metallic powder,This instrument extended several functions.

such as"vibration amplitude" from 3m standard extended to 1mm-15mm;"vibration frequency"from 100-300 times per minute extended to 0-300 times per minute."vibration times"from 3000 times standard extended to 0-99999 times.All of them can be setup freely.

    DY-100A Powder density tester consist of adjustable-speed motor,vibration assembly,micro-computer and micro printer.,etc.It has the feature of compact structure,stable,and easy operation.,etc.

    DY-100A Powder density tester consist of adjustable-speed motor,vibration assembly,micro-computer and micro printer.,etc.It has the feature of compact structure,stable,and easy operation.,etc.

Features:

1.Drop Height-Easily Adjustment

    The drop height is important for a tap density tester in order to meet different international standards.This tap density tester uses default 3mm height and some tapping washers in specific height to reach 14mm.They changes easily without opening the cover.

 2.Working Panel-Intuitive

    The intuitive LED and membrane working panel brings operator and easy and fast operation.Accurate to 4 decimals.Automatically saving all test information.Operator simply inputs the desired data and press start to test.

3.Rpm-Easily Adjustment

    The rpm is also important for a tap density tester.This instrument uses a speed control to realize 250rpm and 300 rpm.The motor is default 300 rpm,just tun the knob and reach the right percentage to shift to 250rpm.

4.Analysis Result-Easily Printed

    Integrated micro printer prints the test data after test including Sample No,weight,volume,tap number,tap density and operator.

5.Cover-Easily to Clean

    The outer surface is plastic coated,it is strong and resistant to any powders non-corrosive or corrosive.It makes for the cleaning procedure as well as a longer working life.

 Specification:

(1) Weight of testing object:<=500.00g

(2) Volume of testing object:<=250.00ml(standard accessory including

25ml,50ml,100ml,250ml measuring cylinder)

(3) Single vibration times:<=0-99999 times(the result will come out as bulk density when input zero times)

(4) Allowable motor force:0.86 N.m.

(5) Vibration frequency:maximum 300 round per minute(0-300 round per minute is adjustable,USA pharmacopeia standard is 300 round per minute)

(6) Vibration amplitude:maximum 15mm(1mm-15mm is adjustable,International standard is 3mm)

(7) Repeatability error:<=1%

(8) Accuracy error:<=1%
