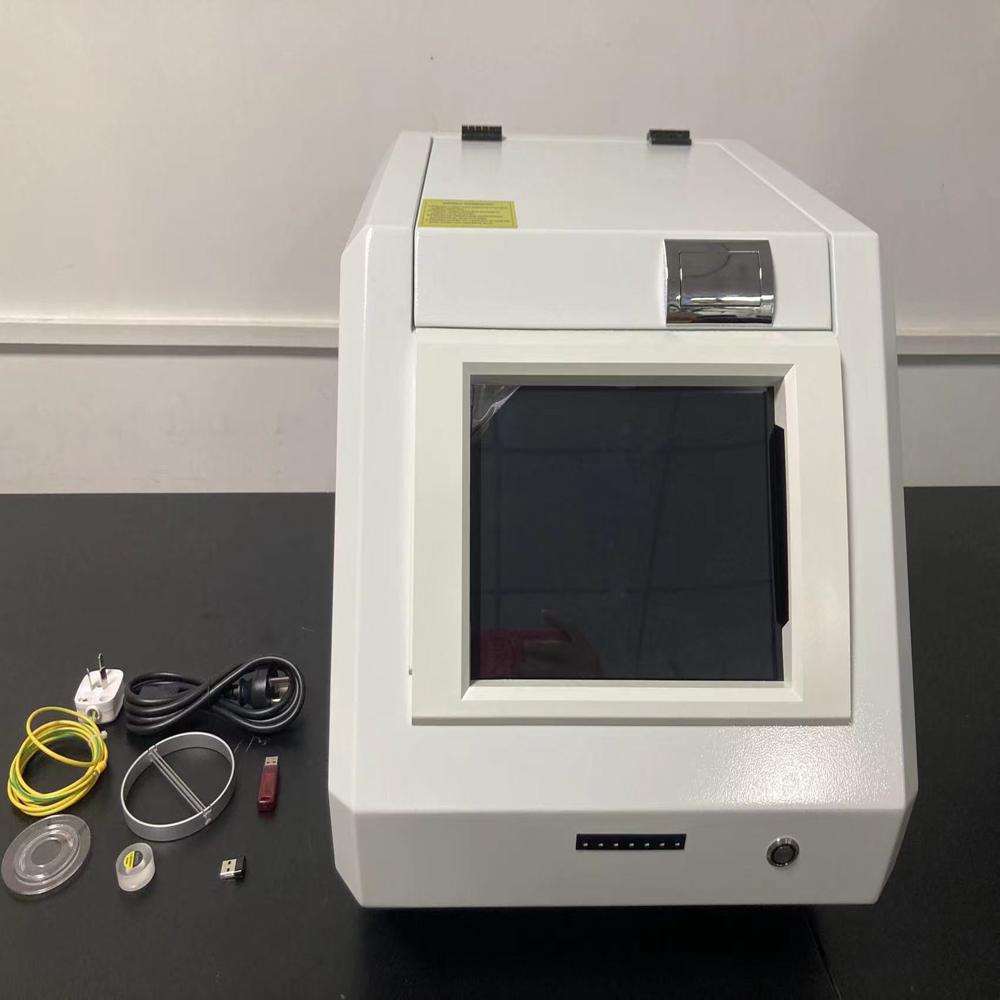

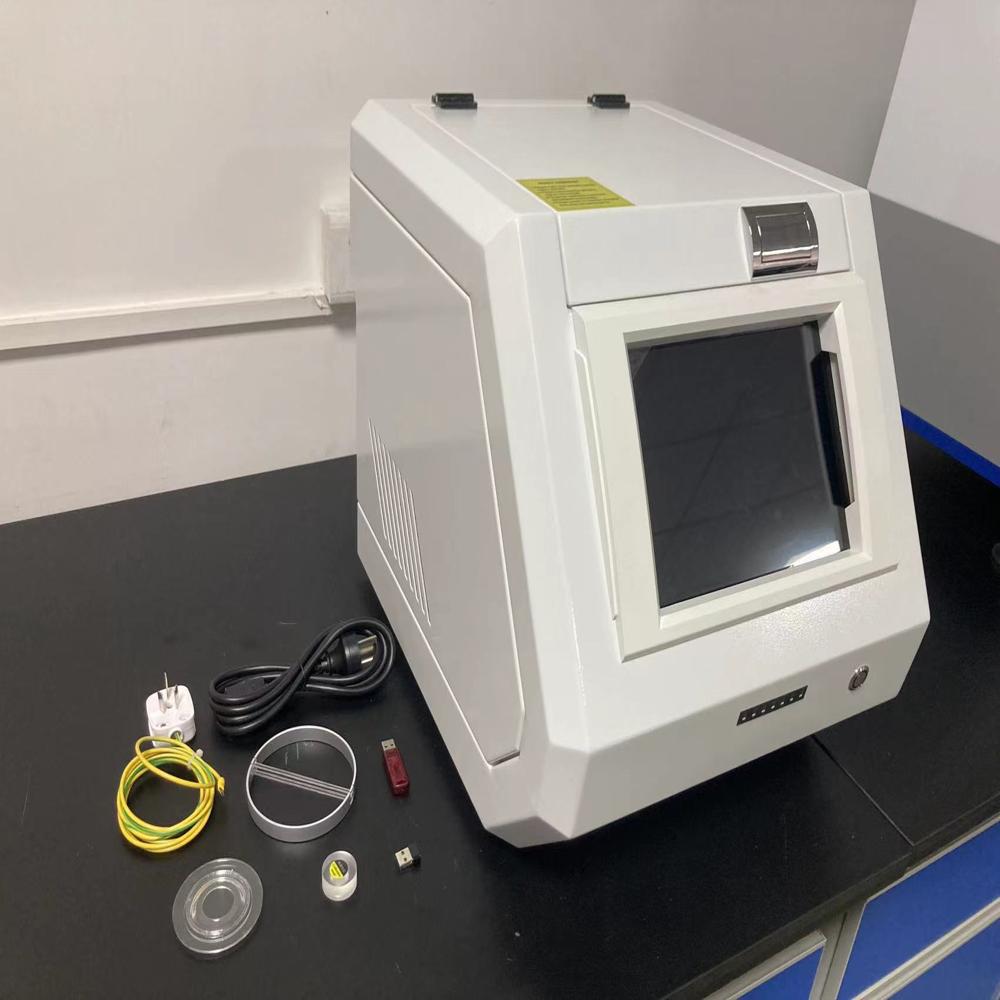

XRF Precious metal spectrometer with a built-in computer

XRF Precious metal spectrometer with a built-in computer

Name: Gold Spectrometer
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 6364.0 USD
Availability: InStock

6364.0 USD ($)/Set

Get a Price/Quote

Product Details:

Power 150 Watt (w)
Frequency 50/60 Hz
Measuring Range 0.001% - 99.99%
Number of Specimens Single sample at a time
Humidity 85% RH
Operating Voltage AC 220V/50Hz
Response Time Within 5 seconds
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

XRF Precious metal spectrometer with a built-in computer Price And Quantity

Price 6364.0 USD ($)/Set
Minimum Order Quantity 1 Set

XRF Precious metal spectrometer with a built-in computer Product Specifications

Interface Type USB, LAN
Usage Metal analysis, authenticity identification
Max Height 50 mm (sample chamber)
Automation Grade Semi-automatic
Test Range Au, Ag, Pt, Pd, Cu, Zn, Ni and more
Machine Weight 35 Kilograms (kg)
Temperature 10~35C
Port Size Standard sample stage (36 mm)
Test Speed 60 sec/sample
Test Width 80 mm
Resolution 128 eV (under normal conditions)
Power Supply AC 220V/50Hz
Gas Pressure No external gas required
Application Jewelry, pawn, precious metals detection and analysis
Display Type Integrated 10.4 inch LCD touchscreen
Features Non-destructive, rapid, high precision, in-built computer, printer support
Accuracy 0.1 %
Mounting Type Benchtop
Specimen Size Up to 80 mm/sample
Power 150 Watt (w)
Frequency 50/60 Hz
Control Mode Built-in computer control
Capacity 1 sample/turn
Measuring Range 0.001% - 99.99%
Number of Specimens Single sample at a time
Operating Voltage AC 220V/50Hz
Humidity 85% RH
Response Time Within 5 seconds

XRF Precious metal spectrometer with a built-in computer Trade Information

FOB Port shenzhen
Payment Terms Paypal, Telegraphic Transfer (T/T), Western Union
Supply Ability 300 Set Per Month
Delivery Time 7 Days
Packaging Details standard exporting package
Main Domestic Market All India

Product Description

XRF Precious Metal Analyzer DX600

Analysis of Precious Metals and Identification of Carats

At present the use of XRF analyzer for chemical composition analysis and purity determination of precious metals has become a widely used extremely popular and supported by national standards and reliable methods The use of XRF for the analysis of precious metals is a faster and more economical method of multielement detection than spark test and chemical reagent testing

The XRF Analyzer provides users with an easytouse costeffective inspection technology no need to inspect the tool into the material of the sample being tested or damage the sample The chemical composition information of the alloy can be obtainedthus determines the carat rating of the sample Whether you are buying precious metals such as gold selling or producing jewelry making metals or recycling used metals you need a quick way to determine the carat grade and other precious and nonprecious metal content with extreme precision In the first time to effectively control product quality set a reasonable price The xrf analyzer quickly provides accurate analysis of all types of samples

Advantages and Characteristics of Analysis

1.Element measuring range Au,Ag,Cu,Pt,Pd,Ir,Cd

2.Measuring accuracy 0.1%

3.Testing specimen: solids,liquids and powders

4.Light tube overheating protection

5.High voltage over voltage protection

6.Actual focus 5mm

7.Built-in industrial computer and touch screen

8.Install radiation protection device proactively protect operator safety

9.Program controlled preheating and anti radiation interference ensure stable and accurate test results

Instrument Performance and Configuration

Voltage	AC100-240V,50hz
Packing dimension	560530510mm
Machine dimension	410500430mm
Chamber size	306248124mm
Rate power	<150W
Weight(N/G)	33KG/45KG
Detector	Proportional counter tube
Built-in computer	Built-in industrial computer
High voltage	0-50KV/0-1mA
Light Tube	50KV/1mA
Collimator	2.5mm
Noise	50dB
Temperature	-1146
Humidity	<70%

Rapid and Non-Destructive Analysis for Precious Metals

Experience efficient, non-destructive testing with the XRF Precious Metal Spectrometer. Using X-ray fluorescence technology, this device identifies and quantifies valuable metals without damaging your samples. Achieve highly accurate results with a resolution of 128 eV in under one minute per specimen.

User-Friendly Integrated Computer and Touchscreen Display

Operate the spectrometer with ease, thanks to its built-in computer and intuitive 10.4-inch LCD touchscreen. The pre-installed analysis software simplifies workflows, while USB and LAN interfaces ensure effortless data transfer and external printer connectivity for immediate reporting.

Versatile Applications in Jewelry and Precious Metal Markets

This device is an essential tool for jewelry shops, pawn brokers, metal refineries, and traders. Supporting single sample analysis up to 80 mm, it accommodates a wide range of jewelry items and other precious metal specimens, making authenticity verification and compliance testing seamless.

FAQs of XRF Precious metal spectrometer with a built-in computer:

Q: How does the XRF Precious Metal Spectrometer analyze metal samples?

A: This spectrometer uses X-ray fluorescence technology, where an X-ray tube excites the sample, causing it to emit characteristic fluorescence that is detected and analyzed. The built-in Si-PIN semiconductor detector and pre-installed software quickly identify and quantify metal content accurately and non-destructively.

Q: What types of metals and sample sizes can the device test?

A: The XRF spectrometer can analyze a wide range of metals, including gold (Au), silver (Ag), platinum (Pt), palladium (Pd), copper (Cu), zinc (Zn), nickel (Ni), and more. It accommodates specimens up to 80 mm in width and a maximum height of 50 mm.

Q: When should I use this spectrometer for metal analysis?

A: This device is ideal whenever you need fast, accurate, and non-destructive testing of precious metals, such as during jewelry authentication, metal trading, or quality control in a refinery or pawn shop environment.

Q: Where can this spectrometer be deployed effectively?

A: The XRF Precious Metal Spectrometer is suitable for use in laboratories, jewelry shops, pawn businesses, manufacturing plants, and metal trading establishments. Its benchtop design and robust construction make it versatile for various settings.

Q: What is the analysis process with this system?

A: Place a sample (up to 80 mm wide) on the standard sample stage, initiate the analysis via the touchscreen, and the device conducts the test in approximately 60 seconds. Results are then displayed, with options to export or print the data via USB or LAN.

Q: How does the built-in computer and software benefit the user?

A: The integrated computer and pre-installed analysis software enable efficient, semi-automatic operation, minimizing user effort. It streamlines data handling, provides an intuitive user interface, and supports direct printing, making the analysis process quick and hassle-free.
