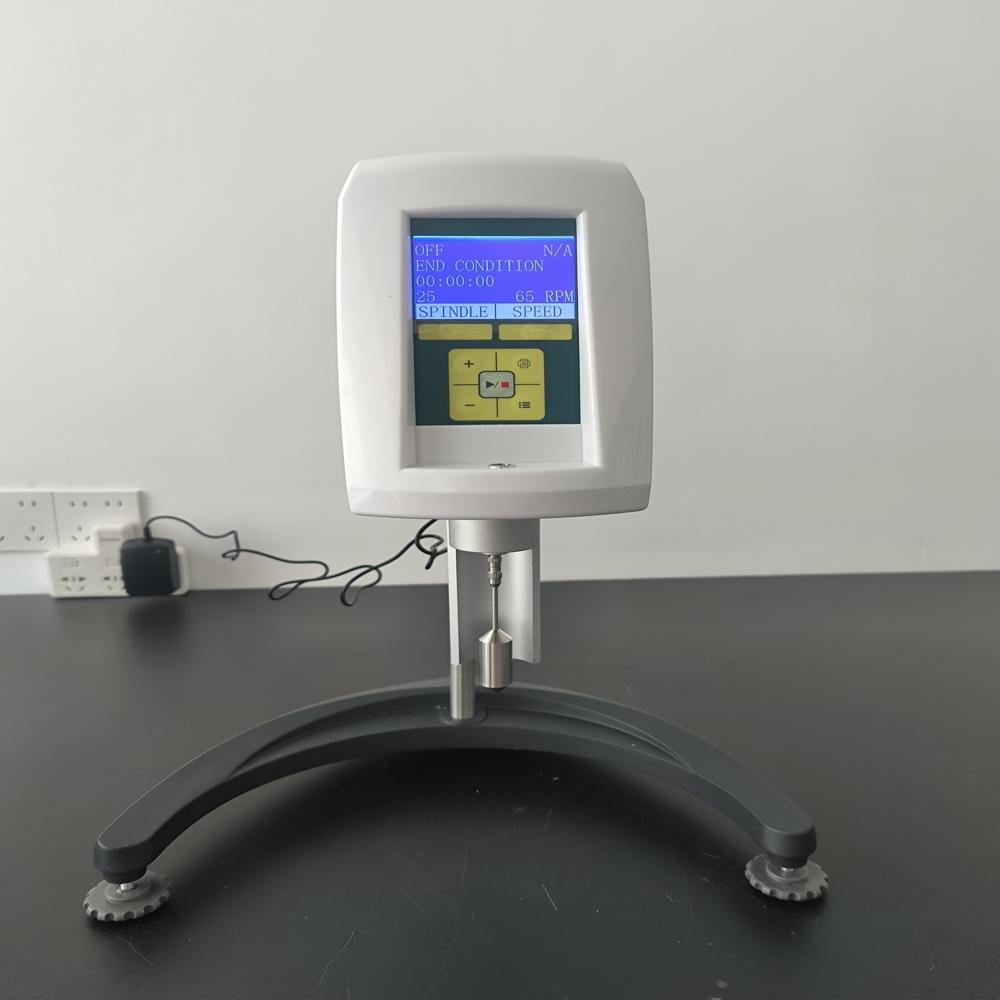

Viscosity Testing Equipment Small Sample Digital Viscometer

Product Description

the ssr series digital rotary viscometer adopts coaxial cylinder structure, using small sample adapter, the sample quantity required for each measurement is very small, only 7ml-13ml (rotor 0 is 21ml), optional constant temperature water jacket with cycle, with constant temperature tank to control the sample under test. The operation is very convenient and the measurement is accurate. very suitable for precious, rare sample measurement.

Characteristic:

1.  Timing measurement function

2. Coaxial cylinder structure

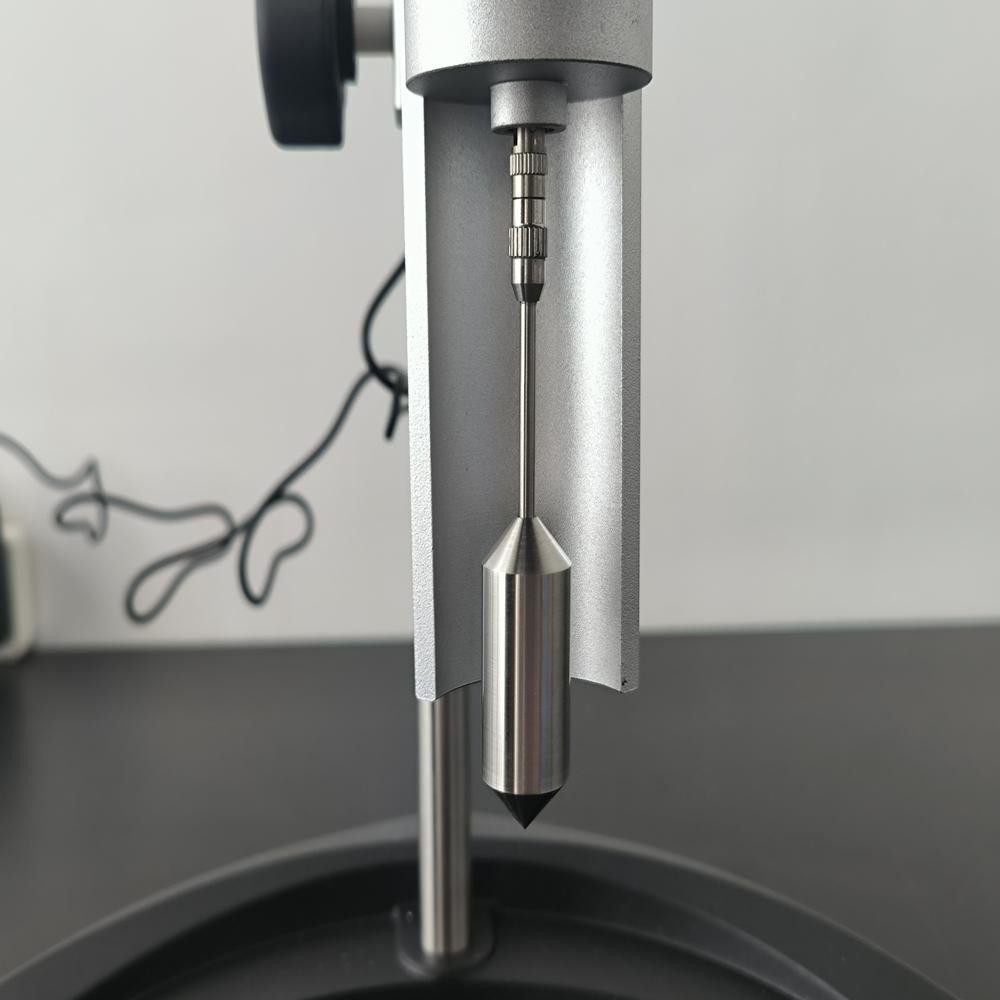

3. Using a spindle rotor, the sample size required for testing is very small

4. Two RS232 interfaces with direct connection to micro printer and computer

Specification:

model: DH-RV-SSR

display mode: digital display

speed(r/min): 0.5/1/2/2.5/4/5/10/15/20/25/30/40/50/60/70/80/90/100 Total 18

rotor: 21#, 27#, 28#, 29#  (standard configuration)

measuring range:50 - 2M

21# rotor：50-100K

27# rotor：250-500K

28# rotor：500-1M

29# rotor：1K-2M
