CPJ-3020W Long Stroke Horizontal Profile Projector Optical Measuring Comparator

4364.0 USD ($)/Set

Get a Price/Quote

Product Details:

Power Supply Manual
Material MS
Usage Industrial
Features Good Quality
Color White
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

CPJ-3020W Long Stroke Horizontal Profile Projector Optical Measuring Comparator Price And Quantity

Price 4364.0 USD ($)/Set
Minimum Order Quantity 1 Set
Price Range 2099.00 - 6999.00 USD ($)/Set

CPJ-3020W Long Stroke Horizontal Profile Projector Optical Measuring Comparator Product Specifications

Features Good Quality
Usage Industrial
Color White
Material MS
Power Supply Manual

CPJ-3020W Long Stroke Horizontal Profile Projector Optical Measuring Comparator Trade Information

FOB Port Shenzhen
Payment Terms Paypal, Telegraphic Transfer (T/T), Western Union
Supply Ability 300 Set Per Month
Delivery Time 7 Days
Packaging Details standard exporting package
Main Domestic Market All India

Product Description

Long Stroke Horizontal Profile Projector Optical Measuring Comparator CPJ-3020W

Product Brief:

Horizontal Profile Projectors, ergonomic measuring instruments with reliable mechanical structure and high precision magnification, are specially designed for the measurements that cannot be easily or effectively achieved by traditional (vertical) profile projectors. The systems allow to inspect and measure the profile, section, surface and outline of complicated workpieces, such as cutters, wheel gears, screws and springs.

Features:

1.Horizontal profile projector

2. Easy to operate

3. Resolution of linear scale: 0.5um

4. Powerful Digital Readout to support easy and accurate measurement

5. Reliable and cost-effective

6. Precise and accurate

7. Low maintenance cost

8. Optional Proprietary software

Specification:

Model: CPJ-3020W

X-axis Travel (mm): 200

Y-axis Travel (mm): 100

Worktable size (mm): 400x150

Z-axis Travel (mm): 75 (focusing)

Weight (kg): 160

Dimension (mm): 1090x830x1010

Projectorscreen

Size (mm): 300

Rotary range: 0-360 degree

Data processing system: Multi-functional DRO DC-3000

Illumination: Transmission: 24V/150W halogen lamp. Reflection: 21V/150W halogen lamp.

Accessories: Printer, edge detector, Measuring software M2D-CPJ, etc.

Power supply: AC 100-240V 50/60Hz. Total power: 450W

Advanced Optical Measurement for Industry

The CPJ-3020W Profile Projector offers advanced, high-precision measurement for industrial parts and profiles. Its long stroke capability and robust construction ensure that it meets the demands of contemporary engineering and manufacturing environments, making it ideal for quality control and inspection workflows.

Manual Control for Enhanced Precision

Featuring intuitive manual controls, the CPJ-3020W allows operators to achieve meticulous adjustments during measurement. This design supports sustained accuracy and reliability, providing flexibility for various profile analysis tasks without the complications of automation.

FAQ's of CPJ-3020W Long Stroke Horizontal Profile Projector Optical Measuring Comparator:

Q: How is the CPJ-3020W Profile Projector used in industrial measurement?

A: The device is utilized to project magnified images of parts or components onto a screen, allowing for detailed analysis of dimensions, shapes, and profiles. This helps ensure components meet precise specifications in industrial settings.

Q: What are the primary benefits of using a long stroke optical measuring comparator?

A: A long stroke expands the measuring range, accommodating larger or more complex workpieces. This versatility improves quality control processes and increases productivity in manufacturing environments.

Q: When should businesses opt for a manual measuring comparator like the CPJ-3020W?

A: Manual comparators are ideal when flexibility, cost-effectiveness, and hands-on precision adjustment are required, particularly for low-to-medium volume inspection tasks in industrial workshops or production lines.

Q: Where is the CPJ-3020W distributed from, and who are its main users?

A: The CPJ-3020W is distributed, exported, and supplied by manufacturers and traders in China. Its main users are industrial companies, factories, and workshops that require accurate measurement tools for quality assurance.

Q: What is the process for measuring a component using this projector?

A: To measure, the component is placed on the stage, manually adjusted for focus and positioning, and its projected image analyzed against grid or reference overlays on the viewing screen to check for compliance with required specifications.

Q: What materials is the CPJ-3020W constructed from and why is this important?

A: It is made from mild steel (MS), ensuring durability and stability during use. This robust material choice contributes to the longevity and consistent performance of the measuring device in demanding industrial environments.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Optical Measuring Machine' category

3D Optical Image Video CNC Measuring Machine Price Range : 5899.00 - 19999.00 USD ($)/Set Price : 11099 USD ($)/Set Minimum Order Quantity : 1 Power Supply : AC 220V, 50/60Hz Frequency : 50/60 Hz Operating Voltage : 220V AC Usage : Automatic Image Measuring Instrument Accuracy : 2 m Port Size : Standard USB/Ethernet Display Type : Highresolution LCD display Features : 3D image stitching, autofocus, programmable operation Test Stroke : 200 mm (X/Y), 100 mm (Z) Application : Precision dimensional measurement, quality control Measuring Range : 200 mm x 200 mm x 100 mm (XYZ) Temperature : 10C~30C Response Time : Immediate (<0.5s) Test Range : 0200 mm Capacity : Varies by application Machine Weight : Approx. 300 kg Interface Type : USB 2.0, Ethernet Control Mode : CNC Automatic Automation Grade : Fully Automatic Resolution : 0.001 mm Mounting Type : Benchtop Test Speed : 0200 mm/s (programmable) Number of Specimens : Single Specimen Max Height : 100 mm (Zaxis) Specimen Size : Max 200 mm x 200 mm Equipment Type : 3D Optical Image Video CNC Measuring Machine Humidity : 20%~80% RH (noncondensing) Test Width : 200 mm Gas Pressure : No Gas Required

Send Inquiry

Automatic Optical Video Image Testing Equipment Price Range : 5699.00 - 15999.00 USD ($)/Set Price : 14699 USD ($)/Set Minimum Order Quantity : 1 Power Supply : AC 220V, 50Hz Frequency : 50/60 Hz Operating Voltage : 220V AC Usage : Film, Sheet, Paper, Textile Testing Accuracy : 0.5% of Reading Port Size : Standard Interface Display Type : Touch Screen LCD Features : High Precision, Realtime Display, Data Storage Test Stroke : 01000 mm Application : Material Testing, Quality Control Measuring Range : 0.001 mm 100 mm Temperature : 10C35C Response Time : <1 Second Test Range : 05000 N Capacity : 5000 N Max Machine Weight : 95 Kg Interface Type : USB, LAN Control Mode : Automatic/Manual Automation Grade : Automatic Resolution : 0.001 mm Mounting Type : Floor Standing Test Speed : 0.1500 mm/min Number of Specimens : Up to 5 Max Height : 1200 mm Specimen Size : Max 300 x 300 mm Equipment Type : Automatic Optical Video Image Testing Equipment Humidity : 20%80% RH Test Width : 300 mm Gas Pressure : 0.6 MPa Hardness : 60 HRC

Send Inquiry

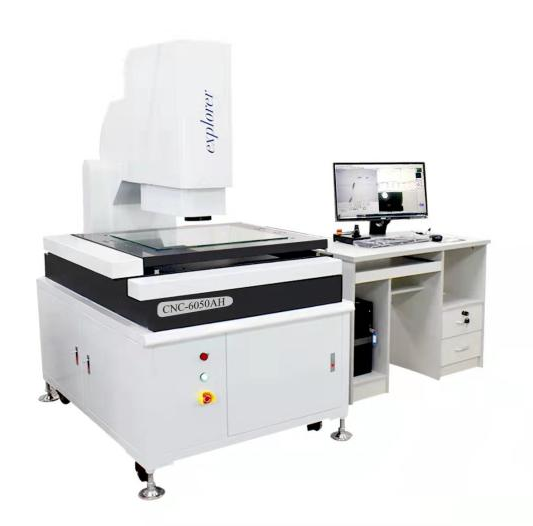

High Precision Longmen Automatic Image Measuring Instrument Price Range : 5699.00 - 19999.00 USD ($)/Set Price : 15141 USD ($)/Set Minimum Order Quantity : 1 Power Supply : AC 220V 10%, 50/60Hz Frequency : 50/60Hz Operating Voltage : 220V/110V Usage : Longmen Automatic Image Measuring Instrument Accuracy : Up to 2.5 m Port Size : Customizable Display Type : Industrial LCD Touch Screen Features : High precision optical measurement, Auto focus, Automatic edge detection, Programmable batch measurement, Laser sensor interface, CNC operation Test Stroke : Overall 600800200 mm Application : Precision measurement and quality control in manufacturing and electronics industries Measuring Range : 600800200 mm Temperature : 2025C Response Time : 1 second Test Range : 0800 mm Capacity : High throughput for industrial use Machine Weight : Approximately 1800 kg Interface Type : USB, RS232, Ethernet Control Mode : CNC Automatic Automation Grade : Fully Automatic Resolution : 0.5 m Mounting Type : Floor Standing Test Speed : Up to 300 mm/s Number of Specimens : Single or multiple depending on application Max Height : 200 mm (Z axis travel) Specimen Size : Up to 600800 mm Equipment Type : High Precision Longmen Automatic Image Measuring Instrument Humidity : 4065% RH Test Width : 600 mm Gas Pressure : 0.50.8 MPa Hardness : Suitable for hard and soft material inspection
