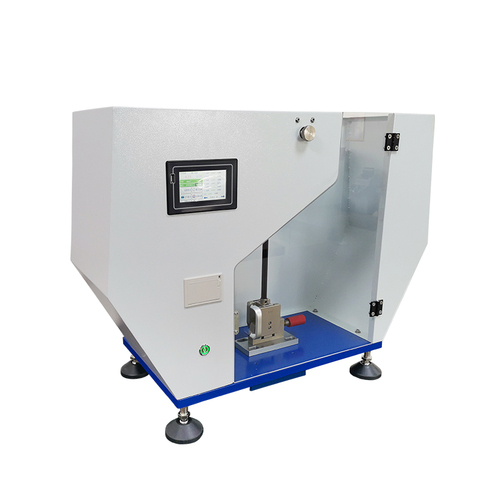

HT-50D-CM Popular Plastics Izod Charpy Impact Testing Equipment

Product Description

Application:

The digital display Izod and Charpy Impact Tester is used to measure the impact toughness of non-metallic materials such as plastic, reinforced nylon, fiberglass, ceramics, cast stone, plastic electrical appliances, and insulating materials. It is a common equipment for quality inspection by scientific research institution, universities and non-metallic materials manufacturers. It has the feature of simple structure, easy operation and high test accuracy.

Features:

1.Integrated impact of Izod and Charpy, no need to disassemble the fixture and sample holder;

2.High-precision intelligent controller, equipped with LCD display, can read data intuitively and accurately;

3.On the impact pendulum, carbon fiber pendulum is used to improve the rigidity of the material, and concentrate the impact mass on the center of mass of the pendulum, so as to achieve no vibration impact test and increase the service life;

4.Adopt Imported high-resolution digital encoder, and the angle test accuracy is higher and more stable;

5.The impact hammer and imported ball bearings in line with aerodynamic principles reduce the friction loss caused by machinery;

6.The impact hammer and imported ball bearings in line with aerodynamic principles reduce the friction loss caused by machinery;

7.Optional Chinese and English operating interface, test results can be selected in J/m, KJ/m2, kg-cm/cm, ft-ib/in and other units;

8.Equipped with a brake device, greatly improving safety and testing efficiency.

Standards:

ISO179 "Plastics - Determination of Charpy Impact Strength of Rigid Materials"

ISO180 "Plastics - Determination of Izod Impact Strength of Rigid Materials"

GB/T1043 "Rigid Plastic Charpy Impact Test Method"

JB/T8762 "Plastic Charpy Impact Testing Machine"

JB/T8761 "Plastic Izod Impact Testing Machine"

GB/T18743 "Charpy impact test method for thermoplastic pipes for fluid transportation" (applicable to pipe parts)

Specification:

Model: HT-50D-CM

Izod pendulum energy: 11J, 22J

Charpy pendulum energy: 7.5J, 15J, 25J, 50J

Charpy impact speed: 3.8m/s

Charpy pendulum center distance: 395mm

Izod impact speed: 3.5m/s

Izod pendulum center distance: 335mm

Pendulum angle: 150 degree
