DH-MA-6 Fabric Martindale Resistance Abrasion Test Machine

Name: DH-MA-6 Fabric Martindale Resistance Abrasion Test Machine
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 2475.0 USD
Availability: InStock

2475.0 USD ($)/Set

Get a Price/Quote

Product Details:

Material MS
Power Supply Manual
Usage Industrial
Features Good Quality
Automation Grade Semi-automatic
Display Type LED
Color White
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

DH-MA-6 Fabric Martindale Resistance Abrasion Test Machine Price And Quantity

Minimum Order Quantity 1 Set
Price 2475.0 USD ($)/Set

DH-MA-6 Fabric Martindale Resistance Abrasion Test Machine Product Specifications

Automation Grade Semi-automatic
Display Type LED
Color White
Hardness Yes
Material MS
Power Supply Manual
Usage Industrial
Features Good Quality

DH-MA-6 Fabric Martindale Resistance Abrasion Test Machine Trade Information

FOB Port Shenzhen
Payment Terms Paypal, Telegraphic Transfer (T/T), Western Union
Supply Ability 300 Set Per Month
Delivery Time 7 Days
Packaging Details standard exporting package
Main Domestic Market All India

Product Description

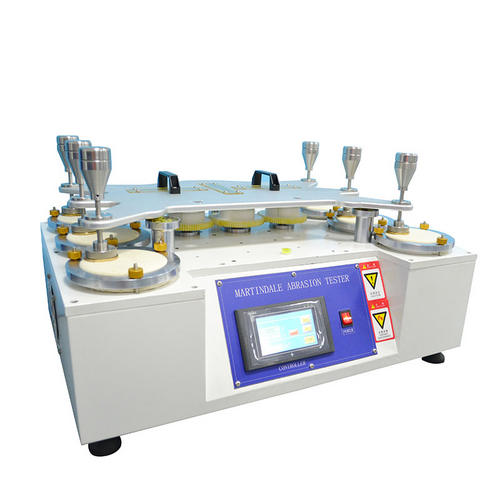

DH-MA-6 Fabric Martindale Resistance Abrasion Test Machine

Summary

Martindale abrasion tester subjects a circular specimen (38mm in diameter, and effective diameter is 28.8mm) to a defined load and rubs against an abrasive medium (i.e. standard fabric) in a translational movement tracing a Lissa-jous figure. The specimen holder, containing either specimen or abrasive medium depending on which method is being used, is additionally freely rotatable around its own axis perpendicular to the plane of the horizontal. The evaluation of the abrasion resistance of the textile fabric is determined from the inspection interval to breakdown, the mass loss the test specimens, assessment of the appearance change.

Standards

GB/T21196-2007,GB/T4802.2-2008,GB/T13775,FZ/T20020,ASTM D4970,ISO12945-2ASTM D4966,ASTM D3886,ISO12947,JIS

L1096,IWS,TM196,TM112,M&S.

Application

Used for testing the performance of the wearing resistance, abrasion, appearance change (pilling degree/class) of the textiles and membrane materials.

Technical characteristics

Number of working position: 6
Counter range: 0-99999
abrader speed:50-2r/min
instrument size:885x600x410mm
power supply:Ac220V 50Hz 500W
weight:150kg

Durable Performance for Quality Assurance

The DH-MA-6 Martindale tester ensures reliable and repeatable results when assessing resistance to abrasion in various fabrics. Its high-quality construction coupled with semi-automatic operation provides efficiency, making it a valuable asset in textile quality control labs and manufacturing facilities.

User-Friendly and Versatile Design

Built with an easy-to-read LED display and manual power control, the DH-MA-6 simplifies the abrasion testing process. The adjustable hardness option and sturdy MS material offer flexibility, accommodating a wide spectrum of industrial textile testing requirements.

FAQ's of DH-MA-6 Fabric Martindale Resistance Abrasion Test Machine:

Q: How does the DH-MA-6 Martindale Resistance Abrasion Test Machine evaluate fabric durability?

A: The DH-MA-6 gauges fabric abrasion resistance by subjecting materials to controlled circular rubbing on its surface and recording the wear using its LED display. The results inform manufacturers about the longevity and endurance of their textiles.

Q: What types of fabrics can be tested with this machine?

A: This machine is designed for use with a wide variety of textiles. Its adjustable hardness and reliable construction allow users to test everything from delicate fabrics to heavy-duty industrial materials.

Q: When is it appropriate to use the DH-MA-6 Martindale Test Machine in production?

A: The DH-MA-6 is best utilized during the quality control phase of textile production or prior to distribution, ensuring products meet the required durability standards before reaching consumers.

Q: Where is the DH-MA-6 Martindale Test Machine manufactured and supplied from?

A: This abrasion test machine is manufactured in China and is available for distribution to global markets-serving exporters, suppliers, and traders alike.

Q: What is the process for operating the DH-MA-6 abrasion tester?

A: To operate, users manually load fabric samples, set the desired parameters via the LED display, and initiate the semi-automatic testing cycle. Manual power control allows for flexible operation and adjustment as needed.

Q: How does the LED display benefit users during testing?

A: The clear LED display enables precise monitoring and recording of test cycles and results, reducing operator error and streamlining the quality assessment process.

Q: In what way does the DH-MA-6 benefit industrial textile businesses?

A: Its reliable performance and robust construction help businesses maintain high quality standards, improve product durability, and gain greater customer satisfaction through rigorous textile evaluations.
