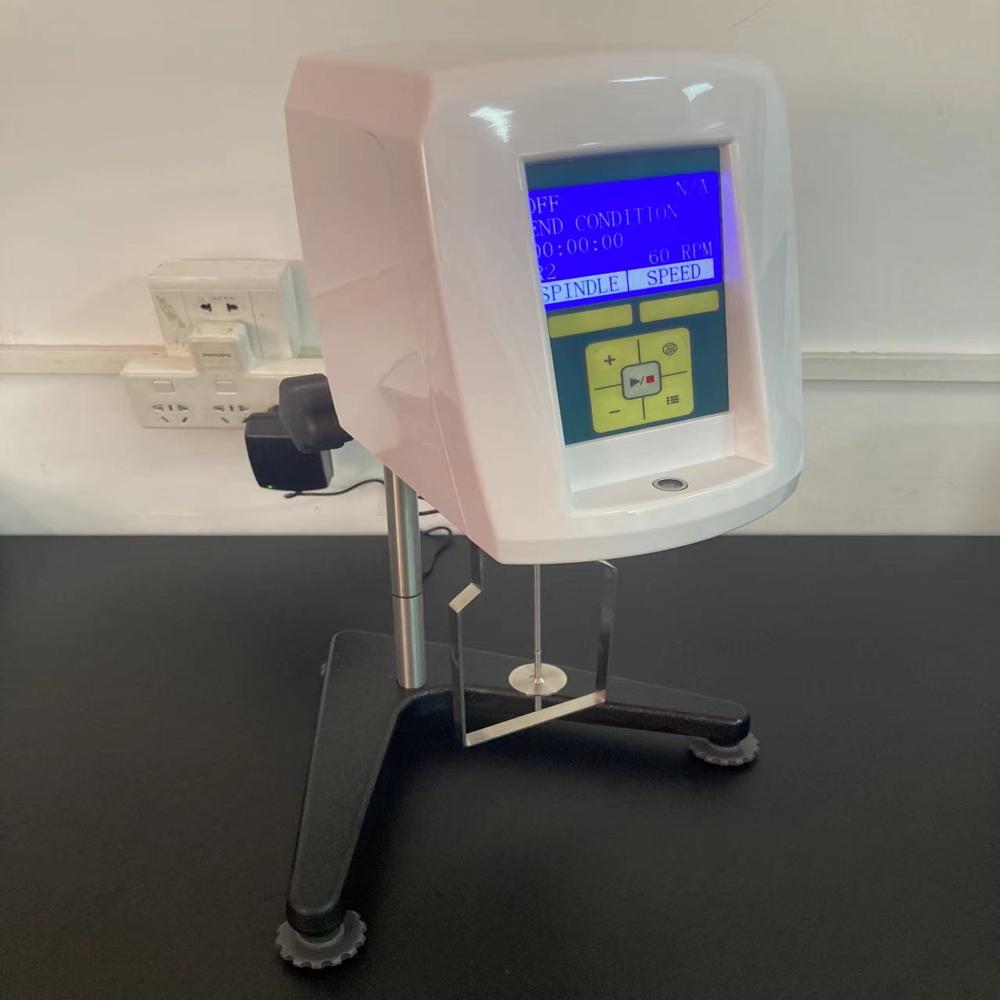

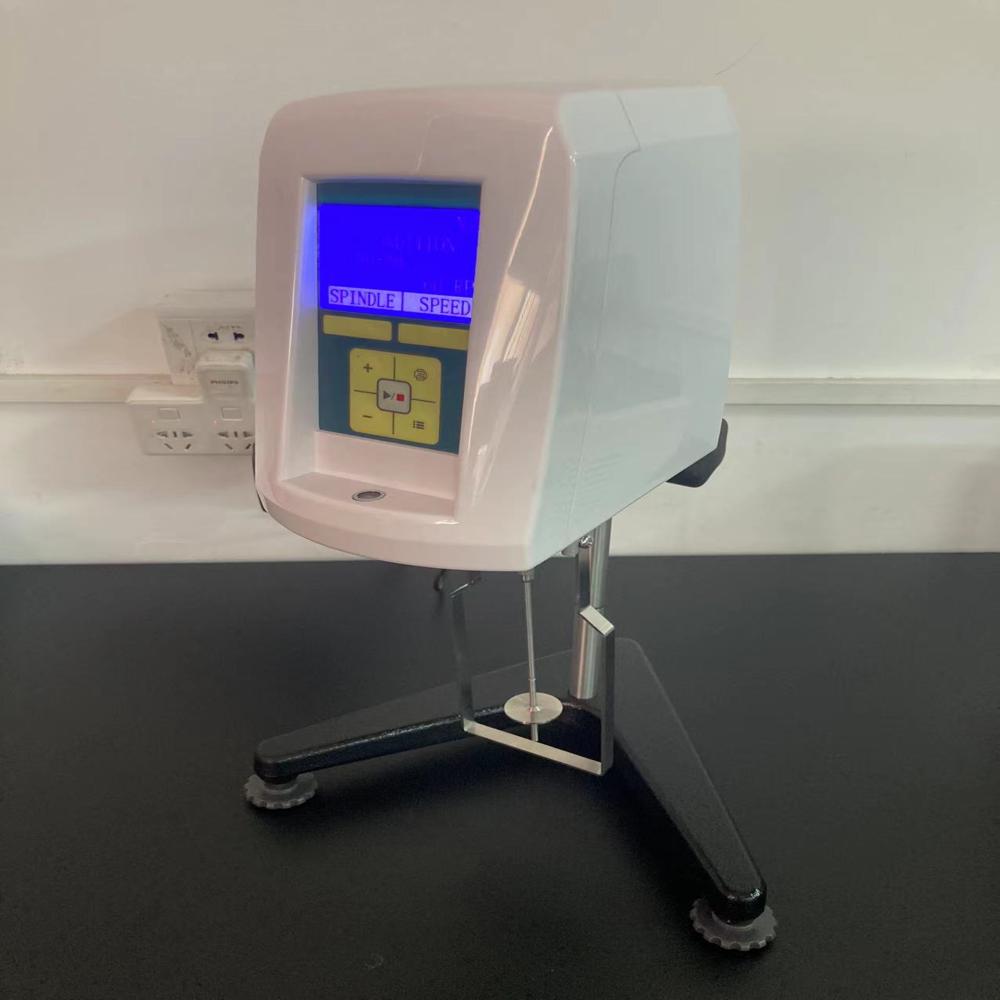

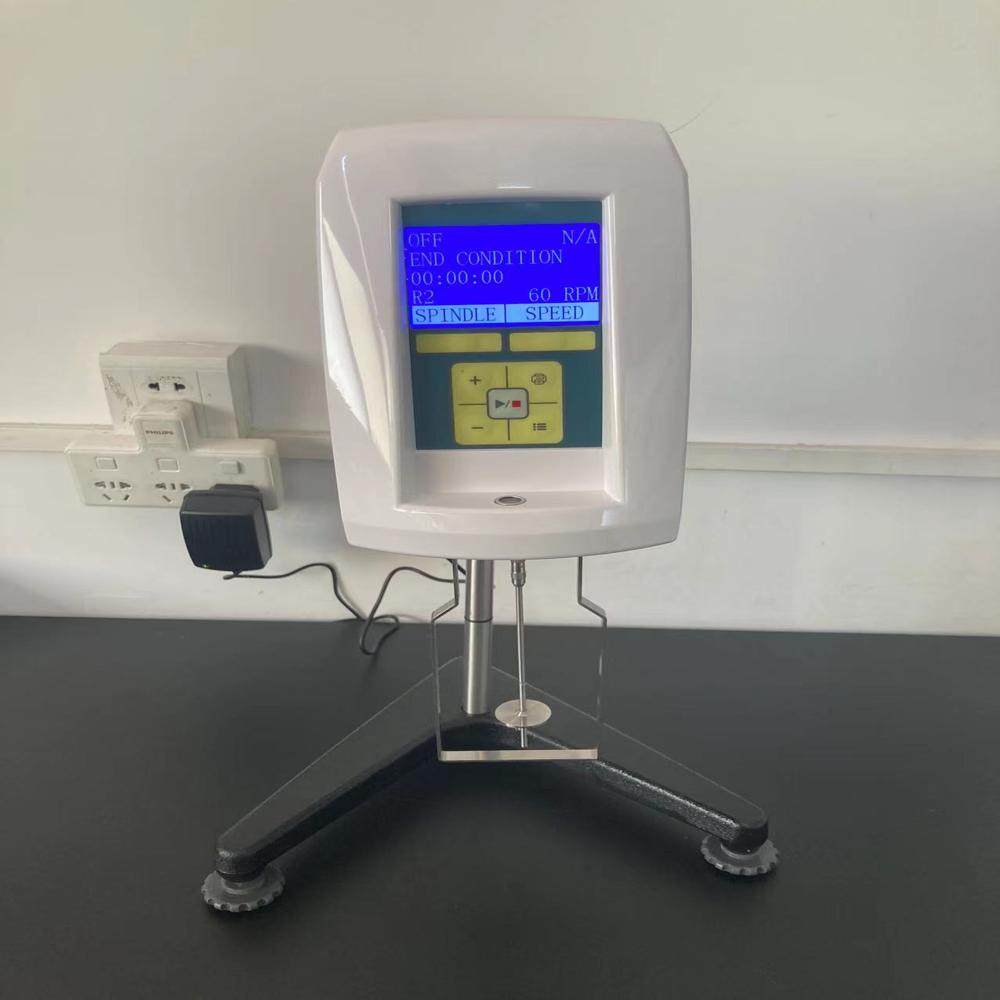

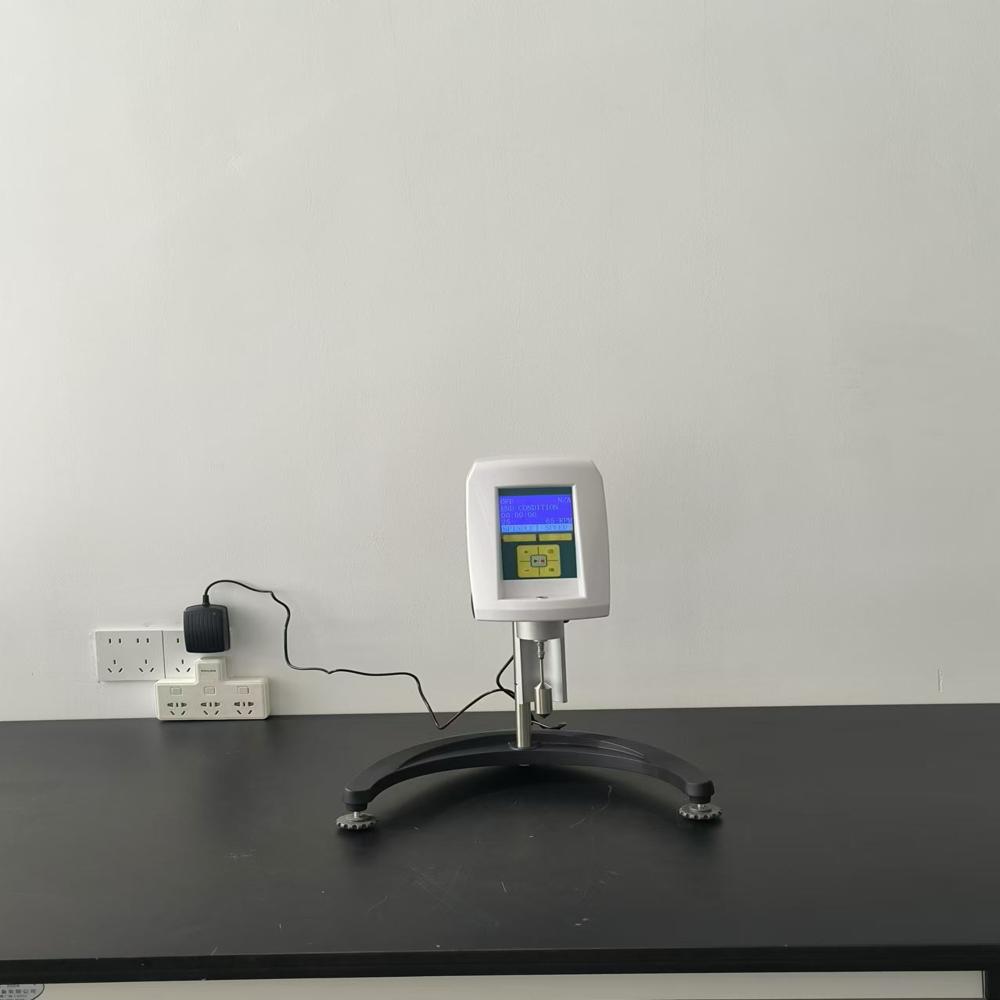

DH-LVDV-2 Portable Viscometer LCD Display Digital Viscometer Tester

Product Description

Widely used in paint, paint, cosmetics, ink, pulp, food, oil products, starch, adhesives, latex, biochemical products and other industries. It can also be optional high temperature furnace measurement need heating melt samples such as asphalt, hot melt glue, polyethylene wax and other samples.

Main features:

1. Viscosity value measurement accuracy: each range is automatically calibrated by a computer, with high accuracy and small error;

2. Front-level instrument: the level adjustment is intuitive and convenient;

3. Optional Pt100 temperature probe: wide temperature measurement range, from-20 to 300 degree, temperature measurement accuracy of 0.1 degree;

4. Optional enhanced ultra-low viscosity adapter ULR / URL PLUS, which can accurately measure the viscosity of 1mPa.S;

5. Select a small amount of sample adapter, SSR / SSR PLUS, and the sample volume measured each time is only 7-11ml;

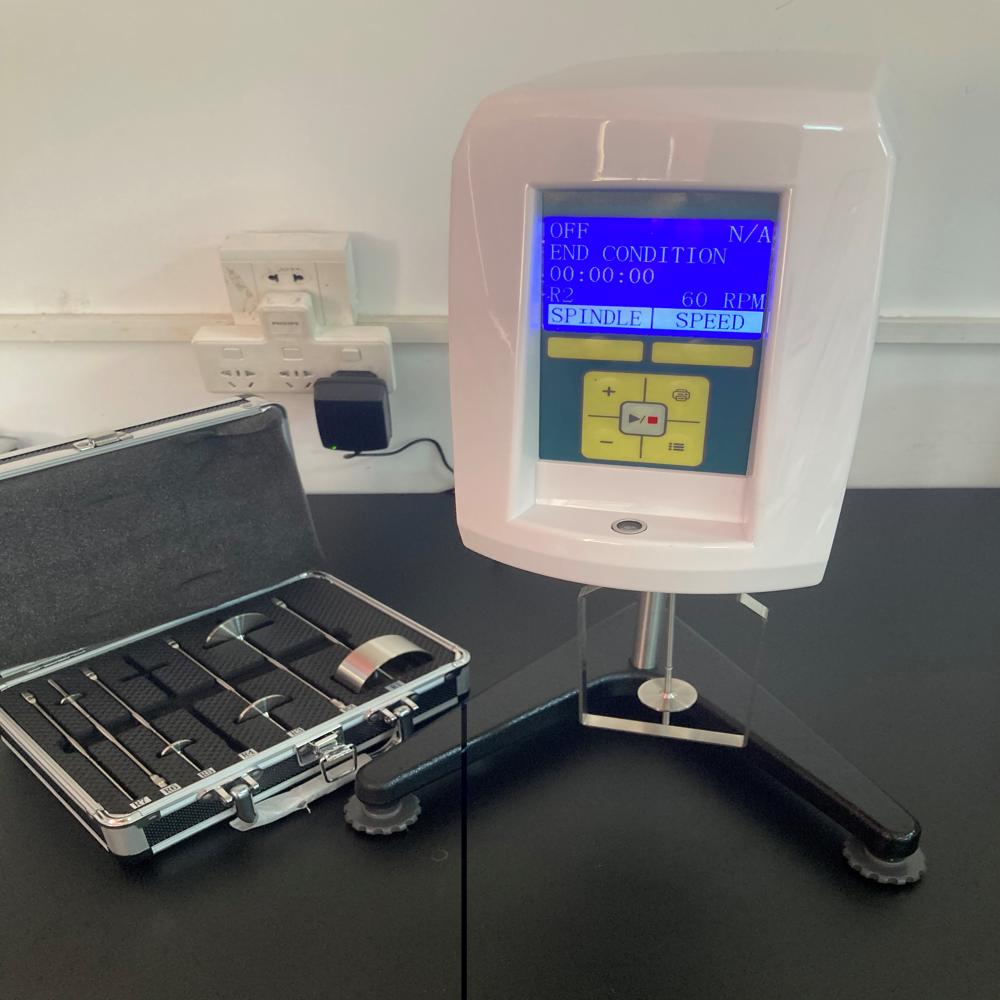

6. Rich optional accessories: constant temperature bath, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;

7. With automatic scanning, timing measurement and other functions;

8. Automatic prompt function of viscosity measurement and stability;

9. Showing the shear rate and the shear stress;

10. Viscosity unit switching (1Pa.s=1000mPa.s; 1P=100mPa.s; 1cP=1mPa.s);

11. Temperature unit switch: Celsius, F;

12. Connect to the printer and the computer

13. Switching between Chinese and English operating systems

Specification:

Model: DH-LVDV-2

Display method: liquid crystal display

Speed(r/min): 0.1-200  58 RPM

Measuring range: 0.3 - 6,000,000  mPa.s

(ULR below 10 )

The lower limit of the actual exact measurement is 1

Sample dosage: 1-4 Rotor: 300-400ml

18,25,31,34Rotor: 7-11ml;

ULR: 21ml

Showing the shear response / shear rate: standard configuration

Timed functionstandard configuration

Temperature measurement function: Standard temperature probe interface (optional temperature probe is required)

Automatic scanning function: Automatically scan and recommend a preferential combination of the rotor and the rotational speed

Maximum measurement range: Automatically displays the measurable viscosity range of the selected rotor and speed

Print function: Data and curve printable (standard printing interface, printer)

Thermostatic parts: Options (including special thermostatic slot for various viscosity meters, constant temperature cup)

working power supply: 110V/60Hz or 220V/50Hz)

outline dimension: 300 * 300 * 450 (mm)
