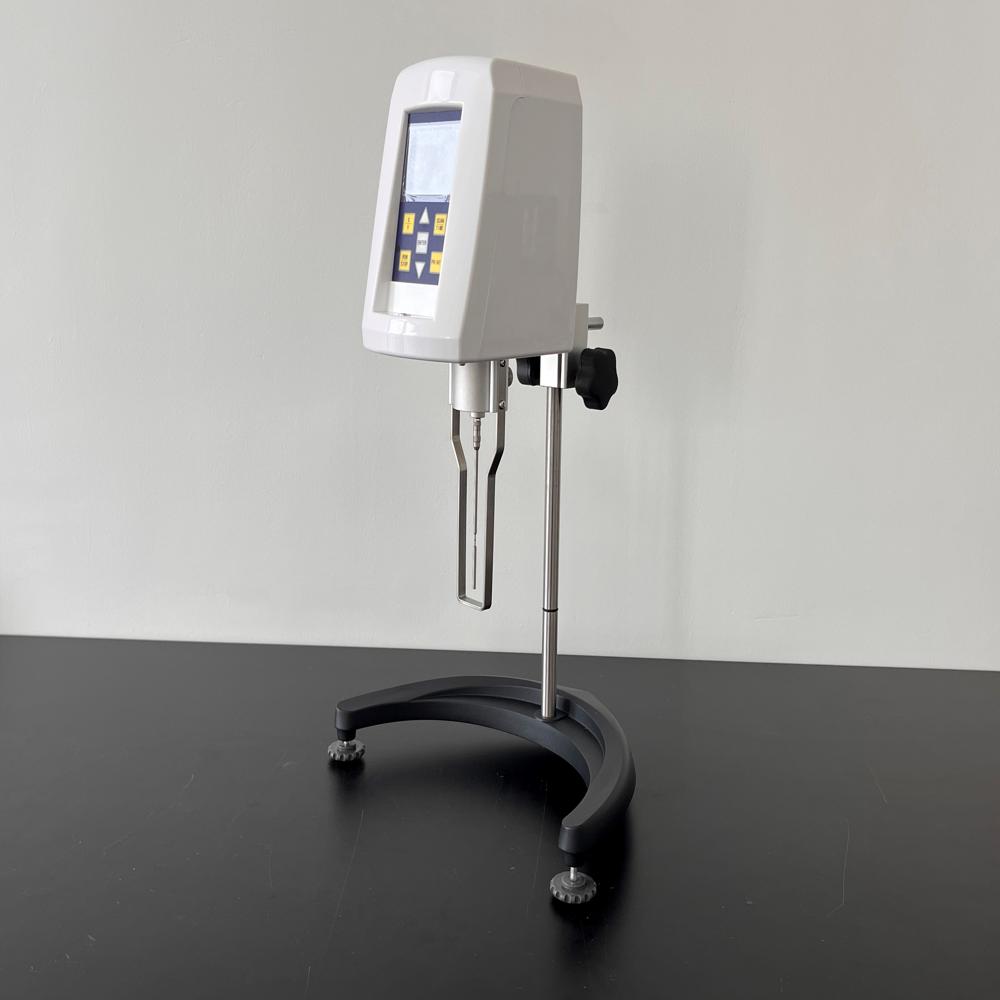

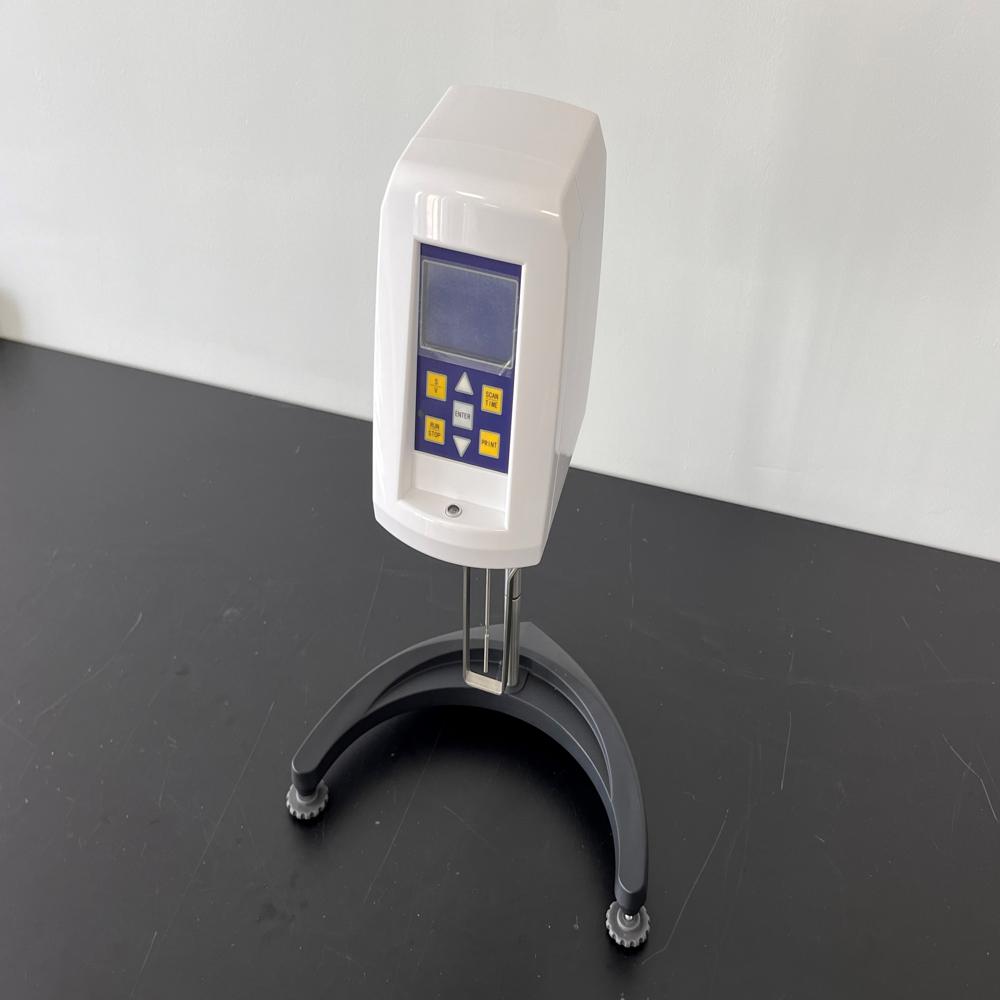

DH-DJ-9S Brookfield Viscosity Tester Digital Viscosity Meter Instrument

Product Description

Brookfield Viscosity Tester Digital Viscosity Meter Instrument

The newly designed DJ series digital rotary viscometer not only has modern aesthetic elements in appearance but also has more convenient operation more accurate measurement and complete functions

DJ series digital viscometer is the instrument that has been adopt the most advanced newest mircocomputer drive technologyimported stepping motorIt has the function of LCD backlight display program setting automatic control timing measurement automatic scanning error alarmScreen can directly display the following datathe viscosity temperature timing measurement time speed rotor number percent ratio torque range of measurement to the viscosity and other information The full scale of the viscometer and the linearity of each file are all calibrated with a standard silicone oil via a computer interface to ensure the instrument has high sensitivity high precision high repetition The measurement data is accurate and reliable with good repeatability

DJ series digital viscometer can measure the absolute viscosity for newtonian liquids and apparent viscosity for nonnewtonian liquidsIf choose viscometer data processing softwarecan analyze the simple rheological property for nonnewtonian liquids

Application

Greasepaintcoatingsizing agentspinningfoodmedicinecementing compoundcosmeticetc

Main features

measurement data direct LCD screen displaydoes not require two calculations

using the latest international microcomputer drive technology import stepper motor accurate speed smooth and reliable

the use of advanced switching power supply technology voltage and frequency range wide power fluctuations will not affect measurement accuracy

the level display device is very convenient on the front of the viscometer

all ranges the display accuracy of viscosity value is accurate to two decimal places that is 001mPaS

with the function of timing measurement it is very useful for detecting non Newtonian liquid

using small sample adapters the amount of sample required for each measurement is very small 18ml

automatic scanning function the instrument can automatically recommend the best combination of rotor and speed

automatically display the maximum range of viscosity that the selected combination can measure

with a print interface you can directly connect to play micro printing machine print a variety of data

optional data processing software can record realtime viscosity with time speed or rotor shear rate temperature changes vary which provides a good method to understand the viscosity and rheological properties of non Newtonian liquids

Specification

Model DHDJ9S

Displaying Back light Displaying in English

Automatic Scanning Function Automatically recommend the best combination for rotor and rotate speedeasy operationaccurate testing result

Automatic Range Displaying Automatically displaying the measurable maximum range for the combination of rotor and rotate speed

Rotate Speedrmin 6123060

Rotor Standard package 1234

Measuring RangemPas 10100000

Efficient and Accurate Viscosity Testing

With the DH-DJ-9S Brookfield Viscosity Tester, industries gain rapid and reliable viscosity measurements. Its digital interface and automatic operation streamline testing, reducing manual intervention and potential errors. It is particularly useful for quality control in manufacturing and laboratory environments.


Built for Industrial Use

Constructed from high-grade mild steel, the DH-DJ-9S is engineered to withstand demanding industrial environments. Its sturdy 8-kilogram frame and user-friendly design guarantee long-term durability and minimal maintenance, making it an excellent investment for busy production facilities.
