YG020A Electronic Single Yarn Strength Tester

Name: YG020A Electronic Single Yarn Strength Tester
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 1338.0 USD
Availability: InStock

1338.0 USD ($)/Piece

Get a Price/Quote

Product Details:

Number of Specimens Single specimen at a time
Response Time Immediate digital capture (real-time display)
Interface Type USB, RS232 for data output
Specimen Size Yarn length 500 mm (standard clamping length)
Max Height Machine height about 950 mm
Measuring Range 0-5000 cN
Power Supply AC 220V 10%, 50 Hz
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

YG020A Electronic Single Yarn Strength Tester Price And Quantity

Price 1338.0 USD ($)/Piece
Minimum Order Quantity 1 Piece

YG020A Electronic Single Yarn Strength Tester Product Specifications

Resolution 1 cN
Test Width N/A (for single yarn)
Temperature 10C-35C (operating environment)
Machine Weight Approximately 60 kg
Capacity Load cells selectable - standard 5000 cN, optional 200, 500, 1000, 3000 cN
Test Stroke 250 mm
Display Type Touch screen digital display
Test Range 0-5000 cN
Control Mode Electronic, microprocessor-controlled
Usage Laboratory textile yarn testing
Features Automatic data processing, report generation, user-friendly interface
Frequency 50 Hz
Equipment Type Electronic Single Yarn Strength Tester
Humidity Relative humidity 85%
Automation Grade Automatic
Power Supply AC 220V 10%, 50 Hz
Application Testing breaking strength and elongation of single yarns
Test Speed 20-500 mm/min (adjustable)
Measuring Range 0-5000 cN
Accuracy 1% of reading
Operating Voltage AC 220V
Mounting Type Benchtop/Floor standing
Interface Type USB, RS232 for data output
Response Time Immediate digital capture (real-time display)
Number of Specimens Single specimen at a time
Max Height Machine height about 950 mm
Specimen Size Yarn length 500 mm (standard clamping length)

Test Method CRE (Constant Rate of Extension)
Elongation Measurement Yes, percentage elongation at break
Language Support Chinese, English and others (selectable)
Maintenance Requirement Low, easy servicing
Test Results Output Printable report and export via USB
Overload Protection Automatic cut-off protection
Breaking Strength Measurement Yes, precise breaking force reading
Clamp Type Pneumatic or manual clamping options
Installation Requirement Standard laboratory power and workspace
Data Storage Large storage for test results

Product Description

Explore the outstanding YG020A Electronic Single Yarn Strength Tester, engineered for precise measurement of breaking strength and elongation of single yarns in textile labs. Renowned for its magnificent efficiency and favorable reviews, it features a top-drawer microprocessor-controlled system, adjustable test speeds, and versatile pneumatic or manual clamps. Automatic data processing, ample storage, and printable/test-exportable reports make it a deal for modern textile testing. Experience user-friendly operation, low maintenance requirements, and reliable overload protection, all supported with selectable multi-language interfaces for truly international appeal.

Versatile Usage & Applications

The YG020A Electronic Single Yarn Strength Tester is primarily used for determining the breaking strength and elongation of single yarns. Application spans cotton, wool, silk, hemp, chemical fiber, and core-spun yarns, whether pure or blended. This equipment supports quality control, R&D, and compliance with global textile standards in laboratory and industrial environments. Also used as a reference instrument in fiber research institutes and for benchmarking production yarn consistency, it's essential for ensuring product excellence in the textile sector.

Sample Policy, Export Markets & Supply Highlights

With a favorable shipment track record, the YG020A offers flexible sample policies to meet diverse client needs. Its market value is reinforced by widespread usage across major export markets including Asia, Europe, and North America. Fast and reliable supply ensures prompt shipment to distributors, exporters, and manufacturers. The sustained supply ability of this top-drawer device meets rapidly evolving market requirements, maintaining trust among trading partners and supporting seamless procurement and export processes worldwide.

Item	YG020A Electronic Single Yarn Strength Tester
Application	Determination of breaking strength and breaking elongation of individual yarns. LCD display, with function of data storage, retrieval, statistics, printing. It can be connected to a PC with special software, and the data can be saved or printed out. It is used to test the breaking strength and elongation of single yarn and fiber pure or blended yarn of various cotton, hemp, wool, silk, chemical fiber and core-spun yarn.
Standards	GB/T14344 GB/T3916ISO2062ASTM D2256 GB/T4181GB7690
Main Technical Data	Constant velocity elongation (CRE) principle, microcomputer control, LCD Chinese (English) display, data report graphic printing. The maximum strength ranges are: 500CN, 5000CN, 100N, 200N, 300N, 500N. (please choose) Measuring range: 2-110%, division value: 0.1CN (500CN), 1CN, accuracy: 1%, 0.1%FS, load resolution: 1/50000 Clamping distance: 10-500MM stepless adjustable, digital setting, automatic positioning. Tensile speed: 10-800MM/MIN, division value: 1MM/MIN, accuracy: 1% Reply speed: 10-800MM/MIN, division value: 1MM/MIN, accuracy: 1% Effective stroke: 700MM (when the clip distance is 500MM, the stroke is 200MM), elongation resolution: 0.1MM Pre-tension: 0-150cN tension scale Power supply: AC220V10% 50Hz 0.25Kw Dimensions: L600W350H1100mm Weight: 60Kg Test function: tensile fracture, elastic recovery (constant elongation strength, constant elongation elongation) can be selected, in line with various national standards GB, ISO, AATCC, BS.DIN, JIS, etc., strength unit N, CN, KG, LB Optional Yarn clamps can be manually clamped. Custom pneumatic grips are also available.

FAQ's of YG020A Electronic Single Yarn Strength Tester:

Q: How does the YG020A Electronic Single Yarn Strength Tester measure yarn strength and elongation?

A: This tester uses the Constant Rate of Extension (CRE) method to precisely measure breaking force and percentage elongation at break, providing real-time digital readings on a touch screen display.

Q: What types of yarns can be tested with this equipment?

A: The device accommodates a broad range of yarns, including cotton, wool, silk, chemical fiber, hemp, and core-spun yarns, whether pure or blended, making it suitable for numerous textile applications.

Q: When is it recommended to use pneumatic clamps instead of manual clamps?

A: Pneumatic clamps are recommended when testing high-volume samples or when consistent clamping force is crucial, ensuring accuracy and repeatability in results.

Q: Where can I output or export my test results?

A: Test results can be printed directly from the tester or exported via USB and RS232 interfaces to a connected computer, supporting efficient data management and reporting.

Q: What benefits does the automatic overload protection feature provide?

A: Automatic overload protection cuts off operation in case of excessive load, safeguarding both the tester and the specimen, thus extending the machine's lifespan and reducing maintenance.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Sponge, Leather, Fabric Testing Equipment' category

Digital Electronic Yarn Length Tester Price : 754.00 INR/Set Minimum Order Quantity : 1 Features : Electronic calibration, automatic stop, memory retention Power Supply : 220V AC, 50 Hz Usage : Textile manufacturing/laboratory Automation Grade : Automatic Hardness : Durable metal body Machine Weight : Approx. 25 kg Kilograms (kg) Resolution : 0.1 m Test Width : 300 mm Millimeter (mm) Temperature : 15 C 35 C Celsius (oC) Display Type : Digital LCD display Test Stroke : Up to 1000 mm Control Mode : Digital Electronic Control Test Range : Up to 99999 meters Equipment Type : Yarn Length Tester Frequency : 50 Hz Hertz (HZ) Humidity : 45% 85% RH Application : Measuring length of yarn for textile and research purposes Measuring Range : 10 m to 99999 m Kelvin (K) Test Speed : 30 m/min 300 m/min Accuracy : 0.2% of reading % Operating Voltage : 220 V AC Volt (V) Mounting Type : Benchtop Interface Type : Standard digital interface Response Time : Instantaneous Seconds Number of Specimens : Up to 5 Max Height : 400 mm Specimen Size : Minimum Length 10 m Meter (m) Capacity : Multiple yarn types Kg Gas Pressure : 5 6 kg/cm mpa Port Size : 6 mm Pneumatic

Send Inquiry

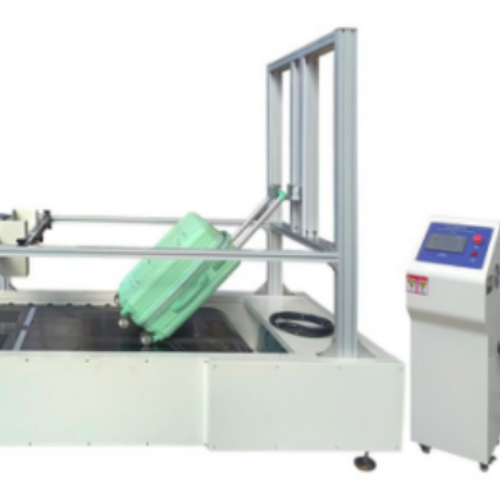

HT-LC Leather Case Walking Bump Tester Price : 5515.0 USD ($)/Piece Minimum Order Quantity : 1 Features : Programmable, high precision, automatic stop Power Supply : AC 220V 50/60Hz Usage : Luggage durability and quality testing Automation Grade : Automatic Hardness : Customizable for different case types Machine Weight : Approx 200 kg Resolution : 1 cycle Test Width : 760 mm Temperature : 10~40C Display Type : Digital LCD display Test Stroke : Max 500 mm Control Mode : PLC touch screen control Test Range : Up to 40 kg weight Equipment Type : Leather Case Walking Bump Tester Frequency : Up to 30 cycles/min Humidity : 40~70%RH Application : Luggage, cases, bags, handle, wheel durability test Measuring Range : 0999,999 cycles Test Speed : 0~30 times/min adjustable Accuracy : 1 cycle Operating Voltage : 220V Mounting Type : Floor standing Interface Type : Touch screen Response Time : <1 s Number of Specimens : 1 Max Height : Up to 350 mm luggage height Specimen Size : Various suitcase and luggage sizes Capacity : Max 40 kg Gas Pressure : 0.5~0.7 Mpa Port Size : Standard luggage port size compatible
