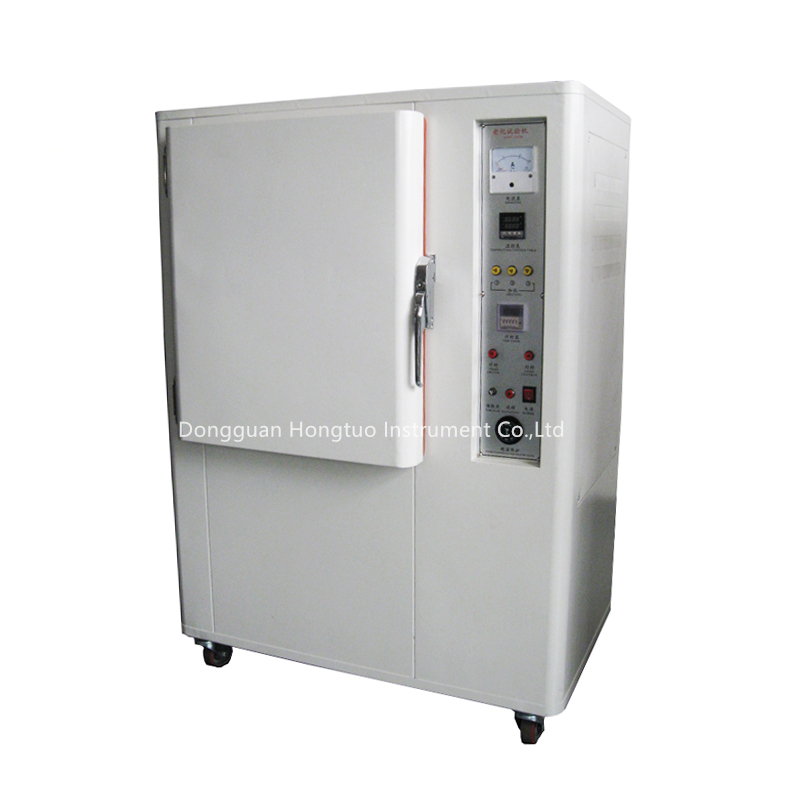

Yellow Aging Resistance Test Chamber

Name: Yellow Aging Resistance Test Chamber
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 1482.0 USD
Availability: InStock

1482.0 USD ($)/Piece

Get a Price/Quote

Product Details:

Response Time Rapid, within 1 min of set point
Product Type Yellow Aging Resistance Test Chamber DH-YA
Temperature Room temperature to 100C
Mounting Type Floor-standing with movable casters
Gas Pressure Atmospheric, not pressurized
Operating Voltage AC 220V
Display Type Digital LED display
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Yellow Aging Resistance Test Chamber Price And Quantity

Price 1482.0 USD ($)/Piece
Minimum Order Quantity 1 Piece

Yellow Aging Resistance Test Chamber Product Specifications

Test Range Suitable for various plastic, rubber, leather, textile and other materials
Color White
Control Mode Digital temperature and timer controller
Measuring Range Standard laboratory range
Max Height 120 cm (incl. casters)
Capacity 50 L
Test Width 40 cm
Accuracy 0.5C (temperature)
Equipment Type Yellow Aging Resistance Test Chamber
Port Size Standard test chamber port
Hardness Chamber body: powder-coated steel
Features Programmable timing, visual observation window, protective circuit system
Automation Grade Semi-automatic
Humidity 40-65% RH
Number of Specimens Multiple slots (varies per rack)
Specimen Size Up to 150 x 70 mm per specimen
Application Testing yellowing and aging resistance of materials under controlled conditions
Interface Type Manual control panel interface
Power Supply AC 220V, 50Hz
Frequency 50Hz
Test Speed Adjustable
Resolution 0.1C
Usage Material laboratory, quality control testing
Display Type Digital LED display
Test Stroke Standard chamber stroke
Machine Weight Approx. 120 kg
Gas Pressure Atmospheric, not pressurized
Operating Voltage AC 220V
Mounting Type Floor-standing with movable casters
Temperature Room temperature to 100C
Response Time Rapid, within 1 min of set point
Product Type Yellow Aging Resistance Test Chamber DH-YA

Heating System Electric heater with forced air circulation
Internal Material Stainless steel chamber liner
Chamber Door Sealed, single-door design with observation window
Insulation High-density polyurethane insulation
Light Source Optional UV or visible light for yellowing simulation
Noise Level 60 dB(A)
Timer Range 0-999 hours
Window Material Double-layer tempered glass observation window
External Material Epoxy powder-coated steel case
Mobility Lockable casters for easy movement
Safety Protection Temperature overrun protection, power safety interlock

Product Description

Features

can do two kinds of testing: aging and anti-yellowing

Aging: the machine can promote the increase of sulfur rubber deterioration, to calculate the change rate of tensile and elongation before and after heat. Its generally thought that test for one day at 70C, in theory as exposed to the atmosphere for 6 months.

Anti-yellowing: the machine stimulate the atmosphere environment, driven by the sun ultraviolet radiation. Its generally thought that the appearance change at 50C for 9 hours, in theory as exposed to atmosphere for 6 months.

Inner Box Size:	404050cm
Temperature Range:	Normal Temperature200C
Control Mode:	Automatic Calculation Controller
Temperature Display:	0.1C
Control Accuracy:	3C
Distribution Accuracy:	1C(at-100C)
Time Memory:	0-999 hours, Power Failure Memory Type, with Buzzer
Wheel Speed:	45cm,102 round/ min
UV Light Source:	UV300W Bulb
Standard Accessories:	Shelf Board 2 pieces
Heating Method:	Hot Air Circulation
Security Devices:	Over-temperature power-off indicator light; Safety overload switch ammeter
Manufacturing Material:	Internal Stainless Steel SUS304; External Advanced Baking Varnish
Outside Dimension (LWH):	9155100 cm
Weight:	approx. 87 kg
Power:	1#, AC220V, 15A
Standard:	JIS-P8127; ASTM D1148

Advanced Yellowing and Aging Simulation

This chamber offers accurate simulation of yellowing effects on various materials using controlled heat and light exposure. The optional UV or visible light source mimics natural aging, making it invaluable for assessing how plastics, rubber, textiles, and leather products withstand prolonged environmental conditions.

Precision and Ease of Operation

Equipped with a digital LED display and timer controller, this chamber provides a user-friendly interface for programming temperature and test duration. Fast response times and high accuracy ensure that you can set and maintain precise testing parameters, vital for reproducible results.

Durability and Safety Assurance

Safety and longevity are integral to the design. The stainless steel interior resists corrosion, while temperature overrun protection and a power safety interlock prevent accidents. High-density polyurethane insulation maintains consistent conditions, supporting reliable, repeatable tests for routine and research applications.

FAQ's of Yellow Aging Resistance Test Chamber:

Q: How does the Yellow Aging Resistance Test Chamber simulate yellowing in materials?

A: The chamber uses a combination of controlled heating (up to 100C) and optional UV or visible light sources to accelerate the natural yellowing and aging process in various materials, such as plastics, rubbers, textiles, and leather.

Q: What types of specimens can be tested, and what is the maximum specimen size?

A: This chamber accommodates multiple specimens per rack, with a maximum size of 150 x 70 mm each. It is suitable for materials including plastic, rubber, leather, and textiles, ensuring versatility for laboratory testing.

Q: When should I use this chamber for material testing?

A: Use the chamber during quality control, material research, or product development phases to evaluate yellowing resistance and aging performance under standardized laboratory conditions.

Q: Where can this test chamber be installed and used?

A: Designed as a floor-standing unit with lockable casters, the chamber is suitable for material testing laboratories, research facilities, or quality control departments in manufacturing environments.

Q: What is the testing process in this chamber?

A: Specimens are placed on dedicated racks inside the chamber. Parameters like temperature, humidity, light exposure, and timer are set using the digital control panel. The chamber maintains controlled conditions while accelerating the aging and yellowing process, with results observed through the window.

Q: How does the chamber ensure user and sample safety during operation?

A: Safety features include temperature overrun protection, a power safety interlock to prevent unauthorized access during operation, a sealed insulated design, and a robust exterior, ensuring both operator safety and sample integrity.

Q: What are the benefits of using this test chamber over traditional aging methods?

A: Compared to ambient or natural aging studies, this chamber delivers faster, more uniform, and controllable conditions, improves reproducibility between tests, reduces lead time for results, and supports high-precision, standardized evaluations critical for quality assurance.
