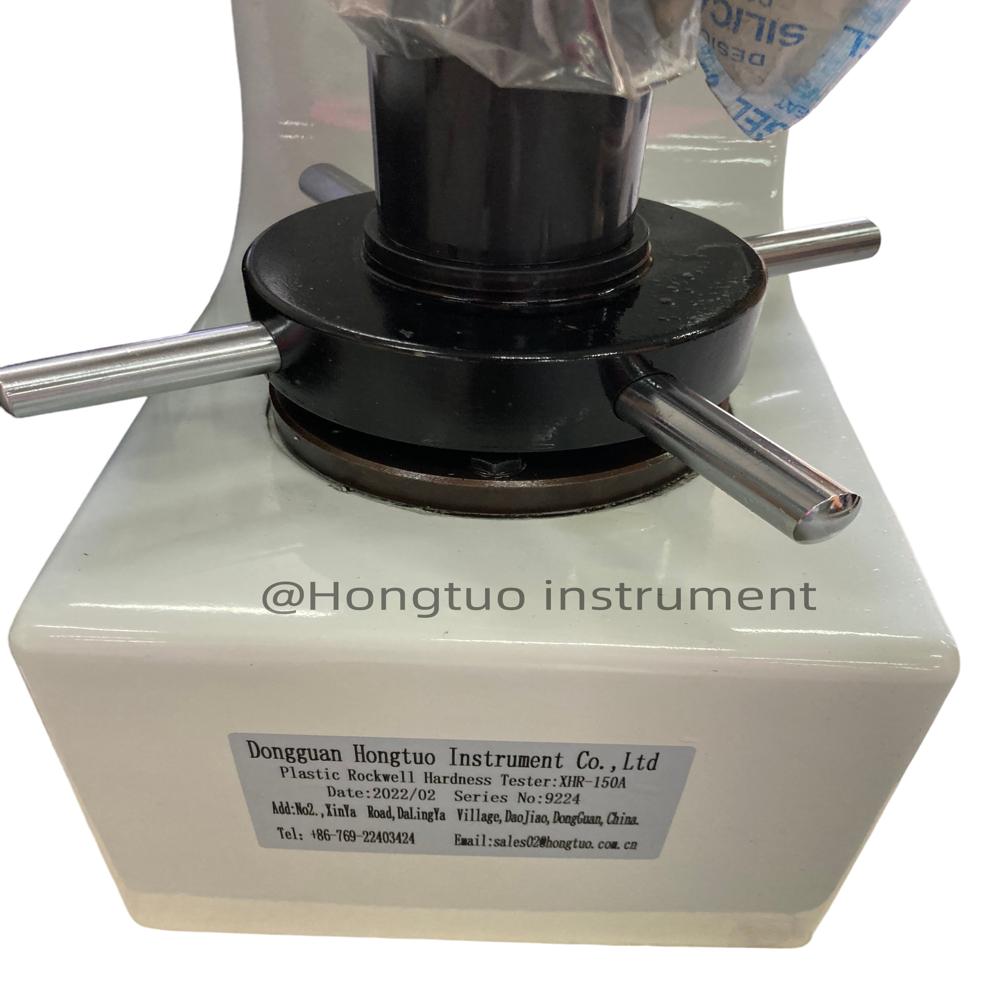

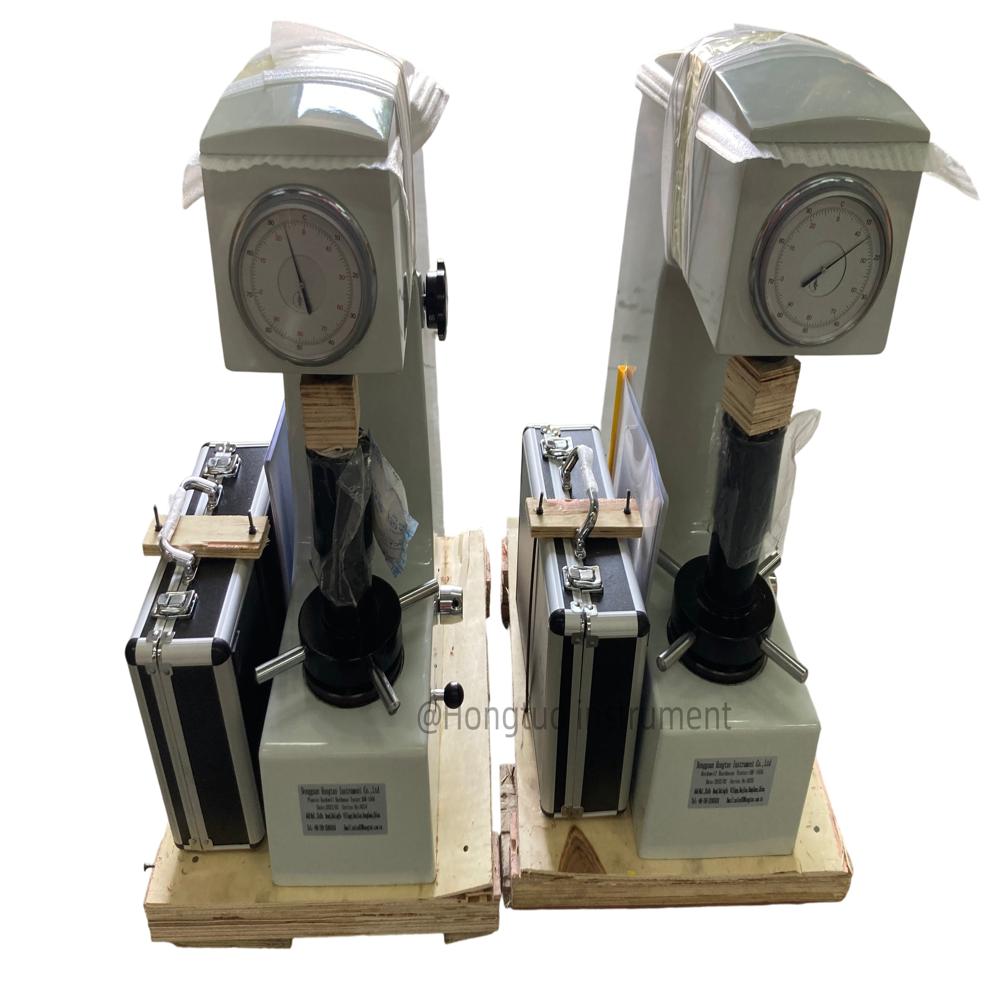

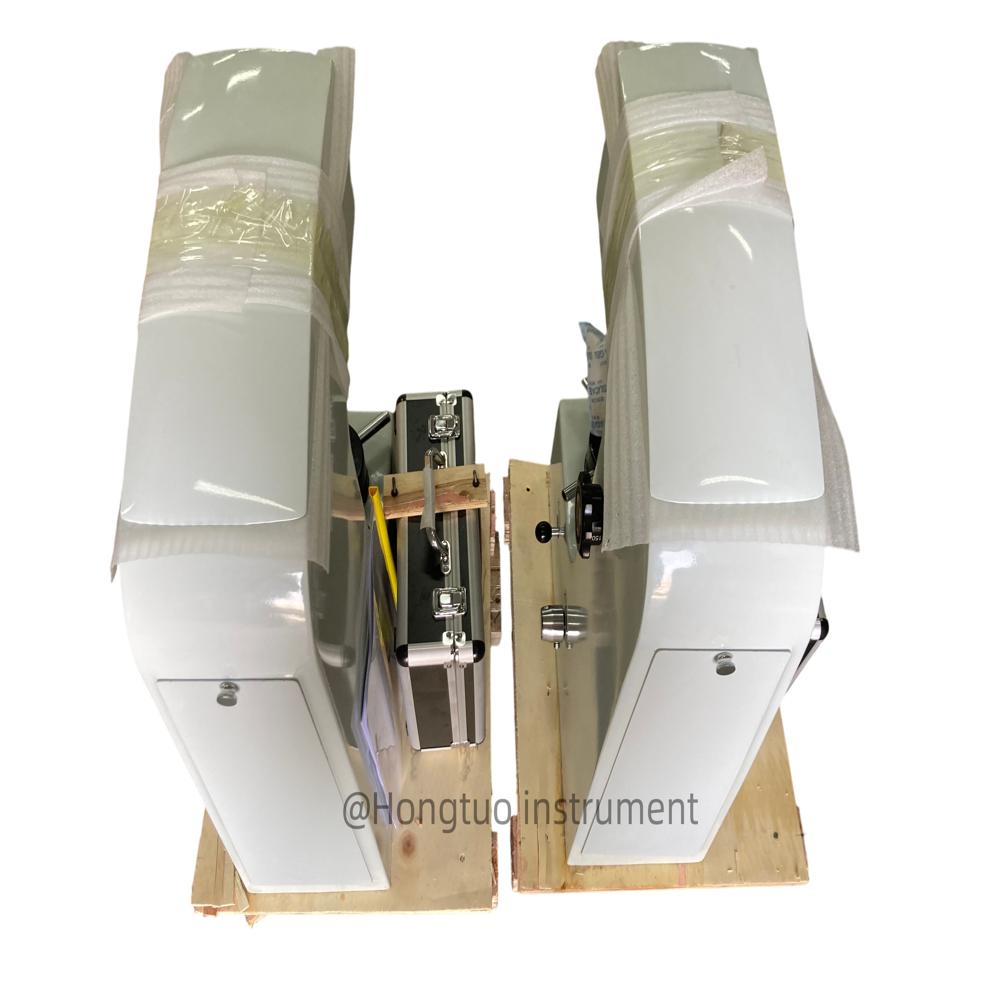

XHR-150 Plastic Rockwell Hardness Tester

XHR-150 Plastic Rockwell Hardness Tester

943.00 USD ($)/Piece

Get a Price/Quote

Product Details:

Temperature 10C - 35C Celsius (oC)
Automation Grade Manual
Response Time Immediate (after loading time) Seconds
Frequency 50Hz Hertz (HZ)
Features Strong, sturdy structure; Easy operation; Stable and reliable results
Specimen Size Up to 150 mm height Millimeter (mm)
Resolution 0.5 Rockwell Unit
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

XHR-150 Plastic Rockwell Hardness Tester Price And Quantity

Price 943.00 USD ($)/Piece
Minimum Order Quantity 1 Piece

XHR-150 Plastic Rockwell Hardness Tester Product Specifications

Equipment Type Rockwell Hardness Tester
Test Stroke 120 mm
Features Strong, sturdy structure; Easy operation; Stable and reliable results
Resolution 0.5 Rockwell Unit
Specimen Size Up to 150 mm height Millimeter (mm)
Response Time Immediate (after loading time) Seconds
Frequency 50Hz Hertz (HZ)
Automation Grade Manual
Temperature 10C - 35C Celsius (oC)
Control Mode Manual
Display Type Analog Dial
Application Testing hardness of plastics, polymers, resin and composite materials
Max Height Approx. 150 mm (specimen height)
Test Speed Variable (manual control)
Number of Specimens Single Specimen per Test
Humidity 85% RH
Power Supply 220V/50Hz
Test Range Plastic Rockwell Scales (HRE, HRL, HRM, HRR, etc.)
Accuracy 1 Rockwell Unit %
Hardness Rockwell Plastic Hardness
Measuring Range 0~100 HRE, HRL, HRM, HRR, etc. Kelvin (K)
Mounting Type Bench-top
Test Width 150 mm Millimeter (mm)
Usage Laboratory, Quality Control, Research
Capacity Standard (suitable for most plastic and polymer specimens) Ltr
Operating Voltage 220V AC Volt (V)
Machine Weight Approx. 65 kg Kilograms (kg)

Test Force 588.4 N (60 kgf), 980.7 N (100 kgf), 1471 N (150 kgf)
Lighting Integrated test area illumination
Dial Graduation 0.5 HR unit
Calibration Supplied with standard test blocks
Finish Powder-coated anti-corrosive body
Dimension (LWH) 520 220 700 mm
Loading Mechanism Dead-weight loading with lever operation
Indenter Type Steel Ball Indenter (1/8" and 1/4")
Fixture Types Flat and V-type anvils included

Product Description

Main Feature:

Lever loading, manual operation, accurate and durable, high measurement efficiency; the dial directly reads HRE, HRL, HRM, HRR scale accuracy in line with JB/T7409.

Application:

Determination of the hardness of plastics, composite materials and friction materials and soft metal, non-metallic materials.

Main Technical Specifications:

Measuring range: 70-100HRE, 50-115HRL, 50-115HRM, 50-115RR

Test force: 588.4, 980.7, 1417N (60, 100, 150kgf)

Maximum allowable height of the sample: 170mm;

Distance from the center of the indenter to the machine wall: 135mm;

Hardness resolution: 0.5HR;

Dimensions: 466x238x630mm;

Weight: about 65kg

Standard Configuration:

V-shaped table: 1

Large flat workbench: 1

Small flat workbench: 1

Steel ball indenter: 3.175mm 6.35mm 12.7mm

Standard plastic Rockwell hardness blocks: 4 blocks

Versatile Hardness Testing for Plastics and Composites

The XHR-150 Plastic Rockwell Hardness Tester provides accurate, consistent measurements across various Rockwell scales, including HRE, HRL, HRM, and HRR. This tester accommodates plastics, polymers, resins, and composites, supporting samples up to 150 mm in height. Its flexible design and steel ball indenters make it suitable for a broad range of quality control and research needs.

User-friendly Manual Operation and Clear Analog Display

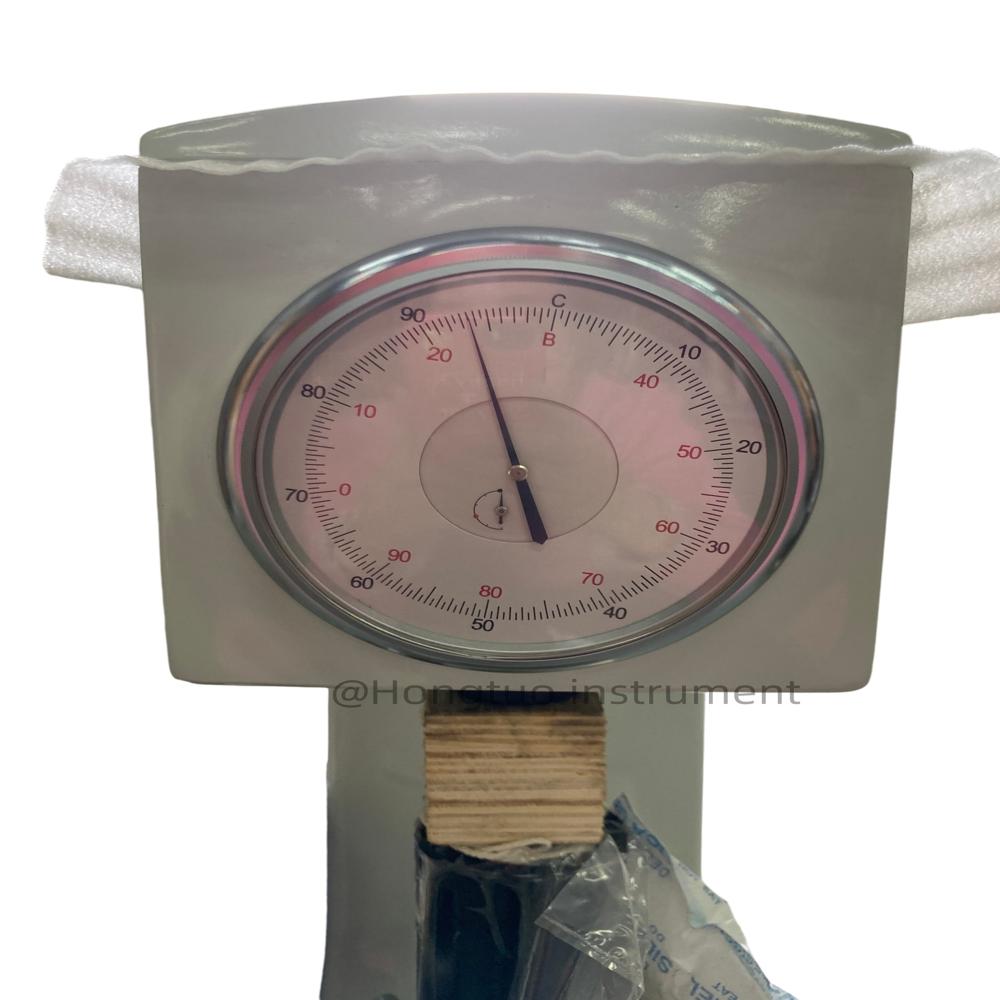

With a manual, dead-weight lever operation and variable test speed, the XHR-150 allows users to control testing conditions easily. The analog dial with 0.5 HRU resolution delivers immediate and clear readings. Integrated area illumination aids in accurate specimen alignment, while the sturdy, powder-coated body ensures longevity.

Reliable Results with Comprehensive Accessories

Supplied with standard test blocks for calibration, both flat and V-type anvils, and capable of testing single specimens up to 150 mm high, the XHR-150 is ready for a range of applications. Its precise construction, anti-corrosive finish, and robust design guarantee stable results and enduring performance in laboratory and industrial settings.

FAQ's of XHR-150 Plastic Rockwell Hardness Tester:

Q: How does the XHR-150 ensure accurate hardness measurements for plastics?

A: The XHR-150 is calibrated using standard test blocks and employs precise dead-weight loading via lever operation. Its 0.5 HRU analog dial resolution and steel ball indenters ensure reliable and repeatable measurements on various Rockwell plastic scales.

Q: What types of specimens can be tested with this Rockwell Hardness Tester?

A: This instrument is ideal for testing single plastic, polymer, resin, and composite samples up to 150 mm in height and 150 mm in width. Flat and V-type anvils included make it adaptable for different specimen shapes.

Q: Where is this tester typically used, and what is its main application?

A: The XHR-150 is commonly used in laboratories, research institutions, and quality control departments. Its main application is determining the hardness of plastic and polymer materials according to Rockwell plastic scales.

Q: What is the process for conducting a hardness test with the XHR-150?

A: Place the specimen on the appropriate anvil, select the required indenter and test force, and operate the lever to apply the load manually. Read the hardness value directly from the analog dial after the loading duration.

Q: When should the tester be recalibrated?

A: It is recommended to recalibrate the tester regularly, especially before a new series of critical measurements, after moving the instrument, or if inconsistent results are observed. Use the supplied standard test blocks for accurate calibration.

Q: What benefits does the XHR-150 offer for quality control and research?

A: The XHR-150 provides immediate, stable, and repeatable hardness results, enhancing confidence in quality control and research outcomes. Its robust build, straightforward operation, and suitability for a variety of plastics make it a valuable addition to any testing environment.
