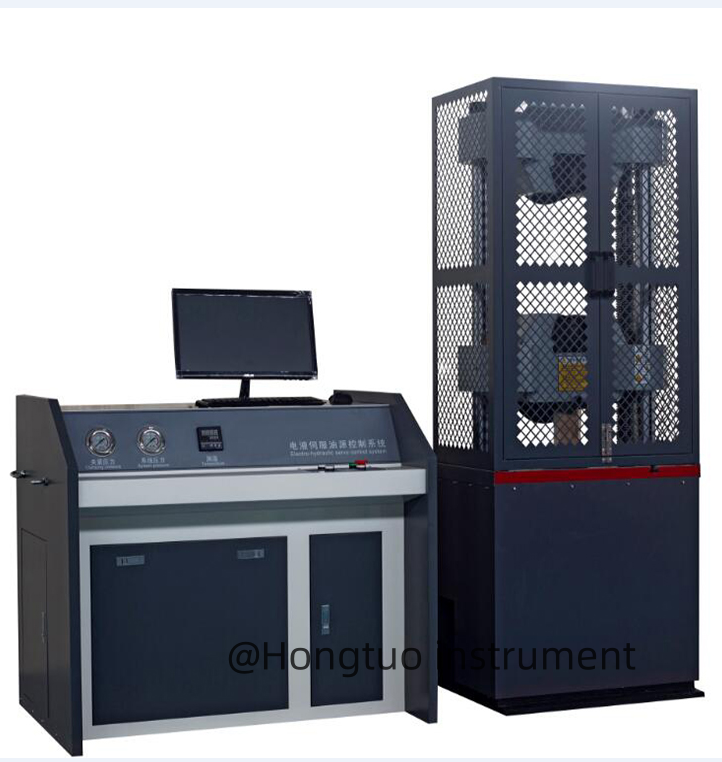

WAW-1000D Electro-Hydraulic Servo Universal Testing Machine for Material Testing
11392.0 USD ($)/Set
Product Details:
- Resolution 0.01 kN
- Max Height 2100 mm
- Equipment Type Universal Testing Machine
- Number of Specimens Single Specimen
- Measuring Range 2% - 100% of Max Load
- Accuracy Class 1 / 1%
- Specimen Size Flat Specimen: 0-15 mm thickness, 0-110 mm width; Round Specimen: 13-60 mm
- Click to view more
X
WAW-1000D Electro-Hydraulic Servo Universal Testing Machine for Material Testing Price And Quantity
- 1 Set
- 11392.0 USD ($)/Set
WAW-1000D Electro-Hydraulic Servo Universal Testing Machine for Material Testing Product Specifications
- 2% - 100% of Max Load
- 250 mm
- Universal Testing Machine
- Single Specimen
- 2100 mm
- 0.01 kN
- Floor Standing
- AC 380V, 50Hz
- Flat Specimen: 0-15 mm thickness, 0-110 mm width; Round Specimen: 13-60 mm
- Class 1 / 1%
- Electro-Hydraulic Servo
- Microcomputer-controlled electro-hydraulic servo hydraulic universal testing machine
- 50 Hz
- 2800 kg
- 2% - 100% of Full Scale
- Standard (Custom Optional)
- Universal material testing (tension, compression, bending, shearing, etc.)
- 1000 kN
- USB, RS232 (Computer Based)
- 0.1 - 80 mm/min
- Automatic control, Data acquisition, Real-time graph plotting, Overload protection
- 650 mm
- PC with Digital Display (Monitor)
- 10C - 35C
- Automatic
- Real-time
- 380V / 3 Phase
- 80% RH
- Laboratory, Quality Control, Research and Development
- Overload, Over-travel, Emergency Stop
- Double Column (Four Guide Rods)
- High-precision Load Cell
- 65 dB
- Print, Export to Excel
- Manual / Hydraulic Clamping
- Complies with ISO, ASTM, GB standards
- 10 years (under standard maintenance)
- Industrial Grey / Custom Option
- Hydraulic or Mechanical Clamps (Optional)
- 0.5%
- No. 46 Hydraulic Oil
- Free from strong vibration, corrosive gas, and electromagnetic interference
- Windows OS
Product Description
Introduction
The WAW-1000D microcomputer-controlled electro-hydraulic servo-hydraulic universal testing machine features a bottom-mounted mainframe design. It is primarily used for tensile, compression, and bending tests on metals, non-metallic materials, product parts, components, structural parts, and standard parts.
Adding environmental testing equipment to this series of testing machines allows for tensile, compression, and bending tests on materials in these environments. Examples include high-temperature and low-temperature tensile and compression tests.
It is suitable for use in steel, metallurgy, construction and building materials, quality inspection centers, water conservancy and hydropower projects, highway and bridge construction, research institutes, universities, colleges, and other industries, as well as for mechanical testing and research institutions.
Main technical indicators
1. Main Unit
The main unit uses a bottom-mounted hydraulic cylinder. The tensile test chamber is located above the main unit, while the compression and bending test chambers are located between the main unit's lower crossbeam and the workbench.
2. Drive System
The center crossbeam is raised and lowered using a motor that drives a lead screw through a sprocket, adjusting the center crossbeam's position and thus the tensile and compression test chambers
Main performance technical indicators
|
No |
Item Name |
Parameter |
|
1 |
Maximum force kN |
1000 |
|
2 |
Host structure |
Four columns and two screws |
|
3 |
Relative error of test force indication |
1% of indicated value |
|
4 |
Test force measurement range |
2%100% of the maximum test force |
|
5 |
Constant velocity stress control range(N/mm2S-1) |
260 |
|
6 |
Constant velocity strain control range |
0.00025/s0.0025/s |
|
7 |
Constant velocity displacement control range(mm/min) |
0.550 |
|
8 |
Clamping method |
Hydraulic clamping |
|
9 |
Round specimen clamping diameter range mm |
1340 |
|
10 |
Flat specimen clamping width mm |
70 |
|
11 |
Maximum tensile test space mm |
600(Size can be customized) |
|
12 |
Maximum compression test space mm |
650(Size can be customized) |
|
13 |
Control cabinet dimensions mm |
1100620850 |
|
14 |
Host dimensions mm |
9006602100 |
|
15 |
Motor power kW |
2.3 |
|
16 |
Host weight kg |
1800 |
|
17 |
Column center distance(mm) |
560(Size can be customized) |
|
18 |
Upper and lower pressure plate size mm |
160(Size can be customized) |
|
19 |
Bending stick spacing mm |
450(Size can be customized) |
|
20 |
Bending stick width mm |
140(Size can be customized) |
|
21 |
Allowable curvature mm |
100(Size can be customized) |
|
22 |
Maximum piston stroke mm |
250 |
|
23 |
Maximum piston movement speed mm/min |
Around 60 |
|
24 |
Test space adjustment speed mm/min |
Around 160 |
Robust Design and Versatile Application
Crafted for laboratory, quality control, and research use, the WAW-1000D suits a broad spectrum of materials science applications. Its double column frame with four guide rods ensures structural rigidity during demanding tests, while accommodating varied specimen shapes and sizes, including both flat and round samples.
Reliable Data Acquisition and Output
Equipped with a PC-based digital display, the WAW-1000D offers automatic control and real-time graph plotting. Users benefit from data acquisition through printed reports or Excel exports over USB or RS232, streamlining analysis and documentation while ensuring compatibility with industry-standard formats.
User-Centric Safety and Control
The machine features comprehensive safety provisions: overload, over-travel, and emergency stop protection. Automated hydraulic or manual clamping and a broad testing speed range enhance operational flexibility. Low noise operation (65 dB) and intuitive software support further facilitate ease of use and operator safety.
FAQ's of WAW-1000D Electro-Hydraulic Servo Universal Testing Machine for Material Testing:
Q: How does the WAW-1000D ensure testing accuracy and repeatability?
A: The WAW-1000D utilizes a high-precision load cell and advanced electro-hydraulic servo control, achieving Class 1 accuracy (1%) with a 0.5% displacement accuracy. Its real-time response and 0.01 kN resolution provide reliable, reproducible results, crucial for compliance with ISO, ASTM, and GB standards.Q: What types of specimens and tests are supported by this universal testing machine?
A: The system accommodates both flat specimens up to 15 mm thick and 110 mm wide, as well as round specimens between 13 and 60 mm in diameter. It supports tension, compression, bending, and shearing tests to cover a wide array of material testing applications.Q: When and where should this testing machine be installed for optimal performance?
A: For best results, install the WAW-1000D in an indoor laboratory or R&D environment, away from strong vibrations, corrosive gases, and electromagnetic interference. It operates optimally in 10C to 35C temperatures and at up to 80% relative humidity.Q: What is the process for data output and analysis?
A: Test data can be directly printed, exported in Excel format, or viewed on a PC monitor in real time. The included software streamlines graph plotting, data acquisition, and reporting, and interfaces through USB or RS232 ports ensure effortless integration with computer systems.Q: How do the safety features benefit daily operation?
A: Equipped with overload, over-travel, and emergency stop mechanisms, the WAW-1000D safeguards both operator and specimen. Its low-noise operation and emergency protocols enhance user confidence and protection during intensive or automated testing routines.Q: What maintenance is required to ensure a 10-year service life?
A: Regular inspection, lubrication, and hydraulic oil changes (using No. 46 Hydraulic Oil) are recommended. Routine calibration and adherence to manufacturer guidelines will maintain accuracy and prolong the equipment's robust operational lifespan.Tell us about your requirement
