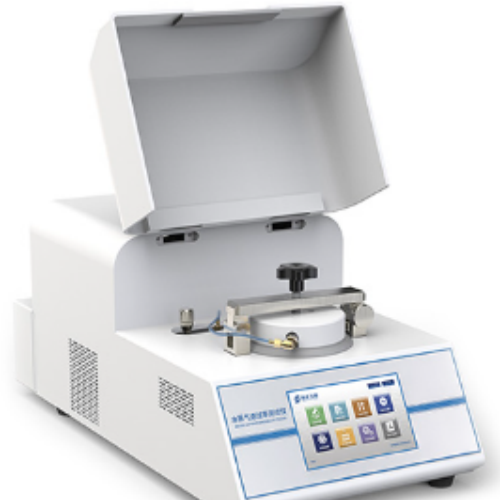

Water Vapor Transmission Rate Tester DH-W201

Name: Water Vapor Transmission Rate Tester DH-W201
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 13787.0 USD
Availability: InStock

13787.0 USD ($)/Set

Get a Price/Quote

Product Details:

Display Type 7 inch touchscreen LCD
Temperature 15C ~ 55C
Resolution 0.001 g/m224h
Number of Specimens 1
Interface Type USB, RS232
Power Supply AC 220 V, 50 Hz
Operating Voltage AC 220 V, 50 Hz
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Water Vapor Transmission Rate Tester DH-W201 Price And Quantity

Price 13787.0 USD ($)/Set
Minimum Order Quantity 1 Set

Water Vapor Transmission Rate Tester DH-W201 Product Specifications

Features Programmable, data storage, touch screen, automatic testing, multi-language interface
Gas Pressure 0.6 MPa (compressed air)
Usage Laboratory, quality control
Port Size Standard test chamber port
Humidity 10% RH ~ 98% RH
Max Height 200 mm (with open lid)
Measuring Range Adjustable within test range
Test Width 110 mm
Mounting Type Benchtop
Equipment Type Water Vapor Transmission Rate Tester
Test Speed Customizable depending on method
Response Time <2 seconds
Machine Weight About 45 kg
Automation Grade Automatic
Application Measuring water vapor permeability of films, sheets, foils, packaging material
Accuracy 0.01 g/m224h
Test Range 0.1 g/m224h ~ 10,000 g/m224h
Specimen Size 80 mm diameter
Test Stroke Unlimited (depends on duration set)
Capacity Single test chamber
Operating Voltage AC 220 V, 50 Hz
Frequency 50/60 Hz
Power Supply AC 220 V, 50 Hz
Control Mode Touch screen control
Display Type 7 inch touchscreen LCD
Resolution 0.001 g/m224h
Temperature 15C ~ 55C
Number of Specimens 1
Interface Type USB, RS232

Ambient Conditions 10C ~ 35C, <85% RH (non-condensing)
Testing Principle Gravimetric (weight loss or gain due to water vapor passage)
Calibration Automatic with built-in standard weight
Safety Features Overload protection, sensor auto-calibration
Languages Supported English, Chinese (others optional)
Memory Storage 10,000 test results
Data Export USB and PC connectivity

Product Description

Features

l The touch interface is more convenient to operate.

l High precise infrared moisture sensor.

l One sample for each test.

l The stability of the temperature and humidity is to ensure the consistency of test conditions of chambers.

l High-precise and automatic control system of temperature can be used under different conditions.

l The data can be stored and outputted in multi-format (including reports in excel and cloud sharing).

l GMP management of the user's three-level authority complies with international standards.

l The instrument processes a statistical analysis of single and group data.

l Equipped with ISP control online and upgrade function.

l Specialized communicating software can display in real-time, analyze and store data.

Principle

The test specimen is mounted in the diffusion cell, which is subsequently divided into a dry chamber and a controlled-humidity chamber. The dry side of the specimen is swept by a flow of dry nitrogen, and the water vapor permeating through the specimen from the controlled-humidity chamber is carried by dry nitrogen to the infra-red sensor where proportion electrical signals will be generated. The water vapor transmission rate is obtained by analyzing and calculating the electrical signals. For package samples, dry nitrogen flows inside the package, and moisturized nitrogen flows outside.

Standards

ISO 15106-2, ASTM F1249, TAPPI T557, JIS K7129, GB/T 26253-2010, YBB 00092003-2015

Applications

Films	Including plastic films, plastic composite films, paper-plastic composite films, geomembranes, coextruded films, aluminized films, aluminum foils, aluminum foil composite films, breathable water-proof films and many other film materials.
Sheeting	Including engineering plastics, rubber, waterproof building materials and thermal insulation materials, e.g, PP, PVC, PVDC and nylon.
Paper, Paperboard	Including paper and paper board.

Technical Specifications

Test Range	0.01 50 g/m24h (Standard)
Number of Specimen	1 PC
Accuracy	0.01 g/m24h
Resolution	0.0001 g/m24h
Range of Temperature	10C 60C (Standard)
Accuracy of Temperature	0.1C
Range of Humidity	0%35%RH 90%RH100%
Accuracy of Humidity	1%RH
Test Area	50 cm
Sample Thickness	3 mm (Customization is available)
Test Pressure	0.20MPa
Port Size	1/8 inch Metal Tube
Dimension	400 mm (L) 600 mm (W) 350 mm (H)

Configurations

Standard: Instrument, Sample Cutter, Gloves.

Optional: Reference film, Professional Software, Communication Cable

Note: 1. The air connection of the instrument is 1/8 inch Metal Tube.

2. Customers need to prepare for air source and distilled water.

Please Note: Hongtuo is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice. Hongtuo reserves the rights of final interpretation and revision.

Gravimetric Precision for Reliable Measurements

The DH-W201 operates on the gravimetric principle, tracking weight loss or gain caused by water vapor movement through sample materials. This highly accurate approach ensures trustworthy, repeatable test outcomes every time, making the device ideal for evaluating material permeability in both research and industry.

Intuitive Touchscreen Control and Data Management

Command all test parameters using the responsive 7-inch touchscreen LCD. The DH-W201 stores up to 10,000 test results, while data can be exported conveniently via USB or PC connectivity for comprehensive analysis and easy documentation.

Advanced Safety, Calibration, and Flexibility

With overload protection and sensor auto-calibration, the DH-W201 upholds safety and measurement accuracy. Automatic calibration with a built-in standard weight streamlines testing preparation. Multi-language interface and programmable methods adapt the tester for various global labs and production settings.

FAQ's of Water Vapor Transmission Rate Tester DH-W201:

Q: How does the DH-W201 Water Vapor Transmission Rate Tester measure permeability?

A: The DH-W201 uses the gravimetric technique, monitoring weight changes of a sample caused by water vapor passing through it, to determine its permeability accurately.

Q: What types of materials can be tested with this instrument?

A: It is designed for use with films, sheets, foils, and packaging materials, making it suitable for laboratory and industrial quality control applications.

Q: Where can the DH-W201 be best utilized?

A: This tester is ideal for research laboratories, manufacturing quality assurance labs, and packaging development centers where precise measurement of water vapor transmission is critical.

Q: What is the process for calibrating the device?

A: Calibration is automatic and performed using the built-in standard weight, ensuring measurement accuracy without the need for manual intervention.

Q: How can stored test results be managed or exported?

A: With memory for 10,000 test results, data can be exported via USB or PC using RS232 connectivity, streamlining result analysis and reporting.

Q: What benefits does the touchscreen control offer?

A: The 7-inch touchscreen provides intuitive, user-friendly control, allowing users to set parameters, view results, and manage testing processes with minimal training.

Q: When should the tester's safety and calibration features be relied upon?

A: Overload protection and sensor auto-calibration work continuously to safeguard operations; these are particularly valuable during frequent test cycles or when switching between specimen types.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Plastic and Rubber Testing Equipment' category

Plastic Pipe Drop Hammer Impact Testing Machine Pipe Impact Tester HT-630M Price : 4400.00 INR/Set Minimum Order Quantity : 1 Usage : Laboratory and industrial pipe impact quality control Power Supply : AC 220V, 50 Hz Response Time : <1 second Seconds Test Speed : 0.8 m/s 2.5 m/s adjustable Mounting Type : Floor standing Equipment Type : Drop Hammer Impact Testing Machine Machine Weight : Approximately 180 kg Kilograms (kg) Port Size : Compatible with 32 mm to 315 mm pipes Features : Automatic release, digital setting, quick specimen fixture Measuring Range : 32 mm to 315 mm pipe diameter Kelvin (K) Humidity : 85% RH, noncondensing Max Height : 1500 mm hammer drop height Frequency : Single drop per cycle Hertz (HZ) Operating Voltage : AC 220V, 50 Hz Volt (V) Control Mode : Touch screen PLC automatic control Number of Specimens : Single specimen per test Interface Type : RS232/USB data output Display Type : Digital LCD Touch Panel Temperature : 10 C to 35 C Celsius (oC) Resolution : 0.01 J Specimen Size : Pipe length up to 500 mm Millimeter (mm) Test Range : For plastic pipes, diameter 32 mm 315 mm Application : Impact resistance test of plastic pipes (PVC, PE, PP, etc.) Accuracy : 0.1 J % Automation Grade : Automatic Capacity : 5 J 80 J impact energy (with interchangeable hammers) Ltr Test Stroke : Max. 1500 mm Gas Pressure : Not required (gravity drop operation) mpa Test Width : Up to 400 mm Millimeter (mm) Hardness : Hammer: 50 HRC (approx.)

Send Inquiry

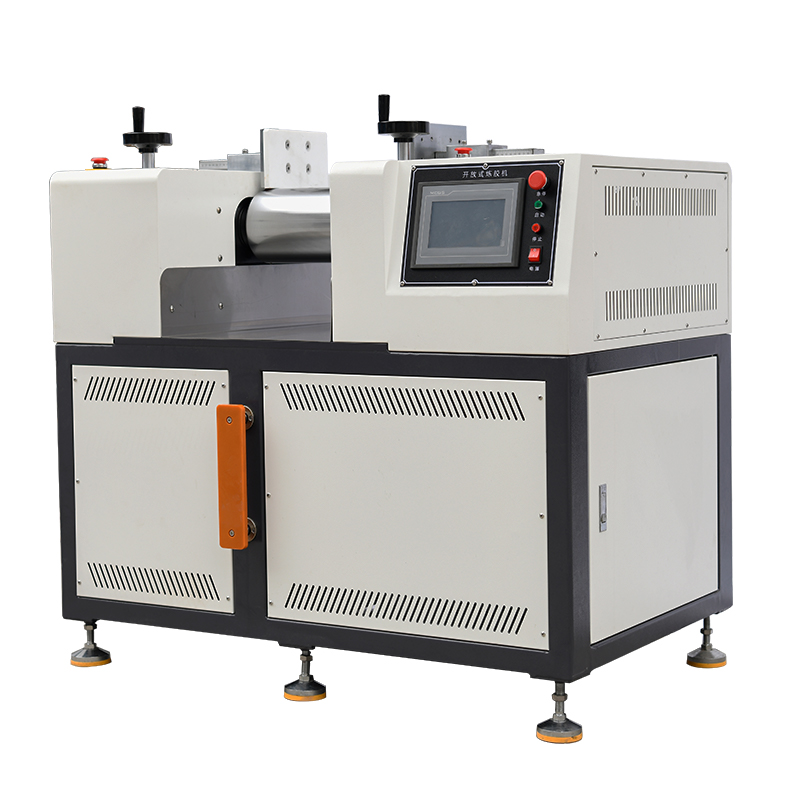

Table Top Open Rubber Mixing Mill with Electric Heating and Water Cooling Price : 5400.0 USD ($)/Unit Minimum Order Quantity : 1 Usage : Lab research, QC, smallscale production, product development Power Supply : AC 220V/380V, 50/60Hz Response Time : Instantaneous electronic control Test Speed : 035 rpm (adjustable) Mounting Type : Table top/bench mount Equipment Type : Table Top Open Rubber Mixing Mill Machine Weight : Approx. 360 kg Port Size : Standard (customized available) Features : Electric heating, water cooling, safety cover, overload protection, compact design, low noise, easy cleaning Measuring Range : Suitable for small lab batches Humidity : 80% RH (operating environment) Max Height : Approx. 900 mm Frequency : 50Hz/60Hz Operating Voltage : 220V/380V, as required Control Mode : Touchscreen PLC control Number of Specimens : Single batch operation Interface Type : Digital PLC with safety emergency stops Display Type : Touchscreen LCD Temperature : Room temp. to 250C (electric heating & water cooling) Resolution : 0.1C (temperature display) Specimen Size : Flexible to compound batch Test Range : Labscale rubber/plastic mixing Application : Rubber and plastics material mixing, compounding, and dispersion Accuracy : 2C (temperature control) Automation Grade : Semiautomatic Capacity : 2.5L Test Stroke : Customizable Test Width : 150 mm Hardness : Roller surface: HRC 5058
