Vertical Axis Deviation Tester for Accurate Measurement

Name: Vertical Axis Deviation Tester for Accurate Measurement
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 999.0 USD
Availability: InStock

999.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Humidity 10-85% RH (operating range)
Response Time Instantaneous (depends on dial indicator)
Accuracy 0.01 mm
Automation Grade Manual
Temperature 5C to 45C
Interface Type Manual measurement/readout
Power Supply Not required (manual)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Vertical Axis Deviation Tester for Accurate Measurement Price And Quantity

Price 999.0 USD ($)/Unit
Minimum Order Quantity 1 Unit

Vertical Axis Deviation Tester for Accurate Measurement Product Specifications

Application Measurement of vertical axis runout/deviation of cylindrical objects
Features Rigid base, high precision, interchangeable jaws, digital or analog readout, easy alignment
Machine Weight Approx. 12 kg
Equipment Type Vertical Axis Deviation Tester
Capacity Max. specimen diameter 100 mm
Display Type Digital/Analog Dial Indicator
Specimen Size Customizable for different component sizes
Number of Specimens 1 at a time
Hardness Base: HRC 60
Mounting Type Benchtop
Test Speed Manual, operator controlled
Usage Laboratory, quality control, calibration
Measuring Range 0-10 mm (dial indicator dependent)
Test Range 0-10 mm (typical, depends on dial gauge range)
Max Height Jaw height up to 60 mm
Operating Voltage Battery for dial indicator only (if digital)
Resolution 0.001 mm (digital indicator)
Temperature 5C to 45C
Interface Type Manual measurement/readout
Test Stroke 0-30 mm
Automation Grade Manual
Power Supply Not required (manual)
Test Width Up to 100 mm
Control Mode Manual Adjustment
Humidity 10-85% RH (operating range)
Response Time Instantaneous (depends on dial indicator)
Accuracy 0.01 mm

Safety Features Sturdy anti-slip rubber feet
Jaw Material High-grade steel
Chuck Type Three-jaw self-centering
Indicator Brand Compatibility Compatible with most standard dial gauges
Corrosion Resistance Anti-corrosive base finish
Maintenance Low, periodic cleaning required
Rotational Base 360 smooth rotation

Product Description

Introduction:

The DH-WRT-16 vertical axis deviation tester is suitable for testing the vertical axis deviation (circular runout) of various round bottle packaging such as ampoules, mineral water bottles, beer bottles, etc. This product complies with national standards, has a simple structure, a wide range of applications, is convenient and durable, and has high precision. It is an ideal testing instrument for pharmaceutical, medical packaging, food, daily chemical and other enterprises and medical inspection institutions.

Principle:

Clamp and fix the bottom of the bottle on the rotating disk so that the mouth of the bottle is in contact with the measuring head of the dial indicator. Rotate 360 to read the maximum and minimum values. 1/2 of the difference between the two is the vertical axis deviation (circular runout). numerical value.

Features:

1)Meet national standards and pharmacopoeia standards

2)Double-bearing integrated rotating shaft, high precision and good stability

3)Three-jaw self-centering chuck clamps specimens with high precision

4)Double pole combination, universal adjustment, can measure different heights and angles

5)High-resolution measuring meter, LCD display, good recognition

Technical Parameters:

1)Measuring range: 0-12.7mm

2)Resolution: 0.001mm

3)Sample size: 3-145mm

4)Measurable height: 320mm

5)Overall dimensions: 330 (L) x220 (W) x270 (H) mm

6)Weight: about 25kg

7)Standard configuration: main unit, dial indicator, anti-claw, key

Standards:

GBT 2637GBT 2639GBT 8452YBB 00192003-2015YBB 00332002-2015YBB00032004-2015QBT 1868QBT 2665QB 2357

Precise Runout Measurement Made Simple

Designed for laboratories and quality control rooms, the Vertical Axis Deviation Tester delivers highly accurate vertical axis runout/deviation measurements at 0.01 mm accuracy. Its three-jaw self-centering chuck ensures stable and repeatable alignment, while the base's smooth 360 rotation and sturdy build guarantee enduring reliability. No external power supply is needed except for digital dial indicators, simplifying installation and maintenance.

Versatile Compatibility and Flexible Usage

This tester supports a range of standard analog and digital dial indicators, enabling instant readout and adapting to various user preferences. Interchangeable jaws and manually adjustable width allow for customized setups to accommodate different specimen diameters, making it suitable for a broad spectrum of cylindrical components. Its robust, anti-corrosive finish further enhances longevity.

FAQ's of Vertical Axis Deviation Tester for Accurate Measurement:

Q: How is the Vertical Axis Deviation Tester operated during measurements?

A: The tester features manual controls for all adjustments and measurements. The operator places a specimen in the self-centering three-jaw chuck, aligns the dial indicator (digital or analog), and manually rotates the base 360 to measure the vertical axis deviation or runout.

Q: What types of dial gauges are compatible with this tester?

A: The device accommodates most standard dial gauges, both digital and analog. This allows users to choose their preferred display type for measurement-whether for higher precision using a digital indicator or traditional analog readouts.

Q: When is periodic maintenance required for this equipment?

A: Though it demands minimal upkeep, periodic cleaning is recommended-particularly after heavy usage or exposure to contaminants. Regular maintenance ensures smooth operation of the chuck, rotating base, and optimal performance of anti-slip rubber feet.

Q: Where can this tester be effectively utilized?

A: The Vertical Axis Deviation Tester excels in laboratory environments, quality control sections, calibration facilities, manufacturing plants, and anywhere precise measurement of cylindrical axis runout is essential.

Q: What is the maximum capability for specimen size and test width?

A: It can accommodate specimens up to 100 mm in diameter and has a test width capacity of up to 100 mm. Jaw height is adjustable up to 60 mm, and the equipment can be configured for various component sizes within these parameters.

Q: What benefits does the anti-corrosive base and sturdy feet provide?

A: An anti-corrosive base extends the lifespan of the tester by preventing rust and wear, especially in humid conditions (10-85% RH). Sturdy anti-slip rubber feet enhance operational safety by preventing accidental slippage during use.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Environmental Testing Chamber' category

Oriented Drop Testing Machine for Packaging Testing Price : 6176.0 USD ($)/Unit Minimum Order Quantity : 1 Automation Grade : Automatic Power Supply : AC 220V, 50 Hz Usage : Drop impact resistance, packaging performance evaluation Features : Enclosed safety structure, automatic drop, programmable test cycles Response Time : Instant (less than 0.5 s) Accuracy : 2 mm Humidity : Less than 85% RH Frequency : Single/Programmed Drops Control Mode : Touch Screen PLC Control Interface Type : Digital PLC Interface Temperature : Room temperature (10C35C) Measuring Range : 01200 mm drop height Operating Voltage : 220V AC Max Height : 1200 mm Resolution : 1 mm Test Range : 580 kg Specimen Size : Max. 800 x 600 x 600 mm Mounting Type : Floor Standing with Lockable Wheels Number of Specimens : 1 per test cycle Test Speed : Adjustable (standard: 300 mm/s 600 mm/s) Display Type : 7inch Color Touch Screen Application : Packaging carton, container, packaging box drop test Port Size : Standard 1/4 Pneumatic Inlet Machine Weight : Approx. 250 kg Equipment Type : Oriented Drop Testing Machine Test Width : Up to 600 mm Test Stroke : 01200 mm Gas Pressure : 0.50.7 MPa Capacity : Up to 80 kg Hardness : Frame: 80HRB

Send Inquiry

Environmental Climatic Salt Spray Ageing Chamber 1200L Price : 3348.00 INR/Set Minimum Order Quantity : 1 Automation Grade : Automatic, programmable Power Supply : 220V/50Hz, single phase Usage : Laboratory and Industrial Testing Features : Multimode Test Cycles, Safety interlock, Overtemp Protection Response Time : <3 seconds Accuracy : 0.5C Temperature; 2% Humidity Humidity : 20%98% RH adjustable Frequency : 50/60 Hz Control Mode : Programmable Digital Controller Interface Type : USB/RS232 Temperature : Ambient to 60C Measuring Range : 0100% Salt Solution Concentration Operating Voltage : 220V AC Max Height : Internal Chamber Max Height: 600 mm Resolution : 0.1C / 0.1% RH Test Range : NSS, CASS, and ACSS Method Specimen Size : Max 600 mm (L) x 400 mm (W) x 300 mm (H) Mounting Type : Floormounted Number of Specimens : Up to 60 Test Speed : Adjustable, Standard up to 30 cycles/hour Display Type : LCD Touch Screen Application : Corrosion, Paint, Plating, Coating Ageing Test Port Size : Standard: 1 BSP Machine Weight : Approx. 250 kg Equipment Type : Environmental Climatic Salt Spray Ageing Chamber Test Width : Internal chamber width: 1,200 mm Test Stroke : Variable; Customizable as per test program Gas Pressure : 0.40.6 MPa Capacity : 1200 Liters Hardness : Corrosionresistant build

Send Inquiry

Ozone Aging Test Resistance Chamber Ozone Weathering Testing Machine Price : 6899.00 USD ($)/Set Minimum Order Quantity : 1 Automation Grade : Automatic Power Supply : AC 220V, 50Hz Usage : Ozone weathering resistance testing Features : Programmable, uniform ozone distribution, safety door lock, overtemperature protection Response Time : Within 30 seconds Accuracy : 3% F.S. Humidity : 40~65% RH (adjustable) Frequency : 50Hz Control Mode : Programmable touchscreen control Interface Type : RS232/USB (optional) Temperature : 20~70C (1C) Measuring Range : 0~1000 pphm (ozone concentration) Operating Voltage : 220V AC Max Height : 1100 mm Resolution : 0.1 pphm Test Range : Ozone concentration: 01000 pphm (adjustable) Specimen Size : Customizable, common up to 200mm length Mounting Type : Floor standing Number of Specimens : Up to 12 pieces Test Speed : Revolving type, 0~60 rpm adjustable Display Type : Digital LCD display Application : Accelerated aging/weathering test for rubber, plastic, cable, etc. Port Size : 1/4 inch gas inlet Machine Weight : Approx. 180 kg Equipment Type : Ozone Aging Test Resistance Chamber Gas Pressure : 0.1~0.3 MPa Capacity : 150~225 liters

Send Inquiry

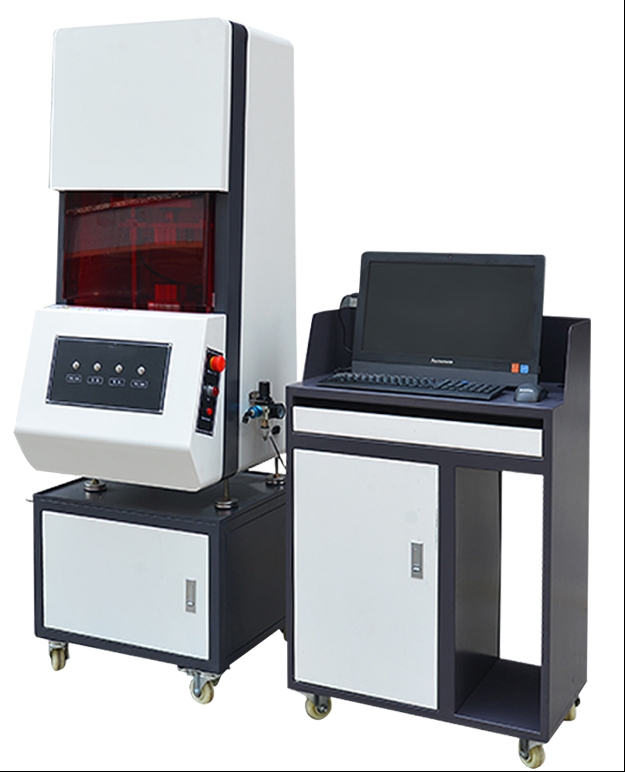

Rubber Mooney Viscometer for Mooney Viscosity Testing Price : 5480.0 USD ($)/Unit Minimum Order Quantity : 1 Automation Grade : SemiAutomatic / Fully Automatic (optional) Power Supply : 220V AC, 50 Hz Usage : Rubber laboratory, Quality control Features : Auto temperature control, Overheat protection, Digital display, Data storage Response Time : Realtime during testing Accuracy : 0.5 Mooney unit Humidity : 80% RH (working environment) Frequency : 50 Hz Control Mode : PC control / Manual operation Interface Type : USB/PC connectivity Temperature : Room Temperature to 200C (controlled by PID) Measuring Range : 0~200 Mooney units Operating Voltage : 220V, 50Hz Max Height : 1200 mm (system unit) Resolution : 0.01 Mooney unit Test Range : 0~200 Mooney units Specimen Size : 38.10 mm x 6.00 mm disc Mounting Type : Floor standing (on wheels) Number of Specimens : Single specimen per test Test Speed : 2 rpm (Mooney disc rotational speed) Display Type : Digital/PC Interface Application : Mooney viscosity testing of unvulcanized rubber Port Size : Standard air inlet 8 mm Machine Weight : Approx. 150 kg Equipment Type : Rubber Mooney Viscometer Test Width : Customizable (Standard specimen chamber diameter: 38.10 mm) Test Stroke : Not Applicable (Rotational test) Gas Pressure : 0.5 MPa (compressed air for pressing system)
