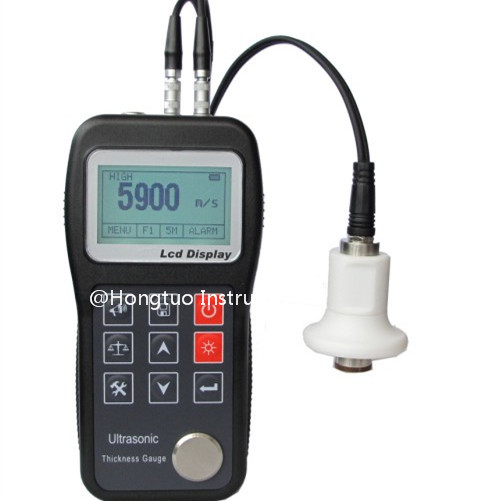

Ultrasonic Thickness Gauge for NDT Testing

Ultrasonic Thickness Gauge for NDT Testing

Name: Ultrasonic Thickness Gauge for NDT Testing
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 296.0 USD
Availability: InStock

296.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Features Portable, high accuracy, backlight, alarm function, multi-language support
Response Time Instantaneous (real-time)
Operating Voltage 3V (2 x 1.5V AA batteries)
Automation Grade Manual
Temperature -10C to 50C operating range
Measuring Range 0.9 - 300 mm
Mounting Type Handheld
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Ultrasonic Thickness Gauge for NDT Testing Price And Quantity

Price 296.0 USD ($)/Unit
Minimum Order Quantity 1 Unit

Ultrasonic Thickness Gauge for NDT Testing Product Specifications

Mounting Type Handheld
Usage Thickness measurement of metals, plastics, ceramics, glass, and other materials
Measuring Range 0.9 - 300 mm
Temperature -10C to 50C operating range
Automation Grade Manual
Control Mode Manual
Operating Voltage 3V (2 x 1.5V AA batteries)
Response Time Instantaneous (real-time)
Features Portable, high accuracy, backlight, alarm function, multi-language support
Test Width Not applicable (point measurement)
Number of Specimens Single at a time
Accuracy 0.1 mm
Display Type LCD Display
Humidity 85% RH
Test Range 0.9 - 300 mm (in steel, depending on probe)
Interface Type BNC connector for probe, USB optional (model-specific)
Port Size Standard BNC connectors for probe
Equipment Type Ultrasonic Thickness Gauge
Test Speed Variable, dependent on material and mode
Frequency 5 MHz (standard probe)
Specimen Size Minimum diameter 20 mm, thickness 0.9 mm and above
Power Supply 2 x 1.5V AA batteries
Resolution 0.01 mm
Machine Weight Approx. 230 g (including batteries)
Application NDT Testing, material thickness measurement, corrosion inspection

Velocity Measurement Supported for different materials (displayed in m/s)
Calibration Single-point and two-point calibration
Backlight LCD with adjustable backlight
Data Storage Up to 500 readings (model-dependent)

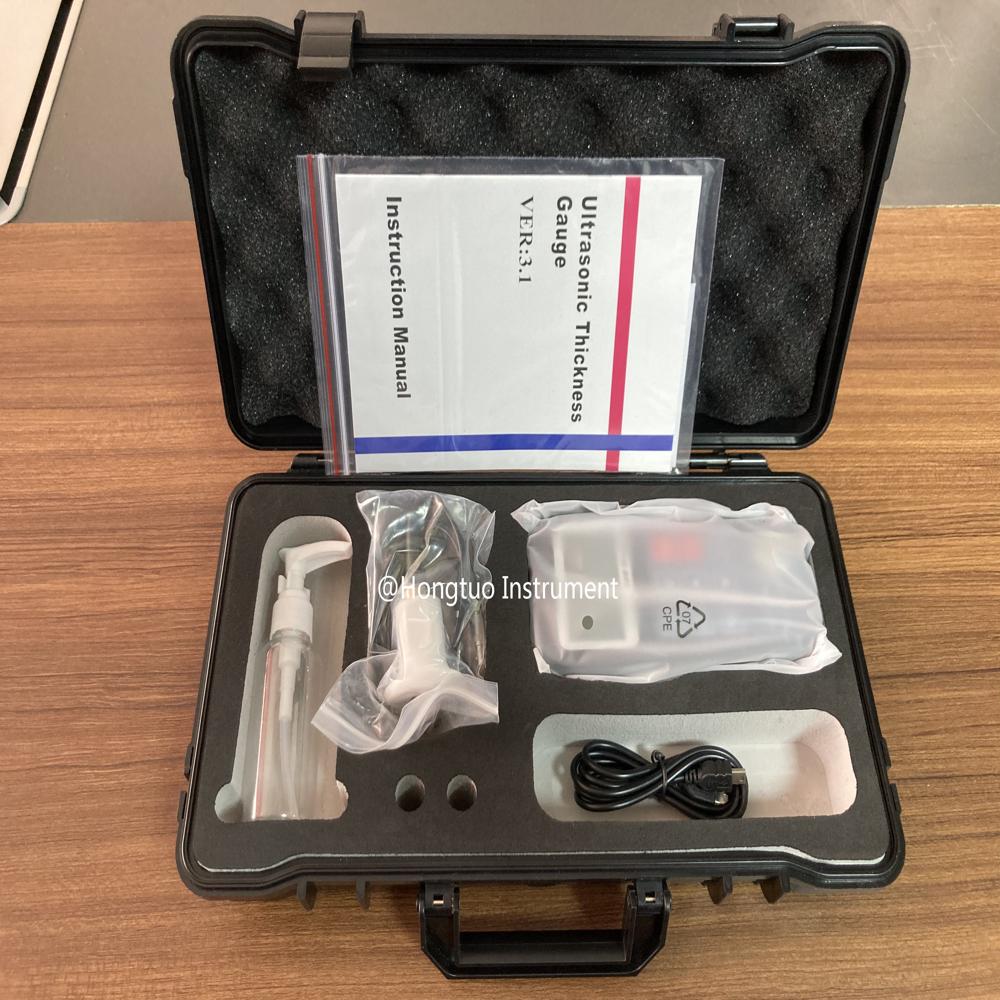

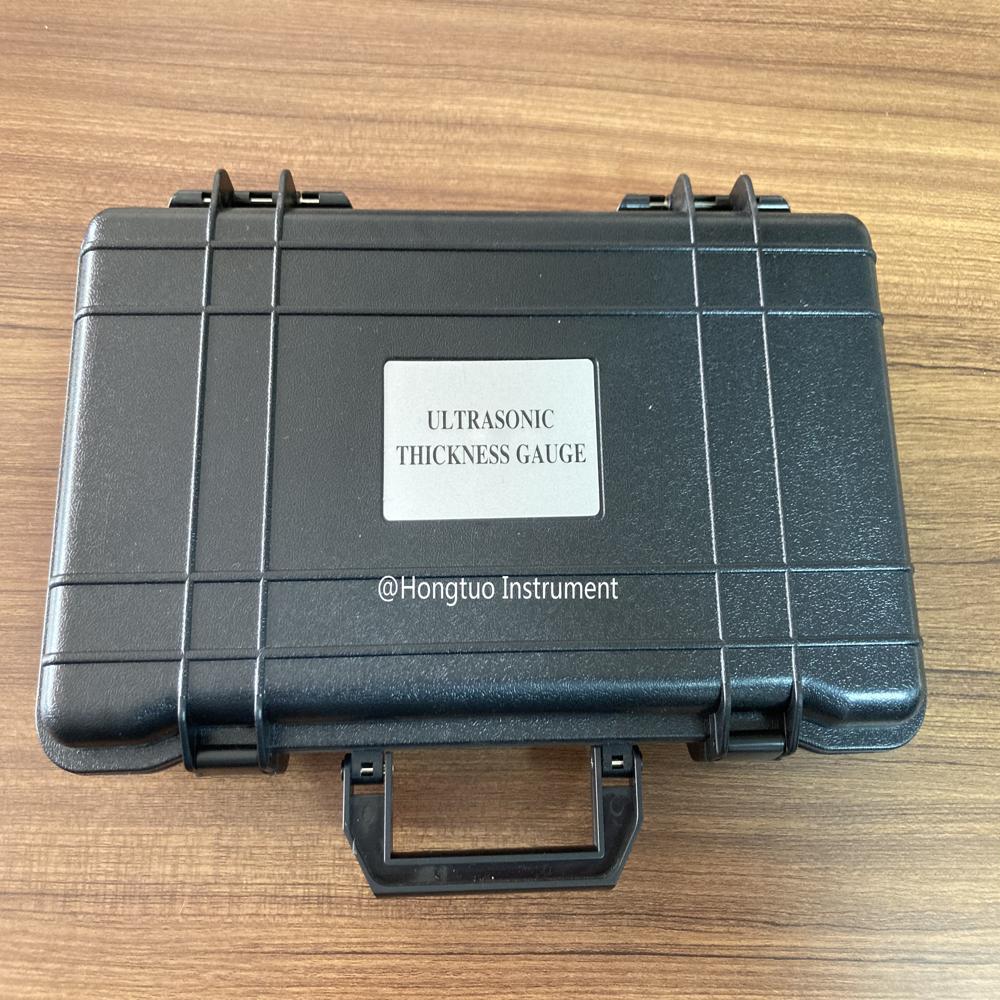

Protective Case Included (optional, model-dependent)
Alarm Function High and low thickness programmable alarms
Probe Type Single and dual element transducer compatibility
Language Support Multi-language menu (model-specific)

Product Description

Main feature:

*Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasonic thickness.

*Can be equipped with a variety of different frequency, chip size, double crystal probe use.

*Have probe zero calibration, a two-point calibration function, can be automatically on system error correction.

*Thickness can be known the sound velocity measurement, in order to improve the accuracy of measurement.

*With functions of coupling status alerts.

*With LED backlight, convenient to use in dark environment.

*The battery indicator function, can real-time display the battery remaining power.

*With automatic power saving function dormancy, automatic shutdown, etc.

*Small, portable, high accuracy, suitable for bad operating environment, vibration, impact resistance and electromagnetic interference.

Option probe	Description
NO2	2Mhz 22 measuring range: 3.0-300.0mm
NO5	5Mhz 10 measuring range: 1.2-230.0mm
NO7	7Mhz 6 measuring range: 0.75-80.0mm
HT5	5Mhz 14 measuring range: 3.0-200.0mm

Versatile Probe Compatibility

Supporting both single and dual element transducers, this ultrasonic thickness gauge adapts to varied inspection environments and materials, ensuring flexibility for corrosion inspection, routine checks, and thorough NDT analysis. The standard 5 MHz probe and broad compatibility expand its usability across diverse industry demands.

User-Focused Features

Equipped with multi-language menus, adjustable LCD backlight, and instant response time, this gauge streamlines workflow in any setting. Data storage for 500 readings (model-dependent) and programmable alarms increase efficiency, safety, and ease for regular thickness monitoring and reporting.

Precision and Ease of Use

With 0.01 mm resolution and single or two-point calibration, users achieve highly accurate results for material thickness measurements. Portable, lightweight, and featuring real-time readings, it is ideal for use in-field, workshops, and manufacturing environments.

FAQ's of Ultrasonic Thickness Gauge for NDT Testing:

Q: How does the ultrasonic thickness gauge measure material thickness?

A: The gauge transmits ultrasonic pulses through a material. The time it takes for the pulse to reflect back is used to calculate the thickness, ensuring accurate, non-destructive testing even on coated or corroded surfaces.

Q: What types of probes are compatible with this ultrasonic thickness gauge?

A: This gauge supports both single and dual element transducer probes, offering users flexibility to select the most suitable probe for material type and application, including corrosion and precision thickness measurement.

Q: When should I use single-point versus two-point calibration?

A: Single-point calibration is suitable for homogenous materials, while two-point calibration improves accuracy for materials with varying properties or in applications with extreme temperature fluctuations.

Q: Where can the ultrasonic thickness gauge be used?

A: This handheld device is suitable for use in the field, workshops, or manufacturing settings. It is designed for manual operation and can measure metals, plastics, ceramics, and glass in a wide temperature and humidity range.

Q: What is the process for data storage and retrieval?

A: The gauge can store up to 500 readings (depending on the model). Stored data can be accessed and reviewed on the device, and models with USB connectivity offer convenient data transfer to a computer for further analysis.

Q: How does the programmable alarm function benefit users?

A: The high and low alarm thresholds can be programmed, alerting users instantly when a measured thickness falls outside the set range. This enhances safety and ensures timely corroded or thinning material detection during inspections.

Q: What is the minimum specimen size that this gauge can measure?

A: The minimum measurable specimen is a diameter of 20 mm and a thickness of 0.9 mm or more, making the device suitable for small components as well as larger surfaces.
