Thermogravimetric Analyzer DH-TGA103

Name: Thermogravimetric Analyzer DH-TGA103
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 13988.0 USD
Availability: InStock

13988.0 USD ($)/Set

Get a Price/Quote

Product Details:

Features High-sensitivity balance, programmable temperature control, built-in software
Display Type 7-inch Color Touch LCD
Mounting Type Benchtop
Response Time Fast response (real-time monitoring)
Interface Type USB, RS232
Equipment Type Thermogravimetric Analyzer
Measuring Range 0-100% weight loss
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Thermogravimetric Analyzer DH-TGA103 Price And Quantity

Minimum Order Quantity 1 Set
Price 13988.0 USD ($)/Set

Thermogravimetric Analyzer DH-TGA103 Product Specifications

Accuracy 0.01 mg
Automation Grade Automatic
Application Material decomposition, oxidation, combustion analysis
Test Range 0~100% (mass change)
Number of Specimens 1
Port Size Gas inlet 6 mm
Frequency 50 Hz
Operating Voltage 220V AC
Resolution 0.01 mg
Temperature Room temperature ~ 1100C
Power Supply AC 220V, 50Hz
Gas Pressure 0.2 MPa
Humidity 80% RH (non-condensing)
Capacity Sample weight up to 10 g
Measuring Range 0-100% weight loss
Specimen Size Maximum 10 mm diameter, 2 mm thickness
Control Mode Microcomputer Control
Equipment Type Thermogravimetric Analyzer
Response Time Fast response (real-time monitoring)
Usage Laboratory Analytical Testing
Interface Type USB, RS232
Display Type 7-inch Color Touch LCD
Features High-sensitivity balance, programmable temperature control, built-in software
Machine Weight 35 kg
Test Speed 0.1-200C/min
Mounting Type Benchtop

Atmosphere Type Inert, oxidizing, reducing
Language Support Multi-language menu options
Power Consumption About 800W
Compliance CE Certified
Software Functions Real-time curve recording, automatic tare, multi-segment programming
Cooling System Air/Natural cooling
Sample Holder Type High purity alumina material
Crucible Material Platinum or ceramic
Operating Environment 15~35C
Protection Over-temperature and gas protection system
Data Output Digital, USB export
Heating Rate 1C/min-80C/min (adjustable)
Balance Type Electromagnetic force compensation

Thermogravimetric Analyzer DH-TGA103 Trade Information

Supply Ability 300 Set Per Month
Delivery Time 3 Days

Product Description

Thermogravimetric Analyzer DH-TGA103

Structural advantages:

1. The furnace body is heated using double row winding of precious metal alloy wires, reducing interference and making it more resistant to high temperatures.

2. The tray sensor is made of precious metal alloy plates with precision craftsmanship, which has advantages such as high temperature resistance, oxidation resistance, and corrosion resistance.

3. The power supply, circulating heat dissipation, and main unit are separated to reduce the impact of heat and vibration on the micro thermal balance.

4. Adopting an open top structure, it is easy to operate and has a tail gas output port for easy expansion and connection to infrared and other devices.

5. The host adopts insulation heating furnace body to isolate the thermal impact on the chassis and micro thermal balance.

6. The furnace body adopts double insulation for better linearity.

Advantages of controllers and software:

1. Using imported ARM processors, sampling speed and processing speed are faster.

2. Four channel sampling AD collects TG signal and temperature T signal.

3. Heating control, using PID algorithm for precise control. Can be heated and maintained at a constant temperature in multiple stages.

4. The software and instrument adopt USB bidirectional communication, fully realizing remote operation. The instrument parameters can be set and the operation can be stopped through computer software.

5. 7-inch full-color 24 bit touch screen for better human-machine interface. The calibration of TG can be achieved on the touch screen.

Advantages of controllers and software:

1.Temperature range: room temperature1550

2. Temperature resolution: 0.01

3.Temperature fluctuation: 0.1

4.Heating rate: 0.1100 /min

5.Temperature control method: PID algorithm control, heating, constant temperature, and cooling

6.Constant temperature time: 0-300min, can be set arbitrarily

7.Scale measurement range: 0.01mg3g, which can be extended to 30g

8.Program control to achieve multi-stage temperature control; The program can set at least 5 program segments

9.Weighing system accuracy: 0.01mg

10.Constant temperature time: 0-300min, can be set arbitrarily

11.Display method: 24 bit color, 7-inch LCD touch screen display

12.Atmosphere device: Built in gas flow meter, including two gas switching and flow control

13.Atmosphere: Inert, oxidizing, reducing, static, dynamic; The gas entry time can be programmed, and during the experiment, the atmosphere can be switched through the program.

14.Software: Intelligent software can automatically record TG curves for data processing and print experimental reports

15.Curve scanning: heating scanning, cooling scanning

16.Power supply: AC220V 50Hz; Heating power 1000w

17.Operating software: The data collection frequency can be customized and set to real-time, with 2S, 5S, and 10S available for customization.

18.Communication interface: USB communication, bidirectional communication.

The lower computer of the instrument is equipped with temperature multi-point calibration, which can meet at least 3 calibration points, including high, medium, and low temperatures, without the need for computer operation to complete.

The instrument is equipped with a water-cooled port and can be optionally equipped with a water-cooled device (temperature range of the water-cooled device: -10100 , adjustable).

The instrument has the function of initial atmosphere, blowing and emptying, program control, and setting the emptying time before experimental operation.

High-Precision TGA Performance

The DH-TGA103 Thermogravimetric Analyzer delivers precise and reliable weight change measurements for diverse laboratory applications. With fast response and a high-sensitivity balance, it covers a broad measuring range up to 100% weight loss with an accuracy of 0.01 mg. Its advanced, programmable temperature control ensures versatility in testing regimes for research, development, and quality assurance.

Versatile Testing Environment

Engineered to work under multiple atmospheres-including inert, oxidizing, and reducing-the DH-TGA103 offers flexibility for material analysis. It is compatible with high-purity platinum or ceramic crucibles and features a robust air/natural cooling system. The built-in software supports automatic tare and multi-segment programming for robust analysis in scientific and industrial labs.

User-Friendly Operation and Data Management

Designed for easy operation, the analyzer features a 7-inch color touch LCD and supports multiple languages. Data can be quickly exported via USB, and the intuitive software allows real-time curve recording and comprehensive control. The over-temperature and gas protection system ensures reliable and safe operation during analytical testing.

FAQ's of Thermogravimetric Analyzer DH-TGA103:

Q: How does the DH-TGA103 ensure accurate measurement of mass change during analysis?

A: The DH-TGA103 utilizes an electromagnetic force compensation balance, providing high sensitivity with an accuracy and resolution of 0.01 mg. This technology enables precise tracking of sample mass change across its full measuring range, ensuring reliable thermogravimetric results.

Q: What types of samples or atmospheres can be analyzed with this thermogravimetric analyzer?

A: This instrument is suitable for testing a wide range of materials under inert, oxidizing, or reducing atmospheres. Its versatility is supported by the use of either platinum or ceramic crucibles, making it ideal for decomposition, oxidation, and combustion analysis in laboratory settings.

Q: When should the over-temperature and gas protection features be used?

A: The over-temperature and gas protection systems operate automatically to maintain safe conditions, particularly during high-temperature tests or when working with volatile gases. These protections are essential for preventing damage to the equipment and ensuring user safety throughout the analytical process.

Q: Where can data from the DH-TGA103 be exported or accessed?

A: Test data can be exported directly via the USB interface for further analysis or report generation. The instrument also features real-time data display on its 7-inch color touch LCD, and can be connected through additional RS232 ports for broader integration needs.

Q: What is the process for setting up tests with this analyzer?

A: Operators can use the color touch LCD and built-in software to program temperature segments, set desired heating rates between 1C/min and 80C/min, and select atmosphere type. The software supports real-time curve recording and automatic tare, streamlining workflow for various analytical requirements.

Q: How does using high-purity alumina sample holders and platinum/ceramic crucibles benefit laboratory testing?

A: These high-quality materials ensure chemical compatibility across a range of testing conditions, preventing contamination and ensuring accurate, reproducible results even at high temperatures up to 1100C.

Q: What are the key advantages of using the DH-TGA103 for laboratory analysis?

A: The analyzer offers high-accuracy mass detection, flexible programming, reliable safety systems, robust data management options, and user-friendly operation with multi-language support. Its CE certification and automatic features make it an excellent choice for consistent, high-throughput laboratory environments.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Plastic and Rubber Testing Equipment' category

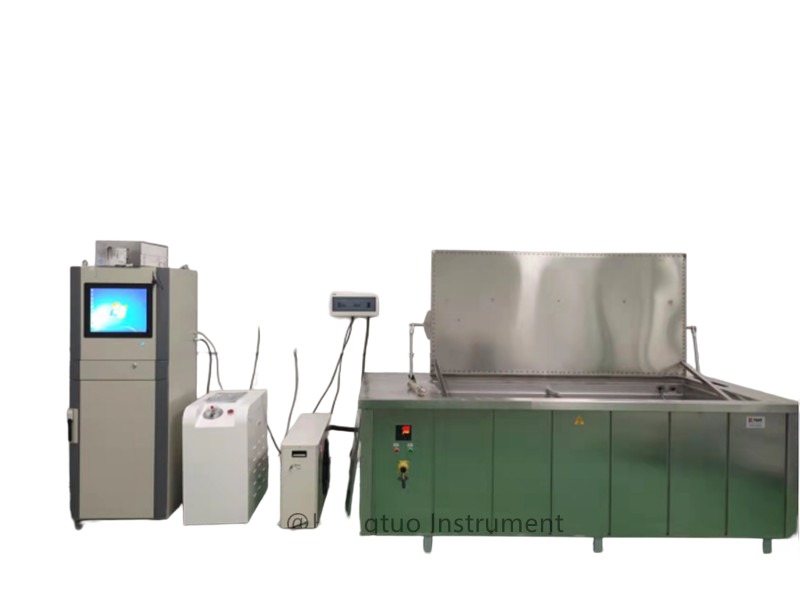

Pipe Hydrostatic Pressure and Burst Testing Machine Price : 9999.00 USD ($)/Unit Minimum Order Quantity : 1 Usage : measure the thickness of vulcanized rubber and plastic products Automation Grade : Automatic Power Supply : 220 V AC, 50 Hz Features : Automated data logging, overpressure protection, water recirculation Specimen Size : DN16 to DN400 mm Millimeter (mm) Measuring Range : 0160 bar Rankine Capacity : Multiple station (up to 6) Kg Equipment Type : Pipe Hydrostatic Pressure Burst Testing Machine Control Mode : Automatic with computer control Interface Type : USB/RS485 (optional) Response Time : <1s Seconds Mounting Type : Freestanding floor model Test Speed : Adjustable, up to 10 bar/min Max Height : Approx. 1500 mm Machine Weight : 1.7kg. Kilograms (kg) Display Type : LCD/Computer Display Application : Testing hydrostatic pressure resistance and burst strength of plastic and composite pipes Test Range : 0160 bar Hardness : Suitable for all plastic and composite pipe hardness Accuracy : 0.5% F.S. % Resolution : 0.01 bar Frequency : 50/60 Hz Hertz (HZ) Operating Voltage : 220V 10%, 50/60Hz Volt (V) Number of Specimens : 1 to 6 (simultaneous) Temperature : Room temperature to 95C Fahrenheit (oF) Humidity : 2080% RH, noncondensing Test Width : Customizable as per specimen size Millimeter (mm) Test Stroke : Up to 1000 mm Port Size : 1/2 to 2 (standard) Gas Pressure : Up to 16 MPa mpa

Send Inquiry

Digital Electronic Torque Meter Torque Tester for Bottle Cap Price : 779.00 INR/Set Minimum Order Quantity : 1 Usage : Laboratory, packaging, quality inspection Automation Grade : Semiautomatic Power Supply : AC 220V 50Hz Features : Data memory, peak hold, flexible clamp jaws Specimen Size : Cap Diameter: 10150 mm Millimeter (mm) Measuring Range : 010 Nm Kelvin (K) Capacity : 010 Nm Ltr Equipment Type : Digital Torque Tester Control Mode : Digital electronic Interface Type : RS232 Response Time : 350 ms Seconds Mounting Type : Tabletop Test Speed : Manual rotation Max Height : 250 mm Machine Weight : 4.5 kg Kilograms (kg) Display Type : LCD digital display Application : Torque measurement for bottle cap sealing/loosening Test Range : 010 Nm Hardness : Structural parts: Steel/Aluminum Accuracy : 1% F.S. % Resolution : 0.001 Nm Frequency : 50 Hz Hertz (HZ) Operating Voltage : AC 220V Volt (V) Number of Specimens : Single specimen per test Temperature : 5 C35 C Celsius (oC) Humidity : 85% RH Test Width : 50160 mm Millimeter (mm) Test Stroke : 180 (typical bottle opening movement) Port Size : Universal adjustable (suitable for various cap sizes)

Send Inquiry

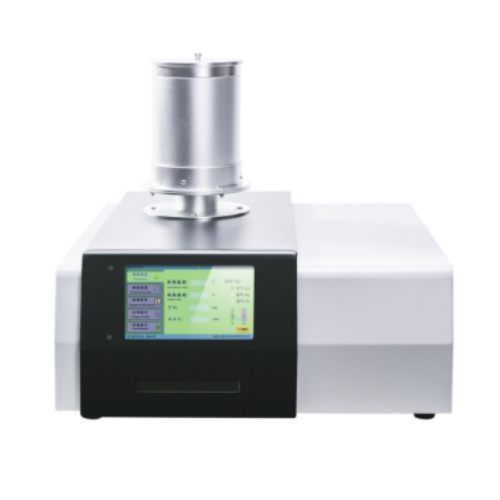

Thermogravimetric Analyzer for Thermal Analysis DH-TGA101 Price : 8542.00 USD ($)/Piece Minimum Order Quantity : 1 Usage : Laboratory Analysis Automation Grade : Automatic Power Supply : 220V AC, 50Hz Features : Realtime Analysis, Automatic Data Storage, Programmable Heating Rate Specimen Size : Sample Pan: 6 mm Diameter Millimeter (mm) Measuring Range : 0.01 mg 10 g Kelvin (K) Capacity : 10 g (Max Sample Weight) Ltr Equipment Type : Thermogravimetric Analyzer Control Mode : Microprocessor Control Interface Type : USB/RS232 Response Time : < 1 second Seconds Mounting Type : Benchtop Test Speed : 0.150C/min Max Height : 220 mm Machine Weight : Approx. 25 kg Kilograms (kg) Display Type : LCD Touchscreen Display Application : Thermal Stability, Composition Analysis, Material Characterization Test Range : 0100% Weight Loss Accuracy : 0.01 mg % Resolution : 0.01 mg Frequency : 50/60 Hz Hertz (HZ) Operating Voltage : 220V 10% Volt (V) Number of Specimens : 1 (Standard) Temperature : Room Temp to 1100C Celsius (oC) Humidity : 5%90% RH (Noncondensing) Port Size : 6 mm Gas Inlet Gas Pressure : 00.2 MPa mpa

Send Inquiry

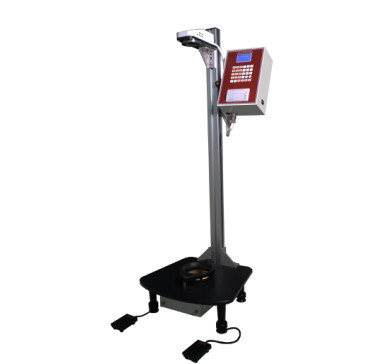

Falling Dart Impact Testing Machine DH-BMC-2 Price : 1536.00 INR/Set Minimum Order Quantity : 1 Usage : Laboratory and industrial testing Automation Grade : Manual Power Supply : 230V AC, 50 Hz Features : Height adjustable; Rugged steel frame; Powder coated finish; Safety enclosure; Adjustable clamp for specimen Specimen Size : Up to 160 mm width, sheet/film samples Millimeter (mm) Measuring Range : 0 2,000 g Kelvin (K) Capacity : 0 2,000 g Kg Equipment Type : Falling Dart Impact Testing Machine Control Mode : Manual release mechanism Interface Type : Manual operation Response Time : Instantaneous on impact Seconds Mounting Type : Floor standing Test Speed : Standard freefall (gravity) 2.5 0.2 m/s Max Height : 1,000 mm Machine Weight : Approx. 70 kg Kilograms (kg) Display Type : Digital/Analog, depending on model Application : Impact resistance testing of plastic films and sheets Test Range : 0 2,000 g dart Accuracy : 1 g % Resolution : 1 g Frequency : 50 Hz Hertz (HZ) Operating Voltage : 230V AC Volt (V) Number of Specimens : 1 per test Temperature : 10 C 40 C Celsius (oC) Humidity : Up to 85% RH, noncondensing Test Width : Up to 160 mm Millimeter (mm) Test Stroke : Max. 1,000 mm
