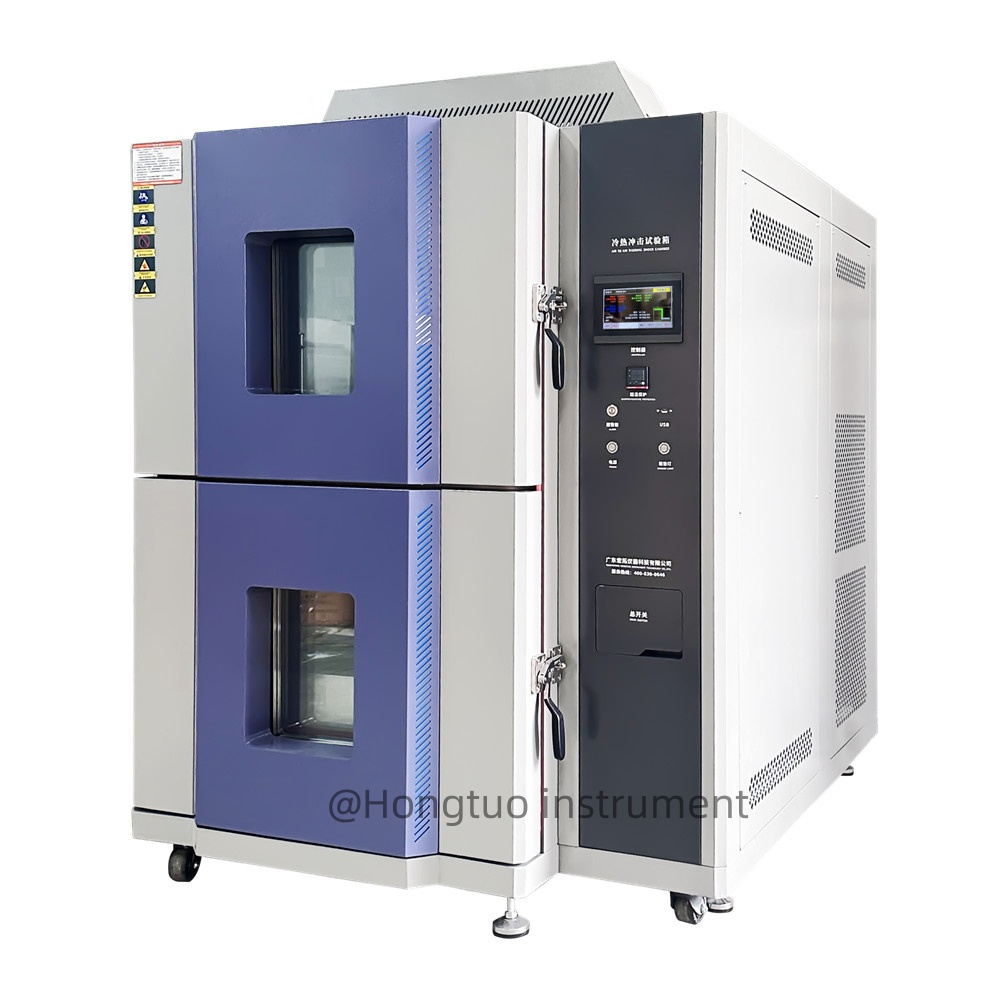

Thermal shock testing chamber 80L

Name: Thermal shock testing chamber 80L
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 10830.0 USD
Availability: InStock

10830.0 USD ($)/Piece

Get a Price/Quote

Product Details:

Number of Specimens Up to 8 standard specimens
Application Environmental stress testing for electronics, automotive, aerospace, materials
Operating Voltage 220/380V
Frequency 50Hz
Interface Type RS232/RS485, USB
Mounting Type Floor-standing
Specimen Size Max 300 x 300 x 200 mm each
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Thermal shock testing chamber 80L Price And Quantity

Minimum Order Quantity 1 Piece
Price 10830.0 USD ($)/Piece

Thermal shock testing chamber 80L Product Specifications

Test Width Internal chamber approx. 500 mm
Features Programmable control, automatic defrost, over-temperature protection
Temperature -40C to +150C
Max Height Chamber internal approx. 400 mm
Usage Thermal Cycle Stress Test
Humidity Optional; standard model is dry
Response Time Less than 10 seconds transfer
Port Size 50 mm cable port
Measuring Range -40C to +150C
Accuracy 1.0C
Machine Weight Approx. 350 kg
Automation Grade Fully Automatic
Power Supply AC 220V/380V, 50Hz
Equipment Type Thermal Shock Testing Chamber
Test Speed Standard cycle transition in less than 10 seconds
Resolution 0.1C
Number of Specimens Up to 8 standard specimens
Mounting Type Floor-standing
Specimen Size Max 300 x 300 x 200 mm each
Operating Voltage 220/380V
Application Environmental stress testing for electronics, automotive, aerospace, materials
Interface Type RS232/RS485, USB
Frequency 50Hz
Capacity 80 Liters
Test Range High temp chamber: +60C~+150C; Low temp chamber: -40C~0C
Display Type LCD Touchscreen Display
Control Mode PLC-based Touchscreen Controller

Data Logging USB Export and LAN connectivity
Noise Level 65 dB
Chamber Lighting Observation window LED lighting
Insulation Material PU foam + fiberglass
Safety Protection Compressor overload, heater over-temp, phase sequence, leakage, circuit breaker
Timer Programmable; 0~9999 min for each segment
Refrigerant Type Environmental friendly R404A/R23
Door Type Double-layer observation window
External Material Cold rolled steel with powder coating
Cooling Method Air cooled/Water cooled
Casters/Levelling Feet Lockable wheels for mobility
Internal Material SUS304 Stainless Steel

Product Description

Control Methods and Features:

1. Balanced Temperature Control System (BTHC) uses P.I.D method to control SSR so that the heating amount of the system is equal to the heat loss, so it can be used stably for a long time.

2. Japanese technology, derived from Taiwanese brands

3. The main accessories are imported.

4. The machine has low noise, less than 75 decibels, sound level A

5. Refrigerant servo valve flow calculation control. Save 30% electricity.

Test Standard:

1. GB/T 2443.1-2001 Test A: Low temperature test method

2. GB/T 2443.2-2001 Test B: Low temperature test method

3. GB/T 2443.22-2002 Test N: Low temperature test method

4. GJB 150.3-1986 High Temperature Test

5. GJB 150.4-1986 Low temperature test

6. GJB 150.5-1986 Temperature shock test

Technical Parameters:

1. Test room temperature: -40+150

2. Temperature tolerance: 2.0

3. High greenhouse temperature: 60200

4. Low temperature chamber: -55-10

5. Temperature preheating time: about 40 minutes

6. Temperature pre-cooling time: about 65 minutes

7. Temperature recovery time: 5min

8. Test method: Pneumatic damper switches between 2 or 3 temperature zones

9. Test object weight: 15kg/layer

10. Refrigeration system: binary type

11. Condensation method: air-cooled

12. Control method: microcomputer programmable + PID + SSR

13. Heat generation: The maximum allowable load heat generation of this machine is 300w

Structure and Materials:

Model	Internal dimension	External dimension
DH-RTS-80-40	400500400(WxHxD)MM	1450x1850x1450(WxHxD)M M

1. Inner box material: stainless steel plate (SUS#304)

2. Exterior material: SPCC (surface paint)

3. Insulation material: rigid Polyurethane foam and glass wool

4. Heater: fin heat pipe shaped stainless steel electric heating pipe

5. Air supply circulation system:

a. Imported 750W motor, 2 pieces

b. Stainless steel extended shaft

c.Multi-wing fan blade (SIROCCOFAN)

6. Box door: single-piece door, left-opening

a. 1 embedded handle

b. Back button: SUS#304

Refrigeration System:

1. Refrigeration system: Original imported fully sealed French Taikang

2. Refrigerant: environmentally friendly refrigerant

3. Condenser: water-cooled shell and tube condenser

4. Evaporator: fin type multi-section type

5. Other accessories: desiccant, oil separator, refrigerant flow valve, repair valve

6. Expansion system: capacity controlled refrigeration system

Control System:

1. Adopt TEMI8229 LCD touch screen imported from South Korea, which can switch to English

2. Controller description:

2.1 Temperature resolution: 0.1

2.2 It has the function of displaying the temperature of high and low temperature storage tanks and test tanks.

2.3 Temperature measuring body: 3 sets of DIN specification thermocouples

2.4PID control method

2.5 Using graphic control software screen dialogue, direct touch screen options, including power-on settings, curve display, cycle, program, display screen, auxiliary settings, system startup program capacity and control functions, with high temperature tank temperature, setting Fixed temperature, low temperature tank temperature, set temperature, test tank temperature, test cycle number setting and indication, can display the current execution status, temperature set value, time set value, remaining time, and remaining number of cycles

2.6 The temperature program setting is displayed with a graphic curve, with the function of real-time display of program curve execution.

2.7 Have the ability to display fault status and explain troubleshooting methods

2.8 Program capacity and control functions:

Amount of programs that can be used: Maximum 32 groups

Repeatable command execution: each command can be executed 9999 times

Time setting 099Hr59min

With reservation start function

Button and screen lock (LOCK) function

Defrost temperature time setting

Standard Accessories:

1. Japanese-made leakage circuit breaker 3P 100A 1 piece

2. 3 pneumatic doors

3. 1 main power switch

4. Electromagnetic contactor: Taiwan TAIWAN 50A

5. Solid state relay: Taiwan FOTEK 220V 40A

6. Test hole: 1 50mm hole on the left side of the machine body, with 1 stainless steel hole cover

7. Sample placement rack:

.Stainless steel SUS#304 mesh storage tray 2 pieces

.Stainless steel adjustable spacing rack rails 2 sets

Surroundings:

1. The allowable operating temperature range is 035 (average temperature within 24 hours 35)

2. Performance guarantee range: 535

3. Relative humidity: no more than 85%

4. Atmospheric pressure: 86106Kpa

5. No strong vibration around

6. No direct sunlight or other heat sources

Power Supply:AC 35W380V 50HZ; Maximum power: 20KW

Main configuration list

Name	Brand	Origin	Name	Brand	Origin
Controller	Visonicom	China	Ceramic fuse	Tiande	Taiwan
Electromagnetic contactor	Saginomiya	Japan	Heat sink	Xuanrong	Taiwan
Thermal relay	Taian	Taiwan	Wind wheel	Fengrui	Taiwan
Solid State Relays	Yang Ming	Taiwan	Motor	Fengrui	Taiwan
Intermediate relay	Omron	Japan	Liquid expansion gas switch	RAINBOW	Korea
Temperature Sensor	Song Qi	Taiwan	Push button switch	Zhifeng	Taiwan
Heater	Taide	Taiwan	Buzzer	Zhifeng	Taiwan
Humidifier	Taide	Taiwan	Indicator Lights	Ruida	Taiwan
Control	CHINT	China	Cable	Mingxing	Guangdong
Transformer	CHINT	China	Compressor	Taikang	France
Evaporator	Zhongli	Guangdong	Condenser	Zhongli	Guangdong
Oil separator	Aiko	Taiwan	Solenoid valve	Saginomiya	Japan

Rapid and Precise Thermal Cycling

Achieve rapid temperature transitions in less than 10 seconds with the 80L Thermal Shock Testing Chamber. The chamber covers a broad temperature range from -40C to +150C, allowing precise environmental stress evaluations. Programmable control and a responsive PLC touchscreen interface optimize testing sequences, ensuring accurate and repeatable results for demanding applications.

Safe and Environmentally Friendly Design

The chamber integrates multiple safety features, including compressor overload, over-temperature, phase sequence, leakage protections, and a circuit breaker. It uses eco-friendly refrigerants (R404A/R23) and efficient PU foam plus fiberglass insulation, minimizing environmental impact while maintaining high performance. Easy mobility is ensured with lockable wheels, and observation windows enhance monitoring capabilities.

Intuitive Data Management and Connectivity

Effortlessly log and manage test data with the USB export and LAN connectivity features. The chamber is equipped with an LCD touchscreen display, supporting RS232/RS485 interfaces for robust communication with external devices. Programmability allows detailed cycle customization, and data exports facilitate comprehensive analysis and reporting.

FAQ's of Thermal shock testing chamber 80L:

Q: How does the thermal shock testing chamber ensure accurate temperature control during tests?

A: The chamber employs a PLC-based touchscreen controller for precise programmability and monitoring. It achieves fast, controlled temperature transitions (less than 10 seconds) using reliable sensors with 1.0C accuracy and 0.1C resolution, ensuring tests are consistent and repeatable.

Q: What is the typical application of the 80L thermal shock chamber?

A: This chamber is primarily used for environmental stress testing of electronics, automotive parts, aerospace components, and materials. It simulates rapid temperature changes to evaluate product durability and performance under extreme environmental conditions.

Q: When should I use the humidity option in this chamber?

A: The standard chamber model is dry, but a humidity option is available if your testing protocol requires combined temperature and humidity cycles. Select this feature when evaluating products that operate in variable humidity environments.

Q: Where can the chamber be installed, and how is mobility managed?

A: Designed as a floor-standing unit, the chamber can be set up in laboratories or production facilities. Equipped with lockable wheels for easy relocation and levelling feet for stability, it accommodates flexible installation needs.

Q: What safety features are integrated into the chamber's operation?

A: Multiple layers of protection are built-in, including compressor overload, heater over-temperature shutdown, phase sequence detection, leakage current protection, and a circuit breaker. These safeguards ensure both user and specimen safety during intensive cycling.

Q: How is data logged and exported for analysis?

A: All test data can be logged and exported via the chamber's USB port or LAN connectivity. This enables easy transfer for further analysis or record-keeping, and integrates well with laboratory information management systems.

Q: What are the benefits of using SUS304 stainless steel and double-layer window design?

A: SUS304 stainless steel ensures corrosion resistance and durability, maintaining a contaminant-free environment. The double-layer observation window not only allows visual inspection without heat loss but also improves insulation and operator safety.
