Tape Retentivity Tester

Name: Tape Retentivity Tester
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 529.0 USD
Availability: InStock

529.0 USD ($)/Set

Get a Price/Quote

Product Details:

Frequency 50Hz
Max Height Approx 400 mm (internal test space)
Display Type LCD Digital Timer
Automation Grade Semi-automatic
Application For adhesive tape holding power test
Specimen Size 25 mm x 100 mm
Mounting Type Desktop
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Tape Retentivity Tester Price And Quantity

Price 529.0 USD ($)/Set
Minimum Order Quantity 1 Set

Tape Retentivity Tester Product Specifications

Display Type LCD Digital Timer
Max Height Approx 400 mm (internal test space)
Automation Grade Semi-automatic
Frequency 50Hz
Equipment Type Tape Retentivity Tester
Mounting Type Desktop
Test Speed Not applicable (static loading)
Specimen Size 25 mm x 100 mm
Test Width Standard 24 mm
Application For adhesive tape holding power test
Operating Voltage 220V
Number of Specimens 5 positions
Humidity 40-70% RH
Temperature Room Temperature (232C)
Features Multi-station (5 independent), digital timing, anti-corrosion body
Machine Weight About 25 kg
Test Range 0~99999.9 min (Timer)
Accuracy 1 second (timer)
Response Time Instantaneous (for timer start/stop)
Power Supply AC 220V 50Hz
Control Mode Digital Timer Control
Resolution 0.1 min
Capacity 1000g per weight
Usage Lab and industrial adhesive tape retention testing

Weight Material Stainless Steel, 1000g each
Dimensions (LxWxH) 400 x 250 x 450 mm
Calibration Manual reset and start for every specimen
Finish Glossy, chemical resistant
Surface Treatment Powder coated, anti-rust
Timer Quantity 5 individual timers
Fixture Material Stainless Steel
Safety Features Overload protection, stable base
Operation Method Manual placement, automatic timing stop upon tape failure

Tape Retentivity Tester Trade Information

Delivery Time 5-7 Days

Product Description

Application

Applicable to the hold viscosity testing for all kinds of sticky products such as pressure-sensitive adhesive tapes, medical patches, self-adhesive labels, protective films, etc.

Design standards: CNS-1188711888PSTC-7GB/T 4851

Parameters

Temperature: room temperature

Testing fixture: 5 groups.

Weight: 1KG (or specified)

Timer: 5 groups, 99999.9 hours

Testing plate: 5 pieces.

Loading steel plate: 5 pieces

Standard pressure roller: 2000g50 g

Weight: 100010g (including loading plate weight)

Outline dimension: (LWH) 530250650

Machine weight: 32kg

Testing principle

The test plate with glued specimens is hung vertically on the test stand, the weight of the specified weight is hung at the lower end, and the displacement of the sample after a certain period of time, or the time when the sample is completely detached, is used to represent the resistance to pull off of glued specimens.

The instrument complies with a number of national and international standards: GB 4851, ASTM D3654, JIS Z0237

Features

1.Test boards and test weights designed strictly in accordance with standards ensure the accuracy of test data

2.Controlled by microcomputer, with operation panel, LCD display, convenient for users to conduct test operations and data viewing quickly.

3. five test stations can be simultaneously performed multiple test items

4.automatic timing, locking and other functions to further ensure high accuracy of the test results

Versatile Multi-Station Testing

The Tape Retentivity Tester is engineered to accommodate five specimens simultaneously, streamlining comparative adhesive tape evaluations. Each position features an independent digital timer, allowing operators to monitor and record retention time for each sample individually. This design enhances lab efficiency while maintaining precise, isolation testing.

Sturdy and Durable Construction

Manufactured with stainless steel fixtures and weights, the tester offers robust performance for repeated industrial or laboratory use. The anti-corrosion, powder-coated finish resists rust and chemical exposure, while the glossy surface ensures easy cleaning. Overload protection features and a stable base guarantee safety and operational reliability.

Precision Digital Control and Convenient Operation

Equipped with digital timer control and LCD display, the device offers accurate measurement and instantaneous response upon tape failure. Manual placement ensures user oversight, and automatic timing stop improves consistency and reduces the risk of errors. Calibration is user-friendly, with manual reset and start for each specimen.

FAQ's of Tape Retentivity Tester:

Q: How does the Tape Retentivity Tester measure adhesive tape holding power?

A: This tester measures the holding power of adhesive tape by hanging a standardized 1000g weight from a tape specimen, then recording the duration until tape failure. Each specimen is monitored by its own digital timer which starts upon placement and stops automatically when the tape fails.

Q: What makes the tester suitable for laboratory and industrial settings?

A: With its stainless steel construction, anti-corrosive powder coating, overload protection, and easy-to-clean glossy finish, the tester is both robust and durable. Its multi-station, semi-automatic operation enables reliable, high-throughput testing in demanding environments.

Q: When should calibration be performed on this equipment?

A: Calibration is managed manually for each specimen before starting a test cycle. Operators simply reset and start the timer at the beginning of every new specimen test, ensuring accurate, reproducible results for every trial.

Q: Where should the Tape Retentivity Tester be installed for optimal performance?

A: The tester is designed for desktop mounting in controlled environments such as laboratories or quality control areas. It requires a standard AC 220V, 50Hz outlets and should be used at room temperature (232C) with 40-70% relative humidity for best accuracy.

Q: What is the process for conducting a tape retentivity test using this device?

A: After mounting up to five tape specimens (25 mm x 100 mm each) onto the fixtures, a 1000g weight is attached to each. Each timer is reset and started manually. The timers stop automatically when the tape fails, and results are read from the LCD display for each station.

Q: How can using this tester benefit adhesive manufacturers or quality control labs?

A: The tester enables simultaneous, repeatable, and precise evaluation of tape retention strength across multiple samples, improving workflow efficiency and data reliability. Its robust build and digital controls ensure consistent performance in routine production or research testing.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Paper Testing Machine' category

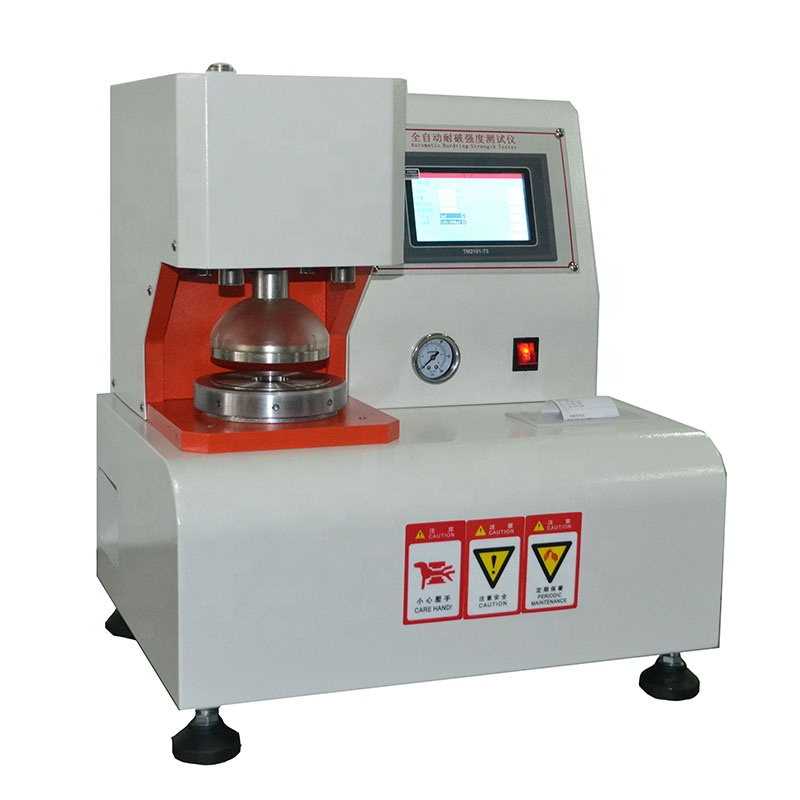

DH-CB-01 Cardboard Bursting Strength Tester Price : 1299.00 USD ($)/Piece Minimum Order Quantity : 1 Automation Grade : Automatic Usage : research institutes, paper manufacturers, packaging industry and quality inspection departments. Power Supply : AC 220V, 50Hz Features : Automatic clamping, automatic reset, microprinter, data storage Application : Testing bursting strength of cardboard, corrugated board, and paper board Test Width : 100 mm Millimeter (mm) Specimen Size : Circular, Diameter 100 mm Millimeter (mm) Test Speed : 95 5 ml/min Equipment Type : Cardboard Bursting Strength Tester Mounting Type : Benchtop Max Height : 350 mm Capacity : 035 kg/cm2 Kg Resolution : 0.01 kPa Test Stroke : 015 mm Control Mode : Microcomputer Control / Touch Screen Interface Type : RS232 Data Interface Hardness : Industrial grade construction Response Time : <1 second Seconds Measuring Range : 0 4 MPa Celsius (oC) Accuracy : 0.5% F.S. % Test Range : 0 4000 kPa Machine Weight : Approximately 75 kg Kilograms (kg) Temperature : Room Temperature (15 35C) Fahrenheit (oF) Number of Specimens : Single Specimen per Cycle Humidity : 2090% RH Frequency : 50/60 Hz Hertz (HZ) Display Type : Digital LCD Touch Screen Port Size : Standard Grip Opening: 30.5 mm (diameter) Operating Voltage : 220V 10%, 50Hz Volt (V) Gas Pressure : 0.6 MPa (Compressed Air) mpa Dimension (L*W*H) : 445 425 555mm Millimeter (mm)

Send Inquiry

Carton Box Paper Testing Equipment / Clamp Force Tester For Transport Price : 971.00 USD ($)/Set Minimum Order Quantity : 1 Automation Grade : Automatic Usage : Packing Clamp Test Machine Power Supply : AC 220V/50Hz Features : Clamping Force Test, Compression Hold, Auto Reset, Safety Interlock Application : Carton Box, Corrugated Paper Board Transport Simulation Testing Test Width : 200 2000 mm Millimeter (mm) Specimen Size : Standard: 1200 x 1200 mm Millimeter (mm) Test Speed : 5 500 mm/min (adjustable) Equipment Type : Clamp Force Tester Mounting Type : Floor Mounted Max Height : 2000 mm Capacity : Max Load 3000 kg Ltr Resolution : 0.01 kN Test Stroke : 0 1200 mm Control Mode : Microcomputer / Touch Screen Control Interface Type : RS232 / USB Port Hardness : Industrial Grade Response Time : <1s Seconds Measuring Range : 0 30 kN Kelvin (K) Accuracy : 1% FS % Test Range : 0 30 kN Machine Weight : Approx. 500 kg Kilograms (kg) Temperature : 10C 35C Celsius (oC) Number of Specimens : 1 Humidity : 35% 65% RH Frequency : 50 Hz Hertz (HZ) Display Type : Digital Display / LCD Touch Screen Port Size : Customizable Operating Voltage : 220V / 50Hz Volt (V) Gas Pressure : 0.6 MPa mpa

Send Inquiry

ardboard Carton Edge Crush Strength Tester Price : 800 USD ($) Minimum Order Quantity : 1 Automation Grade : Semi Automatic Usage : Edge Crush Test (ECT), Ring Crush Test (RCT), Flat Crush Test (FCT) Power Supply : AC 220V, 50Hz Features : Automatic force reset, peak value hold, realtime test data display Application : Measuring edgewise compressive strength of carton board and corrugated cardboard Test Width : 100 mm Specimen Size : 100 x 25 mm Test Speed : 12.5 mm/min Equipment Type : Edge Crush Tester Mounting Type : Floor Standing Max Height : 320 mm Capacity : 200 kg Resolution : 0.1 N Test Stroke : 70 mm Control Mode : Digital Microprocessor Interface Type : RS232 Hardness : HRC 5060 (fixtures) Response Time : 1 second Measuring Range : 0 1000 N Accuracy : 1% of reading Test Range : 03000N(030000N/M) Machine Weight : 68 kg Temperature : 10C 40C Number of Specimens : 1 at a time Humidity : 20% 85% RH Frequency : 50 Hz Display Type : Digital LED Display Port Size : Standard 16 mm pneumatic Operating Voltage : 220V AC Gas Pressure : 0.6 MPa Dimension (L*W*H) : 360mm 330mm 550mm Millimeter (mm)

Send Inquiry

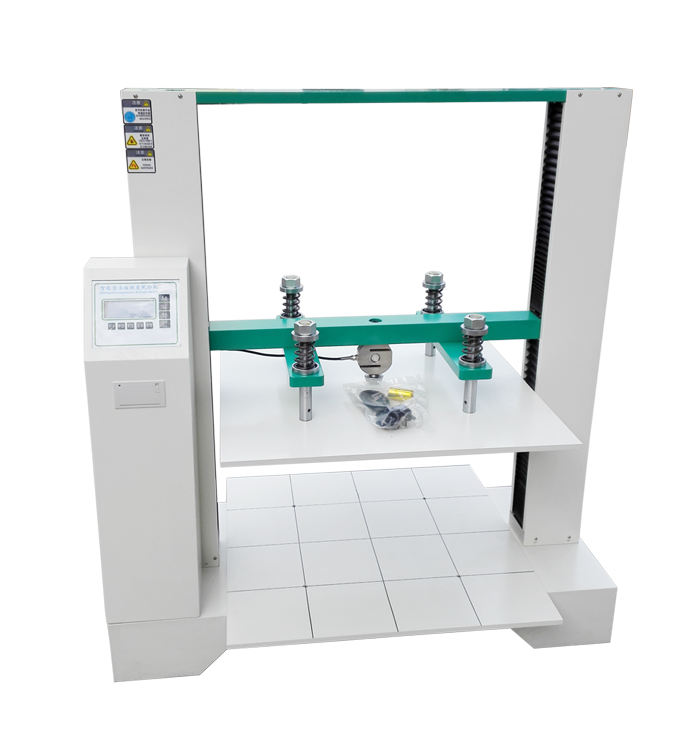

DH-CC-01 Intelligent Carton Box Compression Strength Test Machine Price : 1974.0 USD ($)/Set Minimum Order Quantity : 1 Automation Grade : Automatic Usage : Industrial, laboratory testing Power Supply : AC 220V 10%, 50/60Hz Features : Automatic peak hold, overload protection, programmable test modes Application : Carton, packaging box compression strength testing Test Width : 1000 mm Millimeter (mm) Specimen Size : Maximum 1000x1000x1000 mm (customizable) Millimeter (mm) Test Speed : 10300 mm/min adjustable Equipment Type : Compression Strength Test Machine Mounting Type : Floor standing Max Height : 1000 mm Capacity : 500kg Kg Resolution : 0.01 N Test Stroke : Up to 1000 mm Control Mode : Microcomputer control / Touch Screen Interface Type : RS232/USB (optional) Response Time : Realtime data output Seconds Measuring Range : Full scale automatic conversion Celsius (oC) Accuracy : 1% of reading % Test Range : 050 kN (05000 kgf) Machine Weight : Approx. 450 kg Kilograms (kg) Temperature : 10C ~ 35C Celsius (oC) Number of Specimens : Single specimen testing Humidity : 85% RH (no condensation) Frequency : 50/60 Hz Hertz (HZ) Display Type : Digital LCD/Touch panel Port Size : Standard electrical interface Operating Voltage : 220V AC Volt (V)
