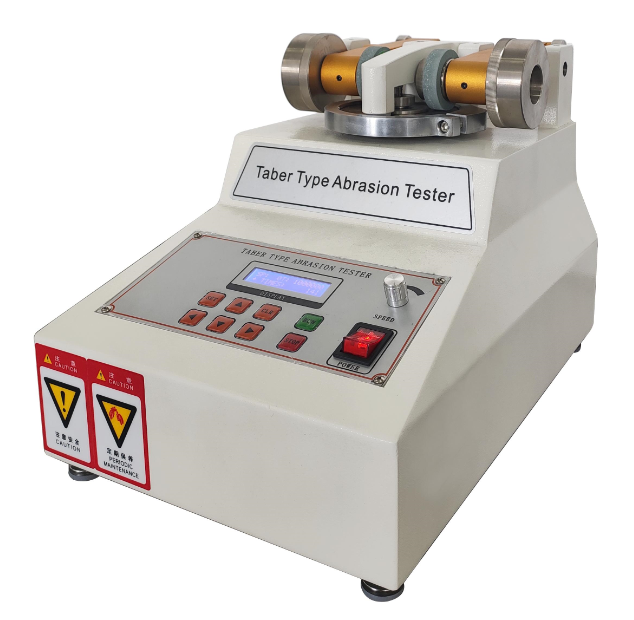

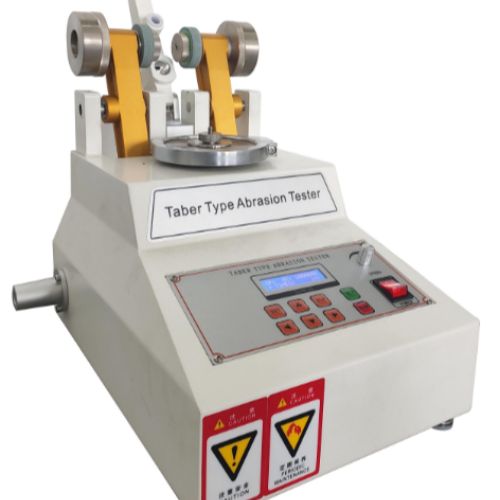

Taber Abrasion Tester for Material Testing

Taber Abrasion Tester for Material Testing

Name: Taber Abrasion Tester for Material Testing
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 1054.0 USD
Availability: InStock

1054.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Interface Type Keypad control & digital display
Equipment Type Taber Abrasion Tester
Operating Voltage 220V / 110V AC (customizable)
Specimen Size 100 mm diameter x 6.35 mm thickness (typical)
Frequency 50/60 Hz
Max Height Specimen: up to 6.35 mm thickness
Display Type Digital LCD display
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Taber Abrasion Tester for Material Testing Price And Quantity

Price 1054.0 USD ($)/Unit
Minimum Order Quantity 1 Unit

Taber Abrasion Tester for Material Testing Product Specifications

Application Material testing - evaluation of abrasion resistance of coatings, plastics, leather, textiles, flooring etc.
Resolution 1 cycle
Features Programmable counter, easy wheel replacement, transparent specimen cover, emergency stop, user-friendly operation panel
Mounting Type Bench-top
Humidity Ambient (optional environmental chamber for humidity control)
Test Speed 60 / 72 rpm (adjustable)
Response Time Immediate (cycle-by-cycle tracking)
Temperature Ambient (optional environmental chamber for temperature control)
Automation Grade Semi-automatic
Test Range 1-99999 cycles
Number of Specimens Single specimen at a time
Measuring Range 0-1000 cycles/minute
Hardness N/A (Dependent on test wheels)
Operating Voltage 220V / 110V AC (customizable)
Test Stroke 360 rotation (full circular stroke)
Machine Weight Approx. 28 kg
Capacity Supports weights from 250 g to 1000 g per abrasion wheel
Equipment Type Taber Abrasion Tester
Interface Type Keypad control & digital display
Control Mode Microprocessor based digital control panel
Accuracy 1% cycle count
Power Supply 220V AC, 50/60Hz
Port Size Standard specimen holder: 100 mm diameter
Test Width 100 mm (specimen disc diameter)
Usage For measuring the abrasion resistance of test samples
Display Type Digital LCD display
Max Height Specimen: up to 6.35 mm thickness
Frequency 50/60 Hz
Specimen Size 100 mm diameter x 6.35 mm thickness (typical)

Abrasion Wheels CS-10, H-18, H-22 and optional wheels available
Safety Mechanism Emergency stop button, overload protection
Noise Level < 65 dB
Stop Method Auto stop after preset cycle
Dimension 530 x 320 x 300 mm (LxWxH)
Weight Load Precision 1 g
Sample Clamping Manual clamping with quick fix mechanism

Product Description

Application:

This machine is applicable to measuring for leather,fabric,coating,paper,floor

tile,plywood,glass,natural rubber.,etc.By using the specified grinding wheel,and loading the weight on the specimen which cut by knife.setting up the rolling times.then taking out the specimen,observe the status of the specimen after doing abrasion.or calculate the different weight for the specimen before testing and after testing to get the abrasion indexer.which equals to the abrasion loss weight/rolling times X 1000 the specified model of grinding wheel.H18,H22, CS10,CS17,CS32,CS33.

It can be used for measuring Travel suitcases, carpets, cardboard, clothing, glass, plastic coatings, tiles, metal coatings, paints, varnishes, decorative sheets, high-pressure sheets, plastics, textiles, resilient floor mats, traffic paints, anodized layers, blankets, electronic components, Decorative panels, waxes, labels, holsters, dental materials, automotive interiors, resins, furniture, etc.

Standards:

DIN53754,53799,53109,52347,TAPPI T476, ASTM D3884,ASTM-D1044,ISO 54701ASTM D 1175ASTM-D 3389, ASTM D 4060,GB/T5478-2008,GB/T1768-2006

Specification:

1.Testing sheet:inner diameter(D)3mm

2.Abrasion wheel:2"(Max.45mm)(W)1/2"

3.Centre interval for abrasion wheel :63.5mm

4.Interval for abrasion wheel and testing sheet:3738mm

5.Rotating speed:60-72r/min(can be adjustable)

6.Load:250,500,750g

7.Counter:LED 0999,9999

8.Distance from testing sheet to suction inlet:3mm

9.Dimension:45 x 35 x 42cm

10.Weight:30kg

11.Power supply:AC 220V,10A

12.One pair of imported grinding wheel H-18;One set of cleaner

Versatile Testing Across Materials

This Taber Abrasion Tester accommodates diverse sample types, making it suitable for coatings, plastics, textiles, leather, and flooring. Its broad test capacity and wheel options ensure reliable evaluation for a variety of abrasion resistance standards, enabling manufacturers, suppliers, and quality controllers to comprehensively assess product durability.

User-Friendly Digital Control Panel

The machine's microprocessor-based digital control panel allows users to set detailed test parameters, including speed, cycles, and load. Immediate response and clear LCD display facilitate easy monitoring, while keypad controls ensure straightforward operation. Programmable counters and cycle tracking add convenience and precision.

Safety and Durability Features

With an integrated emergency stop button and overload protection, safety is prioritized for all users. The transparent specimen cover provides visibility while safeguarding against debris. Precision-weight loading and robust construction (28 kg bench-top design) ensure both operator safety and consistent repeatability in test results.

FAQ's of Taber Abrasion Tester for Material Testing:

Q: How does the Taber Abrasion Tester operate to measure abrasion resistance?

A: The Taber Abrasion Tester uses a rotating specimen disc and abrasion wheels (such as CS-10, H-18, or H-22). The sample is fixed using a quick-fix manual clamping system. As the disc rotates at adjustable speeds (60/72 rpm), the wheels exert a preset weight on the material. Users program test cycles (1-99,999), and the machine automatically stops after completion. Abrasion resistance is determined by evaluating changes in the specimen after testing.

Q: What materials can be tested using this equipment?

A: This tester is designed for a range of materials including coatings, plastics, leather, textiles, and flooring. It supports specimen sizes up to 100 mm diameter and 6.35 mm thickness, making it versatile for many industry needs.

Q: When should I use each type of abrasion wheel?

A: The choice of abrasion wheel depends on the specific material and test standard. CS-10 wheels are typically used for general coatings and plastics, while H-18 and H-22 cater to harder or more abrasive materials. Optional wheels allow further customization based on required test properties or industry specifications.

Q: Where should the Taber Abrasion Tester be installed for optimal use?

A: This bench-top machine should be installed on a stable, level surface in a laboratory or controlled industrial environment. Ambient conditions are standard, but optional environmental chambers can be added for controlled humidity and temperature testing if needed.

Q: What is the process for setting up a test run?

A: Begin by securely clamping the specimen using the manual quick-fix mechanism. Choose the appropriate abrasion wheels, set the desired weight (250-1000g), and configure test parameters (speed, number of cycles) on the digital control panel. Close the transparent specimen cover, start the test, and monitor progress via the LCD display. The machine will auto-stop after the preset cycles, and the specimen can then be examined for evaluation.

Q: How does the emergency stop and overload protection enhance safety?

A: The emergency stop button allows immediate shutdown of the machine in case of abnormalities or hazards, while overload protection prevents damage to the equipment by halting operations if excessive force or load is detected. These mechanisms help ensure operator safety and maintain the equipment's operational integrity.

Q: What are the main benefits of using the Taber Abrasion Tester?

A: Key benefits include precise and repeatable abrasion resistance measurements, user-friendly operation with digital controls, broad material compatibility, programmable test parameters, and robust safety mechanisms. These features help manufacturers and quality controllers ensure products meet relevant durability standards, supporting product development and quality assurance processes.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Abrasion Testing Machine' category

Fabric Martindale Abrasion Testing Machine Martindale Testing Equipment Price : 2999.00 INR/Set Minimum Order Quantity : 1 Features : Unit automatic stop, memory function, alarm indication Mounting Type : Table Top Application : Fabric abrasion and pilling test Usage : Laboratory testing instrument for fabric durability Power Supply : AC 220V 50Hz Number of Specimens : 4/6/8 heads (optional) Test Range : 1~999999 cycles Temperature : 15~40 C Celsius (oC) Automation Grade : Automatic Hardness : Standard compliant disc & weights Measuring Range : 1999999 cycles Kelvin (K) Resolution : 1 cycle Response Time : Immediate Seconds Humidity : 20%~80% RH Test Speed : 47.5 5 rpm Display Type : LCD touch screen Port Size : Standard Accuracy : 1 cycle % Test Width : 38 mm Millimeter (mm) Specimen Size : 38 mm, 140 mm Millimeter (mm) Max Height : 400 mm Frequency : 50 Hz Hertz (HZ) Operating Voltage : 220V AC Volt (V) Test Stroke : 60.5 0.5 mm Control Mode : Digital touch screen Interface Type : RS232 Capacity : Lab Scale Ltr Machine Weight : 95 kg Kilograms (kg) Equipment Type : Abrasion Testing Machine Gas Pressure : No external gas required mpa

Send Inquiry

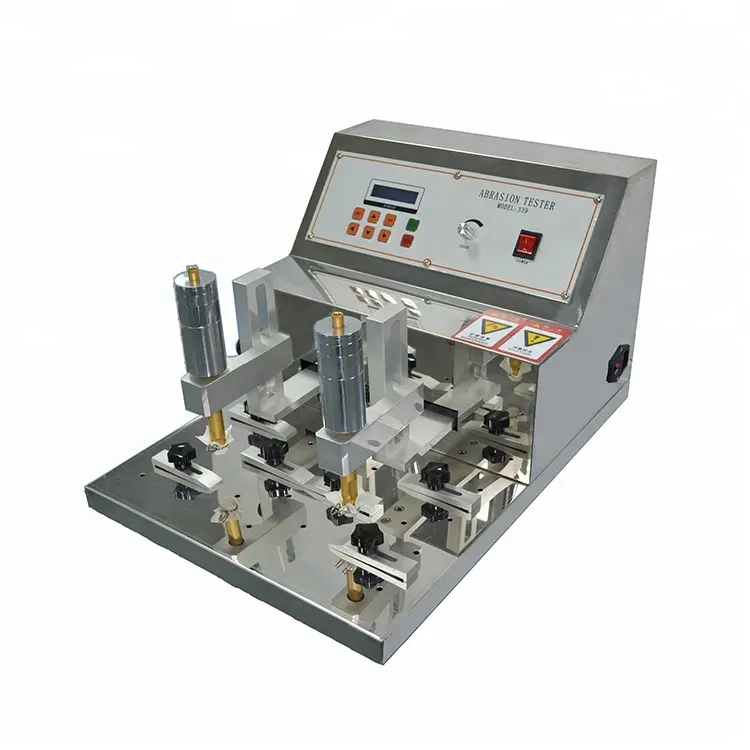

DH-339 Wear Resistance Testing Machine Price : 457.00 INR/Unit Minimum Order Quantity : 1 Features : High precision, durable, easy to operate, dual station Mounting Type : Benchtop Application : Textile, leather, coating and other material wear resistance testing Usage : Material laboratory, quality control Power Supply : AC 220V 50Hz Number of Specimens : 2 positions Test Range : Wear and abrasion resistance Temperature : 10C~40C (operating) Automation Grade : Semiautomatic Hardness : Test platform stainless steel, hardness >HRC45 Measuring Range : 0~999,999 cycles Resolution : 1 cycle Response Time : Immediate (digital control) Humidity : 5%~85% RH (operating) Test Speed : 5~60 cycles/min adjustable Display Type : Digital LED display Port Size : Standard specimen slot Accuracy : 1 cycle Test Width : 50 mm Specimen Size : 50 x 50 mm Max Height : Standard test arm clearance 80 mm Frequency : 50Hz Operating Voltage : 220V Test Stroke : 20~120 mm adjustable Control Mode : Digital control panel Interface Type : Button control panel Capacity : Standard dualstation Machine Weight : Approx. 35 kg Equipment Type : Wear Resistance Testing Machine Gas Pressure : No gas supply required

Send Inquiry

Ethanol Eraser Pencil Abrasion Tester Price : 1309.00 INR/Set Minimum Order Quantity : 1 Features : Programmable cycles, automatic stop, adjustable load, safety shield Mounting Type : Benchtop Application : Pencil abrasion resistance test for coatings, inks, and printed surfaces Usage : Coating, paint, and print abrasion tests Power Supply : AC 220V, 50/60 Hz Number of Specimens : 1 at a time Test Range : 1 99999 cycles Temperature : 15 C 35 C Celsius (oC) Automation Grade : Semiautomatic Hardness : Eraser shore hardness conform to standards Measuring Range : 0 99999 cycles Kelvin (K) Resolution : 1 cycle Response Time : <1 second Seconds Humidity : 20% 80% RH Test Speed : 43 cycles/min Display Type : LCD digital display Port Size : 6 mm air tube Accuracy : 1 cycle % Test Width : 5 mm 30 mm adjustable Millimeter (mm) Specimen Size : Max 120 mm 50 mm Millimeter (mm) Max Height : 350 mm Frequency : 50/60 Hz Hertz (HZ) Operating Voltage : 220V AC Volt (V) Test Stroke : 60 mm (standard), adjustable Control Mode : Digital microcontroller based Interface Type : Standard power input Capacity : Eraser load 500g Kg Machine Weight : Approx. 40 kg Kilograms (kg) Equipment Type : Ethanol Eraser Pencil Abrasion Tester Gas Pressure : 0.5 MPa 0.7 MPa mpa

Send Inquiry

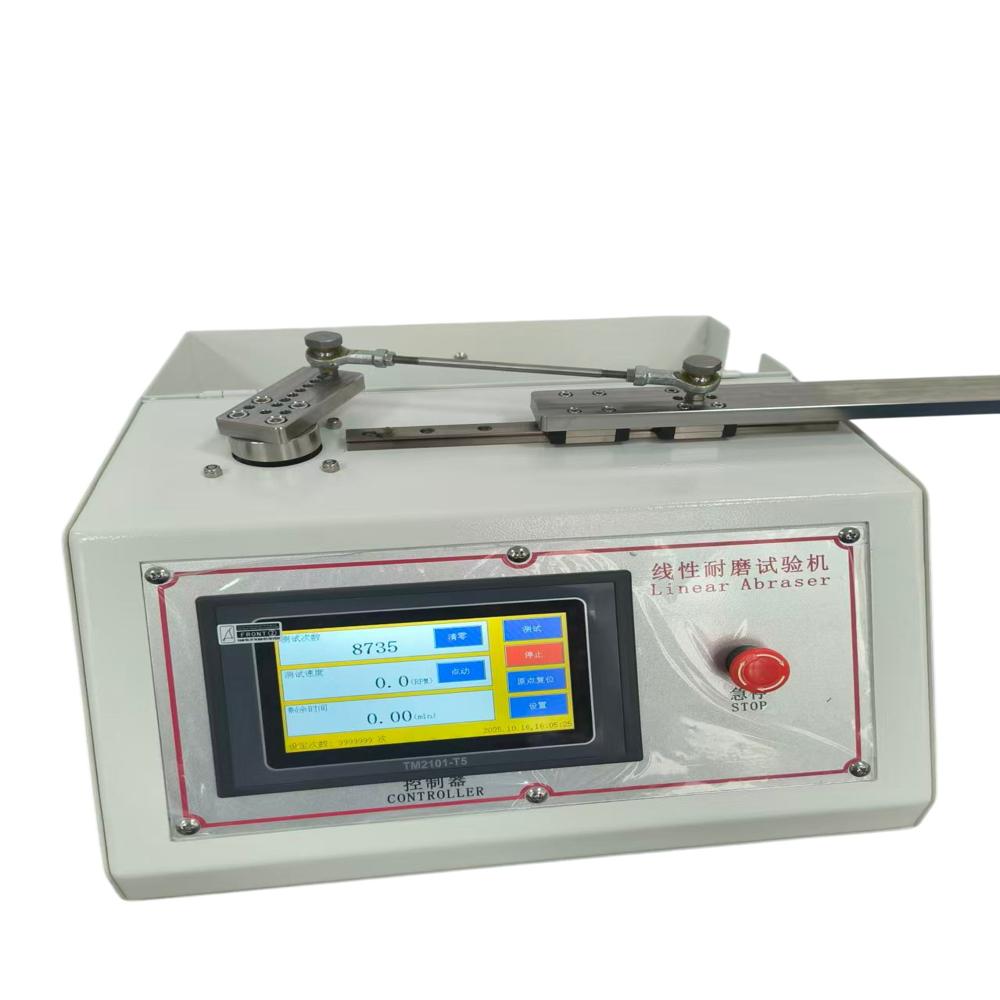

DH-TA-02 Taber Linear Abrasion Testing Machine Price : 1148.00 INR/Unit Minimum Order Quantity : 1 Features : Programmable stroke & speed, digital cycle display, emergency stop Mounting Type : Benchtop Application : Abrasion resistance testing of coatings, plastics, textiles, leather, rubber, etc. Usage : Linear abrasion/wear testing Power Supply : AC 220V, 50Hz Number of Specimens : 1 (per test run) Test Range : 0~99999 cycles Temperature : 10C~40C Automation Grade : Semiautomatic Hardness : Not directly applicable (test samples may vary) Measuring Range : 099999 cycles Resolution : 1 cycle Response Time : Instantaneous Humidity : 20%~80% RH Test Speed : 1~75 cycles/min adjustable Display Type : Touch screen digital display Port Size : Standard specimen clamp, customizable Accuracy : 1 cycle Test Width : 10~60 mm Specimen Size : Maximum 60 mm width, 300 mm length Max Height : Not specified (depends on arm clearance) Frequency : 50Hz Operating Voltage : 220V Test Stroke : 20~300 mm adjustable Control Mode : Touch screen controller Interface Type : Digital, touch interface Capacity : Varies by test arm weight attachment (typically 2501000g) Machine Weight : 32 kg Equipment Type : Taber Linear Abrasion Testing Machine Gas Pressure : 0.4~0.7 MPa (if applicable for pneumatic models)
