SY Series Spectrophotometer

Name: SY Series Spectrophotometer
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 908.0 USD
Availability: InStock

908.0 USD ($)/Piece

Get a Price/Quote

Product Details:

Humidity < 85% RH (no condensation)
Accuracy E*ab 0.04 (white ceramic reference)
Power Supply Rechargeable Lithium Battery, DC 5V Adapter
Interface Type USB, Bluetooth (optional)
Features Portable, high precision, large touch screen
Application Color measurement of plastics, paints, textiles, paper, food, etc.
Max Height 72mm
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

SY Series Spectrophotometer Price And Quantity

Minimum Order Quantity 1 Piece
Price 908.0 USD ($)/Piece

SY Series Spectrophotometer Product Specifications

Operating Voltage DC 5V
Specimen Size Minimum diameter 8mm
Usage Color Quality Control, Color Matching
Temperature 0-40C (Operating)
Automation Grade Automatic
Port Size USB Type-C
Test Range 400-700nm
Number of Specimens 1 at a time
Mounting Type Handheld / Desktop (with base)
Control Mode Touchscreen operation
Equipment Type Portable Spectrophotometer
Measuring Range Reflectance 0-200%
Display Type 4.3-inch TFT Touchscreen
Test Width 8mm aperture (standard), 4mm (optional)
Power Supply Rechargeable Lithium Battery, DC 5V Adapter
Accuracy E*ab 0.04 (white ceramic reference)
Humidity < 85% RH (no condensation)
Interface Type USB, Bluetooth (optional)
Machine Weight 550g
Application Color measurement of plastics, paints, textiles, paper, food, etc.
Test Speed 1.5s/measurement
Features Portable, high precision, large touch screen
Resolution 0.01
Response Time 1.5 seconds
Max Height 72mm

Color Space CIE LAB, LCh, Hunter LAB, CIE LUV, XYZ, WI, YI, etc.
Spectral Interval 10nm
Observer Angle 2/10
Data Storage Large internal memory, supports data export
Calibration Mode White/black calibration plate (included)
Illuminating Geometry 8/d
Battery Life >3000 measurements per charge
Standard Interface USB, optional Bluetooth
Photometric Value Reflectance (%)
Software Support PC software included
Light Source LED array
Repeatability Standard deviation within E*ab 0.03

Product Description

Product Features:

1. Full spectrum combined LED light source to ensure the data stability of each measurement

2. High precision beam splitting structure, accurate measurement of LAB value

3. 8/4mm diameter is available for selection to adapt to more tested samples;

4. Unique body design, lightweight and convenient to carry

5. Super dirt resistant and stable standard whiteboard; For your every measurement escort

Spectrophotometer Application

Spectrophotometer can be applicable in textile, printing and dyeing,

clothing, footwear, leather, chemicals, plastics, film, pigments, paints, inks, metal, photography, toys, food medicine and other liquid, powder and special industry for color quality control, color analysis, sample testing, production line testing, also suitable for injection molding, ink, paint, spray and other color industries.

Precision in Every Measurement

Harnessing advanced spectroscopy with a 10nm spectral interval, the SY Series Spectrophotometer offers exceptional measurement accuracy-ideal for ensuring color consistency and quality control. Its high repeatability and resolution down to 0.01 enable precise assessment for demanding workflows in various industries, making it a reliable partner in your color management process.

Seamless Operation and Data Management

With an intuitive 4.3-inch TFT touchscreen, large data storage, and powerful PC software support, managing results is effortless. Data can be exported via USB Type-C or optional Bluetooth, streamlining integration into existing workflows and facilitating in-depth analysis, record-keeping, and rapid reporting, crucial for manufacturers and quality assurance teams alike.

Versatile and Robust Design

Portable and lightweight at just 550g, the SY Series adapts to both handheld and desktop operations. It covers a broad range of applications-from color matching to quality control-across plastics, paint, textiles, and more. Durable calibration plates and long battery life enable field and lab use, ensuring reliable results every time.

FAQ's of SY Series Spectrophotometer:

Q: How does the SY Series Spectrophotometer achieve high accuracy in color measurement?

A: The SY Series utilizes a 10nm spectral interval with an advanced LED array light source, providing precise reflectance data (standard deviation within E*ab 0.03). Its calibration mode with white/black plates and high-resolution detection (0.01) enable consistently accurate readings, essential for color quality control.

Q: What is the recommended process for exporting color data from the device?

A: Exporting data is straightforward-simply connect the spectrophotometer to your PC via the provided USB Type-C interface or optional Bluetooth. The included PC software facilitates efficient data management, analysis, and reporting, ensuring seamless integration with your workflow.

Q: Where can I use the SY Series Spectrophotometer for color measurement?

A: This spectrophotometer is designed for use in a variety of environments, including laboratories, manufacturing floors, and on-site locations for color matching and quality control of plastics, paints, textiles, paper, food, and more. Its robust design supports both handheld and desktop use.

Q: What is the benefit of having multiple color space support in this model?

A: Supporting a range of color spaces-CIE LAB, LCh, Hunter LAB, CIE LUV, XYZ, WI, and YI-enables precise color evaluations tailored to industry-specific requirements. This flexibility ensures compatibility with diverse standards and enhances the instrument's utility across different applications.

Q: How long does the battery last, and what is the charger specification?

A: On a full charge, the rechargeable lithium battery provides more than 3000 measurements. Charging is via a DC 5V adapter using the USB Type-C interface for fast and convenient powering, supporting uninterrupted usage throughout busy workdays.

Q: When is it necessary to calibrate the SY Series Spectrophotometer?

A: Calibration is recommended before each set of measurements to maintain accuracy. Use the included white/black calibration plates to ensure reliable results, especially after moving the device or when environmental conditions change.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Optical Measuring Machine' category

High Precision Manual Video Measuring Machine DH-3020F Price : 3598.00 INR/Set Minimum Order Quantity : 1 Power Supply : AC 110~220V, 50/60Hz Usage : Quality inspection, dimensional measurement Features : High accuracy, manual control, video measuring system, LED illumination Control Mode : Manual operation (nonautomatic) Operating Voltage : 110~220V AC Volt (V) Automation Grade : Manual Application : 2D/3D dimensional measurement, PCB, electronics & precision parts Test Speed : Manual, usercontrolled Resolution : 0.001 mm (1 m) Response Time : Instantaneous, depends on manual operation Seconds Accuracy : (3+L/200) m % Humidity : 45%~75% RH, noncondensing Frequency : 50/60 Hz Hertz (HZ) Machine Weight : Approx. 160 kg Kilograms (kg) Interface Type : USB, RS232 Mounting Type : Benchtop Test Range : 300 mm (X) 200 mm (Y) Number of Specimens : Single specimen measurement Measuring Range : 300 x 200 x 200 mm (XYZ) Kelvin (K) Display Type : Digital display with video output Equipment Type : High Precision Manual Video Measuring Machine Specimen Size : Up to 300 200 mm on stage Millimeter (mm) Port Size : Standard USB/RS232 interface Temperature : 20 C 2 C (optimal for precision) Celsius (oC) Max Height : 200 mm (ZAxis) Test Width : 200 mm (XAxis) Millimeter (mm) Gas Pressure : N/A (manual type, no pneumatic requirements) mpa Capacity : N/A (measurement instrument) Kg Test Stroke : 300 mm (XAxis) x 200 mm (YAxis) x 200 mm (ZAxis)

Send Inquiry

High Precision Digital Measuring Profile Projector Price Optical Comparator Price : 3364.00 INR/Set Minimum Order Quantity : 1 Power Supply : AC 220V 10%, 50Hz Usage : Dimensional analysis, shape inspection, laboratory and industrial inspection Features : High accuracy, efficient measurement, ergonomic design Control Mode : Digital / Manual Operating Voltage : 220V/50Hz Volt (V) Automation Grade : SemiAutomatic Application : Profile measurement, dimension analysis, shape comparison Test Speed : 0100 mm/sec Resolution : 0.001 mm Response Time : Instantaneous Seconds Accuracy : 0.002 mm % Humidity : 85% RH Frequency : 50 Hz Hertz (HZ) Machine Weight : 120 kg Kilograms (kg) Interface Type : RS232, USB, VGA Mounting Type : Stand alone tabletop Test Range : 0300 mm Number of Specimens : Single or multiple Measuring Range : 0300 mm Kelvin (K) Display Type : Digital LCD/LED Equipment Type : Digital Measuring Profile Projector Specimen Size : Up to 150 mm diameter Millimeter (mm) Port Size : Standard (customizable) Temperature : 10 C to 40 C Kelvin (K) Max Height : 300 mm Test Width : 150 mm Millimeter (mm) Gas Pressure : 0.5 0.7 MPa mpa Capacity : High Precision Ltr Test Stroke : 100 mm

Send Inquiry

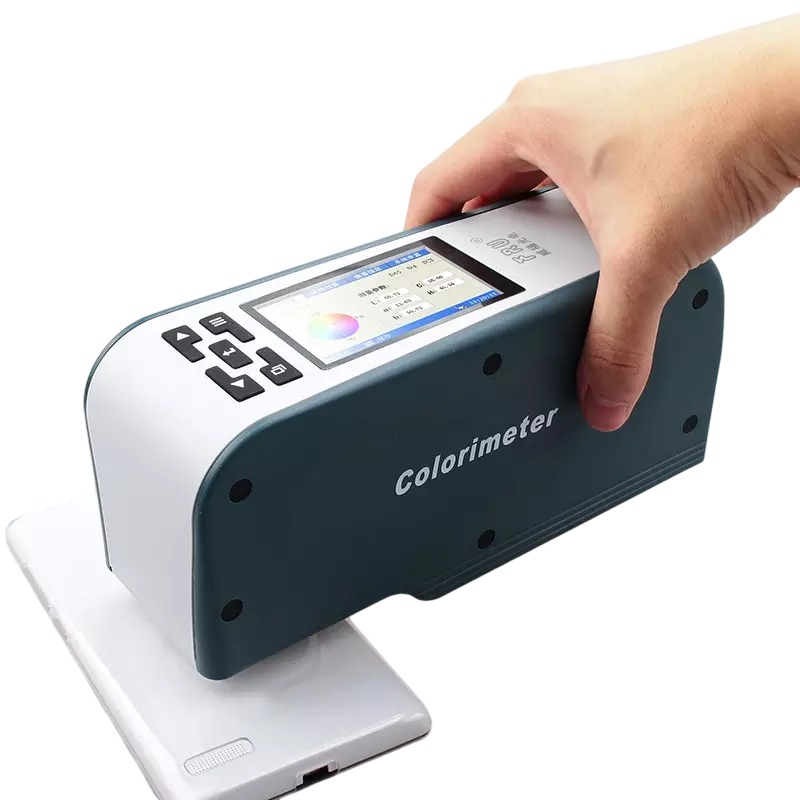

DH-WF30 Precision Colorimeter Price : 1169.00 USD ($)/Piece Minimum Order Quantity : 1 Power Supply : Rechargeable lithium battery, 7.4V/1.2Ah Usage : Color measurement & analysis Features : Portable, rechargeable, color LCD, easy operation, high precision Control Mode : Button Panel + Color LCD Display Operating Voltage : DC 5V (charging) Volt (V) Automation Grade : Semiautomatic Application : Color difference measurement in textiles, paint, plastics, food, printing etc. Test Speed : Approx. 1 sec/measurement Resolution : 0.01 units Response Time : 1 second Seconds Accuracy : E*ab 0.04 (test conditions: standard deviation on test white tile, 30 measurements, 5 s interval after calibration) % Humidity : Relative humidity <85% Machine Weight : 480 g Gram (g) Interface Type : USB Mounting Type : Handheld Test Range : E: 0100 Number of Specimens : Single or Multiple Measuring Range : L*: 0 to 100 Kelvin (K) Display Type : TFT Color LCD Equipment Type : Precision Colorimeter Specimen Size : Minimum 8 mm diameter Millimeter (mm) Port Size : 8 mm Temperature : 0C 40C (operation) Celsius (oC)
