Standard Packing List of Differential Scanning Calorimeter DH-DSC-300C

Name: Standard Packing List of Differential Scanning Calorimeter
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 5978.0 USD
Availability: InStock

5978.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Accuracy Temperature accuracy: 0.1C, thermal accuracy: 0.01mW %
Resolution Temperature: 0.01C, Energy: 0.001mW
Features Automatic gas switch, software analysis, data storage
Response Time Real-time measurement Seconds
Number of Specimens Single sample
Test Range -50C to 600C
Interface Type USB, RS232
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Standard Packing List of Differential Scanning Calorimeter DH-DSC-300C Price And Quantity

Price 5978.0 USD ($)/Unit
Minimum Order Quantity 1 Unit

Standard Packing List of Differential Scanning Calorimeter DH-DSC-300C Product Specifications

Power Supply AC220V22V 50Hz1Hz
Temperature Room temp. ~ 600C Celsius (oC)
Machine Weight 28 kg Kilograms (kg)
Port Size Gas inlet: 6mm
Display Type Touchscreen LCD display
Automation Grade Fully automatic
Operating Voltage 220V AC Volt (V)
Gas Pressure 0.2 MPa mpa
Test Range -50C to 600C
Equipment Type Differential Scanning Calorimeter (DSC)
Interface Type USB, RS232
Humidity 75%RH (non-condensing)
Frequency 50 Hz Hertz (HZ)
Resolution Temperature: 0.01C, Energy: 0.001mW
Accuracy Temperature accuracy: 0.1C, thermal accuracy: 0.01mW %
Features Automatic gas switch, software analysis, data storage
Response Time Real-time measurement Seconds
Number of Specimens Single sample
Capacity Sensor range: 600mW Ltr
Control Mode Microprocessor based control
Specimen Size Maximum capacity 1g Millimeter (mm)
Measuring Range 600mW Kelvin (K)
Application Material phase transition, melting/crystallization analysis, plastic and polymer characterization
Mounting Type Benchtop
Test Speed 0.1~80C/min
Usage Differential scanning calorimetry measurement for labs

Data Output Format Excel, PDF, graph export
Atmosphere Options Inert and oxidizing gases selectable
Software Compatibility Windows-based analysis software
Sample Pan Material Aluminum/Platinum optional
Cooling Method Optional liquid nitrogen or air cooling
Temperature Calibration Included digital calibration feature
Packaging Type Standard export wooden case
Safety Built-in over-temperature and leakage protection

Standard Packing List of Differential Scanning Calorimeter DH-DSC-300C Trade Information

Supply Ability 300 Unit Per Month
Delivery Time 3 Days

Product Description

Experience the pivotal performance of our hot-selling Differential Scanning Calorimeter (DSC), designed for superior precision in thermographic analysis. Equipped with dazzling digital calibration, this fully automatic benchtop instrument delivers real-time results displayed on a touchscreen LCD. Data can be exported in Excel, PDF, or graphical format for versatile reporting. Choose between aluminum or platinum sample pans and benefit from selectable cooling methods. Built-in over-temperature and leakage safeguards ensure laboratory safety. Grab yours or reserve today-secure the technology trusted by leading exporters, manufacturers, and researchers for exceptional plastic and polymer characterization.

Versatile Packing List & Commercial Applications

The standard packing list for the Differential Scanning Calorimeter makes it ideal for commercial research labs and industrial settings. With accessories including USB flash drives, aluminum crucibles, reference materials, and a constant temperature water bath, users achieve pivotal accuracy in phase transition, crystallization, and polymer analysis. Its benchtop design fits seamlessly into laboratory workflows, delivering dazzling performance in both research and quality control environments. Usage extends across educational, clinical, and material analysis sectors.

Supply, Export Markets & Delivery Excellence

Order processing is streamlined with prompt goods transport in our robust export wooden packaging. With consistent supply ability, the DSC is distributed to key export markets including academic, commercial, and manufacturing hubs. Customers benefit from reliable delivery lead times and careful product handling from supplier to end-user. Our efficient logistics network supports global exports, ensuring that every client receives their unit securely and on schedule.

Name	quantity
Instrument host	1 unit
USB flash drive	1 piece
data cable	2 pieces
power cord	1 piece
aluminum crucible	100 pieces
covered aluminum crucible	100 pieces
metal lid	3 pieces
raw tape	Volume 1
Reference materials: Indium, Tin	one bottle each
10A fuse	5 pieces
Sample spoon/sample pressure rod/tweezers	one each
ear bulb syringe	1 piece
trachea	3 pieces
constant temperature water bath	1 unit
water pipe	2 pieces (accompanied by 2 insulation tubes)
Instruction Manual	1 copy
warranty	1 copy
Certificate of Conformity	1 copy
float flow meter	1 piece
three-way adapter	1 piece
hex key	1 piece

FAQ's of Standard Packing List of Differential Scanning Calorimeter:

Q: How is the Differential Scanning Calorimeter shipped to international customers?

A: Each calorimeter is packed in a standard export-quality wooden case, ensuring safe transit for both domestic and international shipping. All accessories and manuals are included in the shipment.

Q: What commercial and laboratory applications can this DSC support?

A: This instrument is suitable for material phase transition studies, melting and crystallization analysis, as well as plastic and polymer characterization in quality control, R&D, and academic settings.

Q: How are calibration and temperature accuracy ensured with this DSC?

A: The calorimeter includes a digital calibration feature and comes with certified reference materials such as Indium and Tin, delivering temperature accuracy of 0.1C and thermal accuracy of 0.01mW.

Q: What special features enhance the usability of this DSC?

A: Key features include fully automatic operation, a touchscreen LCD display, real-time measurement, automatic gas switching, and compatibility with Windows-based analysis software for smooth data output and storage.

Q: When can customers expect the delivery of their order after placing a reservation?

A: Orders are processed efficiently, and dispatch time depends on destination and export market, but delivery is prioritized to ensure clients receive their equipment quickly, typically within the standard industrial delivery periods.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Plastic and Rubber Testing Equipment' category

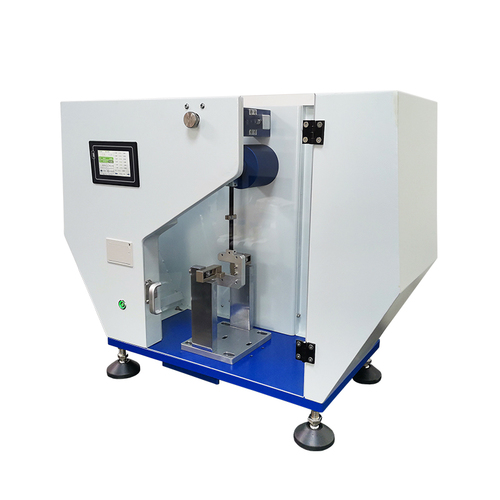

Digital Charpy Pendulum Impact Testing Machine HT-1043-50D Price : 1142.00 INR/Set Minimum Order Quantity : 1 Display Type : Digital LCD Display Max Height : Approx. 1500 mm (with raised pendulum) Automation Grade : SemiAutomatic Port Size : Standard Specimen Slot Operating Voltage : 110V230 V AC Volt (V) Power Supply : 230 V AC, 50 Hz Temperature : Room Temperature (10C to 35C) Celsius (oC) Machine Weight : Approx. 20 kg Kilograms (kg) Specimen Size : 55 x 10 x 10 mm Millimeter (mm) Control Mode : Digital / Automatic Capacity : 300 J (Charpy) Pcs/hr Measuring Range : 0300 Joules Kelvin (K) Application : Industrial Test Speed : 5.2 m/s (Charpy) Usage : Industrial Laboratory Testing Mounting Type : Floor Mount Equipment Type : Digital Pendulum Impact Testing Machine Interface Type : Digital Data Output (Optional USB/RS232) Test Range : 0300 Joules (Charpy) Frequency : 50 Hz or 60 Hz Hertz (HZ) Humidity : 85% RH (Operating Condition) Features : Digital Readout, Automatic Braking, Safety Guard, Heavy base Accuracy : 0.5% of Reading % Resolution : 0.01 Joule Test Stroke : Not Applicable (Pendulum impact test) Number of Specimens : Single Specimen per Test Response Time : Instantaneous Seconds Test Width : 10 mm (Specimen width) Millimeter (mm) Hardness : Specimen Dependent

Send Inquiry

DH-RH-01 Rubber No Rotor Rheometer for Vulcanization Testing Price : 4999.00 USD ($)/Unit Minimum Order Quantity : 1 Display Type : Digital LCD/LED touch interface Max Height : Approx. 1100 mm Automation Grade : Fully Automatic Port Size : Standard gas/air inlet ports Operating Voltage : 220V AC Volt (V) Power Supply : AC 220V, 50Hz Temperature : Room temperature to 200C Celsius (oC) Machine Weight : Approx. 75 kg Kilograms (kg) Specimen Size : Diameter 20 mm 6 mm Millimeter (mm) Control Mode : Microprocessorbased digital control Capacity : Single test chamber Ltr Measuring Range : 0 25 Nm (torque) Kelvin (K) Application : Vulcanization testing of rubber compounds Test Speed : Standard, user programmable Usage : Laboratory, research, quality control Mounting Type : Floor standing, caster wheels for mobility Equipment Type : Rubber No Rotor Rheometer Interface Type : USB/RS232 (optional) Test Range : 025 Nm Frequency : 50 Hz Hertz (HZ) Humidity : 80% RH (noncondensing) Features : No rotor design, precise digital control, realtime data acquisition Accuracy : 0.1C (temperature), 0.02 Nm (torque) % Resolution : 0.01 Nm (torque), 0.1C (temperature) Test Stroke : Custom programmable based on test Number of Specimens : Single specimen per test cycle Response Time : 1 second Seconds Test Width : Standard test chamber Millimeter (mm) Gas Pressure : 0.5 0.8 MPa mpa Hardness : Configurable per standard requirements

Send Inquiry

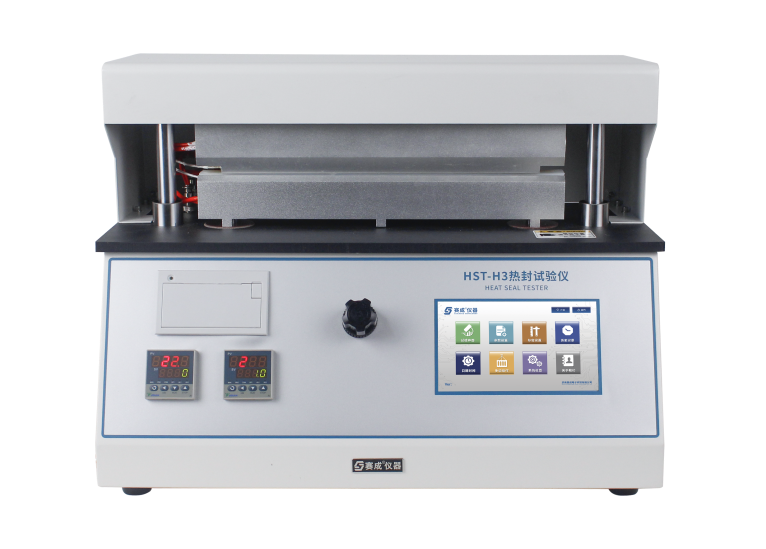

Heat Seal Tester for Packaging Film Testing Price : 3772.0 USD ($)/Piece Minimum Order Quantity : 1 Display Type : Color touchscreen display Max Height : 150 mm (specimen fit) Automation Grade : Semiautomatic Port Size : 6 mm gas port for air supply Operating Voltage : 220V AC Power Supply : AC 220V, 50Hz Temperature : Room temperature to 300C Machine Weight : ~40 kg Specimen Size : Sample length 200 mm, width 15100 mm Control Mode : Touchscreen PLC (Programmable Logic Control) Capacity : Designed for continuous test cycles Measuring Range : Pressure: 00.7 MPa, Temperature: RT~300C Application : Packaging film, laminated films, coated paper, aluminum foil heat sealing property test Test Speed : Adjustable, typically 0~250 mm/s Usage : Packaging material seal tests Mounting Type : Benchtop Equipment Type : Heat Seal Tester Interface Type : USB, RS232 Test Range : 0.15 kN 0.7 kN (adjustable sealing pressure) Frequency : 50Hz Humidity : 80% RH (noncondensing) Features : Programmable touch screen, fast heating, precise control, safety protection, automatic timer Accuracy : 1% of set value Resolution : 0.1C temperature, 0.01 MPa pressure Test Stroke : Max 200 mm Number of Specimens : 1 (per run) Response Time : 1s (temperature/pressure) Test Width : Sealing width 10 mm or customizable Gas Pressure : 0.5~0.7 MPa (compressed air required)
