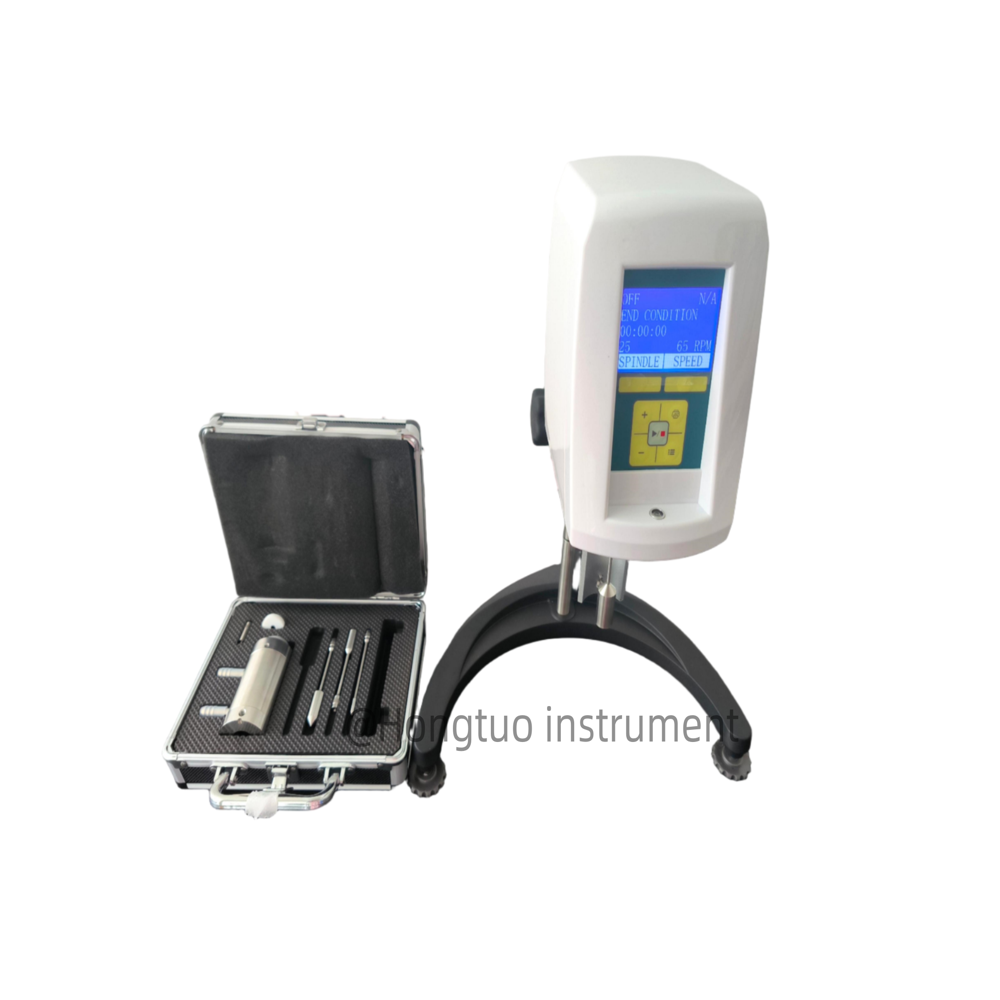

SSR series digital rotary viscometer

Name: SSR series digital rotary viscometer
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 923.0 USD
Availability: InStock

923.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Operating Voltage 220V AC Volt (V)
Automation Grade Automatic
Power 110V / 60Hz or 220V / 50Hz Volt (v)
Voltage 110V or 220V Volt (v)
Specimen Size ULR: 21ml 21,27,28,29 rotor: 8 - 13ml Meter (m)
Accuracy 1% (Newtonian liquid) %
Interface Type RS232/USB (optional)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

SSR series digital rotary viscometer Price And Quantity

Price 923.0 USD ($)/Unit
Minimum Order Quantity 1 Unit

SSR series digital rotary viscometer Product Specifications

Usage medium viscosity fluid, and the main measured samples are: Paint, asphalt (SHRP), paper coating, ceramics, pulp, frost, like objects, plastic sols, daily chemicals, starch, food products, surface coatings, resin, gum, toothpaste, silk mark ink, bright agent, organic solvents

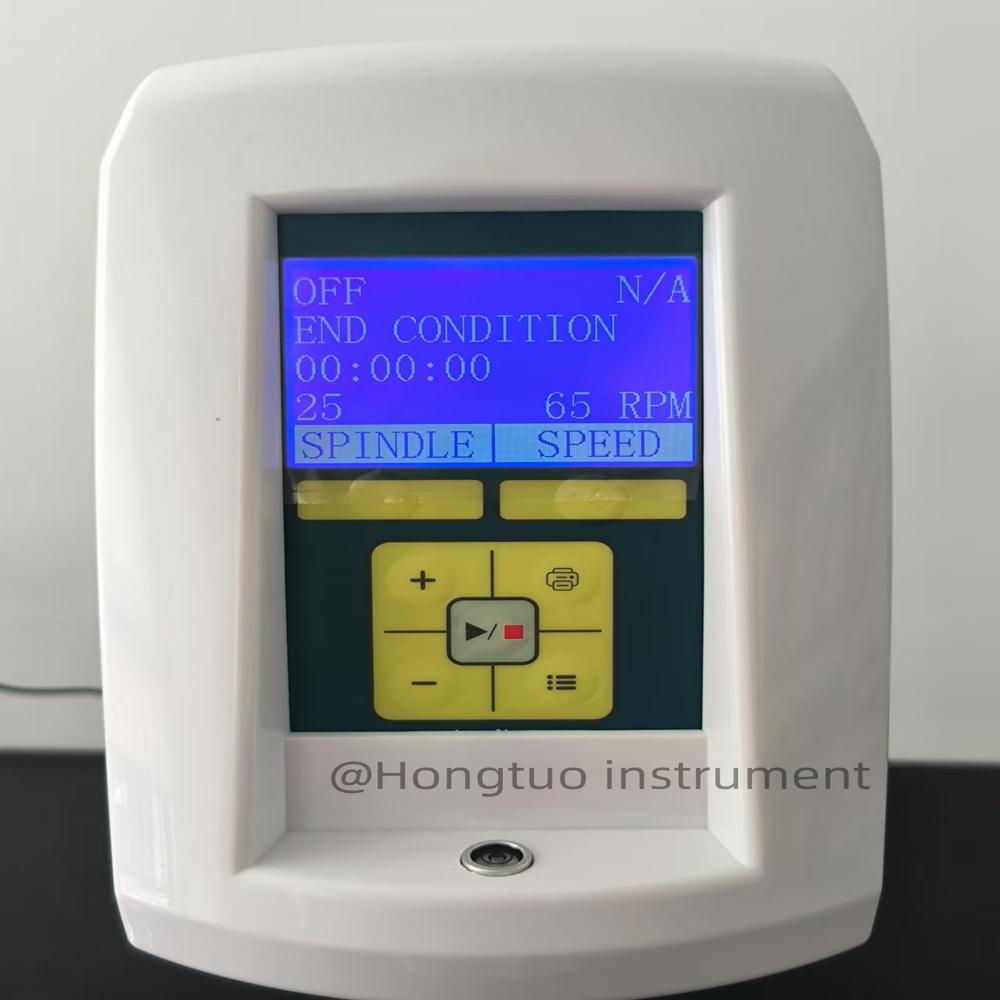

Display Type Digital LCD display
Equipment Type Digital Rotary Viscometer
Machine Weight / Kilograms (kg)
Control Mode Digital microprocessor controlled
Response Time / Hours
Application Measurement of fluid viscosity in labs or process control
Humidity 80% RH
Resolution 0.01 mPas
Mounting Type Benchtop
Test Range 1 - 1.6M ULR: 1 - 1K 18 rotor 3 - 10K 25 rotor 480 - 1.6M 31 rotor 30 - 100K 34 rotor 60 - 200K
Number of Specimens Single
Max Height 450 mm
Power 110V / 60Hz or 220V / 50Hz Volt (v)
Automation Grade Automatic
Operating Voltage 220V AC Volt (V)
Power Supply Wide voltage operation (110V / 60Hz or 220V / 50Hz)
Features Quick spindle change, real-time display, touch keypad
Dimension (L*W*H) 300 300 450 (mm) Millimeter (mm)
Frequency 50 Hz Hertz (HZ)
Temperature -5 to 100 Celsius (oC)
Specimen Size ULR: 21ml 21,27,28,29 rotor: 8 - 13ml Meter (m)
Accuracy 1% (Newtonian liquid) %
Voltage 110V or 220V Volt (v)
Interface Type RS232/USB (optional)
Measuring Range / Rankine

Overload Protection Available
Protective Cover Available for main unit
Data Output Support for data printing and PC connectivity
Motor Type Step motor, stable rotation
Input Method Keypad and touch controls
Packing Dimensions 580 x 370 x 530 mm
Ambient Temperature Compensation Yes
Spindle Set 4 standard spindles (No. 1-4)
Memory Function Save recent test results
Calibration Method Automatic calibration and user calibration supported

Product Description

characteristic

1. Timing measurement function

2. Coaxial cylinder structure

3. Using a spindle rotor, the sample size required for testing is very small

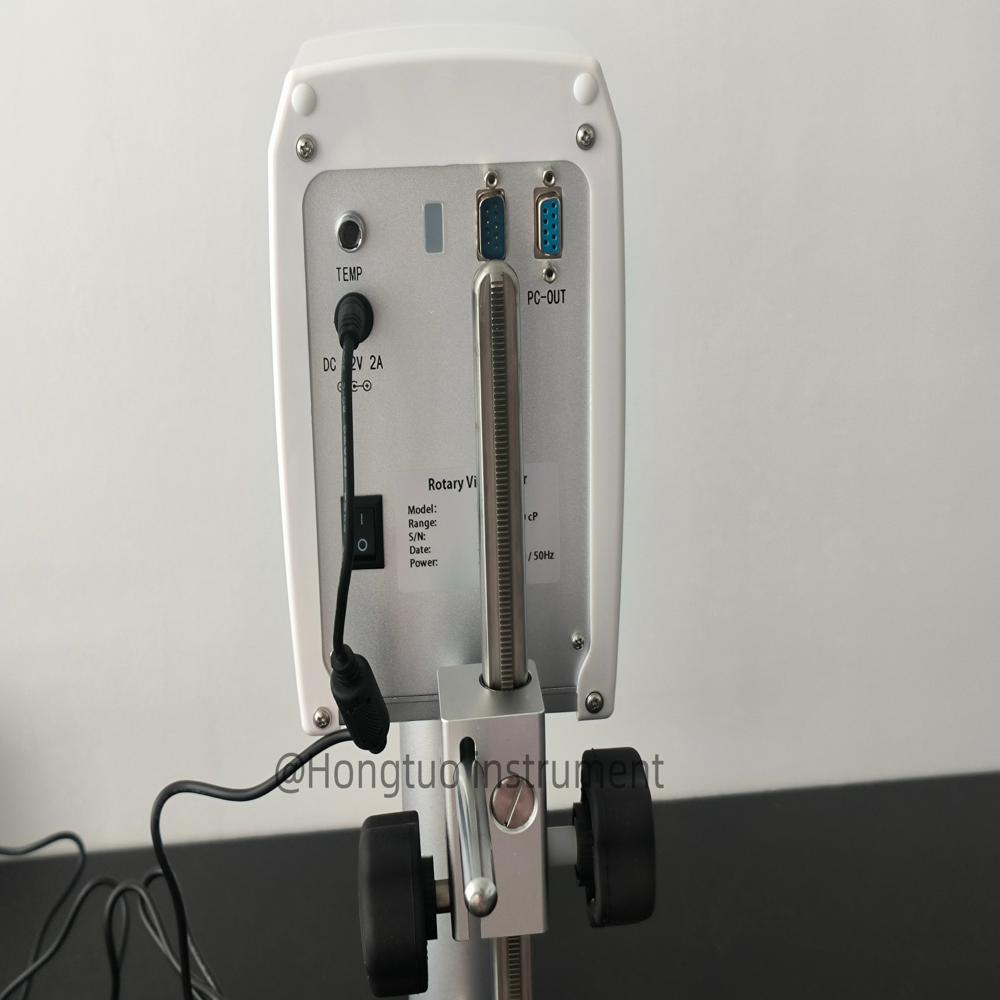

4. Two RS232 interfaces with direct connection to micro printer and computer

1.Detailed technical parameters of DH- LV-SSR rotary viscometer:

Model	DH-LV-SSR
Display mode	digital display
Speed(r/min)	0.3/0.6/1.5/3/6/10/12/15/20/25/30/40/50/60/70/80/90/100 Total 18
Rotor	18#25#31#34# standard configuration
Measuring range	3-1.6M (mPas)
Sample size	18# rotor3 10K 7ml 25# rotor480 1.6M 9ml 31# rotor30 100K 10.5ml 34# rotor60 200K 11ml
Measurement error	3% (Newtonian liquid)
Repetitive error	1.5% (Newtonian liquid)
Output interface	Two RS232 interfaces to connect printer and computer
Temperature Probe Interface	standard configuration
Outline dimension	300 300 450(mm)

Advanced Viscosity Measurement

The SSR Series Digital Rotary Viscometer offers accurate viscosity analysis across a wide test range, accommodating both low and medium-viscosity fluids. Its high-resolution digital LCD and quick spindle change design make it user-friendly for frequent testing in laboratories and industrial settings.

User-Friendly Operation and Data Handling

Featuring both keypad and touch controls, the viscometer ensures intuitive and flexible operation. Users can easily connect the device to a PC or printer for seamless data output and archiving, facilitating efficient reporting and data traceability.

Reliable Performance and Safety

This viscometer leverages a step motor for stable spindle rotation, automatic calibration options, and overload protection. The included protective cover safeguards the main unit, contributing to long-lasting performance and safe usage in demanding environments.

FAQ's of SSR series digital rotary viscometer:

Q: How does the SSR Series Digital Rotary Viscometer ensure accurate viscosity measurements?

A: The viscometer incorporates both automatic and user-supported calibration, ambient temperature compensation, and high-precision digital sensors. These features help minimize errors and provide consistent, reliable readings, especially for Newtonian liquids at an accuracy of 1%.

Q: What types of samples can be tested with this viscometer?

A: The device is suitable for a variety of fluid types, including paints, asphalt, ceramics, pulp, daily chemicals, food products, surface coatings, resins, inks, toothpaste, and organic solvents. Specific spindles and containers are matched to sample viscosity and volume requirements.

Q: Where can the SSR viscometer be installed and used?

A: Designed for benchtop use, the viscometer is well-suited for laboratories, quality control rooms, research institutions, and manufacturing facilities where fluid viscosity measurement is required.

Q: What is the process for calibrating the SSR Series Viscometer?

A: Calibration can be performed automatically through the device's integrated software, or manually by the user if specific adjustments are needed. This dual method ensures ongoing accuracy during routine checks or after device relocation.

Q: How do users export and manage data from the viscometer?

A: Data export is supported via optional RS232/USB connections to a PC or compatible printer. All test results are also stored in the device's memory, enabling users to review previous measurements and generate official reports as needed.

Q: What is the benefit of having both keypad and touch controls?

A: The dual input methods provide operational flexibility, accommodating users' different preferences and ensuring quick, precise command entry during testing procedures.
