Sponge Foam Indentation Hardness Testing Machine

Sponge Foam Indentation Hardness Testing Machine

Name: Sponge Foam Indentation Hardness Testing Machine
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 4999.0 USD
Availability: InStock

4999.0 USD ($)/Piece

Get a Price/Quote

Product Details:

Equipment Type Indentation Hardness Tester
Operating Voltage 220V AC
Display Type Digital LCD touchscreen
Automation Grade Automatic
Accuracy 0.5% FS
Application Sponge and foam hardness testing
Test Range 0 - 1000 N
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Sponge Foam Indentation Hardness Testing Machine Price And Quantity

Price 4999.0 USD ($)/Piece
Minimum Order Quantity 1 Piece

Sponge Foam Indentation Hardness Testing Machine Product Specifications

Test Stroke 200 mm
Power Supply AC 220V, 50Hz
Specimen Size 380 mm 380 mm 50 mm
Features Automatic data processing, Print facility, User friendly interface
Usage Indentation hardness testing
Temperature 10C - 35C
Test Width 500 mm
Capacity 1000 N
Humidity 20% RH - 80% RH
Max Height 1200 mm
Control Mode Touch screen PLC control
Test Speed 100 mm/min
Mounting Type Floor standing, Caster wheels
Frequency 50 Hz
Resolution 0.01 N
Measuring Range 0 - 1000 N
Accuracy 0.5% FS
Test Range 0 - 1000 N
Application Sponge and foam hardness testing
Interface Type USB/RS232
Port Size Standard sample port
Number of Specimens 1 per test
Hardness Indentation measurement
Response Time <1 s
Equipment Type Indentation Hardness Tester
Machine Weight Approx. 120 kg
Operating Voltage 220V AC
Automation Grade Automatic
Display Type Digital LCD touchscreen

Mobility Lockable wheels for transport
Touch Screen 7-inch color touch operation
Safety Protection Emergency stop switch
Data Storage Internal storage, USB export
Printer Integrated thermal printer
Frame Material Powder-coated steel
Compliance Meets ISO 2439, ASTM D3574 standards
Calibration Method Automatic electronic calibration

Product Description

Application:

Used for measuring the air permeability of soft foam polymer materials, sponge materials, etc.

Testing Standards:

ISO 7231

Features:

1. Touch screen control, English menus, human-computer dialogue mode, easy to operate.

2. Built-in thermal printer, convenient for quick printing of test results on site.

3. Professional computer analysis software can realize two-way operation with the computer, and can perform report statistics, data analysis, etc.

4. Adopt high-precision differential pressure sensor, high test accuracy and good repeatability.

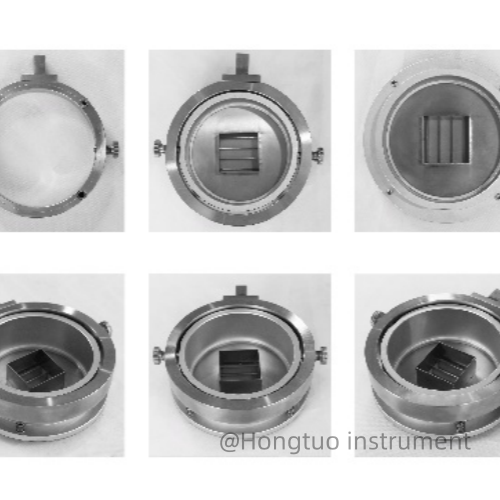

5. The nozzle can be replaced according to the measurement range prompt of each nozzle, and the sample can be automatically fixed, with higher accuracy and efficiency.

6. The test parameters are directly set digitally, and the parameter unit can be set as needed.

7. The flow cylinder is welded with seamless steel pipes, which is durable and has door cover and door lock devices. While ensuring the convenience of replacing nozzles, it also ensures good air tightness.

8. The sample fixing device is controlled by the cylinder, automatically clamps the sample, and ensures the tightness of the sample fixture.

Technical Parameters:

1. Test pressure: 14000Pa (nozzle), 11000Pa (sample), 14000Pa (sample) can be customized

2. Measurable air permeability: 19999mm/s

3. Measurement error: 2%

4. Measurable fabric thickness: 12mm

5. Air suction volume adjustment: dynamic adjustment by data feedback

6. Test area fixture: 25cm2

7.Data processing capacity: 2030 tests

8. Printer: Thermal micro printer

9. Data port: RS232 (host computer communication)

10. Dimensions: 10806701080mm

11. Weight: 100kg

12. Power supply: AC220V 50Hz 1200W

Advanced Touchscreen Operation

Equipped with a vibrant 7-inch color LCD touchscreen, the machine streamlines all functions through an intuitive and user-friendly PLC control interface. Operators can easily configure parameters, initiate tests, and view real-time results, making it ideal for both routine and specialized hardness testing of sponge and foam materials.

Precision and Compliance

This indentation hardness testing machine meets international standards ISO 2439 and ASTM D3574, ensuring reliable, standardized results. Its automatic electronic calibration and high accuracy enable trusted data for quality assurance and product development. With a measuring range of 0-1000 N and a rapid response time of less than 1 second, it's tailored for demanding environments.

Robust Design and Mobility

Constructed with a durable powder-coated steel frame, the machine is both stable and mobile thanks to its lockable caster wheels. At approximately 120 kg, it is robust yet easy to move, making it suitable for various laboratory and industrial setups. Its safety features include an emergency stop switch for optimal operator security.

FAQ's of Sponge Foam Indentation Hardness Testing Machine:

Q: How does the touch screen interface simplify the operation of the indentation hardness tester?

A: The 7-inch color touchscreen provides an intuitive and centralized control panel, allowing users to easily adjust test parameters, run tests, and monitor data in real time. This reduces operator error and simplifies test setup and operation.

Q: What calibration method is used for the Sponge Foam Indentation Hardness Testing Machine?

A: The machine utilizes automatic electronic calibration, ensuring precise and reliable measurements without manual intervention. This helps maintain consistent performance and reduces downtime.

Q: When should I use the emergency stop switch?

A: The emergency stop switch should be used immediately if any unsafe condition arises during operation or maintenance. This safety protection feature ensures rapid halting of all machine functions to protect users and specimens.

Q: Where can the hardness tester be installed and used?

A: Designed as a floor-standing unit with lockable wheels, the tester is suitable for laboratories, quality control departments, and manufacturing facilities where foam and sponge hardness testing is required.

Q: What process does the machine follow to measure indentation hardness?

A: The machine automatically applies a controlled force to a foam or sponge specimen using its precise actuator. It then records the resulting indentation, processes the data internally, and displays the results digitally, with the option to print or export the data.

Q: How is test data managed and exported from the machine?

A: Test results are stored internally and can be easily exported via USB, or instantly printed using the integrated thermal printer. This facilitates straightforward record keeping and data analysis.

Q: What are the main benefits of using this indentation hardness tester over manual models?

A: It offers precise, repeatable measurements, user-friendly touchscreen control, automated data processing, and compliance with international standards. These features increase testing efficiency, reliability, and convenience for quality assurance tasks.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Sponge, Leather, Fabric Testing Equipment' category

Digital Electronic Yarn Length Tester Price : 754.00 INR/Set Minimum Order Quantity : 1 Power Supply : 220V AC, 50 Hz Usage : Textile manufacturing/laboratory Features : Electronic calibration, automatic stop, memory retention Automation Grade : Automatic Humidity : 45% 85% RH Max Height : 400 mm Test Width : 300 mm Millimeter (mm) Capacity : Multiple yarn types Kg Gas Pressure : 5 6 kg/cm mpa Control Mode : Digital Electronic Control Test Speed : 30 m/min 300 m/min Specimen Size : Minimum Length 10 m Meter (m) Test Stroke : Up to 1000 mm Temperature : 15 C 35 C Celsius (oC) Response Time : Instantaneous Seconds Port Size : 6 mm Pneumatic Hardness : Durable metal body Number of Specimens : Up to 5 Test Range : Up to 99999 meters Application : Measuring length of yarn for textile and research purposes Interface Type : Standard digital interface Accuracy : 0.2% of reading % Display Type : Digital LCD display Operating Voltage : 220 V AC Volt (V) Machine Weight : Approx. 25 kg Kilograms (kg) Mounting Type : Benchtop Measuring Range : 10 m to 99999 m Kelvin (K) Resolution : 0.1 m Frequency : 50 Hz Hertz (HZ) Equipment Type : Yarn Length Tester

Send Inquiry

YG086C Yarn Linear Density Tester Price : 857.00 USD ($)/Set Minimum Order Quantity : 1 Power Supply : AC 220V 10%, 50Hz Usage : Yarn fineness analysis Features : Automatic clamp, automatic calculation, direct display Automation Grade : Automatic Humidity : 20% 85% RH Max Height : 350 mm Test Width : 160 mm Capacity : Single station Gas Pressure : 0.40.6 MPa Control Mode : Microcomputer automatic control Test Speed : Adjustable (20100 mm/min) Specimen Size : Suitable for various yarn types Test Stroke : 250 mm Temperature : 10C 40C Response Time : <2 seconds Port Size : 6 mm Number of Specimens : 1 specimen per test Test Range : 0.1 400 tex Application : Textile yarn linear density measurement Interface Type : RS232 Accuracy : 1% Display Type : LCD digital display Operating Voltage : 220V Machine Weight : 38 kg Mounting Type : Benchtop Measuring Range : 0.1400 tex Resolution : 0.01 tex Frequency : 50 Hz Equipment Type : Yarn Linear Density Tester

Send Inquiry

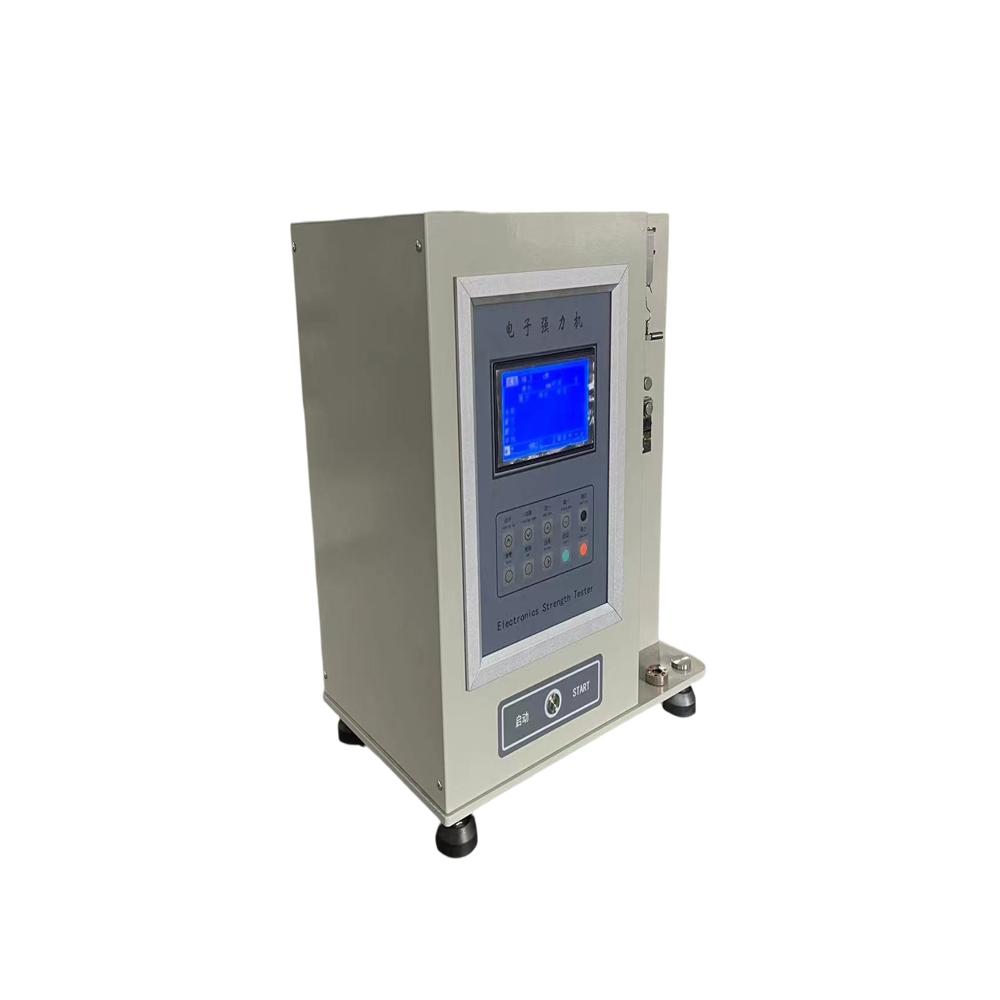

YG001D Electronic Single Fiber Strength Machine (Manual Clamping) Price : 1386.00 USD ($)/Piece Minimum Order Quantity : 1 Power Supply : AC 220V 10%, 50Hz Usage : Laboratory test for textile fibers Features : Manual clamping, highprecision measurement, adjustable speed, realtime digital display Automation Grade : Semiautomatic (manual clamping) Humidity : 20%80% RH (operating range) Max Height : 420 mm Test Width : Customizable for single fiber Capacity : Selectable 1000cN, 3000cN, or 5000cN (customized) Gas Pressure : Not required for manual clamping Control Mode : Electronic control with manual clamping Test Speed : 1~500 mm/min (adjustable) Specimen Size : Standard fiber length per ISO/ASTM Test Stroke : Maximum 100 mm Temperature : 10C 35C (operating range) Response Time : <1 second Port Size : Standard port for single fiber grip Number of Specimens : 1 (single fiber testing) Test Range : 05000 cN Application : Determining breaking strength and elongation of single textile fibers Interface Type : RS232 data output Accuracy : 0.5% of reading Display Type : LCD digital display Operating Voltage : 220V/50Hz Machine Weight : 50 kg Mounting Type : Benchtop Measuring Range : 0.01 cN 5000 cN Resolution : 0.01 cN Frequency : 50Hz Equipment Type : Electronic Single Fiber Strength Tester
