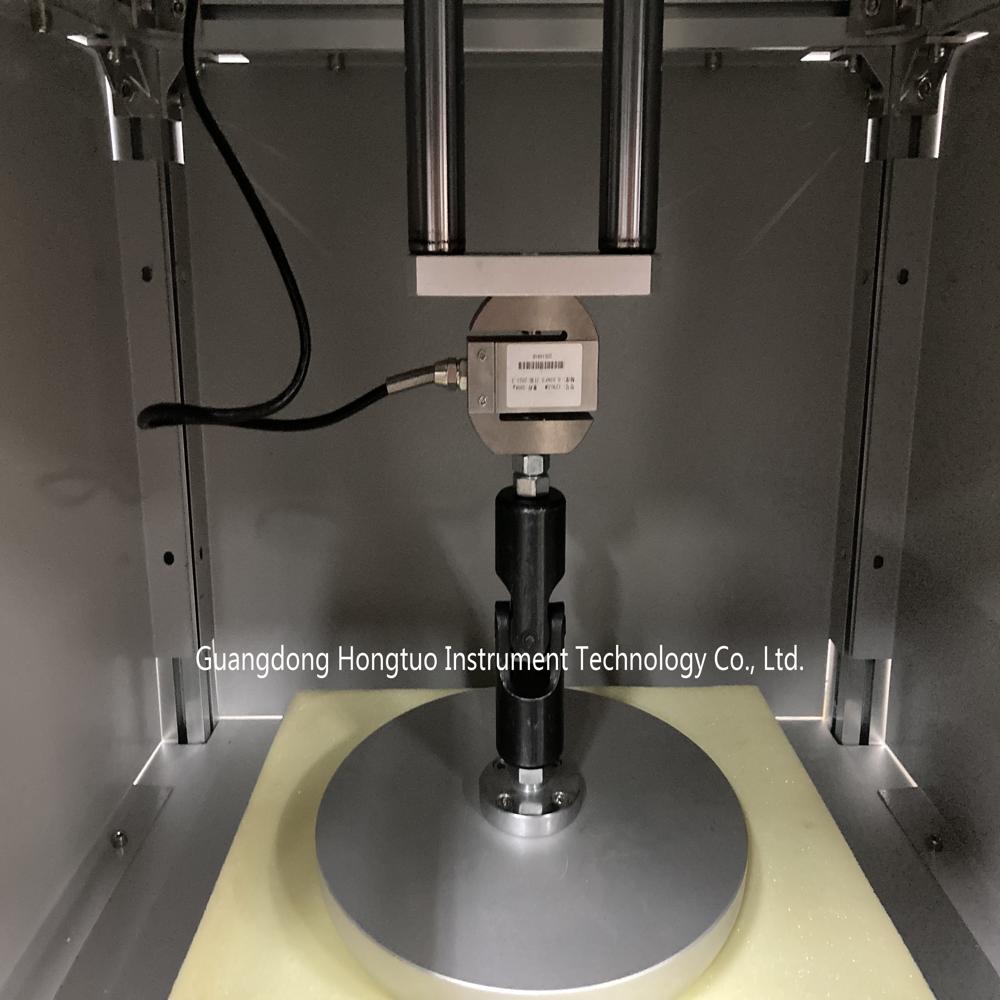

Sponge Dynamic Fatigue Testing Machine HT-2819
4569.0 USD ($)/Unit
Product Details:
- Gas Pressure 0.4-0.7 MPa
- Measuring Range Full stroke range and pressure value
- Mounting Type Floor standing
- Humidity 40% - 70% RH
- Interface Type USB/RS232
- Response Time 0.5s
- Display Type Touch screen digital display
- Click to view more
X
Sponge Dynamic Fatigue Testing Machine HT-2819 Price And Quantity
- 4569.0 USD ($)/Unit
- 1 Unit
Sponge Dynamic Fatigue Testing Machine HT-2819 Product Specifications
- 15C - 35C
- For testing the dynamic fatigue resistance of sponge, foam, latex etc.
- Foam, sponge material dynamic fatigue life test
- 1
- Standard international size
- Touch screen digital display
- 1200 mm
- Automatic operation, programmable, data storage, alarm function
- AC 220V, 50Hz
- Laboratory, industrial foam testing
- Automatic
- USB/RS232
- 0.5s
- Full stroke range and pressure value
- 0.4-0.7 MPa
- Floor standing
- 120 kg
- 40% - 70% RH
- up to 2000 N
- Sponge Dynamic Fatigue Testing Machine
- 380 x 380 x 50 mm (standard)
- 50 to 150 mm
- 500 mm
- 220 V
- 10-60 cycles/min
- Touch screen + PLC control
- Applicable for soft to medium foam
- 1%
- 0.01 mm
- 10-60 cycles/min
- Overload and test completion alarm
- Test data and mode storage
- < 60 dB(A)
- Exportable via USB
- Emergency stop, overload protection
- Cyclic, static or dynamic
- Circular and square interchangeable
- 250 mm (circular)
- Chinese/English
- High-strength alloy steel and powder coated sheet
- 850 x 700 x 1200 mm
Product Description
Overview:
This machine is used to test the thickness loss and hardness loss test of the fatigue performance of flexible foam polymer materials.
Specification:
1. The number of test cycles is 80,000 times, but the test cycle number of this instrument can reach 100,000 times, and it is equipped with an automatic adjustment device. Other specifications meet the QB/T 2819-2006 standard

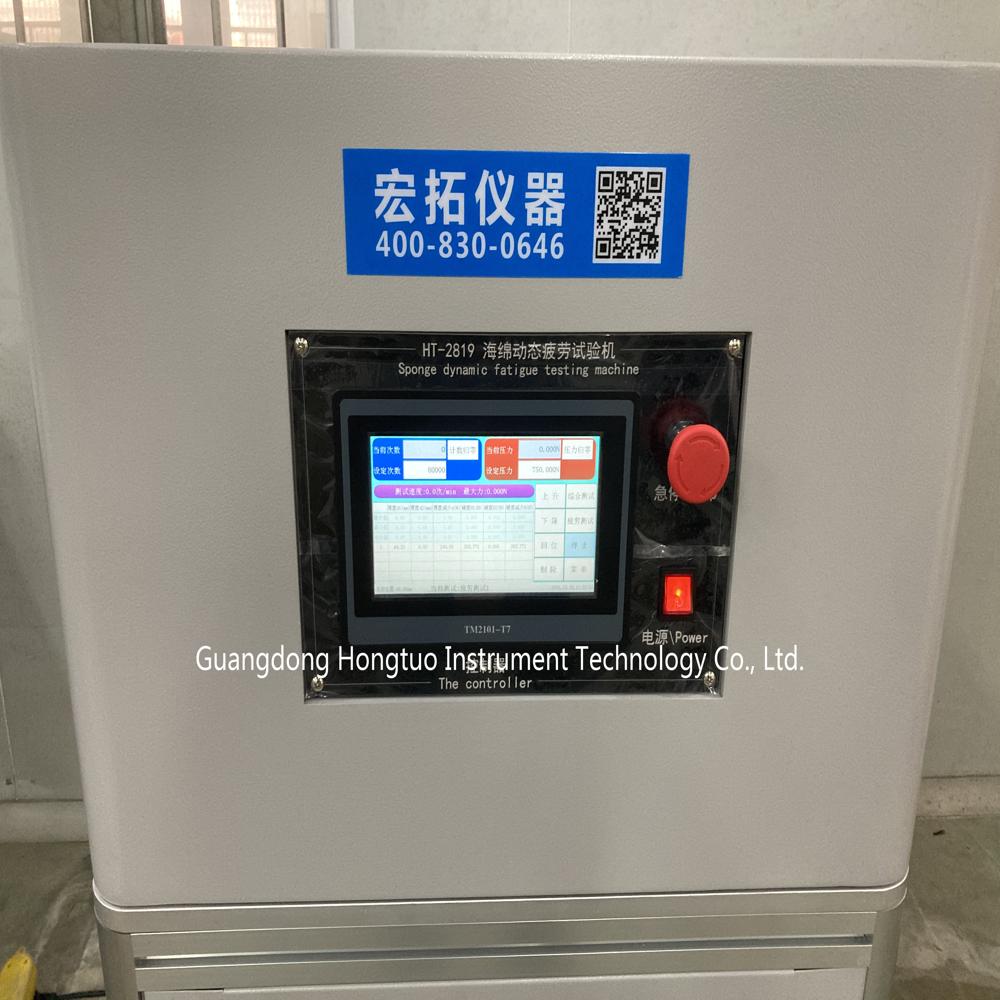

2. Control method: touch screen control
3. Induction method: precision load cell
4. Test force value range: 0200kg can be set
5. Unit switching: Kg, N, LB
6. Upper pressure plate: diameter 200mm, bottom rounded corner R1mm
7. Lower platform: 420420mm, vent diameter 6mm, spacing 20mm
8. Maximum stroke: 200mm
9. Testing speed: 10020mm/min
10. Range of test times: 1-999999 times, configurable
11. Power source: servo motor
12. Transmission mode: precision ball screw
13. Power supply: single-phase 220V, 50Hz/60Hz
14. Equipment weight: about 160kg
Advanced Dynamic Fatigue Testing
The HT-2819 machine utilizes precision engineering and high-strength alloy steel to ensure reliable fatigue life assessments of soft and medium foams. Its programmable tests, intuitive touch-screen interface, and multiple alarm systems make laboratory operations both efficient and safe. With efficient data storage and export options, users enjoy smooth workflow integration.
Flexible and Accurate Test Modes
Easily switch between circular and square test plates to accommodate various sample types and perform a range of fatigue, static, or dynamic testing. The machine's adjustable test speeds and strokes allow for tailored testing protocols, while a 1% accuracy and 0.01 mm resolution provide unmatched measurement confidence.
Comprehensive Safety and Data Management
The HT-2819 features overload and emergency stop functions for user safety, alongside robust memory functions for retaining test data and settings. Its noise level is minimal, suiting both laboratories and busy industrial environments. Data export via USB makes sharing and archiving results straightforward.
FAQ's of Sponge Dynamic Fatigue Testing Machine HT-2819:
Q: How does the HT-2819 Sponge Dynamic Fatigue Testing Machine operate and what materials can it test?
A: The HT-2819 operates automatically and is controlled via a touch screen and PLC, allowing for cyclic, static, or dynamic fatigue tests on foam, sponge, and latex materials. It is suitable for evaluating the dynamic fatigue life of soft to medium foams.Q: What benefits does the interchangeable testing head provide?
A: Interchangeable circular and square heads enable the machine to accommodate various specimen shapes, ensuring flexibility for different testing standards and sample requirements.Q: Where can the test data be stored or exported from the HT-2819?
A: Test data and settings are stored in the machine's memory and can also be exported using either the USB or RS232 interface, facilitating easy analysis and record keeping.Q: What safety features does the HT-2819 offer during testing?
A: The machine is equipped with overload protection, an emergency stop button, and alarms that indicate overload or test completion, enhancing operational safety.Q: How is the testing process programmed and controlled?
A: All operations can be programmed via the digital touch screen, allowing users to set cycle speeds, stroke lengths, and test modes. A PLC system ensures precise execution of each test cycle.Q: In what environments is this machine most commonly used?
A: The HT-2819 is ideal for testing laboratories, industrial quality control departments, and foam product manufacturers, thanks to its robust design, low noise, and automatic functions.Q: What advantages does data storage and export provide to users?
A: Storing and exporting data simplifies result analysis, enables regulatory compliance, and ensures traceability, crucial for laboratory and industrial reporting needs.Tell us about your requirement
