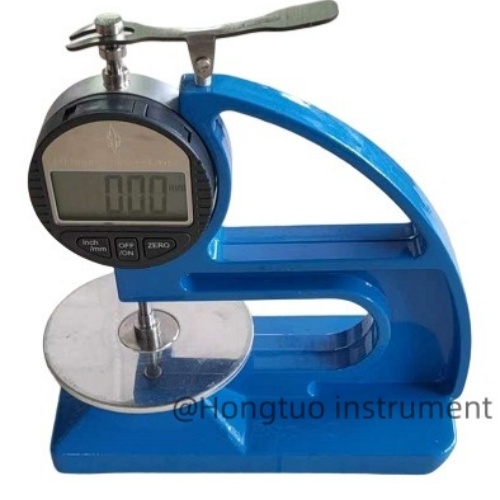

Rubber Thickness Tester for Rubber Sheet and Film Measurement

Rubber Thickness Tester for Rubber Sheet and Film Measurement

Name: Rubber Thickness Tester for Rubber Sheet and Film Measurement
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 88.0 USD
Availability: InStock

88.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Temperature 10C to 45C Operating Range Celsius (oC)
Mounting Type Bench-top/Portable
Automation Grade Manual
Operating Voltage N/A (manual operation) Volt (V)
Humidity Up to 85% RH (Non-Condensing)
Number of Specimens One at a time
Resolution 0.01 mm
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Rubber Thickness Tester for Rubber Sheet and Film Measurement Price And Quantity

Price 88.0 USD ($)/Unit
Minimum Order Quantity 1 Unit

Rubber Thickness Tester for Rubber Sheet and Film Measurement Product Specifications

Humidity Up to 85% RH (Non-Condensing)
Machine Weight Approx. 2.5 kg Kilograms (kg)
Number of Specimens One at a time
Test Stroke 10 mm
Test Width Up to 60 mm Millimeter (mm)
Automation Grade Manual
Operating Voltage N/A (manual operation) Volt (V)
Temperature 10C to 45C Operating Range Celsius (oC)
Usage Rubber, plastic, soft sheet materials
Mounting Type Bench-top/Portable
Specimen Size Minimum 10 mm x 10 mm Millimeter (mm)
Control Mode Manual
Response Time Immediate (manual readout) Seconds
Display Type Analog dial gauge
Accuracy 0.01 mm %
Application For measuring rubber sheet and film thickness
Power Supply Not Required (Manual Operation)
Dimension (L*W*H) 115mm 75mm 213mm Millimeter (mm)
Measuring Range 0 - 10 mm Rankine
Test Speed Manual, controlled by lever operation
Max Height Approx. 120 mm overall height
Test Range 0 - 10 mm (thickness measurement)
Equipment Type Rubber Thickness Tester
Resolution 0.01 mm
Features Rugged cast iron frame, smooth lever operation, corrosion-resistant finish

Dial Diameter Approx. 58 mm
Package Contents Rubber Thickness Tester, calibration certificate, instruction manual
Calibration Method Standard gauge blocks
Pressing Plate Diameter 40 mm
Color Grey powder-coated finish
Material of Construction Cast iron body with stainless steel spindle
Indenter Type Flat, hardened steel

Product Description

Standards:

Mainly used to measure the thickness of vulcanized rubber and plastic products. It refers to the implementation of GB/T2951.1-1997, HG2041-1991 and other national standards; it has the advantages of simple structure, convenient use, and reliable quality.

Technical Parameters:

Measuring range: 0-10mm Graduation value: 0.01mm

Lifting stroke of worktable: 40mm

Outer diameter of worktable: 70mm

Probe diameter: 60.05mm

Dimensions (lengthwidthheight): 115mm75mm213mm

Net weight: 1.7kg.

Quick, Reliable Rubber Thickness Measurement

This tester provides instant, accurate thickness measurements for rubber, plastic, and soft sheet materials. The manual lever, analog dial, and finely tuned indenter ensure consistent results without the need for electricity. Its ergonomic design and sturdy construction allow users to test one specimen at a time, making it ideal for quality control in manufacturing and research environments.

Robust Build and Easy Handling

Manufactured from rugged cast iron with a corrosion-resistant finish, this tester withstands demanding environments. The stainless steel spindle and flat, hardened steel indenter provide longevity and precision. Easily portable, it fits both bench-top and on-site applications, accommodating specimens with a minimum size of 10 mm x 10 mm.

FAQ's of Rubber Thickness Tester for Rubber Sheet and Film Measurement:

Q: How do I operate the Rubber Thickness Tester?

A: To use the tester, simply place the rubber sheet or film sample (at least 10 mm x 10 mm) on the measuring platform. Lower the pressing plate using the manual lever, and read the thickness directly from the analog dial. No electricity or batteries are required.

Q: What materials can be measured with this tester?

A: This device is suited for measuring the thickness of rubber, plastic, and other soft sheet materials, with a maximum width of 60 mm and thickness of up to 10 mm.

Q: How do I calibrate the Rubber Thickness Tester?

A: Calibration is performed using standard gauge blocks provided with the tester. Follow the instructions in the manual to ensure measurement accuracy before use.

Q: Where can this tester be used effectively?

A: Its compact size and portable design make it effective for use in laboratories, manufacturing plants, quality control departments, and even on-site inspections where electricity may not be available.

Q: What are the benefits of using a manual, lever-operated thickness tester?

A: The manual operation ensures reliability and independence from power sources, granting immediate analog readouts and enabling use in diverse environments. The robust build and corrosion-resistant finish assure longevity and low maintenance.

Q: What is included in the package?

A: The package contains the Rubber Thickness Tester itself, a calibration certificate for accuracy assurance, and an instruction manual for easy setup and operation.
