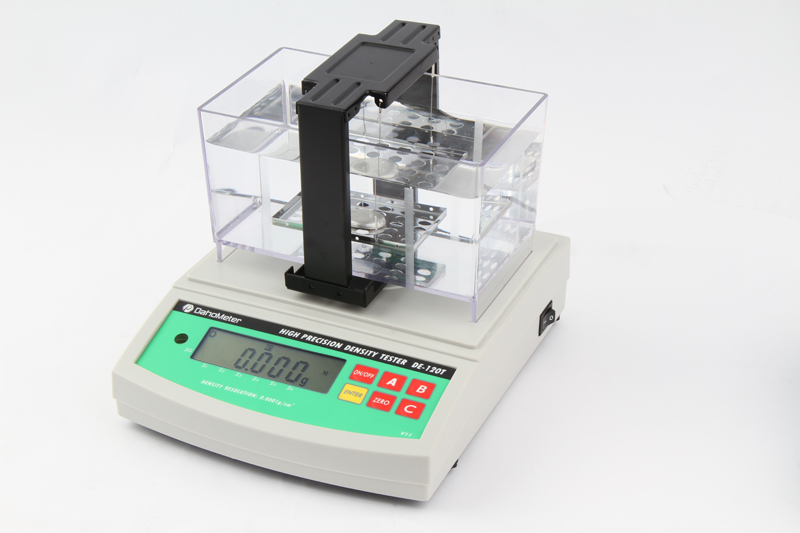

Quick Measuring Multi-Function Solids Density Meter for Solid Material Testing
669.0 USD ($)/Unit
Product Details:
- Application Solid Material Density Testing (metals, ceramics, plastics, etc.)
- Interface Type RS232 (optional)
- Humidity 80% RH (non-condensing)
- Power Supply AC 110V/220V, 50/60Hz
- Equipment Type Solids Density Meter
- Hardness N/A (Depends on sample tested)
- Mounting Type Benchtop
- Click to view more
X
Quick Measuring Multi-Function Solids Density Meter for Solid Material Testing Price And Quantity
- 669.0 USD ($)/Unit
- 1 Unit
Quick Measuring Multi-Function Solids Density Meter for Solid Material Testing Product Specifications
- Max 60mm x H40mm (or as per basket size)
- Large LCD digital display
- Approx. 4.5 kg
- 10C~40C operating range
- 300 g/600 g optional
- AC 110V/220V, 50/60Hz
- Multi-function, rapid test, high precision, auto-calculation, digital display, suitable for irregular solids
- 0.001 g/cm3
- Quick Measuring (Within Seconds)
- Semi-Automatic
- Sample holder height approx. 100 mm
- 0.001-99.999 g/cm3 (depends on model)
- 0.001 g/cm3
- 50Hz/60Hz
- Single or multiple (as per platform design)
- Solid Material Density Testing (metals, ceramics, plastics, etc.)
- Digital Button Control
- RS232 (optional)
- AC 110V/220V, 50/60Hz
- 80% RH (non-condensing)
- Solids Density Meter
- N/A (Depends on sample tested)
- Benchtop
- 0.005 g - 300 g/600 g (Depends on model)
- Laboratory and industrial solid density measurement
- Instant, within 3 seconds
- Direct digital or optional data output port
- Archimedes immersion method
- Selectable, multi-language display (depends on model)
- Automatic zero and calibration functions
- Yes
- Acrylic, corrosion resistant
- Automatic direct digital density reading
- Weight basket, tweezers, thermometer, instruction manual
Quick Measuring Multi-Function Solids Density Meter for Solid Material Testing Trade Information
- 5-7 Days
Product Description
Application: Rubber,Plastic,Wire and Cable,Tire,Powder,Ceramic,Magnetic Material,Field of quality management,cost control, rapid density test in site.Hard Alloy,New Material.
Standards: In accordance with ASTM D792,ASTM D297,GB/T1033,GB/T2951,JIS K6268,ISO 2781,ISO 1183,GB/T208,JB/T7780 standards etc.
No need to open and close the lid with the completed aluminum alloy measuring table; Simple operation and conform to the new materials laboratory operation
specification; automatically judge whether the sample is qualified or not; Function of warning and measuring the volume abrasion value DIN of rubber,of Akron,and
expansibility; Measuring the true density with pycnometer method for powder material; Function of waterproofing treatment with boiling saturation method,impregnated saturation method,vacuum saturation method,surface sealing wax covering method,and surface vaseline covering method,and automatic measuring the porosity,oil content and water absorption; The purity of the main material in two kinds of mixture also can be measured.
Specification:
DA-300M
Measuring range: 0.001-99.999g/cm3
Minimum weight: 0.005g
Maximum weight: 300g
Resolution: 0.001 g/cm3
DA-600M
Measuring range: 0.001-99.999g/cm3
Minimum weight: 0.005g
Maximum weight: 600g
Resolution: 0.001 g/cm3
DA-900M
Measuring range: 0.001-9.999g/cm3
Minimum weight: 0.01g
Maximum weight: 900g
Resolution: 0.001 g/cm3
DA-1200M
Measuring range: 0.001-99.999g/cm3
Minimum weight: 0.01g
Maximum weight: 1200g
Resolution: 0.001 g/cm3
Features:
(1)No need to open and close the lid; Simple operation;Shorter time; According to the specification of new materials laboratory.
(2)Show the percentage composition of mixed samples for researching and developing new materials.Suitable for powder metallurgy,magnetic materials,ceramics,fireproofing materials,precious metal and so on.
(3)Automatically judge whether the sample is qualified or not;prompt alarm.
(4)Function of solution compensation.either water or liquid can be used as medium.
(5)Function of setting actual water temperature,measuring medium density,and water proof medium density.
(6)Function of setting aerostatic buoyancy compensation and the bound of density.
(7)Adopt the completed high-capacity measuring accessories with the transparent injection mould sink,which can resist wear,fall off,and corrosion.
(8)Adopt the completed special windproof and dustproof cover,which makes the instrument convenient and durable.
(9)Interface of RS-232C is included.the printer of DE-40 will be available to connect PC with the instrument.
Standard Accessories:
Host,Sink,Testing board,Tweezer,Thermometer,100G weight,Windproof and dustproof cover,A set of measuring granule accessories,A set of measuring floating body accessories,Power transformer
Measurement Procedure of Non-hydroscopicity Products:
(1)Place sample on testing board to measure weight in air,press ENTER key.
(2)Place sample into water to measure weight in water,press ENTER key.Density value will be displayed.
Measurement Procedure of Hydroscopicity Products:
(1)Place sample on testing board to measure weight in air,press ENTER key.
(2)Place sample that did waterproof treatment on testing board to measure weight in air.press ENTER key.
(3) Place sample that did waterproof treatment into water to measure weight in water,press ENTER key.Density value will be displayed.
Reliable and Accurate Density Measurement
Utilizing the renowned Archimedes immersion method, this density meter ensures high-precision testing for a broad array of solid materials. With an accuracy of 0.001 g/cm3 and instant automated calculations, the device is ideal for applications demanding reliable results. The large digital display and automatic calibration further streamline measurements, making the process highly efficient.
User-Friendly and Versatile Operation
Designed for ease of use, the meter features a straightforward digital button control and supports single or multiple specimen measurements, according to the platform design. The quick test speed-delivering results in seconds-saves valuable time in laboratory and industrial workflows. Multi-language display options enhance accessibility for global users.
Robust Build and Enhanced Accessories
Equipped with a corrosion-resistant acrylic water tank, this meter is built to withstand demanding environments. The comprehensive accessory kit includes specialized weight baskets for various sample types, tweezers, a thermometer for temperature monitoring, and an instruction manual, ensuring users are ready for effective testing immediately.
FAQ's of Quick Measuring Multi-Function Solids Density Meter for Solid Material Testing:
Q: How does the Quick Measuring Multi-Function Solids Density Meter determine the density of solid materials?
A: The meter uses the Archimedes immersion method, calculating the density of a solid by measuring the change in weight when the sample is submerged in water. This process is automated, providing a direct digital density reading with high precision.Q: What types of materials can be tested with this density meter?
A: This device is suitable for solid materials such as metals, ceramics, plastics, and other irregularly shaped solids. Its versatility allows for use across various industries and laboratory settings.Q: When should I calibrate the density meter, and is the process automated?
A: Calibration is necessary for ensuring measurement accuracy and should be performed regularly or as indicated in the instruction manual. The meter features automatic zero and calibration functions, greatly simplifying the process for users.Q: Where can this density meter be effectively utilized?
A: The meter is designed for benchtop use in laboratories, research facilities, quality control departments, and industrial environments where precise solid density measurements are required.Q: What is the process for conducting a density test using this machine?
A: First, place the specimen in the weight basket and follow prompts on the digital display. The meter will automatically weigh the dry and submerged sample, then instantly calculate and display the density result. Accessories such as tweezers and a thermometer facilitate safe and accurate sample handling.Q: How does the machine handle results and data output?
A: Results are displayed digitally on a large LCD screen for easy viewing. For extended record-keeping or analysis, an optional RS232 data output port is available, allowing for integration with external data systems or printers.Q: What are the key benefits of using this solids density meter compared to traditional methods?
A: This meter offers rapid, accurate, and automated density measurement with minimal user intervention. Its digital readout, quick response time, and automatic calibration save time and reduce errors, making it highly efficient for both routine and advanced testing needs.Tell us about your requirement
