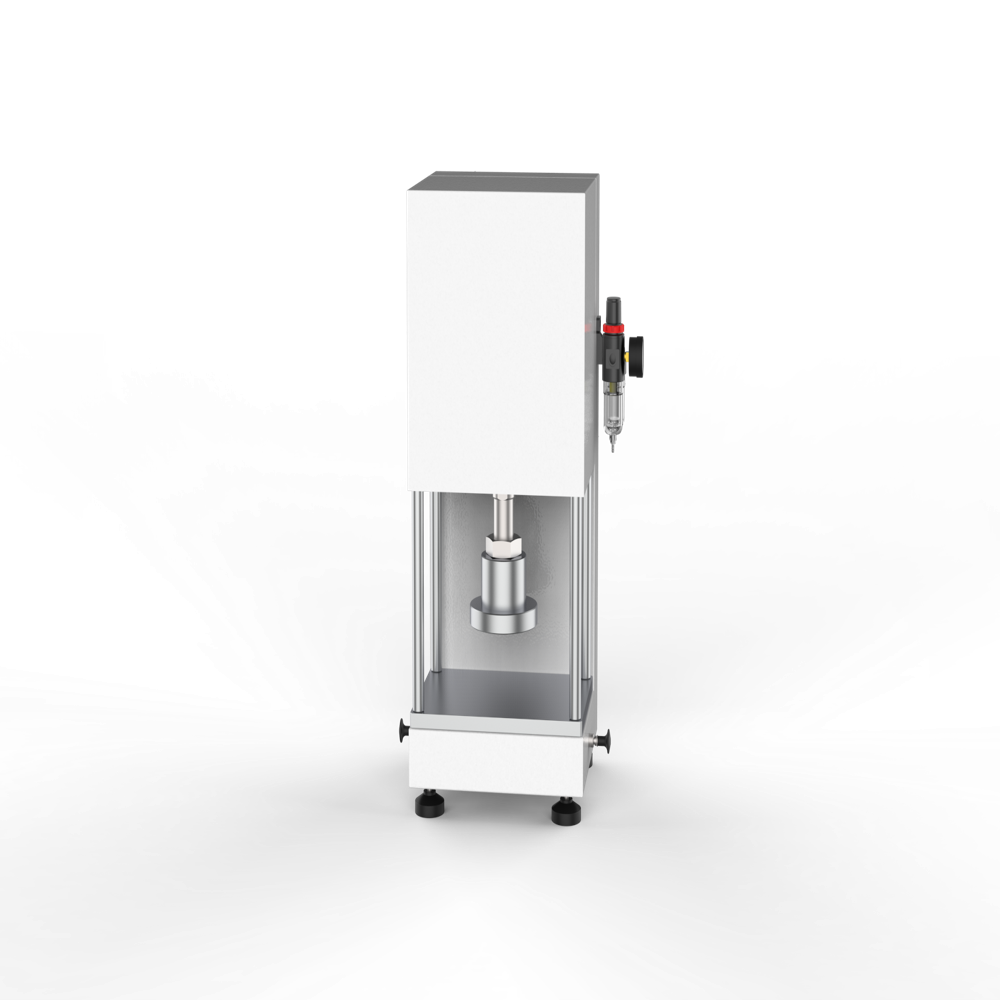

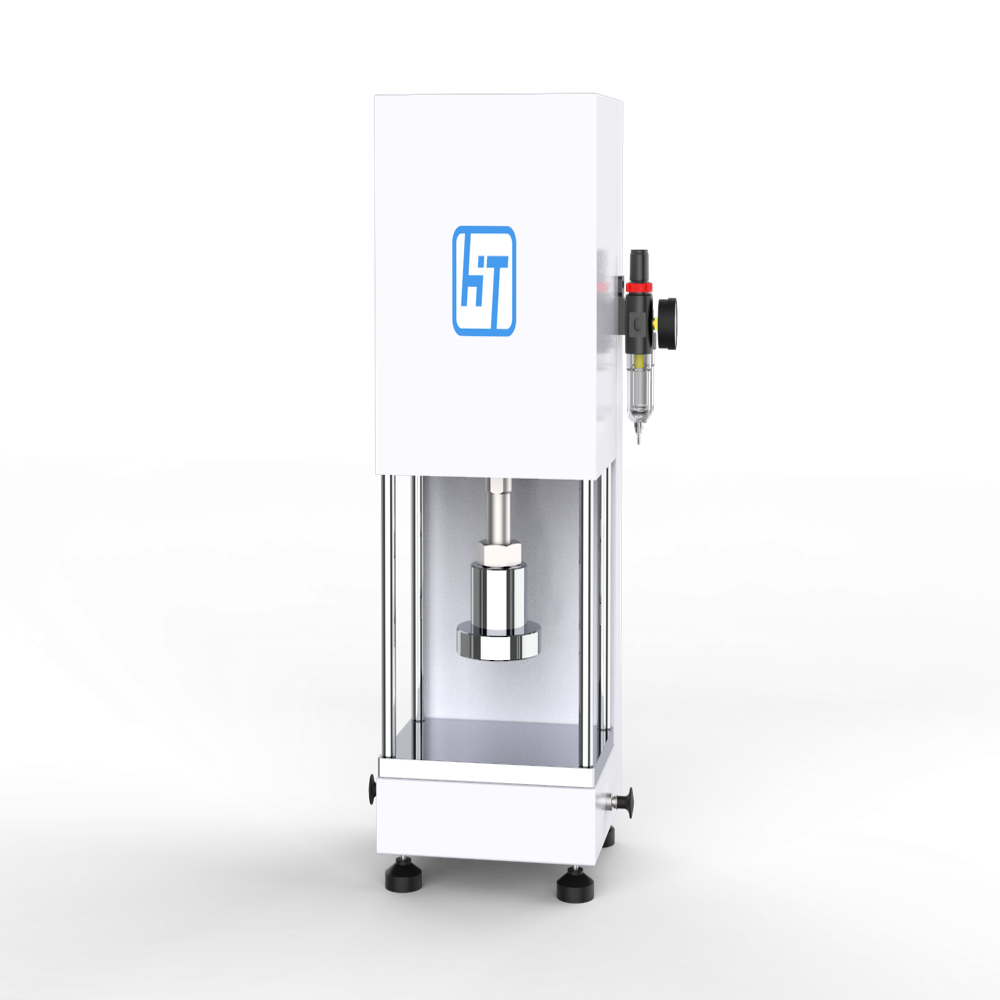

Pneumatic Slicer for Rubber and Plastic Sample Preparation

Pneumatic Slicer for Rubber and Plastic Sample Preparation

Name: Pneumatic Slicer for Rubber and Plastic Sample Preparation
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 799.0 USD
Availability: InStock

799.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Mounting Type Tabletop
Operating Voltage 220 V AC
Max Height 200 mm
Automation Grade Semi-Automatic
Display Type Analog/Digital (Optional)
Humidity 20% - 90% RH
Gas Pressure 0.5 - 0.7 MPa
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pneumatic Slicer for Rubber and Plastic Sample Preparation Price And Quantity

Minimum Order Quantity 1 Unit
Price 799.0 USD ($)/Unit

Pneumatic Slicer for Rubber and Plastic Sample Preparation Product Specifications

Test Range 0 - 150 mm
Machine Weight Approximately 40 kg
Equipment Type Pneumatic Slicer
Capacity Max 10 Tons (Pneumatic Output)
Features Precision cutting, adjustable speed, safety shields
Frequency 50 Hz
Test Speed Adjustable, 0.1 - 100 mm/s
Resolution 0.01 mm
Response Time <1 s
Usage Material sample preparation for testing
Hardness Applicable to soft and medium-hard materials
Control Mode Pneumatic, manual controls
Measuring Range Length/Width 0-150 mm
Power Supply 220 V, 50 Hz
Interface Type Standard, Pneumatic ports
Test Width Max 150 mm
Gas Pressure 0.5 - 0.7 MPa
Application Rubber & Plastic Sample Preparation
Accuracy 0.1 mm
Number of Specimens Single or multiple depending on fixture
Specimen Size Customizable 150 150 mm Max
Port Size 6 mm air hose
Temperature 5C - 40C
Test Stroke Up to 100 mm
Mounting Type Tabletop
Operating Voltage 220 V AC
Max Height 200 mm
Automation Grade Semi-Automatic
Display Type Analog/Digital (Optional)
Humidity 20% - 90% RH

Color White/Grey
Construction Material Powder-coated steel body, stainless steel blade assembly
Safety Features Transparent shield, two-hand safety control
Dimensions (LWH) 350 400 470 mm
Compliance CE certified
Noise Level Less than 70 dB
Blade Type High-speed steel, replaceable
Air Consumption 0.2 m3/min

Product Description

Introduction:

The pneumatic slicer is mainly used for rubber cutting standard test pieces, and it is necessary to match the standard knife die.and connect the gas source above 4KG.

Features:

Making test pieces is now easier and faster, and anyone can operate it with ease.

Uses Airtac cylinders and components for durability.

Specification:

1. Load: 1000KG.

2. Platen diameter: 120 mm.

3. Base plate: 230X250mm.

4. Effective height: 100mm.

5. Machine size: 430300620mm.

6. Machine weight: about 42 kg.

Operation:

1. Place the slicer on a flat surface, adjust the four feet for stability, and place the cutting adhesive on top.

2. Turn on the air supply, adjust the air valve switch of the oil-water separator, and adjust the pressure gauge to 0.5 MPa.

3. Place the sample on the cutting adhesive, then place the cutting die on top. Press both buttons simultaneously with both hands (for safety, both hands must press simultaneously). The pressure plate will press down on the cutting die. Hold for a few seconds to fully cut the sample, then simultaneously pull out the buttons to remove the sample.

4. After use, please turn off the air supply.

Precision and Versatility for Sample Preparation

This pneumatic slicer enables laboratories and manufacturers to prepare consistent samples from rubber and plastic sheets efficiently. With adjustable speed and customizable specimen sizing up to 150 mm, the equipment ensures reliability in testing and analysis. The high-speed, replaceable blade and strong pneumatic output provide smooth and precise cuts every time.

Advanced Safety and User-Friendly Operation

Designed with both safety and convenience in mind, the slicer features a transparent protective shield and a two-hand safety control system that minimizes operator risk. Intuitive manual and pneumatic controls, along with analog or digital display options, streamline operation for users at varying experience levels.

FAQ's of Pneumatic Slicer for Rubber and Plastic Sample Preparation:

Q: How does the Pneumatic Slicer ensure safety during operation?

A: The slicer comes with a transparent safety shield and requires two-hand safety control for activation, preventing accidental engagement and protecting the operator from moving parts.

Q: What materials and sample sizes can the slicer accommodate?

A: It is capable of slicing soft and medium-hard rubber and plastic materials. Specimen sizes are customizable up to a maximum of 150 150 mm, allowing flexibility for different testing requirements.

Q: Where is this equipment typically used, and who benefits from its application?

A: This slicer is commonly used in laboratories, quality control departments, and manufacturing units for preparing material samples. It benefits distributors, exporters, manufacturers, suppliers, and traders who require accurate and repeatable test specimens.

Q: What is the process for adjusting the speed and test parameters?

A: Speed and cutting parameters are easily set using the manual controls and pneumatic system, with the option for analog or digital readouts. Adjustable test speeds range from 0.1 to 100 mm/s, providing versatility for various material types.

Q: When should the blade assembly be replaced, and how is it maintained?

A: The high-speed steel blade is replaceable and should be inspected regularly for wear. Replace the blade when cutting efficiency decreases or if visible dullness appears. Follow the manufacturer's instructions for safe removal and installation.

Q: What are the key benefits of using this pneumatic slicer for sample preparation?

A: The primary benefits include precise, consistent sample geometry, enhanced safety features, adjustable cutting capability, and fast processing times. These support high-quality testing and contribute to reliable analytical results.
