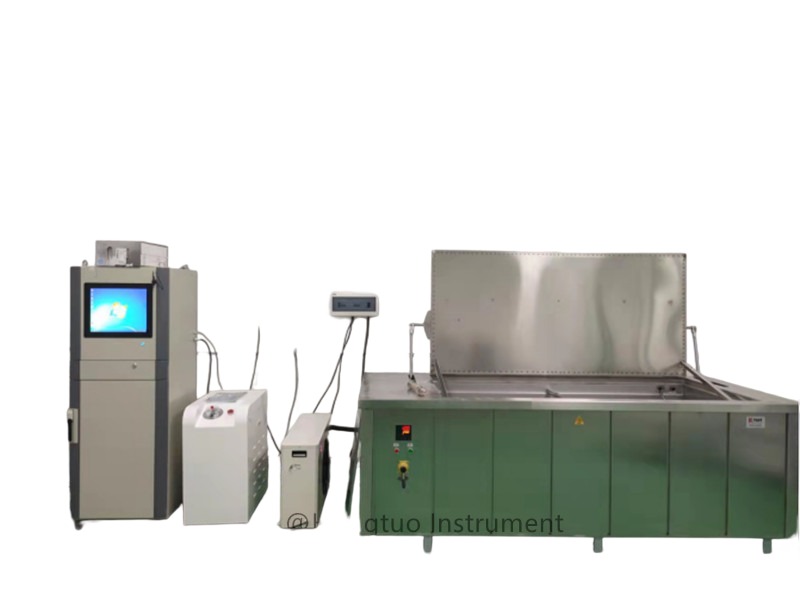

Pipe Hydrostatic Pressure and Burst Testing Machine
9999.00 USD ($)/Unit
Product Details:
- Response Time <1s Seconds
- Specimen Size DN16 to DN400 mm Millimeter (mm)
- Operating Voltage 220V 10%, 50/60Hz Volt (V)
- Display Type LCD/Computer Display
- Interface Type USB/RS485 (optional)
- Power Supply 220 V AC, 50 Hz
- Mounting Type Free-standing floor model
- Click to view more
X
Pipe Hydrostatic Pressure and Burst Testing Machine Price And Quantity
- 1 Unit
- 9999.00 USD ($)/Unit
Pipe Hydrostatic Pressure and Burst Testing Machine Product Specifications
- 1.7kg. Kilograms (kg)
- 115mm 75mm 213mm Millimeter (mm)
- 0.5% F.S. %
- 0-160 bar
- Approx. 1500 mm
- Testing hydrostatic pressure resistance and burst strength of plastic and composite pipes
- 1/2 to 2 (standard)
- Adjustable, up to 10 bar/min
- 50/60 Hz Hertz (HZ)
- Automated data logging, over-pressure protection, water recirculation
- Up to 1000 mm
- 0.01 bar
- Suitable for all plastic and composite pipe hardness
- 20-80% RH, non-condensing
- 0-160 bar Rankine
- Up to 16 MPa mpa
- Automatic with computer control
- Free-standing floor model
- Customizable as per specimen size Millimeter (mm)
- USB/RS485 (optional)
- 220 V AC, 50 Hz
- DN16 to DN400 mm Millimeter (mm)
- 220V 10%, 50/60Hz Volt (V)
- LCD/Computer Display
- <1s Seconds
- measure the thickness of vulcanized rubber and plastic products
- 1 to 6 (simultaneous)
- Automatic
- Multiple station (up to 6) Kg
- Room temperature to 95C Fahrenheit (oF)
- Pipe Hydrostatic Pressure Burst Testing Machine
- Automatic power-off memory
- Digital, included with calibration certificate
- 0.1 bar
- Automatic water filling and drainage
- Pressure relief valve, emergency stop
- PDF/Excel report export
- ISO 1167, ASTM D1598, ASTM D1599 compliant
- Multiple languages available in software
- Integrated or external optional
- Stainless steel (corrosion resistant)
- Touch screen/PC
- Visual and audible alarm for overpressure and leakage
- Universal adjustable clamp fixtures
- Windows-based, real-time curve/graph display
Product Description
Introduction
The machine is designed and manufactured according to GB/T6111 Thermoplastics pipes for the conveyance of fluids ----Resistance to internal pressure----Test method and GB/T15560Standard test method for short-time hydraulic failure and resistance to constant internal pressure of the plastics pipes for the transport of fluids . It is suitable to determine the pressure-resisting broken time or the maximum pressure value of instantaneous blast of thermoplastic pipes and compound pipes (such as PP-R ,PP-B ,PP-A ,PE ,PE-X ,PVC ,PVC-U and PVC-C ) under long-term constant internal pressure and temperature .It is indispensable for manufacturers of plastic pipes and testing institutions .
The machine meets the following standards :
GB/T6111-2018 Test method for internal pressure resistance of thermoplastic pipes for liquid transportation
GB/T15560-95 Hydraulic instantaneous burst and pressure resistance test methods for plastic pipes for fluid transportation
GB/T18742.1 Polypropylene piping systems for hot and cold water
installation Part 1 :General
GB/T18742.2 Polypropylene piping systems for hot and cold water
installation Part 2 :Pipes
GB/T18742.3 Polypropylene piping systems for hot and cold water
installation Part 3 :Fittings
GB/T13663 Polypropylene pipes for water supply
GB/T15558.1 Buried polyethylene (PE) pipes for the supply for
gaseous fuels
GB/T15558.2 Buried polyethylene (PE) fittings for the supply for
gaseous fuels
GB/T18992.1 Crosslinked polyethylene (PE-X) piping systems for hot
and cold water installation Part 1 :General
GB/T18992.2 Crosslinked polyethylene (PE-X) piping systems for hot
and cold water installation Part 2 :pipes
GB/T10002.1 Unoplasticized polyvinyl chloride (PVC-U) pipe for water supply
GB/T10002.2 Unoplasticized polyvinyl chloride (PVC-U) fitting for water supply
GB/T18993.1 Chlorinated poly (vinyl chloride) piping system for hot
and cold water installations Part 1:General
GB/T18993.2 Chlorinated poly (vinyl chloride) piping system for hot
and cold water installations Part 2:pipes
GB/T18997.1 Polyethylene/Aluminum /polyethylene composite pressure
pipe Part 1 :PE/AL/PE pipe overlap-welded by aluminum pipe
GB/T18997.2 Polyethylene/Aluminum /polyethylene composite pressure
pipe Part 2 : PE/AL/PE pipe butt-welded by aluminum pipe
ISO 1167-2006 Plastic piping systems - Thermoplastics pipes - Determination of resistance to internal pressure at constant temperature.
ISO13479 Determination of resistance of polyolefin pipes for the conveyance of fluids to crack propagation.
ISO9080 Plastics piping and ducting systems - Determination of the long-term hydrostatic strength of thermoplastics materials in pipe form by extrapolation (ISO9080, Ed. 1.0 (2003) MOD)
ASTM D1598-2015 Pipe, Plastic, Under Constant Internal Pressure, Time-to-Failure of (No S/S Document)
ASTM D1599 Standard Test Method for Resistance to Short-Time Hydraulic Pressure of PlasticPipe, Tubing, and Fittings1
DIN EN 921 (1995-01) Thermoplastics pipes - Determination of resistance to internal pressure at constant temperature
Feature
1)This instrument is used for testing a certain range of internal pressure in a long period of time of plastic pipes.
2)The instrument consists of a pressure host, a pressure station, a water tank, a temperature control system and a computer software system.
Main Frame: It consists of pressure micro control parts, automatic filling pressure and electric discharge pressure parts, pressure micro control part adopts the microcomputer MCU control; equipped with high resolution, high speed of - delta 16-bit adc chip, real-time communication and computer; and it can automatically fill and relief pressure according to the situation of pressure.
Pressure Station: Its main function is to provide pressure to the main frame, the requirement of lower limit pressure of pressure station requirement must be higher than all tested specimen. The plunger pump of the station is made in the United States (large flow, low noise, high pressure, free maintenance).
Water Tank: It consists of electric opening part, self-circulation part, heating part, automatic water filling part and insulation part.
Temperature Control System: Accurately control the temperature of the water tank, temperature display, set temperature individually. It can control the liquid level of tank at a reasonable position, at the same time it can also guarantee the temperature.
Software System: By connecting with RS232 serial interface to the pressure on the host, it can provide the parameters setting, calibration, pressure relief, zero, amplitude modulation, drawing the test, test records and print test reports and other functions.
Application
The instrument is widely used in the internal pressure test of all kinds of plastic pipes. It is the ideal testing instrument for construction industry, Plastic pipe producers, national testing sectors and the scientific research sectors.
Working Conditions
Following conditions must be satisfied to conduct a test:
(1) Ambient Temperature: 1040;
(2) Ambient Temperature: 30%80%;
(3) Vibration-freeno corrosive medium environment;
(4) Install and adjust the instrument to level on a solid foundation;
(5) No strong electromagnetic interference and no strong wind resistance;
(6) A indoor exhaust system is needed to prevent the instrument
Main specifications
1. test pressure and time separately control within 3 lines
2. pressure adding range :010.000MPa
3. Max. working pressure of main pressure system 16MPa
4. high pressure piston pump
(1) pressure : 16MPa
(2) volume :8-11.3L/min
(3) rotating speed :920rpm/min
5 .pressure controlling precision :+2% and -1% of upper and lower limit of
test pressure value respectively
6. resolution of pressure value :0.001Mpa
7. transformer :test pressure sampling periods is 0.1 millisecond .
8. timing range :09999h
9. timing precision :1S
Structure and theory
The high pressure liquid generated by high pressure pump is transported to samples in media temperature constant tanks through high pressure hoses to carry out pipe long time hydrostatic pressure tests after being measured by main engine of pressure control system
Reliable Compliance and Outstanding Precision
Designed to meet international standards, this machine adheres to ISO 1167, ASTM D1598, and ASTM D1599, ensuring your tests are accurate and globally recognized. With a pressure control precision of 0.1 bar and digital calibration (certificate included), it provides highly repeatable and reliable results for plastic and composite pipes.
Enhanced Automation and User Experience
The automated water filling and draining system, combined with a real-time display (on PC or touch screen), provides a seamless testing process. Visual and audible alarms, pressure relief valve, emergency stop, and automated power-off memory bolster safety and convenience. User-friendly software supports multiple languages and exports results directly in PDF or Excel format.
Flexible, Versatile, and Efficient Testing
Capable of simultaneous testing of up to six specimens, this machine accommodates pipe sizes from DN16 to DN400 mm. The adjustable test speed, wide temperature range (room temp. to 95C), and customizable fixture width ensure compatibility with various project requirements. Its sturdy free-standing floor model design guarantees long-term durability and reliability.
FAQ's of Pipe Hydrostatic Pressure and Burst Testing Machine:
Q: How does the Pipe Hydrostatic Pressure and Burst Testing Machine ensure accurate pressure control during testing?
A: The machine utilizes advanced automated computer control and digital calibration, maintaining a pressure control precision of 0.1 bar. Pressure relief valves and digital sensors allow real-time adjustments, ensuring precise and repeatable test results every time.Q: What types of pipes and specimen sizes can be tested with this equipment?
A: It is suitable for testing plastic and composite pipes with diameters ranging from DN16 to DN400 millimeters, handling up to six specimens (simultaneously), accommodating various pipe hardness levels due to universal adjustable clamp fixtures.Q: When should I use the burst and hydrostatic pressure testing machine?
A: This equipment is essential during pipe quality assurance stages or routine product evaluations. It measures the hydrostatic pressure resistance and burst strength, ensuring compliance with ISO and ASTM standards before pipes are distributed or installed.Q: Where is the test data stored and how can results be accessed?
A: Test results are logged automatically by the control software and can be exported in PDF or Excel formats. Data and graphs can be viewed in real-time on the machine's LCD, touch screen, or a connected PC via USB or RS485 interface.Q: What are the safety features of this testing machine?
A: For safety, it includes a pressure relief valve, an emergency stop button, visual and audible alarms for overpressure or leakage, and an automatic power-off memory mode to prevent data loss or accidents during testing.Q: What is the typical process for conducting a pressure or burst test?
A: The process begins with automatic water filling, secure clamping of specimens, parameter configuration via the touchscreen or PC, and then automated pressure ramp-up to the set values. Real-time monitoring, data logging, and instant alarms ensure safe, efficient testing per international standards.Q: How does this machine benefit pipe manufacturers and quality control labs?
A: It enables simultaneous multi-specimen tests, delivers automated and precise results compliant with global standards, and offers robust safety and data management features. This streamlines quality assurance workflows, minimizes errors, and supports regulatory compliance for production and certification.Tell us about your requirement
