Ozone Aging Test Chamber for Rubber Ozone Resistance Testing

Ozone Aging Test Chamber for Rubber Ozone Resistance Testing

Name: Ozone Aging Test Chamber for Rubber Ozone Resistance Testing
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 6942.0 USD
Availability: InStock

6942.0 USD ($)/Piece

Get a Price/Quote

Product Details:

Power Supply AC 220V, 50 Hz
Mounting Type Floor Standing
Specimen Size Standard 50 x 10 x 2 mm
Measuring Range 0-1000 ppm O3
Number of Specimens Up to 12 pieces
Resolution 0.1 ppm
Equipment Type Ozone Aging Test Chamber
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Ozone Aging Test Chamber for Rubber Ozone Resistance Testing Price And Quantity

Price 6942.0 USD ($)/Piece
Minimum Order Quantity 1 Piece

Ozone Aging Test Chamber for Rubber Ozone Resistance Testing Product Specifications

Power Supply AC 220V, 50 Hz
Mounting Type Floor Standing
Test Speed 30-40 mm/s
Specimen Size Standard 50 x 10 x 2 mm
Control Mode PLC Control / Touch Screen
Measuring Range 0-1000 ppm O3
Number of Specimens Up to 12 pieces
Resolution 0.1 ppm
Equipment Type Ozone Aging Test Chamber
Gas Pressure 0.02-0.05 MPa
Test Range 0-1000 ppm Ozone concentration
Max Height 1600 mm
Machine Weight About 180 kg
Interface Type RS232/USB
Capacity 225 L
Automation Grade Automatic
Response Time 10 s
Test Stroke 70 mm
Humidity 40-98% RH Adjustable
Port Size DN15
Accuracy 2% of reading
Test Width 150 mm
Display Type Digital LCD Display
Frequency 50 Hz
Temperature Room Temperature - 70C Adjustable
Features Programmable, Automatic Control, Data Logging
Application Rubber, Plastic, Cable, and Polymer Ozone Resistance Testing
Usage Accelerated Ozone Aging Test
Operating Voltage 220V AC

Timer Range 1-9999 min
Caster Wheels Yes, for Easy Mobility
Compliance Standard ASTM D1149, ISO 1431, GB/T 7762
Water Supply Deionized Water Connection for Humidification
Ambient Operating Temperature +5C to +35C
Chamber Dimensions 750 x 800 x 1200 mm (W x D x H)
Ozone Sensor Type Electrochemical Sensor
Internal Lighting LED
Chamber Material SUS 304 Stainless Steel, Powder-coated outer body
Door Type Observation window with anti-fog heating
Safety Devices Over-temperature, Over-current, Over-ozone alarm
Air Exchange Rate Adjustable
Data Export USB Drive or RS232 Output
Noise Level 65 dB
Sample Rotation Yes, Rotating Specimen Holders
Circulation Method Forced Air Circulation
Ozone Generation Method Ultraviolet (UV) / Corona Discharge
Power Consumption 2.5 kW

Ozone Aging Test Chamber for Rubber Ozone Resistance Testing Trade Information

Delivery Time 5-7 Days

Product Description

Features:

1. The test system has a reasonable structure design, standardized manufacturing process, and beautiful and generous appearance.

2. 24-hour online continuous detection, data can be checked at any time.

3. It adopts an integrated ozone concentration, temperature and humidity controller (the setting method is a light touch button type), with high integration, good reliability, LED display, display resolution temperature (0.1), ozone concentration (1pphm), PID set value control, and easy operation.

4. The dedicated ozone detector meets the internationally recognized standard for ozone detection, with stable performance, automatic zero control, ozone-free cold light source UV lamp with long life and high accuracy.

5. The interface of classic chemical test ozone concentration is reserved for convenient calibration analysis and testing.

6. The equipment has the following safety protection devices: power overload, short circuit protection, control circuit overload, short circuit protection, grounding protection, overtemperature protection, alarm sound prompt, and water shortage protection.

Standards:

GB/T 7762 Vulcanized rubber or thermoplastic rubber Ozone cracking resistance static tensile test

GB/T 24134-2009 Evaluation of ozone resistance of rubber and plastic hoses under static conditions

HG/T 2869 Rubber and plastic hoses-Evaluation of ozone resistance under static conditions

Specification:

1.Model:DH-OA-100

2. Ozone concentration range: 301000pphm (minimum 30pphm without humidity requirement)

3. Ozone generation method: ozone generator method

4. Air speed in the box: 8-20MM/S (range can be adjusted appropriately, cannot be displayed)

5. Ozone concentration fluctuation: 10%, temperature 4055 degrees, humidity 6080% ozone concentration fluctuation 1pphm

7. Temperature resolution: 0.1

8. Temperature fluctuation: 0.5 Temperature range RT+10-60.

9. Humidity range: 20%65%

10 Humidity: 0.1%RH.

11. Rotation mode: 360 degree rotating sample rack (speed 1-5 rpm)

12. Test work: The machine has 6 sets of clamps, three sets of static stretching and three sets of dynamic stretching.

13. Studio size: 500500400 mm (width*depth*height)

14. Equipment weight: about 300 Kg

15. Equipment power supply: 220V 5KW

Introduction of Structure:

1. The test box is an integral structure. The air handling system is located at the lower rear part of the box, and the detection and control system is located on the right side of the test box.

2. There are air duct interlayers on three sides of the studio, distributed heating humidifiers (ordered according to the model), circulating fan blades and other devices. The upper layer of the test box is equipped with a balanced exhaust hole. The gas in the test room needs to be continuously discharged to maintain the balance of the gas concentration in the test box. The test box has a single door and is sealed with ozone-resistant silicone rubber.

3. The test box is equipped with an observation window and a switchable lighting lamp.

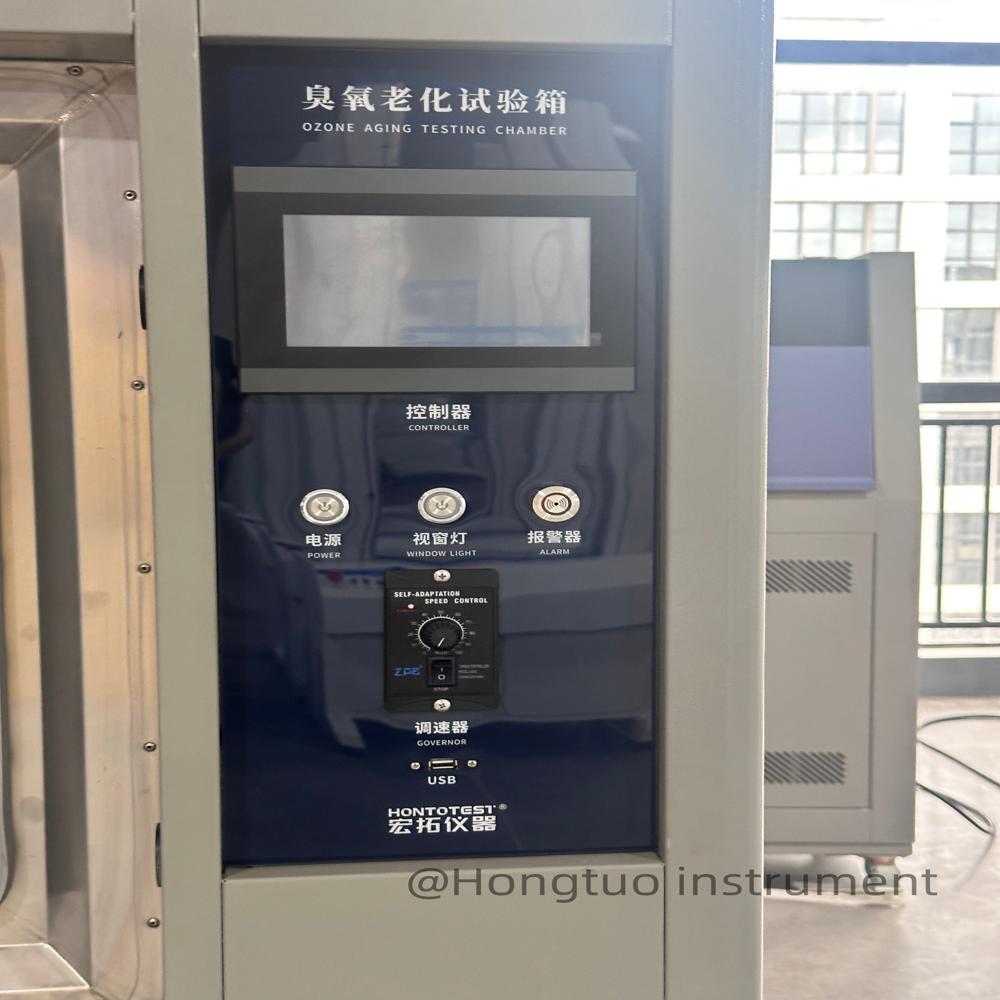

4. The touch screen intelligent controller is located in the right front of the equipment.

5. Air circulation device: built-in circulating air duct, the test airflow is evenly parallel to the surface of the specimen from top to bottom,

6. The shell is made of high-quality cold-rolled plate and the surface is electrostatically sprayed.

7. The air source adopts an electromagnetic oil-free air pump.

8. Stainless steel magnetic electric heater.

9. Silent discharge ozone generating assembly.

10. Special motor, centrifugal convection fan.

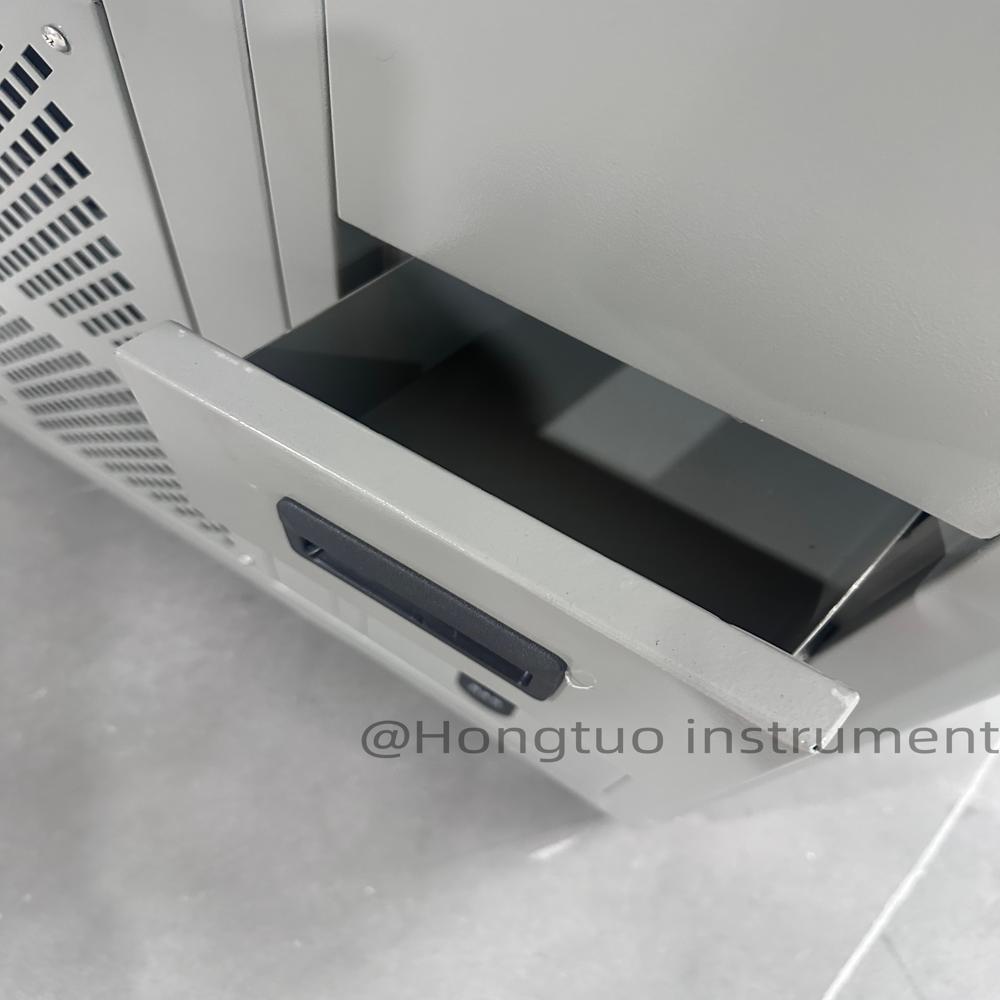

11. Under-mounted water tank water supply, water level automatic control.

12. Gas flow meter, accurately controlling the gas flow at each level.

13. Equipped with gas purification device. (Activated carbon absorption and silica gel drying tower)

14. Embedded industrial control integrated computer (7-inch color touch screen).

Before the equipment is shipped, the equipment list and delivery time must be confirmed with Party A, and the equipment can only be shipped after confirmation. After the equipment arrives, Party B will send a special person to conduct an initial unpacking acceptance of the equipment. The acceptance content is as follows:

a.Whether the equipment specifications, models and quantities are complete;

b.Whether the equipment parts and accessories are complete and intact;

c.Whether the equipment parameters meet the technical requirements;

d.Whether the equipment information is complete;

Precise Ozone Resistance Testing

Utilize state-of-the-art UV or corona discharge ozone generation methods for accurate and repeatable evaluation of rubber and polymer material durability. With an advanced electrochemical ozone sensor and forced air circulation, the chamber maintains consistent testing conditions to meet international standards.

User-Friendly Operation and Safety

The intuitive PLC touch screen interface enables programmable test cycles, data logging, and automation for efficient operation. Integrated safety devices, such as over-temperature and over-ozone alarms, protect samples and equipment throughout the testing process. Observation windows with anti-fog heating permit safe monitoring during tests.

Versatility and Compliance

Designed for use in research, quality control, and manufacturing environments, the chamber's adjustable settings accommodate a variety of specimen sizes and test parameters. It complies with ASTM D1149, ISO 1431, and GB/T 7762, ensuring internationally recognized test results for rubber, plastics, and cables.

FAQ's of Ozone Aging Test Chamber for Rubber Ozone Resistance Testing:

Q: How does the ozone aging test chamber evaluate material ozone resistance?

A: The chamber exposes specimens to controlled ozone concentrations (0-1000 ppm) under set temperature and humidity conditions. Rotating holders ensure uniform exposure, and the effects are monitored over time, providing a reliable measure of material resistance to ozone degradation.

Q: What safety features are incorporated into the chamber during operation?

A: The chamber is equipped with over-temperature, over-current, and over-ozone alarms. The observation window includes anti-fog heating to prevent condensation, and all operations are PLC-controlled to ensure operator and sample safety during accelerated aging cycles.

Q: When should the ozone aging test be used for rubber and polymer products?

A: The test is essential during research, product development, and quality assurance phases, especially for products exposed to outdoor environments or industrial conditions where ozone-related degradation may occur, ensuring long-term durability and compliance with relevant standards.

Q: Where can the data from a test be exported, and how is it accessed?

A: All test data can be exported for further analysis via a USB drive or through the RS232 interface. The results are accessible on the digital LCD display during and after tests, facilitating seamless transfer to computers or laboratory information systems.

Q: What is the process for preparing specimens for ozone resistance testing in the chamber?

A: Specimens, typically measuring 50 x 10 x 2 mm, are mounted on rotating holders inside the 225 L chamber. The operator programs the required ozone concentration, temperature, and humidity via the touch screen. Tests typically run between 1-9999 minutes, depending on requirements.

Q: How does the adjustable air exchange rate and forced air circulation benefit ozone testing?

A: Adjustable air exchange and forced air circulation ensure uniform distribution of ozone and stable environmental conditions throughout the chamber. This improves the accuracy and repeatability of test results by reducing concentration gradients and temperature fluctuations.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Environmental Testing Chamber' category

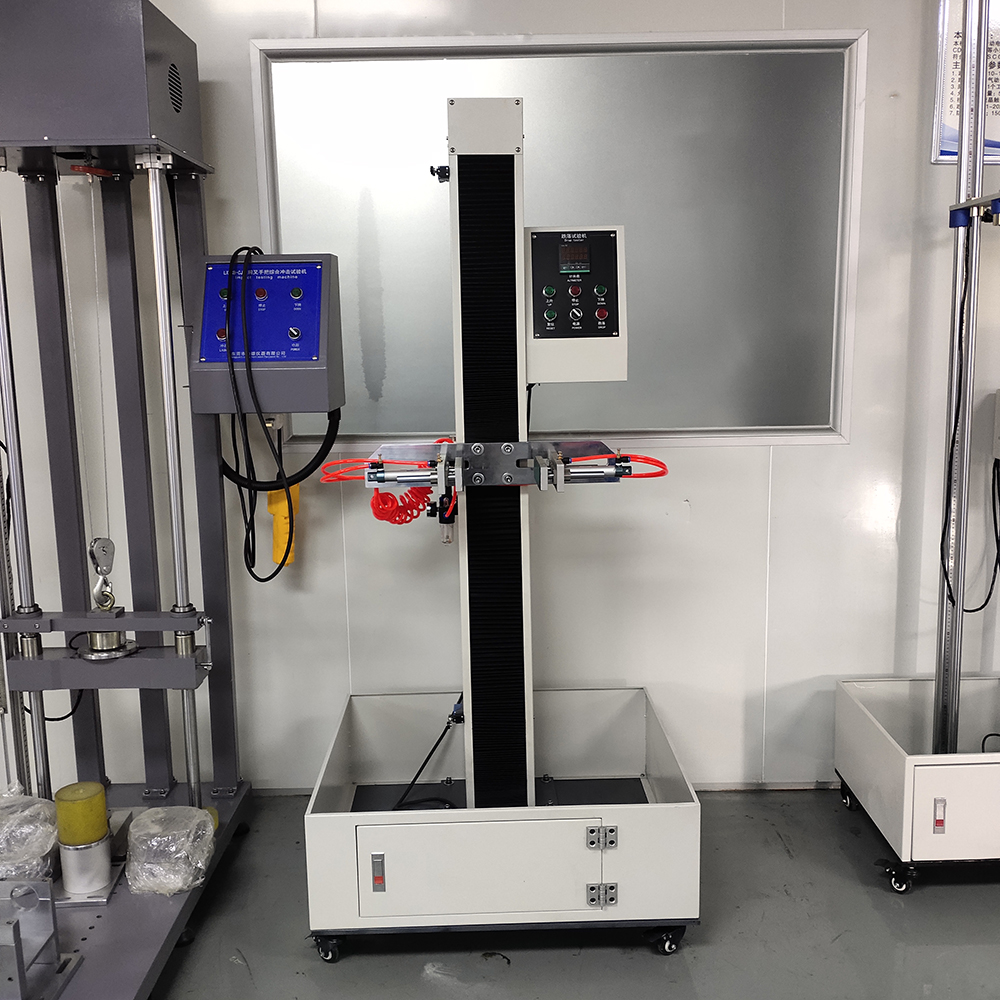

Free Fall Test Machine for Packaging Testing Price : 1588.0 USD ($)/Unit Minimum Order Quantity : 1 Power Supply : AC 220V, 50/60 Hz Control Mode : Digital control panel/manual operation Frequency : 50/60 Hz Temperature : 10C ~ 35C operating Features : Mobile base with lockable wheels, adjustable clamps, safety guard Machine Weight : Approx. 120 kg Max Height : 1200 mm Capacity : Maximum test load 100 kg Automation Grade : Semiautomatic Interface Type : Keypad/Panel operation Test Speed : Adjustable, 12 drops/minute Mounting Type : Floorstanding with casters Resolution : 1 mm Equipment Type : Free Fall Drop Test Machine Measuring Range : Drop height: 0~1200 mm Number of Specimens : Single specimen per test Specimen Size : Maximum 500 x 500 x 700 mm Usage : Carton/packaging impact drop test Application : Packaging drop, impact and damage resistance testing Humidity : 85% RH Port Size : Standard test area 500 x 600 mm Response Time : Instantaneous (within milliseconds) Test Width : Up to 500 mm Accuracy : 2 mm in drop height Test Range : 01200 mm drop height Display Type : Digital height display Operating Voltage : 220V Test Stroke : 01200 mm (adjustable) Hardness : Industrialgrade construction Gas Pressure : 0.50.7 MPa (if equipped with air clamp)

Send Inquiry

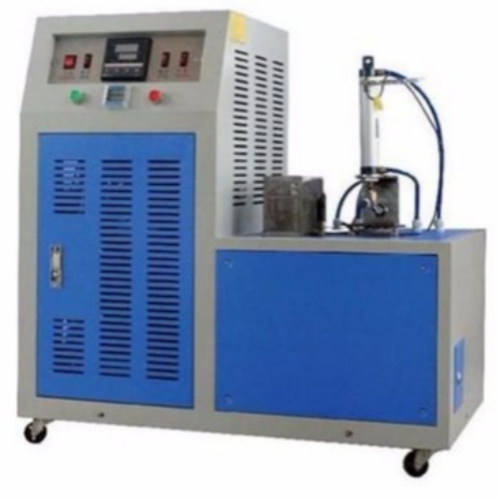

Low Temperature Brittleness Tester for Rubber and Plastic Materials Price : 2700.0 USD ($)/Unit Minimum Order Quantity : 1 Power Supply : AC 220V, 50Hz Control Mode : Digital Control Panel Frequency : 50Hz Temperature : 70C to room temperature Features : Programmable, Energy Efficient, Portable Machine Weight : 110 kg Max Height : 900 mm Capacity : 5 Specimens/Batch Automation Grade : SemiAutomatic Interface Type : Digital Test Speed : 200 mm/min Mounting Type : Floor Standing Resolution : 0.1C Equipment Type : Low Temperature Brittleness Tester Measuring Range : 70C to 20C Number of Specimens : Up to 5 Specimen Size : 25 mm 6 mm 2 mm Usage : Laboratory/Industrial Application : Rubber and plastic material brittleness testing at low temperature Humidity : 85% RH Port Size : 8 mm (Air Inlet) Response Time : 3 seconds Test Width : 6 mm Accuracy : 0.5C Test Range : 70C to 20C Display Type : Digital LED Operating Voltage : 220V / 50Hz Test Stroke : 60 mm Gas Pressure : 0.20.3 MPa

Send Inquiry

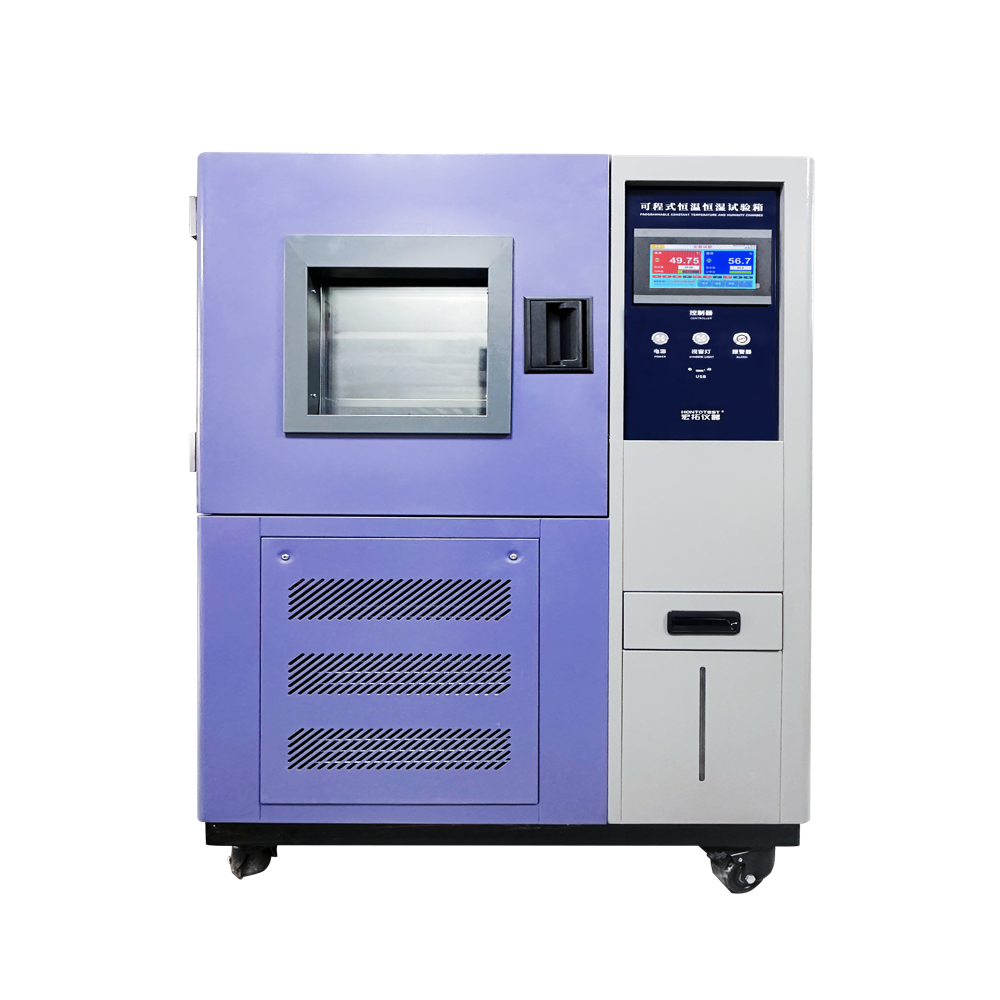

Laboratory Temperature and Humidity Test Chamber DH-100 Price : 3094.00 INR/Set Minimum Order Quantity : 1 Power Supply : 220V AC, 50Hz, Single Phase Control Mode : Programmable Microprocessor PID Controller Frequency : 50 Hz Hertz (HZ) Temperature : 0 C/20 C/40 C/60 C/70 C~+100 C(+150 C) Celsius (oC) Features : Overtemperature protection, automatic alarm, stainless steel inner chamber, viewing window, programmable cycles, wheels for mobility Machine Weight : Approx. 250300 kg Kilograms (kg) Max Height : Internal 650 mm Capacity : 150L (approximate chamber volume) Ltr Automation Grade : Automatic Interface Type : RS232/USB (optional) Test Speed : Adjustable, typically 0.51.7C/min (heating/cooling) Mounting Type : Floor Standing Resolution : Temperature: 0.1C; Humidity: 0.1% RH Equipment Type : Laboratory Temperature and Humidity Test Chamber Measuring Range : Temperature: 40C to +150C; Humidity: 20%98% RH Kelvin (K) Number of Specimens : 110 (varies by size) Specimen Size : Custom fitting inside chamber, up to 500x500x500 mm Millimeter (mm) Usage : Testing material and product behavior under varied temperature and humidity Application : Environmental simulation, stability testing, research, quality control Humidity : 20%RH98%RH Port Size : 50 mm (Access port diameter) Response Time : Instantaneous readout, stabilization in 20 minutes Seconds Test Width : 600 mm (Chamber internal width) Millimeter (mm) Accuracy : Temperature: 0.5C; Humidity: 2.5% RH % Test Range : Wide programmable temperature/humidity cycles Display Type : Digital LCD Touch Screen Operating Voltage : 220V Volt (V)

Send Inquiry

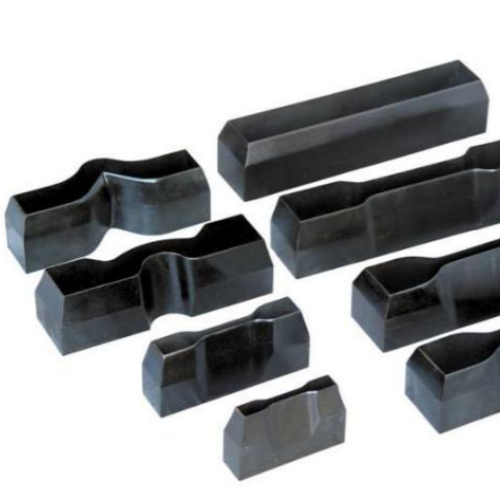

Laboratory Die Cutter for Material Specimen Preparation Price : 90.0 USD ($)/Unit Minimum Order Quantity : 1 Power Supply : Not Required (Manual) Control Mode : Manual Temperature : +10C to +35C (operating) Features : Interchangeable die sets, robust construction, rapid operation Machine Weight : Approximately 25 kg Max Height : Up to 8 mm material thickness Capacity : Single Die Cut per Press Automation Grade : Manual Interface Type : Manual lever or hydraulic press Test Speed : Manual Operation Mounting Type : Bench top Resolution : Defined by die set Equipment Type : Laboratory Die Cutter Measuring Range : Depends on thickness of material (up to 8 mm) Number of Specimens : 1 per Operation Specimen Size : ASTM, ISO, DIN, or custom sizes depending on die used Usage : Cutting of specimens for tensile, tear, or elongation testing Application : Preparation of material specimens for testing Humidity : 15% 80% RH Port Size : Standard Die Set Port Response Time : Immediate, manual cut Test Width : Up to 150 mm Accuracy : Precision die fitting, 0.05 mm Test Stroke : Max 50 mm Hardness : Hardened steel construction for dies
