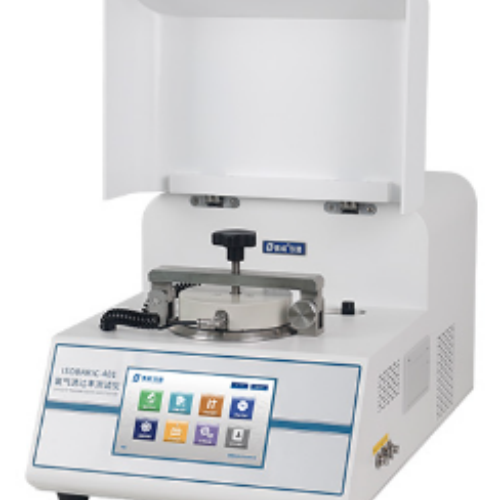

Oxygen Transmission Rate Tester for Packaging Film Testing

Name: Oxygen Transmission Rate Tester for Packaging Film Testing
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 16969.0 USD
Availability: InStock

16969.0 USD ($)/Piece

Get a Price/Quote

Product Details:

Mounting Type Table-top
Number of Specimens 1 (single test cell)
Display Type 7-inch color LCD touch screen
Interface Type USB, Ethernet
Application Oxygen permeability testing in packaging films
Equipment Type Oxygen Transmission Rate Tester
Automation Grade Automatic
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Oxygen Transmission Rate Tester for Packaging Film Testing Price And Quantity

Price 16969.0 USD ($)/Piece
Minimum Order Quantity 1 Piece

Oxygen Transmission Rate Tester for Packaging Film Testing Product Specifications

Port Size 6 mm gas inlet/outlet
Humidity 0~85% RH (controlled)
Power Supply AC 220V, 50Hz
Measuring Range 0.01~1000 cc/m2day
Operating Voltage 220 V
Frequency 50 Hz
Machine Weight Approx. 50 kg
Resolution 0.01 cc/m2day
Accuracy 1% of reading
Response Time Within 30 seconds
Usage Laboratory analyzer
Number of Specimens 1 (single test cell)
Mounting Type Table-top
Max Height 320 mm
Automation Grade Automatic
Application Oxygen permeability testing in packaging films
Equipment Type Oxygen Transmission Rate Tester
Interface Type USB, Ethernet
Display Type 7-inch color LCD touch screen
Specimen Size 97 mm diameter
Test Speed Adjustable, up to 5 tests per hour
Control Mode Touch screen PLC control
Capacity Maximum 1000 cc/m2day
Test Range 0.01~1000 cc/m2day
Test Stroke 0-25 mm adjustable
Test Width Up to 100 mm (film sample width)
Features User-friendly interface, automatic data saving, multi-parameter reporting
Temperature 15~55C (0.1C)
Gas Pressure 0.4 - 0.6 MPa

Test Atmosphere Oxygen/Nitrogen (customizable for other gases)
Alarm Function Automatic error alarm for out-of-range values
Calibration Automatic and manual calibration modes
Data Storage Large capacity internal memory, exportable
Test Principle Coulometric sensor analysis (equal pressure method)
Compliance Standard ASTM D3985, ISO 15105-2, JIS K7126
Language Multi-language supported (English/Chinese/Others)
Working Environment Temperature 10-35C, Humidity < 85% RH (non-condensing)

Product Description

Product Features

High precise coulometric sensor.

One independent test chamber can test one sample for each test.

The stability of the temperature ensures the consistency of test conditions of chambersoptional.

High-precise and automatic control system of temperature can be used under different conditions.

The data can be stored and outputted in multi-format (including reports in excel and cloud sharing).

GMP management of user's three-level authority complies with international standards.

The instrument processes statistical analysis of single and group data.

Equipped with ISP control online and upgrade function.

Specialized communicating software can display in real-time, analyze and store data.

Test Principle

The pre-conditioned specimen is mounted between the upper and lower chambers at ambient atmospheric pressure. One chamber contains oxygen or air and the other chamber is slowly purged by a stream of nitrogen. Due to the concentration difference between the two chambers, oxygen molecules permeate through the specimen into the nitrogen side and are taken to the coulometric sensor where proportional electrical signals are generated. The oxygen transmission rate is then obtained by analyzing and calculating the signals. For package samples, high purity nitrogen flows inside the package, and oxygen or air flows outside.

Test Standards

ISO 15105-2, GB/T 19789, ASTM D3985, ASTM F2622, ASTM F1307, ASTM F1927, JIS K7126-2, YBB 00082003

Technical Date Sheet

Test Range	0.1 10000 cc/(m2day)
Number of Specimen	1
Resolution	0.0001 cc/(m2day)
Range of Temperature	10C 60C Optional
Accuracy of Temperature	0.1C
Test Area	50 cm
Sample Size	97 mm 97 mm (Customization is available for other size)
Sample Thickness	3 mm (Customization is available)
Tested Gas	99.5% Oxygen (Prepared by customer)
Carrier Gas	99.999% high purity Nitrogen Prepared by customer
Gas scourse Pressure	7.2 PSI / 50 kPa
Port Size	1/8 inch Metal Tube
Dimension	400 mm (L) 475 mm (W) 450 mm (H)
Weight	25kg
Power	220V 50Hz

Configurations

Standard: Instrument, Professional Software, Communication Cable, Sample Cutter.

Optional: Reference Film, temperature control device.

Note: 1. The air connection of the instrument is 1/8 inch Metal Tube.

2. Customers need to prepare for air source and distilled water.

Please Note: Hongtuo is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice.Hongtuo reserves the rights of final interpretation and revision.

Advanced Oxygen Permeability Testing

This Oxygen Transmission Rate Tester offers advanced analysis for packaging films, relying on the coulometric sensor (equal pressure method) for precise oxygen permeability measurements. Its automatic and manual calibration options ensure reliable and repeatable results, while compliance with key international standards supports a broad range of testing requirements and regulatory needs.

User-Centric Features and Data Management

Featuring a 7-inch color LCD touch screen, the tester delivers a highly intuitive interface. With automatic data saving, large-capacity memory, and seamless export via USB or Ethernet, the device streamlines record-keeping and reporting. Multi-parameter data reports enable comprehensive analysis for researchers and quality control professionals.

Flexible Testing Environment and Automation

Designed to handle various atmospheric conditions, the instrument allows testing with oxygen or nitrogen and has customizable options for other gases. The test speed, temperature, and humidity are all adjustable, enabling tailored testing protocols. Automated alarms for out-of-range values and user-friendly controls make routine laboratory operations straightforward and efficient.

FAQ's of Oxygen Transmission Rate Tester for Packaging Film Testing:

Q: How does the Oxygen Transmission Rate Tester measure oxygen permeability in packaging films?

A: This tester determines oxygen permeability using a coulometric sensor and equal pressure method. The film sample is placed in the test chamber, and oxygen transmission is measured electronically, providing accurate and immediate results in compliance with recognized standards.

Q: What are the benefits of using automatic and manual calibration modes on the instrument?

A: Automatic calibration ensures consistent measurement accuracy and reduces the potential for user error, while manual calibration allows experienced operators to fine-tune the system for specific testing needs, maximizing versatility and precision.

Q: When should I perform calibration on the tester?

A: Calibration should be conducted prior to initial use, after any significant maintenance, and periodically as per laboratory protocols or when required by quality management standards to ensure consistent accuracy.

Q: What is the process for exporting test data from the device?

A: Test data are automatically saved to the device's internal memory. These records can be conveniently exported via the USB port or Ethernet interface, streamlining integration with laboratory information management systems and external reporting.

Q: Where can this Oxygen Transmission Rate Tester be used?

A: The tester is typically used in laboratory environments for testing packaging films, including food, pharmaceuticals, and industrial materials, where assessing oxygen barrier properties is critical for quality control and research.

Q: How does the alarm function work during testing?

A: The instrument features an automatic alarm system that notifies users immediately when test values fall outside the preset acceptable range, helping maintain testing integrity and supporting prompt corrective actions.

Q: What advantages does the 7-inch LCD touch screen provide for users?

A: The large color touch screen offers a highly interactive and user-friendly interface, simplifying parameter settings, real-time monitoring, and result interpretation, which enhances overall operational efficiency for laboratory personnel.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Plastic and Rubber Testing Equipment' category

DH-300B-6 Thermal Deformation, Vicat Softening Point Temperature Tester Price : 3614.00 USD ($)/Set Minimum Order Quantity : 1 Power Supply : AC 220V, 50Hz Usage : For plastic/rubber lab analysis Control Mode : Microprocessor/PID Automatic Control Humidity : 80% RH (ambient) Operating Voltage : 220V 10%, 50Hz Measuring Range : 0~1 mm for deformation measurement Accuracy : Temperature: 0.1C, Displacement: 0.01 mm Resolution : Temperature: 0.01C, Displacement: 0.001 mm Frequency : 50 Hz Machine Weight : 80 kg Response Time : Instantaneous electronic response Mounting Type : Floorstanding Number of Specimens : 6 specimens at a time Display Type : Digital LCD Display Interface Type : RS232/USB (optional) Application : Determination of thermal deformation temperature and Vicat softening point of nonmetallic materials (plastics, rubber, etc.) Equipment Type : Thermal Deformation and Vicat Softening Point Tester Max Height : 600 mm Automation Grade : Automatic Capacity : 6 stations Test Range : Vicat (50C ~ 300C), Deflection (50C ~ 300C) Test Speed : 50 mm/h, 120 mm/h (selectable) Specimen Size : Vicat: 1010(3~6) mm, Deflection: 12712.7(3~13) mm Temperature : Room temp. ~ 300C (adjustable) Features : Automatic timing, automatic temperature rise, curve display, overtemperature protection Test Stroke : 0~10 mm Port Size : Standard Specimen Basket Holders Test Width : 10 mm, 15 mm, 12.7 mm (standard specimen width) Hardness : N/A (Not applicable to this tester) Gas Pressure : No compressed gas required

Send Inquiry

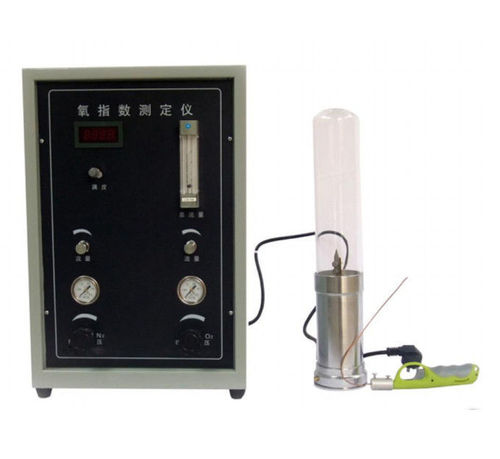

Oxygen Index Testing Machine Oxygen Index Tester For Cables DH-OI-02 Price : 796.00 INR/Set Minimum Order Quantity : 1 Power Supply : 230V AC, 50 Hz Usage : For laboratory and industrial cable & polymer material flammability testing Control Mode : Manual and Automatic Control Humidity : Relative Humidity: 85% Operating Voltage : 230V AC Volt (V) Measuring Range : Oxygen Index 21%100% Kelvin (K) Accuracy : 0.1% O2 index % Resolution : 0.1% O2 index Frequency : 50 Hz Hertz (HZ) Machine Weight : Approx. 30 kg Kilograms (kg) Response Time : < 10 seconds Seconds Mounting Type : Benchtop Number of Specimens : Single specimen per test Display Type : Digital LED/LCD Display Interface Type : Analog with optional RS232 output Application : Determining minimum oxygen concentration that will support combustion of plastic, cable and polymer materials Equipment Type : Oxygen Index Testing Machine Max Height : 800 mm (including stand) Automation Grade : Semiautomatic Capacity : One sample per cycle Ltr Test Range : Oxygen concentration 21%100% Test Speed : Standard (Manual as per ASTM D2863) Specimen Size : Length: 70150 mm; Width: 6.5 mm or as per standards Millimeter (mm) Temperature : Room Temperature (1535C) Celsius (oC) Features : Corrosion resistant chamber, quick connect gas inlets, flame height marker Test Stroke : Not applicable (static test chamber) Port Size : 1/4 inch gas tube connection Test Width : Suitable for standard specimen (up to 10 mm) Millimeter (mm) Gas Pressure : 0.20.3 MPa mpa

Send Inquiry

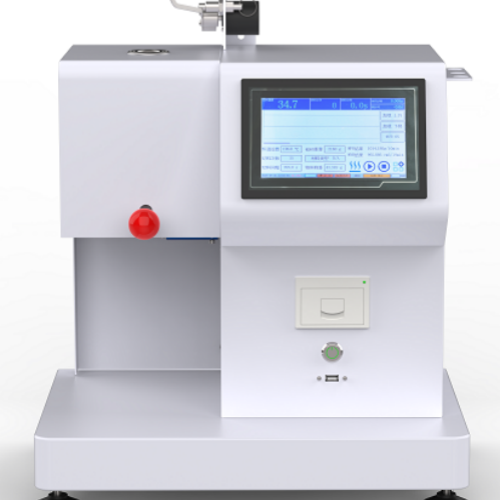

Plastic Melt Flow Rate Index Tester MFI Testing Device Price : 1617.00 INR/Set Minimum Order Quantity : 1 Power Supply : 230V AC, 50Hz, Single Phase Usage : Plastic laboratories, QC labs, R&D Centers Control Mode : Microprocessor based digital control Humidity : Less than 85% RH (noncondensing) Operating Voltage : 230V AC Volt (V) Measuring Range : 0.1 999.9 g/10 min Kelvin (K) Accuracy : 0.01 g/10 min % Resolution : 0.01 g Frequency : 50 Hz Hertz (HZ) Machine Weight : Approx. 20 kg Kilograms (kg) Response Time : Instant (on test completion) Seconds Mounting Type : Benchtop Number of Specimens : 1 at a time Display Type : Digital LED/LCD display Interface Type : Manual / Digital (depending on model) Application : Testing melt flow index (MFI) of plastic materials such as PP, PE, ABS, etc. Equipment Type : Plastic Melt Flow Rate Index Tester Max Height : Approx. 600 mm Automation Grade : Semiautomatic / Fully automatic (based on model) Capacity : 2 kg, 5 kg & 10 kg dead weights (as per models) Kg Test Range : 0.1 to 999.9 g/10 min Test Speed : Standard as per ISO 1133 / ASTM D1238 Specimen Size : Standard granule, pellet or powder Millimeter (mm) Temperature : Ambient to 400 C (PID controlled) Celsius (oC) Features : PID temperature control, corrosion resistant sleeve, autocut off, userfriendly, overheat protection Test Stroke : Manual / Motorised (as per model) Port Size : Standard Barrel, 9.55 mm ID
