Oriented Drop Testing Machine for Packaging Testing

Name: Oriented Drop Testing Machine for Packaging Testing
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 6176.0 USD
Availability: InStock

6176.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Accuracy 2 mm
Power Supply AC 220V, 50 Hz
Number of Specimens 1 per test cycle
Equipment Type Oriented Drop Testing Machine
Max Height 1200 mm
Port Size Standard 1/4 Pneumatic Inlet
Application Packaging carton, container, packaging box drop test
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Oriented Drop Testing Machine for Packaging Testing Price And Quantity

Minimum Order Quantity 1 Unit
Price 6176.0 USD ($)/Unit

Oriented Drop Testing Machine for Packaging Testing Product Specifications

Humidity Less than 85% RH
Features Enclosed safety structure, automatic drop, programmable test cycles
Measuring Range 0-1200 mm drop height
Test Width Up to 600 mm
Capacity Up to 80 kg
Resolution 1 mm
Test Range 5-80 kg
Temperature Room temperature (10C-35C)
Test Stroke 0-1200 mm
Response Time Instant (less than 0.5 s)
Interface Type Digital PLC Interface
Automation Grade Automatic
Mounting Type Floor Standing with Lockable Wheels
Hardness Frame: 80HRB
Machine Weight Approx. 250 kg
Usage Drop impact resistance, packaging performance evaluation
Operating Voltage 220V AC
Specimen Size Max. 800 x 600 x 600 mm
Gas Pressure 0.5-0.7 MPa
Frequency Single/Programmed Drops
Test Speed Adjustable (standard: 300 mm/s - 600 mm/s)
Display Type 7-inch Color Touch Screen
Port Size Standard 1/4 Pneumatic Inlet
Application Packaging carton, container, packaging box drop test
Accuracy 2 mm
Max Height 1200 mm
Control Mode Touch Screen PLC Control
Power Supply AC 220V, 50 Hz
Equipment Type Oriented Drop Testing Machine
Number of Specimens 1 per test cycle

Data Export USB/Data Output Enabled
Software Support PC Connectivity, Test Report Output
Protective Door Automatic Interlocking Safety Door
Safety Alarms Audible and Visual Alarms on Completion/Error
Noise Level Less than 70 dB
Compliant Standards ISO 2248, ASTM D5276, ISTA 1A
Mobility Equipped with Lockable Caster Wheels for Easy Movement
Language Support English/Chinese Touch Interface
Material Industrial-grade Aluminum Alloy Frame with Acrylic Panels
Cycle Memory Stores up to 99 Test Programs

Product Description

Introduction:

The mobile phone drop tester is suitable for testing the durability of the casing and the resistance of the internal structure to (heavy) drops. It is used to evaluate the impact of accidental drops on product performance during actual customer use. It is suitable for drop tests on small electronic products such as mobile phones, tablets, e-readers, and electronic dictionaries in specified directions or locations. The system uses a touchscreen and PLC to communicate, controlling a brake stepper motor to drive the lifting and lowering of the clamps on the drop mechanism, and coordinating with the release device and the release action of the clamps to achieve the drop test.

Features:

1. The frame is constructed of aluminum profile and thickened transparent acrylic, resulting in an aesthetically pleasing and robust structure.

2. The lifting mechanism uses linear guide rails and synchronous belt drive for lifting, allowing for arbitrary setting of the test height.

3. Enables multi-angle testing of products.

4. Employs a touchscreen and PLC control system, displaying data such as test height and number of drop tests.

5. The equipment includes a safety light curtain (automatic shutdown when a hand enters the testing area).

Technical Parameters:

1. Operation Method: Touchscreen settings for relevant data (height, real-time acceleration > 9.2m/s)

2. Drive Method and Drop Angle: Braked stepper motor drive, omnidirectional drop.

3. Drop Height Range: 300-1500mm (adjustable), displacement accuracy +0.5mm

4. Drop Mode: Directional + Free Drop, switchable.

5. Clamp Adjustment: Adjustable angles are 0, 45, and 90.

6. Clamping Method: Cylinder clamping.

7. Clamping Range: 0180mm.

8. Controller: This controller can rotate 360.

9. Drop Contact Surface: Marble slab, steel plate, wooden board.

10. Drop Method: Repeated drop.

11. Test Data: Drop height.

12. Air Pressure: 0.20.6Mpa.

13. Dimensions: 800*1000*2200mm (L/W/H) (with safety door).

14. Machine Weight: 150kg.

15. Power: 1000W.

16. Power Supply: AC 220V 50Hz.

Efficient and Reliable Drop Testing

Engineered for precision, the Oriented Drop Testing Machine streamlines package drop impact evaluation with automated programmable cycles and an intuitive 7-inch color touch screen. It complies with major international standards, ensuring your test results meet global requirements. The machine's adjustable drop height and test speed cater to diverse packaging sizes and weights, delivering accurate insights on product packaging durability.

Advanced Safety and User-Friendly Design

The machine features an enclosed safety structure with an automatic interlocking protective door, ensuring secure operation. Audible and visual alarms promptly notify users upon test completion or errors, while the enclosed design keeps noise below 70 dB. Its floor-standing frame with lockable wheels allows easy movement within test facilities without compromising stability or safety.

Comprehensive Data Management

Equipped with digital PLC controls and PC connectivity, the drop tester enables seamless programming, data storage, and export via USB. Up to 99 test programs can be stored, with instant result reporting and outputs in both English and Chinese. This efficient data handling supports thorough packaging performance analysis and compliance documentation.

FAQ's of Oriented Drop Testing Machine for Packaging Testing:

Q: How does the Oriented Drop Testing Machine ensure operator safety during testing?

A: Operator safety is prioritized through an automatic interlocking protective door that prevents the machine from operating when open. In addition, the machine is equipped with both audible and visual safety alarms that activate upon test completion or error detection.

Q: What types of packaging can be tested with this equipment?

A: This machine is suitable for a variety of packaging, including cartons, containers, and boxes, accommodating specimens up to 800 x 600 x 600 mm in size and weighing up to 80 kg. Its adjustable drop height and width make it versatile for different packaging materials and formats.

Q: Where can this drop testing machine typically be used?

A: The Oriented Drop Testing Machine is ideal for use in packaging laboratories, manufacturing quality control departments, research centers, and distribution facilities that require reliable and standard-compliant packaging durability assessments.

Q: What is the process for setting up and conducting a drop test?

A: To conduct a test, users place a specimen onto the testing platform, configure the drop parameters using the touchscreen PLC interface, and select the appropriate test program. The machine automatically performs the programmed drop, records results, and can export data for further analysis or reporting.

Q: When should packaging drop tests be performed?

A: Drop tests are essential during packaging design development, quality control, and before launching a product to ensure packaging can withstand handling and shipping impacts according to ISO, ASTM, and ISTA standards.

Q: How does the machine support data management and reporting?

A: The machine supports comprehensive data management with PC connectivity and USB output. It stores up to 99 test programs, outputs results as detailed reports, and offers a multilingual touch interface for streamlined workflow and documentation.

Q: What are the main benefits of using this drop testing machine for packaging evaluation?

A: This machine provides accurate, repeatable drop impact measurements with automated operation, high safety standards, compliant results, and efficient data handling. It helps reduce packaging failures, ensures regulatory compliance, and enhances product protection during shipping.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Environmental Testing Chamber' category

Climate Salt Spray Salt Mist Corrosion Resistance Testing Equipment DHL-120 Price : 1976.00 INR/Set Minimum Order Quantity : 1 Display Type : Digital LED Display Specimen Size : 150 mm 70 mm max each Millimeter (mm) Frequency : 50 Hz Hertz (HZ) Usage : Industry laboratory testing Operating Voltage : 220V Volt (V) Max Height : 450 mm (internal chamber) Number of Specimens : Up to 30 (varies with specimen size) Control Mode : Automatic Digital Control Equipment Type : Salt Spray Salt Mist Corrosion Resistance Testing Equipment Power Supply : AC 220V, 50Hz Accuracy : Temperature: 0.5 C, Humidity: 2% % Application : Corrosion resistance testing for metal, coatings, and painted surfaces Resolution : Digital 0.1 C Capacity : 108 liters Ltr Humidity : 95% RH or above Features : Corrosion resistant chamber, automatic spraying, programmable settings, overtemperature protection Mounting Type : Floor standing Automation Grade : Automatic Machine Weight : Approx. 65 kg Kilograms (kg) Interface Type : Keypad controller, digital display Temperature : 35 C 1 C (test chamber) Celsius (oC) Response Time : Immediate (realtime monitoring) Seconds Gas Pressure : 1.002.00 kg/cm2 mpa Port Size : Standard 1/4 NPT Measuring Range : Salt spray concentration: 5% NaCl solution standard Kelvin (K) Test Range : Programmable cycle Test Speed : Continuous (adjustable) Test Width : 600 mm Millimeter (mm) Test Stroke : 400 mm Hardness : Corrosionresistant, ABS/PP chamber

Send Inquiry

UV Resistant Aging Accelerated Weathering Test Equipment for Lab Price : 5036.00 INR/Set Minimum Order Quantity : 1 Display Type : Digital LCD display Specimen Size : 75 x 150 mm Millimeter (mm) Frequency : 50 Hz Hertz (HZ) Usage : Laboratory accelerated aging & weather resistance testing Operating Voltage : 220V AC Volt (V) Max Height : 1350 mm Number of Specimens : Up to 48 pieces per cycle Control Mode : Programmable digital controller Equipment Type : Accelerated Weathering Test Equipment Power Supply : AC 220V 10%, 50Hz Accuracy : UV irradiance 0.01 W/m2 % Application : Aging, weathering, and UV resistance testing Resolution : 0.01 C (temperature), 1% RH (humidity) Capacity : 150 liters Ltr Humidity : 90%RH Features : UVresistant, corrosionproof chamber, programmable cycles, realtime data recording Mounting Type : Floor standing Automation Grade : Fully automatic Machine Weight : 105 kg Kilograms (kg) Interface Type : Touch screen interface Temperature : RT+10~70 C Celsius (oC) Response Time : 3 seconds Seconds Gas Pressure : No external gas required (air cooled) mpa Port Size : Standard test chamber port 50 mm Measuring Range : Ultraviolet irradiation, temperature, humidity Kelvin (K) Test Range : UV exposure, spray, condensation Test Speed : Adjustable (0~99 hours) per test cycle Test Width : 75 mm Millimeter (mm) Test Stroke : 300 mm Hardness : Stainless steel chamber

Send Inquiry

Tower Type UV Aging Testing Chamber DH-RUV-1 Price : 5227.00 USD ($)/Set Minimum Order Quantity : 1 Display Type : Digital Display (LCD Touchscreen) Specimen Size : Custom Sizes Supported Millimeter (mm) Frequency : 50 Hz Hertz (HZ) Usage : Material Testing, Quality Control Operating Voltage : 220V AC Volt (V) Max Height : 1800 mm Number of Specimens : 110 (Adjustable) Control Mode : Microprocessor Based Controller Equipment Type : Temperature Humidity Testing Chamber Power Supply : 220V/50Hz Accuracy : 0.5C; 2% RH % Application : Laboratory Environmental Testing Resolution : 0.1C; 0.1% RH Capacity : 120 L Ltr Humidity : 20%RH98%RH Features : Programmable Cycles, Data Logging, Alarm System Mounting Type : Floor Standing Automation Grade : Automatic Machine Weight : 350 Kg Kilograms (kg) Interface Type : RS232, USB Temperature : 0 C/20 C/40 C/60 C/70 C~+100 C(+150 C) Celsius (oC) Response Time : Instant Feedback (Less than 1 min) Seconds Gas Pressure : Ambient mpa Port Size : Standard 50 mm Measuring Range : 30% 98% RH, 70C to +150C Kelvin (K) Test Range : Wide Test Speed : Adjustable Test Width : Up to 1000 mm Millimeter (mm) Test Stroke : Customizable

Send Inquiry

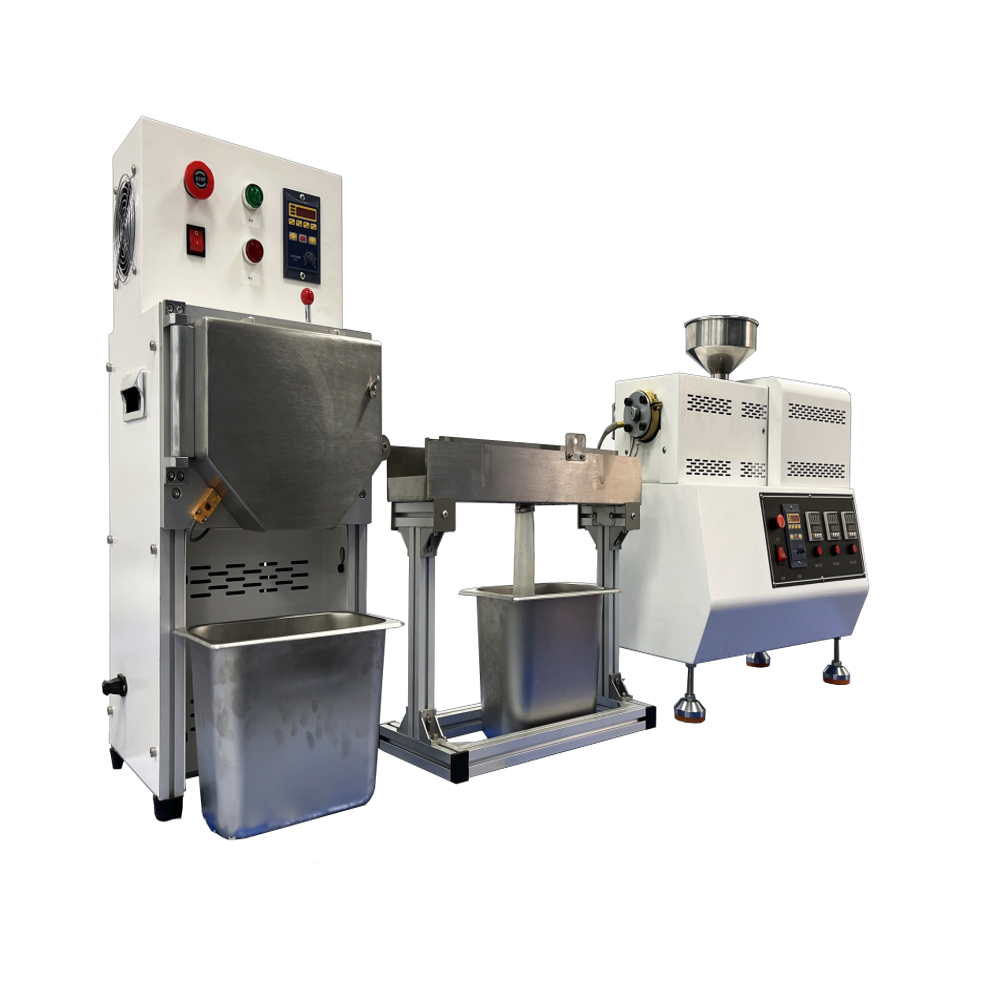

Single Screw Tabletop Laboratory Extruder for Polymer Processing Price : 3847.0 USD ($)/Unit Minimum Order Quantity : 1 Display Type : Digital LED Specimen Size : Customizable (depends on die) Frequency : 50 Hz Usage : Laboratory, sample formulation Operating Voltage : 220V AC Max Height : Approx. 550 mm Number of Specimens : 1 at a time (single run) Control Mode : Digital PID Controller Equipment Type : Single Screw Tabletop Laboratory Extruder Power Supply : 220V, 50 Hz Accuracy : 1C (temperature control) Application : Polymer processing, R&D, laboratory education Resolution : 0.1C (display resolution) Capacity : 0.5 2 kg/hr Humidity : Ambient, noncondensing Features : Compact, portable, digital PID, robust design Mounting Type : Tabletop Automation Grade : Semiautomatic Machine Weight : Approx. 70100 kg Interface Type : Panel control, optional USB data output Temperature : Room temp. to 300C (controlled) Response Time : Instantaneous (display), heating in 12 min increments Port Size : Standard hopper input, custom die output Measuring Range : Temperature: RT to 300C Test Range : Small capacity, lab scale Test Speed : 0.1 10 rpm (adjustable) Test Width : Up to 60 mm Test Stroke : Variable, max. 400 mm
