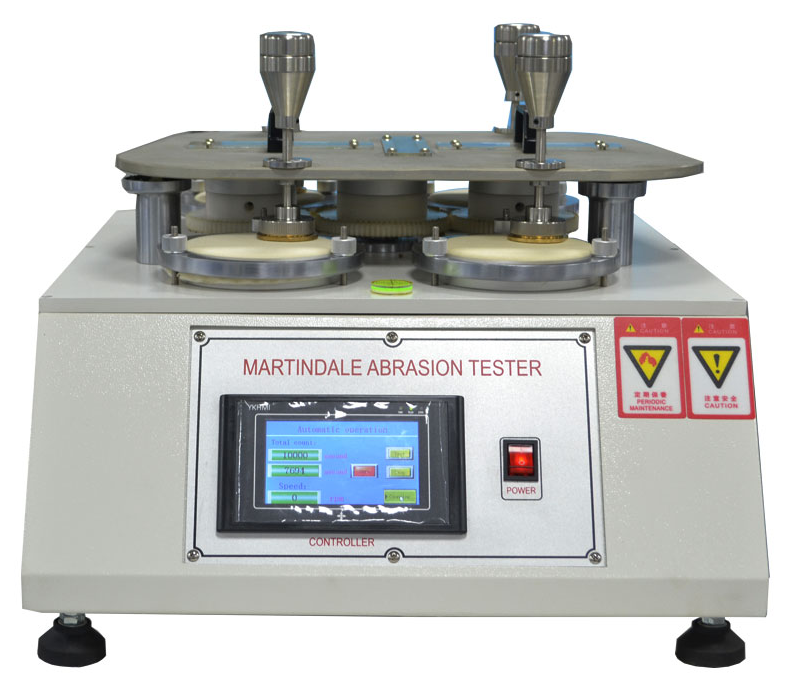

Martindale Abrasion Tester for Textile Testing

Martindale Abrasion Tester for Textile Testing

Name: Martindale Abrasion Tester for Textile Testing
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 1650.0 USD
Availability: InStock

1650.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Measuring Range 0-999,999 cycles
Application Textile Abrasion and Pilling Resistance Testing
Specimen Size Circular, 38 mm & 140 mm diameter
Display Type LCD digital display
Power Supply AC 220V, 50Hz
Operating Voltage AC220V 10%
Frequency 50 Hz
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Martindale Abrasion Tester for Textile Testing Price And Quantity

Minimum Order Quantity 1 Unit
Price 1650.0 USD ($)/Unit

Martindale Abrasion Tester for Textile Testing Product Specifications

Response Time Instant
Humidity 20-80% RH (Operating environment)
Machine Weight Approx. 50 kg
Temperature 15-35C (Operating environment)
Max Height Approx. 400 mm (machine dimensions)
Hardness Specimen holder according to ISO standards
Automation Grade Semi-automatic
Interface Type Keypad input / digital interface
Features Programmable, audible alarm, compact body
Accuracy 1 cycle
Equipment Type Martindale Abrasion Tester
Test Range Up to 999,999 cycles
Number of Specimens 4 or 6 or 8 positions (selectable model)
Mounting Type Benchtop
Test Stroke 60.5 0.5 mm
Control Mode Digital LCD control panel
Frequency 50 Hz
Usage Durability and wear resistance testing for fabrics
Port Size Standard specimen ports (100 mm, 38 mm)
Resolution 1 cycle
Specimen Size Circular, 38 mm & 140 mm diameter
Display Type LCD digital display
Power Supply AC 220V, 50Hz
Measuring Range 0-999,999 cycles
Application Textile Abrasion and Pilling Resistance Testing
Operating Voltage AC220V 10%
Test Speed 47.5 5 rpm
Capacity Multiple specimen holders

Dimension 610 x 530 x 420 mm
Noise Level <65 dB(A)
Abradant Material Woven wool fabric
Power Consumption <200W
Timer Digital programmable counter
Operation Method Rotary Abrasion
Sample Loading Weight 9 kPa (Abrasion), 12 kPa (Pilling)

Product Description

Summary:

This instrument is designed by absorbing the advantages of similar domestic and foreign instruments. It has a beautiful appearance and is easy to operate. The microcomputer system adopts two counting methods, which is intuitive and easy to set. Four stations can test at the same time to improve the test efficiency. The instrument also has two Lissajous 24mm24mm, 60.5mm60.5mm motion tracks and a variety of supporting accessories, which can adapt to a variety of test method standards.

This instrument is suitable for: GB/T4802.2, ASTM D4970, ISO12945-2 and other fabric pilling degree tests. Its principle: the circular sample and the fabric of the same material are rubbed with the Lissajous graphic motion track under a given pressure. After reaching the specified number of revolutions, the pilling grade of the sample is evaluated. It is also suitable for fabric wear resistance tests such as GB/T13775, ASTM D4966, ISO12947, etc.

The principle is: under a certain pressure, a circular fabric sample rubs against a standard abrasive according to the motion trajectory of the Lissajous curve, causing the sample to break. The number of times the sample is broken represents the wear resistance of the fabric.

Standards: GB/T21196-2007,GB/T4802.2-2008,GB/T13775,FZ/T20020,ASTM D4970,ISO12945-2ASTM D4966,ASTM D3886,ISO12947,ISO-20344,JIS

L1096,IWS,TM196,TM112,M&S.

Application: Used for testing the performance of the wearing resistance, abrasion, appearance change (pilling degree/class) of the textiles and membrane materials.

Technical characteristics:

1.Number of working position: 4,6 or 8

2.Counter range: 099999

3.Max stroke: horizontal: 60.50.5mm vertical: 240.5mm

4.pressure weight:

a. specimen holder:2001g

b. load piece for apparel & household textiles:3952g

c. load piece for workwear & upholster:5942g

d. stainless steel plate:2601g

5,abrader diameter :

type A 200g(1.96N) (9KPa), 28.8 -0.084mm

type B 155g(1.52N)(12KPa), 90 -0.10mm

6.abrader speed:50-2r/min

7.pressing weight:238510g

8.instrument size:885600410mm

9.power supply:Ac220V 50Hz 500W

10.weight:65kg

Advanced Rotary Abrasion Testing

Utilizing the rotary abrasion method, the Martindale Tester efficiently simulates fabric wear and pilling under controlled pressure. With a test speed of 47.5 5 rpm and a programmable counter, it enables repeatable, reliable analysis for both small samples and batch testing. This targeted evaluation ensures textiles achieve demanding industry standards for durability.

Flexible, Multi-Position Testing Capabilities

Available in models with 4, 6, or 8 specimen positions, this tester allows simultaneous evaluation of multiple fabric samples. The machine accommodates standard circular specimens and holds multiple sample sizes with ease. Its robust benchtop design and adjustable holders streamline your workflow and boost laboratory productivity.

Intuitive Digital Control and Monitoring

Featuring a digital LCD display, instant response keypad input, and audible alarms, the Martindale provides precise cycle tracking, effortless operation, and automated notifications. This interface, alongside a digital programmable counter and accurate cycle resolution (1 cycle), offers maximum control, making test setup and result interpretation both convenient and straightforward.

FAQ's of Martindale Abrasion Tester for Textile Testing:

Q: How does the Martindale Abrasion Tester evaluate textile durability?

A: The Martindale Abrasion Tester determines textile durability by simulating wear conditions through a rotary abrasion motion. Fabric samples are pressed against a woven wool abradant under specific pressures (9 kPa for abrasion and 12 kPa for pilling) and cycled up to 999,999 times, allowing measurement of their abrasion and pilling resistance with high accuracy.

Q: What types and sizes of specimens can be tested with this machine?

A: This tester supports standard circular textile specimens with diameters of 38 mm and 140 mm, fitting multiple specimen holders. Depending on the selected model, you can test 4, 6, or 8 samples simultaneously, making it suitable for both individual and batch fabric testing.

Q: When is it ideal to use the Martindale Tester in the textile production process?

A: The Martindale Abrasion Tester is best used during quality control-prior to product release or during research and development. This ensures that the textiles meet specific durability and wear resistance standards before reaching the market.

Q: Where can the Martindale Abrasion Tester be installed and operated?

A: Its compact benchtop design allows installation in textile laboratories, manufacturing plants, and quality control departments. The machine operates efficiently under ambient conditions (temperature 15-35C, humidity 20-80% RH) and requires an AC 220V, 50Hz power supply.

Q: What is the testing procedure for this abrasion tester?

A: Place the circular textile specimens in the specimen holders, select the required abradant material, and set the programmed test cycles using the digital control panel. The machine then applies the stipulated pressure and rotary motion for the designated number of cycles, after which the degree of abrasion or pilling can be assessed.

Q: In what ways does this tester benefit manufacturers and exporters?

A: The Martindale Tester enables manufacturers and exporters to verify textile quality, ensuring products meet industry standards for durability and longevity. Its programmable features, instant digital feedback, and reproducible results help streamline quality control processes and enhance customer confidence.

Q: How easy is the device to use and monitor during testing?

A: The tester features an intuitive LCD digital display and keypad input, making test setup and adjustments simple. Audible alarms and precise cycle display facilitate easy monitoring during operation, and its semi-automatic design means less manual intervention is required.
