Leakage and Seal Strength Tester for Packaging Testing

Name: Leakage and Seal Strength Tester for Packaging Testing
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 3099.0 USD
Availability: InStock

3099.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Application Flexible packaging seal strength, leak detection, and package integrity testing
Measuring Range 0 - 600 kPa
Accuracy 1% F.S.
Gas Pressure 0.4 MPa - 0.7 MPa
Mounting Type Tabletop
Port Size Standard 6 mm quick connector
Frequency 50 Hz
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Leakage and Seal Strength Tester for Packaging Testing Price And Quantity

Minimum Order Quantity 1 Unit
Price 3099.0 USD ($)/Unit

Leakage and Seal Strength Tester for Packaging Testing Product Specifications

Automation Grade Automatic
Test Width Max 300 mm
Max Height 160 mm (fixture range)
Test Stroke 800 mm
Resolution 0.1 kPa
Equipment Type Leakage & Seal Strength Tester
Interface Type USB, RS232 (optional)
Number of Specimens 1
Display Type 7-inch color touchscreen
Features Programmable test modes, automatic data storage, multi-language support
Test Speed 0-300 mm/min adjustable
Control Mode Touchscreen microprocessor control
Humidity 20% - 70% RH
Power Supply 220V/50Hz
Capacity Customizable
Accuracy 1% F.S.
Port Size Standard 6 mm quick connector
Gas Pressure 0.4 MPa - 0.7 MPa
Mounting Type Tabletop
Operating Voltage 220V AC 50Hz
Frequency 50 Hz
Application Flexible packaging seal strength, leak detection, and package integrity testing
Measuring Range 0 - 600 kPa
Test Range 0 - 600 kPa
Temperature 15C - 35C
Machine Weight Approx. 18 kg
Specimen Size Up to 400 mm
Usage Lab analysis, packaging QA/QC
Response Time <1 s

Alarm Function Over pressure and test end alarms
Test Modes Burst, creep hold, and leak
Material Compatibility Plastic, foil, laminated packaging, pouches, sachets
Language Support English/Chinese (others optional)
Operation Environment Free from corrosive gas and strong electromagnetic interference
System Memory 500 test records
Test Duration Programmable, up to 9999 seconds
Data Export Supports USB and local storage
Included Accessories Test fixtures, hoses, calibration certificate
Calibration Automatic and manual calibration

Product Description

Features:

(1) 7 inch touch screen control

(2) Positive pressure design principle, simple operation, stable and reliable performance

(3) Optional test range, wide test range and wide application field

(4) Dual test methods of expansion inhibition and expansion non-inhibition

(5) Multiple test mode options including rupture test, creep test and creep to rupture test

(6) One-click operation of the test process, intelligent and high test efficiency

(7) High-definition touch screen operation of test data, automatic statistics and printing of results

(8) Test accessory support, flexible test mode and compatible with diversified

(9) Automatic pressure regulation test mode, automatic flow leak detection function

(10) Standard USB interface configuration, computer software support, multiple units of results display

(11) The product complies with the third-level authority of GMP users

(12) The test curve shows the trend of force value changes in real time during the test

(13) Specialized computer communication software for real-time display of the test and data analysis and processing, data storage

Principle:

Positive pressure test: After filling the sample with a certain pressure of gas by setting parameters, the pressure sensor is used to detect the pressure change inside the sample to judge the overall sealing performance of the sample, and the pressure resistance and burst performance of the sample are tested with the specified air pressure.

The instrument complies with many national and international standards: GB/T 10440, GB/T 18454, GB/T 19741, GB/T 17447, GB/T 17876, GB/T 10004, GB/T 10005, BB/T 0003, BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002, ASTM F1140, ASTM F2054, ISO 11607-1, ISO 11607-2

Product Configuration

Standard configuration: host, test stand, micro printer

Optional parts: professional software, communication cable, test accessories (restraint plate test device; open packaging test device; plastic anti-theft bottle cap sealing performance test device; hose sealing performance test device; aerosol valve sealing performance test device)

Remarks: The air source interface of this machine is a 6mm polyurethane tube; the air source is provided by the user.

Innovative Packaging Integrity Testing

Ensure the reliability and safety of your packaging solutions with our Leakage and Seal Strength Tester. This advanced equipment caters to a wide array of packaging materials such as plastics, foils, and laminates, and is engineered for laboratory, research, and industrial quality assurance. With programmable test durations and highly accurate measurements, it streamlines leak detection and seal strength verification, maintaining your packaging standards efficiently.

User-Friendly Operation and Comprehensive Data Management

Control your tests effortlessly through the intuitive 7-inch color touchscreen microprocessor. The system supports both English and Chinese languages, with options for more, ensuring accessible operation. Its generous system memory can store up to 500 test results, while USB and local data export options make record-keeping and reporting fast and convenient, supporting traceability and compliance in professional environments.

FAQ's of Leakage and Seal Strength Tester for Packaging Testing:

Q: How does the Leakage and Seal Strength Tester improve packaging quality control?

A: By enabling precise detection of leaks and accurate measurements of seal strength, this tester ensures package integrity, preventing product spoilage and improving overall packaging reliability as part of a robust QA/QC process.

Q: What packaging materials are compatible with this tester?

A: The tester is designed for evaluating plastic, foil, laminated packaging, pouches, and sachets, making it versatile for industries using a variety of flexible packaging materials.

Q: When should I use burst, creep hold, or leak test modes?

A: Burst testing assesses the maximum pressure a seal can withstand before rupturing. Creep hold examines seal integrity under a constant pressure for a set duration, while leak tests detect gradual loss of pressure, indicating leaks or weak seals.

Q: Where does the tester store data, and how can I export it?

A: Test records are automatically saved in the system memory, which can hold up to 500 results. Data export is available via USB for seamless transfer; RS232 interface is also available as an option.

Q: What is the process for calibrating the device?

A: The tester features both automatic and manual calibration modes, ensuring precise and reliable operation. Calibration procedures can be initiated via the touchscreen interface, with a calibration certificate provided in the accessory package.

Q: How can I benefit from using programmable test durations?

A: Programmable test durations (up to 9999 seconds) allow you to tailor the tests to specific packaging requirements, optimizing accuracy and efficiency for different types of package integrity evaluations.

Q: What are the recommended usage conditions for optimal tester performance?

A: For accurate results and equipment longevity, operate the tester in a clean environment free from corrosive gases and strong electromagnetic interference, with ambient temperature between 15C - 35C and humidity between 20% - 70% RH.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Environmental Testing Chamber' category

Laboratory Salt Spray Test Chamber Salt Mist Resistance Tester Price : 1499 USD ($)/Set Minimum Order Quantity : 1 Automation Grade : SemiAutomatic Control Mode : Microcomputer Control Frequency : 50 Hz Operating Voltage : 220V AC Test Stroke : Customizable Test Width : 600 mm Max Height : 125 cm (Chamber Height) Display Type : Digital Touchscreen Display Resolution : 0.1C Equipment Type : Laboratory Salt Spray Test Chamber Interface Type : RS232 (Optional) Number of Specimens : Up to 30 (varies by specimen size) Test Speed : Adjustable, 1~3 ml/80cm/h Features : Programmable Timer, OverTemperature Protection, Automatic Distilled Water Replenishing, Defog Feature Humidity : 85% to 95% RH Power Supply : AC 220V, 50Hz Application : Corrosion Resistance Testing Measuring Range : 09999 hours Port Size : Standard 1/4 Air Inlet Gas Pressure : 1.0~6.0 kg/cm Mounting Type : Free Standing Capacity : 108 liters Accuracy : 0.1C Temp, 2% Humidity Test Range : NSS, CASS, ACSS, Neutral Salt Spray Test Machine Weight : 80 kg Specimen Size : Max 150 mm x 70 mm x 100 mm Temperature : 35C 1C (for NSS); 50C 1C (for CASS) Response Time : Instantaneous Usage : Laboratory, Material Testing Hardness : HighDensity PVC Construction

Send Inquiry

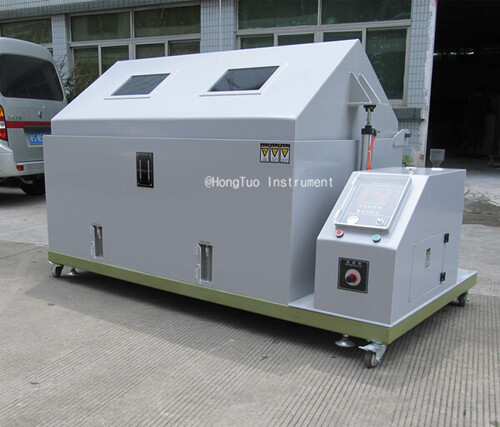

Climate Salt Spray Salt Mist Corrosion Resistance Testing Equipment DHL-120 Price : 1976.00 INR/Set Minimum Order Quantity : 1 Automation Grade : Automatic Control Mode : Automatic Digital Control Frequency : 50 Hz Hertz (HZ) Operating Voltage : 220V Volt (V) Test Stroke : 400 mm Test Width : 600 mm Millimeter (mm) Max Height : 450 mm (internal chamber) Display Type : Digital LED Display Resolution : Digital 0.1 C Equipment Type : Salt Spray Salt Mist Corrosion Resistance Testing Equipment Interface Type : Keypad controller, digital display Number of Specimens : Up to 30 (varies with specimen size) Test Speed : Continuous (adjustable) Features : Corrosion resistant chamber, automatic spraying, programmable settings, overtemperature protection Humidity : 95% RH or above Power Supply : AC 220V, 50Hz Application : Corrosion resistance testing for metal, coatings, and painted surfaces Measuring Range : Salt spray concentration: 5% NaCl solution standard Kelvin (K) Port Size : Standard 1/4 NPT Gas Pressure : 1.002.00 kg/cm2 mpa Mounting Type : Floor standing Capacity : 108 liters Ltr Accuracy : Temperature: 0.5 C, Humidity: 2% % Test Range : Programmable cycle Machine Weight : Approx. 65 kg Kilograms (kg) Specimen Size : 150 mm 70 mm max each Millimeter (mm) Temperature : 35 C 1 C (test chamber) Celsius (oC) Response Time : Immediate (realtime monitoring) Seconds Usage : Industry laboratory testing Hardness : Corrosionresistant, ABS/PP chamber

Send Inquiry

Environmental Stress Cracking Tester for Plastic Material Testing Price : 2100.0 USD ($)/Unit Minimum Order Quantity : 1 Automation Grade : Semiautomatic Control Mode : Digital temperature, time, and test cycle control Frequency : 50 Hz Operating Voltage : 220V AC Test Stroke : Up to 100 mm Test Width : Up to 50 mm specimen width Max Height : Approx. 300 mm Display Type : Digital LED display Resolution : 0.1C Equipment Type : Environmental Stress Cracking Tester Interface Type : Pushbutton and digital display control Number of Specimens : Up to 10 specimens per batch Test Speed : Adjustable, typically 0.5 5 mm/min Features : Stainless steel tank, digital controller, multiple test stations, safety features Humidity : Ambient, optional humidity control Power Supply : 220V AC, 50Hz Application : Plastic material and component stress cracking resistance testing Measuring Range : Plastic samples under defined environmental stress Port Size : Standard laboratory connections Gas Pressure : Ambient, not required unless specified Mounting Type : Benchtop Capacity : Multiple sample holders Accuracy : 0.1C (temperature control) Test Range : Suitable for various plastic materials Machine Weight : Approx. 3050 kg Specimen Size : Standard: 38 mm x 12 mm x 6 mm (can vary) Temperature : 10C 60C adjustable Response Time : Immediate (sensor dependent) Usage : Laboratory and industrial plastic testing Hardness : Not applicable for instrument

Send Inquiry

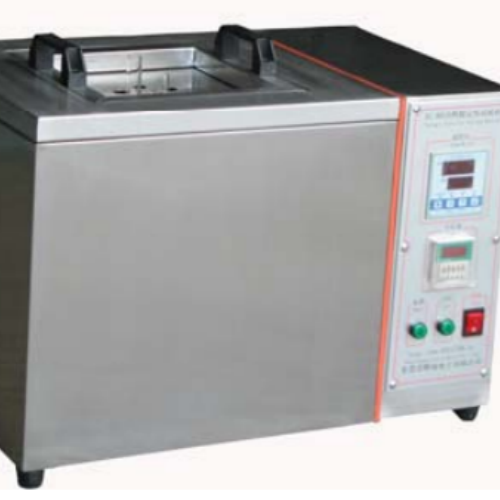

Thermal Stability Testing Machine for Material Testing Price : 759.0 USD ($)/Unit Minimum Order Quantity : 1 Automation Grade : Semiautomatic Control Mode : Digital PID Controller Frequency : 50 Hz Operating Voltage : 230V AC Test Stroke : 0 150 mm Test Width : Up to 70 mm Max Height : 200 mm Display Type : Digital LCD / LED Resolution : 0.1C / 0.1 N Equipment Type : Thermal Stability Testing Machine Interface Type : Panel mounted controls Number of Specimens : 1 3 at a time Test Speed : 0.1 10 mm/min (adjustable) Features : Digital temperature control, overheat protection, timer, robust stainless steel body Humidity : 10% 90% RH Power Supply : 230V AC, 50 Hz Application : Material thermal stability testing (plastics, rubbers, etc.) Measuring Range : 0 100 N (force), 0C 300C (temperature) Port Size : 16 mm Gas Pressure : 0.5 1.0 MPa Mounting Type : BenchTop Capacity : up to 3 specimens simultaneously Accuracy : 0.5% Test Range : 0 100 N Machine Weight : Approx. 25 kg Specimen Size : Thickness 15 mm, Length as needed Temperature : Up to 300C Response Time : <2 seconds Usage : Laboratory/Industrial Material Testing
