KUT-681 Ultrasonic Flaw Detector for NDT Testing

Name: KUT-681 Ultrasonic Flaw Detector for NDT Testing
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 1139.00 INR
Availability: InStock

1139.00 INR/Unit

Get a Price/Quote

Product Details:

Specimen Size Customizable as per application Millimeter (mm)
Interface Type USB and RS232
Accuracy 0.1 mm %
Equipment Type Handheld Ultrasonic Flaw Detector
Operating Voltage DC 7.4V (Battery) or AC 100-240V (Adapter) Volt (V)
Automation Grade Semi-Automatic / Manual
Port Size BNC connector
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

KUT-681 Ultrasonic Flaw Detector for NDT Testing Price And Quantity

Minimum Order Quantity 1 Unit
Price 1139.00 INR/Unit

KUT-681 Ultrasonic Flaw Detector for NDT Testing Product Specifications

Power Supply Rechargeable Li-ion Battery (DC 7.4V) / AC Adapter
Display Type 5.7 TFT-LCD Color Display
Response Time Instantaneous (<1s) Seconds
Test Speed Auto/Manual selectable
Control Mode Digital Control
Number of Specimens Single and Multiple Specimen Capability
Measuring Range 0.5-9999 mm Kelvin (K)
Test Range 0-10000 mm (steel)
Resolution 0.01 mm
Humidity 85% RH
Frequency 2.5 - 10 MHz Megahertz (MHZ)
Temperature -10C to +50C Celsius (oC)
Features Digital Gain, DAC/AVG, TCG, AWS D1.1, Data Storage, Report generation (PDF/CSV)
Specimen Size Customizable as per application Millimeter (mm)
Test Width Up to 500 mm Millimeter (mm)
Capacity Large Data Storage (up to 1000 data sets) Ltr
Interface Type USB and RS232
Accuracy 0.1 mm %
Machine Weight 1.2 kg Kilograms (kg)
Equipment Type Handheld Ultrasonic Flaw Detector
Operating Voltage DC 7.4V (Battery) or AC 100-240V (Adapter) Volt (V)
Port Size BNC connector
Automation Grade Semi-Automatic / Manual
Usage Detection of Flaws, Cracks, Voids, Weld Quality Testing
Test Stroke Adjustable
Mounting Type Portable/Handheld
Application Non-Destructive Testing (NDT) of Metals, Welds, Pipes, and Components

Battery Life 8 hours continuous operation
Language Support Multilingual Menu Options
Standby Power Consumption <0.5 W
Pulse Type Negative square pulse, adjustable energy
Vertical Linearity 3%
Attenuation 0~110 dB, step of 0.1/1.0/2.0/6.0 dB
Gate Setting A/B/C Gates with alarms
Software Support Compatible with PC data management software
Pulse Repetition Frequency 10-1000 Hz adjustable
Data Output Format PDF, CSV, internal memory export
Dimensions 240 x 150 x 50 mm
Horizontal Linearity 0.2%

Product Description

Shape

Ergonomic structural design, waterproof and oil-proof.

360-degree rotating damping bracket and rubber sheath

High transparent strong aperture glass panel

Functions

Auto calibration: Automated calibration of probe zero offset, probe angle (K value) and material velocity

Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results

Flaw LocatingLive display Sound-path, Projection (surface distance), Depth, Amplitude

Flaw sizing: Automatic flaw sizing using AVG or DAC, speeds reporting of defect acceptance or rejection.

Curved Surface Correction feature

DAC/AVGThe curve is automatically generated, and the sampling points can be compensated and corrected. The curve automatically floats with the gain, automatically expands with the detection distance, and automatically moves with the delay time. It can display the AVG curve of any aperture

AWS D1.1. Choosing this standard can reduce manual calculations and improve detection efficiency

Crack Height Measure function

Gate Magnify spreading of the gate range over the entire screen width

Video Recording and playback

A Scan FreezeDisplay freeze holds waveform and test distance data

Echo coding: display 19 echo display area in different colors, used to analyze the defect position

Peak mark: capture and mark the peak in real time

B Scan display feature. Intuitively display the defect shape and the detection result is more intuitive

Digital Readout and Trig. Function: Thickness/Depth can be displayed in digital readout when using a normal probe and Surface Distance and Depth are directly displayed when angle probe is in use

FFT spectrum analysis by calculate the echo waveform, to detect the frequency characteristics and damage degree of the current probe in real time

Standard Package

Host 1PC

Straight Probe 1PC

Angle probe 1 PC

Power Adaptor 1 PC

Probe Connecting Cable 1 PC

U disk 1 PC

User Manual 1PC

Instrument Case 1 PC

Advanced Flaw Detection Technology

The KUT-681 employs cutting-edge ultrasonic technology, offering high accuracy with a measuring range from 0.5 to 9999 mm and resolution down to 0.01 mm. Its A/B/C gate alarms enable precise flaw localization, while adjustable pulse energy and digital gain ensure flexibility for a variety of inspection needs.

User-Friendly and Efficient Operation

Featuring a portable, lightweight design (1.2 kg) and intuitive interface with multilingual support, the KUT-681 is engineered for comfort during prolonged usage. The 5.7-inch TFT-LCD display, instantaneous response, and large data storage capacity streamline inspection workflows.

Comprehensive Data Management and Reporting

The KUT-681 supports large-scale data storage (up to 1000 data sets) with easy export in PDF or CSV formats via USB or RS232. Compatible software allows efficient data transfer and comprehensive report generation to facilitate documentation and analysis.

FAQ's of KUT-681 Ultrasonic Flaw Detector for NDT Testing:

Q: How does the KUT-681 Ultrasonic Flaw Detector identify flaws in metals and welds?

A: The KUT-681 uses advanced ultrasonic wave technology, sending high-frequency sound pulses through the test material. When these pulses encounter discontinuities like cracks or voids, a portion of the wave reflects back, which is detected by the device. Functionalities such as A/B/C gates with alarms, adjustable energy, and digital gain settings ensure accurate flaw detection and analysis.

Q: What types of materials and components can be tested with this device?

A: The KUT-681 is suitable for non-destructive testing of various metals, welded joints, pipes, and component parts. Its customizable specimen size and broad measuring and test range (up to 10,000 mm for steel) make it versatile for different industrial applications and metal thicknesses.

Q: When should I use the adjustable pulse repetition frequency setting?

A: Adjusting the pulse repetition frequency (10-1000 Hz) allows users to optimize the device according to specimen thickness and testing requirements. Higher frequencies suit thinner specimens for improved resolution, while lower frequencies are best for thicker or more attenuating materials to achieve deeper penetration.

Q: Where can I use the KUT-681 device? Is it suitable for field use?

A: Absolutely. With its compact, handheld design and 8-hour battery life, the KUT-681 is ideal for on-site field inspections or in laboratory environments. The device is ruggedized for dependable operation in industrial conditions, withstanding temperatures from -10C to +50C and up to 85% relative humidity.

Q: What is the process for transferring and managing inspection data?

A: Inspection data can be stored internally (up to 1000 data sets) and exported via USB or RS232 interface in PDF or CSV format. The device is compatible with PC data management software, facilitating documentation, further analysis, and report generation to streamline quality control processes.

Q: How does using this device benefit NDT professionals?

A: NDT professionals benefit from the KUT-681's high accuracy, rapid response time, and extensive feature set, including digital controls, customizable gates, and advanced data storage. Its user-friendly interface and multilingual support ensure accessible, reliable results across multiple projects and international teams.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Powder Testing Equipment' category

Tap Density Meter Tap Density Tester Machine Price : 1407.00 INR/Set Minimum Order Quantity : 1 Features : Auto stop, preset tap count, antivibration base Power Supply : AC 220V, 50Hz Usage : Pharmaceutical, powder metallurgy, R&D labs Automation Grade : Semiautomatic Temperature : 5 C ~ 40 C Celsius (oC) Control Mode : Digital Touch Panel Number of Specimens : 1 or 2 (Dual Stations) Measuring Range : 0.01 g/ml ~ 10 g/ml Kelvin (K) Test Range : 1 250 g Resolution : 0.01 ml Humidity : 80% RH Response Time : <2s Seconds Test Speed : 100300 taps/min adjustable Display Type : Digital LED Display Mounting Type : Benchtop Application : Powder density analysis Machine Weight : Approx. 20 kg Kilograms (kg) Equipment Type : Tap Density Meter Max Height : 420 mm Capacity : 200 ml max Ltr Accuracy : 1% % Specimen Size : Standard 25 ml, 100 ml cylinders Millimeter (mm) Port Size : Standard 35/38 mm Interface Type : RS232/USB (optional) Frequency : 50 Hz Hertz (HZ) Test Stroke : 3 mm, 14 mm selectable Operating Voltage : AC 220V Volt (V) Test Width : 50 mm Millimeter (mm)

Send Inquiry

Tapped Bulk Density Analyzer Tapped Density Apparatus Price : 1002.00 INR/Set Minimum Order Quantity : 1 Features : Auto stop, Preset Counter, Dual Cylinder Option (optional), Adjustable stroke Power Supply : 230V 10%, 50 Hz AC Usage : Tapped density testing of powders/granules Automation Grade : Semiautomatic Temperature : Ambient, 10 C to 40 C Celsius (oC) Control Mode : Digital Control with Touch Pad Number of Specimens : 1 or 2 (Single/Double Cylinder model) Measuring Range : 2.5 ml to 250 ml Kelvin (K) Test Range : 2.5 ml to 250 ml cylinders Resolution : 1 tap Humidity : Up to 80% RH (noncondensing) Response Time : Immediate Seconds Test Speed : 1 to 300 taps/min adjustable Display Type : Digital LED Display Mounting Type : Benchtop Application : Pharmaceutical/Bulk Density Analysis of Powders Machine Weight : Approx. 25 kg Kilograms (kg) Equipment Type : Tapped Bulk Density Analyzer (Tapped Density Apparatus) Max Height : Approx. 300 mm including cylinder Capacity : Up to 250 ml cylinder capacity Ltr Accuracy : 1% % Specimen Size : Standard 100 ml/250 ml Cylinders Millimeter (mm) Hardness : High Durability Metal Construction Interface Type : Keypad start/stop & digital display Frequency : 50 Hz Hertz (HZ) Test Stroke : 3 mm to 15 mm adjustable Operating Voltage : 230V 50Hz AC Volt (V)

Send Inquiry

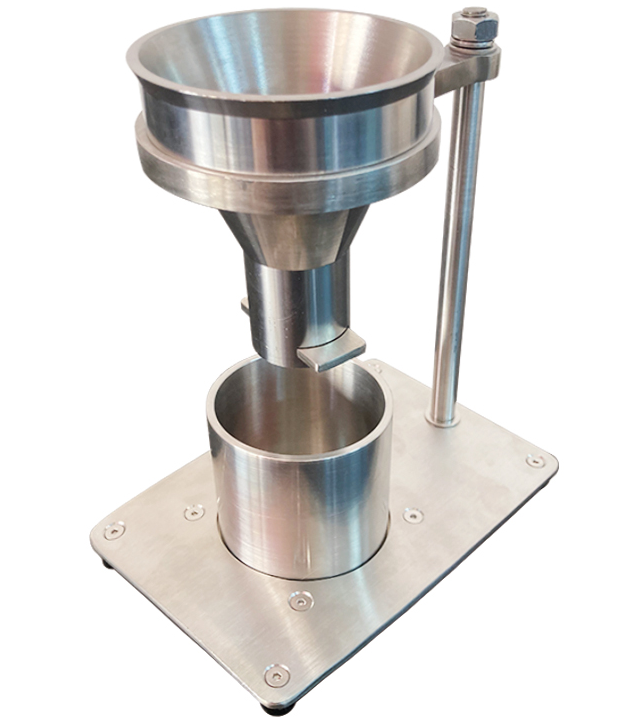

DF-1-14 Coffee Bulk Density Tester for Coffee Testing Price : 958.0 USD ($)/Piece Minimum Order Quantity : 1 Features : Stainless steel construction, simple operation, easy cleaning Power Supply : Not required (manual operation) Usage : Laboratory, quality control Automation Grade : Manual Temperature : 10C 40C (operating conditions) Control Mode : Manual Number of Specimens : Single specimen per test Measuring Range : Approx. 0.2 1.0 g/cm3 Test Range : Bulk density of coffee powders and beans Resolution : Depends on weighing balance, typically 0.01 g Humidity : 085% RH (operating conditions) Response Time : Manual, immediate Test Speed : Manual operation, depends on pouring rate Display Type : No inbuilt display Mounting Type : Benchtop Application : Testing bulk density of coffee powders and granules Machine Weight : Approx. 23 kg Equipment Type : Coffee Bulk Density Tester Max Height : Approx. 200250 mm Capacity : Approx. 100200 mL Accuracy : 0.01 g/cm3 (depends on weighing device used) Specimen Size : Varies, typically 50100 g sample Port Size : Funnel opening diameter approx. 6080 mm Interface Type : Manual; no digital interface Test Width : Cup inner diameter approx. 5060 mm
