KT-320 Digital Ultrasonic Gold Bar Tester Machine Ultrasonic Thickness Gauge

KT-320 Digital Ultrasonic Gold Bar Tester Machine Ultrasonic Thickness Gauge

323.00 USD ($)/Set

Get a Price/Quote

Product Details:

Interface Type Standard Data Port / USB Optional
Mounting Type Handheld / Portable
Humidity 80% RH (non-condensing)
Display Type Digital LCD Display with Backlight
Hardness Supports test for gold, silver, copper, and similar metals
Temperature 0C to 40C Celsius (oC)
Test Range 0.75 mm~300 mm (in steel equivalent)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

KT-320 Digital Ultrasonic Gold Bar Tester Machine Ultrasonic Thickness Gauge Price And Quantity

Minimum Order Quantity 1 Set
Price 323.00 USD ($)/Set

KT-320 Digital Ultrasonic Gold Bar Tester Machine Ultrasonic Thickness Gauge Product Specifications

Machine Weight 5 Kilograms (kg)
Display Type Digital LCD Display with Backlight
Test Width Up to 100 mm Millimeter (mm)
Hardness Supports test for gold, silver, copper, and similar metals
Interface Type Standard Data Port / USB Optional
Mounting Type Handheld / Portable
Humidity 80% RH (non-condensing)
Resolution 0.01 mm
Test Speed Manual / Adjustable via probe scan
Temperature 0C to 40C Celsius (oC)
Test Stroke 0-200 mm
Test Range 0.75 mm~300 mm (in steel equivalent)
Features Automatic Calibration, Digital Readout, Portable, Easy Probe Change
Specimen Size Gold Bar: 0.5 oz to 1 kg Millimeter (mm)
Frequency 2.5 MHz, 5 MHz, 10 MHz (selectable probes) Hertz (HZ)
Equipment Type Digital Ultrasonic Thickness Gauge
Response Time <1 second Seconds
Control Mode Digital Push-Button
Measuring Range 0.75~300 mm Kelvin (K)
Port Size Standard Probe Port (PH2.0/5P)
Capacity Digital Surface Roughness Tester Ltr
Power Supply AC 100-240V, 50/60Hz
Max Height Up to 300 mm thickness measurement
Number of Specimens Single test per operation
Automation Grade Semi-automatic
Accuracy 0.01 mm %
Operating Voltage DC 3V (2x AA batteries) or via external power supply Volt (V)
Usage Non-destructive testing of gold bars
Application Gold Bar Authenticity Testing, Thickness Measurement

Languages Supported English (others optional)
Calibration One-key calibration function
Probe Types Supported Straight beam & Angle beam
Alarm Function Yes (low/high thickness alarm setting)
Operating Principle Ultrasonic pulse-echo measurement
Protection Class IP54 rated
Data Storage Internal memory for 20 readings
Transducer Connector BNC type
Surface Finish Requirement Smooth, clean for best accuracy
Battery Life Up to 30 hours continuous operation
Backlight Control Adjustable/Automatic Off
Dimensions 150 x 74 x 32 mm
Case Material Impact-resistant ABS housing

KT-320 Digital Ultrasonic Gold Bar Tester Machine Ultrasonic Thickness Gauge Trade Information

FOB Port shenzhen
Supply Ability 300 Set Per Month
Delivery Time 7 Days
Packaging Details standard exporting package
Main Domestic Market All India

Product Description

Features:

Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasonic thickness.
Can be equipped with a variety of different frequency, chip size, double crystal probe use.
Have probe zero calibration, a two-point calibration function, can be automatically on system error correction.
Thickness can be known the sound velocity measurement, in order to improve the accuracy of measurement.
With functions of coupling status alerts.
With LED backlight, convenient to use in dark environment.
The battery indicator function, can real-time display the battery remaining power.
With automatic power saving function dormancy, automatic shutdown, etc.
Small, portable, high accuracy, suitable for bad operating environment, vibration, impact resistance and electromagnetic interference.

Specification:

Measuring range:0.75-300mm (0.03-11.8inch) depends on probe;
Temperature available:-10-60 degree;
PC connecting and software:YES;
Sound velocity range:1000-9999m/s (0.039-0.394in/us);
Display resolution:0.01mm or 0.1mm(lower than 100.0mm) 0.1mm(more than 99.99mm);
Data Memory:5 files(up to 100 values for each file)of stored values 5 Sound Velocity of stored values;
Power:2pcs 1.5V AA size,batteries. 100 hours typical operating time(LED back light off) ;
Continuous working time:250 hours (with backlight off);
Size:150*74*32mm;Weight:238g

Reliable and Accurate Non-Destructive Testing

Engineered for precision, the Digital Ultrasonic Gold Bar Tester Machine employs pulse-echo ultrasonic technology to deliver fast and accurate thickness measurements for gold bars, silver, copper, and related metals. With a high resolution of just 0.01 mm, it ensures authenticity verification and detection of irregularities without damaging the specimen, making it an essential tool for distributors, exporters, and traders.

User-Oriented Interface and Ease of Operation

Featuring a digital LCD display with adjustable backlight, intuitive digital push-button controls, and one-key automatic calibration, this tester is designed for effortless operation. The portable, hand-held form factor, lightweight design, and up to 30 hours of battery life facilitate reliable gold bar testing in the field, showroom, or laboratory settings. Internal memory allows storage for up to 20 readings for convenient data tracking.

Built for Real-World Environments

Encased in impact-resistant ABS and rated IP54 for dust and splash resistance, this tester withstands challenging testing conditions. Whether in manufacturing, exporting, or retail environments, its robust construction and temperature range (0C to 40C) ensure consistent performance. The standard and USB data interfaces offer convenient connectivity, enhancing its practicality for various professional applications.

FAQ's of Digital Ultrasonic Gold Bar Tester Machine Ultrasonic Thickness Gauge:

Q: How does the Digital Ultrasonic Gold Bar Tester Machine verify authenticity?

A: This machine uses ultrasonic pulse-echo measurement to detect thickness variations and internal structures without harming the specimen, helping confirm the uniformity and authenticity of gold, silver, or copper bars.

Q: What is the range of gold bar sizes this tester can handle?

A: The device accurately tests gold bars ranging from as small as 0.5 ounces up to 1 kilogram, with a maximum measurement thickness of 300 mm and width up to 100 mm.

Q: Where can I use the ultrasonic thickness gauge?

A: Thanks to its robust, portable design and IP54-rated protection, this tester is suitable for fieldwork, laboratory analysis, retail environments, and manufacturing facilities that require non-destructive gold bar authentication.

Q: What is the calibration process for the tester?

A: Calibration is easily managed via a one-key automatic function, ensuring precise measurements before starting each test for optimal accuracy and reliability.

Q: How is the thickness data stored and managed?

A: The device can internally store up to 20 measurements, allowing users to review and manage recent test results directly from the display. Data can also be transferred through the standard data port or optional USB interface.

Q: What are the main benefits of using this gold bar tester?

A: Users benefit from quick, non-invasive, and accurate testing, a long-lasting battery (30 hours), alarm settings for abnormal thickness, easy probe changes, and intuitive controls, making authenticity verification efficient and reliable.

Q: When should I ensure the specimen surface is prepared?

A: Before measurement, always make sure the specimen surface is smooth and clean. This step is essential for achieving maximum accuracy and avoiding erroneous readings.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'NDT Machine ' category

Color Screen Ultrasonic Paper Plastic Rubber Thickness Equipment Price : 329.00 INR/Set Minimum Order Quantity : 1 Machine Weight : 5 Kilograms (kg) Features : Nondestructive, portable, color touch screen, multimaterial supported Power Supply : AC 220V 10%, 50Hz Usage : Industrial thickness testing Automation Grade : Automatic Humidity : 2080% RH Mounting Type : Tabletop Display Type : Color LCD Touch Screen Test Width : Standard 100 mm Millimeter (mm) Test Range : 0.0120 mm Temperature : 040C Celsius (oC) Test Speed : Adjustable 0.1 50 mm/s Resolution : 0.001 mm Measuring Range : 0.0120 mm Kelvin (K) Response Time : 1 second Seconds Control Mode : Touch Screen/Automatic Equipment Type : Ultrasonic Thickness Equipment Specimen Size : Width 20 mm, Thickness 10 mm Millimeter (mm) Application : Paper, plastic, rubber material thickness measurement Operating Voltage : AC 220V Volt (V) Accuracy : 0.01 mm % Number of Specimens : 1 (single specimen measurement) Interface Type : USB/RS232 Test Stroke : Max 100 mm Hardness : Suitable for soft to semirigid materials Port Size : Standard Ultrasonic Probe Capacity : Digital Surface Roughness Tester Ltr Frequency : 5 MHz Ultrasonic Hertz (HZ) Max Height : Up to 100 mm (Specimen Height)

Send Inquiry

Plastic Film Thickness Measuring Instrument Metal Digital Thickness Gauge Price : 329.00 USD ($)/Set Minimum Order Quantity : 1 Machine Weight : 5 Kilograms (kg) Features : Portable, lightweight, ergonomic design, digital readout Power Supply : CR2032 Lithium Battery, 3V Usage : Thickness measurement of plastic films and sheets Automation Grade : Manual Humidity : 80% RH (NonCondensing) Mounting Type : Handheld Display Type : Digital LCD Test Width : Up to 12 mm Millimeter (mm) Test Range : 0 12.7 mm Temperature : 1040C operating range Celsius (oC) Test Speed : Manual operation Resolution : 0.001 mm Measuring Range : 0 12.7 mm Kelvin (K) Response Time : Instantaneous, <1 s Seconds Control Mode : Digital display with pushbutton control Equipment Type : Digital Thickness Gauge Specimen Size : Minimum 10 x 10 mm Millimeter (mm) Application : Measure film, foil, sheet, and rubber thickness Operating Voltage : 3V battery operated Volt (V) Accuracy : 0.01 mm % Number of Specimens : Single specimen measurement Test Stroke : 010 mm Hardness : Measuring anvil: stainless steel, HRC 5862 Capacity : Digital Surface Roughness Tester Ltr Frequency : On demand; manual use Hertz (HZ) Max Height : 12.7 mm (measurement limit)

Send Inquiry

Galvanized Coating Thickness Gauge Cheap Coating Thickness Gauge Price Price : 340.00 INR/Set Minimum Order Quantity : 1 Machine Weight : 5 Kilograms (kg) Features : Low battery indicator, auto poweroff, compact and portable, easy calibration Power Supply : 2 x 1.5V AAA batteries Usage : Paint, plating, and galvanized coating thickness measurement Automation Grade : Manual Humidity : 20%~90% RH Mounting Type : Handheld Display Type : LCD digital display Test Width : Standard singlepoint Millimeter (mm) Test Range : 0~1500m Temperature : 0C~40C (operating) Celsius (oC) Test Speed : 1 reading/sec Resolution : 0.1m (<100m), 1m (100m) Measuring Range : 0~1500m (0~59.0 mil) Kelvin (K) Response Time : 1s Seconds Control Mode : Manual measurement Equipment Type : Digital coating thickness gauge Specimen Size : Minimum curvature radius: convex 1.5mm, concave 25mm Millimeter (mm) Application : Measuring thickness of nonmagnetic coatings (zinc, paint, enamel, etc.) on steel and insulating coatings on nonferrous metals Operating Voltage : 3V (2 x 1.5V AAA batteries) Volt (V) Accuracy : (2%+1m) % Number of Specimens : Single point or continuous multiple specimens Interface Type : None/Standalone Test Stroke : Test probe stroke: up to 2mm Port Size : Probe diameter: 12mm Capacity : Coating Thickness Tester Ltr

Send Inquiry

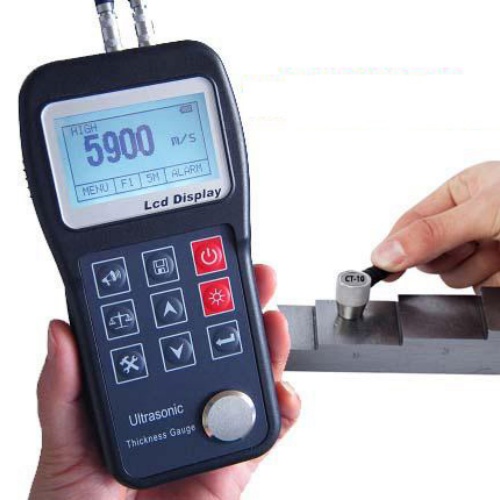

Ultrasonic Thickness Gauge for NDT Testing Price : 296.0 USD ($)/Unit Minimum Order Quantity : 1 Machine Weight : Approx. 230 g (including batteries) Features : Portable, high accuracy, backlight, alarm function, multilanguage support Power Supply : 2 x 1.5V AA batteries Usage : Thickness measurement of metals, plastics, ceramics, glass, and other materials Automation Grade : Manual Humidity : 85% RH Mounting Type : Handheld Display Type : LCD Display Test Width : Not applicable (point measurement) Test Range : 0.9 300 mm (in steel, depending on probe) Temperature : 10C to 50C operating range Test Speed : Variable, dependent on material and mode Resolution : 0.01 mm Measuring Range : 0.9 300 mm Response Time : Instantaneous (realtime) Control Mode : Manual Equipment Type : Ultrasonic Thickness Gauge Specimen Size : Minimum diameter 20 mm, thickness 0.9 mm and above Application : NDT Testing, material thickness measurement, corrosion inspection Operating Voltage : 3V (2 x 1.5V AA batteries) Accuracy : 0.1 mm Number of Specimens : Single at a time Interface Type : BNC connector for probe, USB optional (modelspecific) Port Size : Standard BNC connectors for probe Frequency : 5 MHz (standard probe)
