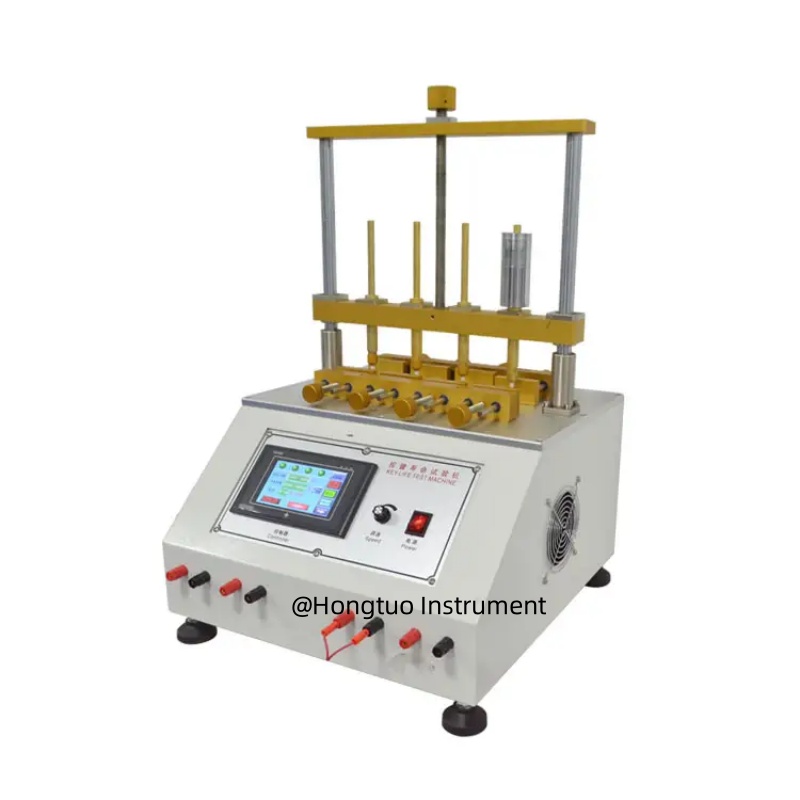

Key Life Testing Machine for Button and Key Durability Testing

Key Life Testing Machine for Button and Key Durability Testing

Name: Key Life Testing Machine for Button and Key Durability Testing
Brand: Guangdong Hongtuo Instrument Technology Co.,Ltd .
Price: 759.0 USD
Availability: InStock

759.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Features Adjustable speed, automatic cycle counting, multi-station testing, durable construction
Power Supply AC 220V / 50Hz
Number of Specimens Up to 4 specimens at once
Frequency 50Hz
Humidity 40%~80% RH
Max Height Approximately 450 mm
Interface Type Digital touch panel
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Key Life Testing Machine for Button and Key Durability Testing Price And Quantity

Price 759.0 USD ($)/Unit
Minimum Order Quantity 1 Unit

Key Life Testing Machine for Button and Key Durability Testing Product Specifications

Number of Specimens Up to 4 specimens at once
Power Supply AC 220V / 50Hz
Test Width 75 mm
Features Adjustable speed, automatic cycle counting, multi-station testing, durable construction
Capacity Multi-position testing
Frequency 50Hz
Usage Laboratory, research and development, quality control
Max Height Approximately 450 mm
Humidity 40%~80% RH
Interface Type Digital touch panel
Control Mode Touch screen digital control
Hardness Testing load adjustable to specimen requirements
Port Size Standard interface ports
Mounting Type Bench-top
Specimen Size Standard key/button size
Test Range Button and key life cycles
Response Time Instant feedback
Test Speed 10~60 cycles/min (adjustable)
Operating Voltage 220V
Machine Weight Approx. 50 kg
Accuracy 1 cycle
Equipment Type Key Life Testing Machine
Test Stroke 10~60 mm (adjustable)
Resolution Single cycle
Automation Grade Semi-automatic
Display Type LCD touch screen display
Temperature 10C~40C
Application Button and key durability test on electronics, keyboards, remote controls, etc.
Measuring Range 1~999,999 cycles

Calibration Factory calibrated with user recalibration option
Safety Features Overload protection, emergency stop
Drive Mode Electric motor drive
No. of Test Stations 4 (customizable options available)
Material of Frame Stainless steel and anodized aluminum
Cycle Counter 999,999 cycles max digital programmable
Fixture Adjustment Adjustable clamps for various key sizes
Noise Level 65 dB
Power Consumption 0.5 kW

Product Description

Introduction

The key life tester is suitable for life tests of various keys such as mobile phones, computers, electronic dictionaries, Bluetooth headsets, car players, remote control keys, vehicle anti-theft devices, fax machine keys, MP5, MP4, MP3, key switches, touch switches, membrane keys, rubber keys, silicone keys, etc. This machine places the products in the test positions of the corresponding stations, and the key test rod simulates human life tests of the products under certain test loads, speeds, strokes, and times.

Parameter

1. Test station: 4 (working at the same time)

2. Load weights: 10, 20, 50, 100, 200g, four each (other specifications are optional)

3. Test times counter: 099999999 times (presettable)

4. Test conduction times counter: 0999999 times (four-station conduction automatically counts, disconnection automatically stops

Counting)

5. Test speed: 560 times/min (knob adjustable)

6. Test stroke: 060mm (manually adjustable)

7. Conventional clamping range of test fixture: 6070mm (manually adjustable)

8. Overall dimensions (LWH): 500480780mm

9. Machine weight: 40kg

10. Working power supply: AC220V, 50HZ

Features

1. The box is treated with electrostatic spray paint, which is beautiful and generous. The whole machine is reasonably designed, the structure is tight, and the operation is stable;

2. According to the test and manufacturing of various key products, the test fixture and stroke are adjustable and widely used;

3. Four groups of workstations work at the same time, which greatly improves the test efficiency;

4. The test speed and number of times are humanized and the operation is convenient and fast;

5. Each workstation has a corresponding conduction counter. If the key fails and the conduction is disconnected, the corresponding counter will automatically stop counting, which is convenient and timely to obtain product-related test information.

Comprehensive Button and Key Durability Testing

This advanced machine enables precise simulation of real-world usage by repeatedly actuating buttons and keys, making it essential for manufacturers and quality assurance teams. Its high capacity (up to 999,999 cycles) and customizable fixtures allow accurate assessment of longevity under various loads and conditions. The system's four test stations and user-friendly touchscreen interface streamline the process, increasing efficiency in multi-sample testing.

Intuitive Digital Programmability and Instant Feedback

Easily set and monitor the number of test cycles using the large LCD touchscreen. Its programmable features include adjustable testing speed and stroke, allowing replication of a broad array of user interactions. Each cycle is automatically counted and displayed with single-cycle accuracy. The digital interface ensures immediate feedback and quick adjustments, which helps expedite testing and documentation.

Designed for Laboratory and Industrial Use

The rugged frame combines stainless steel and anodized aluminum, supporting stability and resistance to corrosion. Safety mechanisms, such as overload protection and emergency stop, provide reliable operation. Thanks to the bench-top design, moderate size, and silent operation (65 dB), this tester integrates smoothly into laboratory environments, research centers, or production lines.

FAQ's of Key Life Testing Machine for Button and Key Durability Testing:

Q: How does the Key Life Testing Machine operate?

A: The machine uses an electric motor to drive up to four test stations. Each station actuates keys or buttons at adjustable speeds and forces, while a digital touchscreen allows precise control and monitoring of test cycle counts up to 999,999 cycles.

Q: What types of products can be tested with this equipment?

A: This tester is designed for evaluating buttons and keys on a variety of products such as electronic devices, keyboards, remote controls, and similar items requiring durability assessment of mechanical actuators.

Q: When should I perform recalibration on the machine?

A: The machine is factory calibrated for immediate use, but it is recommended to perform user recalibration periodically or after intensive use to maintain measurement accuracy, as indicated in the user manual.

Q: Where is the Key Life Testing Machine typically used?

A: This equipment is widely used in laboratories, R&D departments, and quality control settings within electronics manufacturing facilities. Its bench-top form allows easy placement in most professional environments.

Q: What is the testing process for buttons and keys?

A: To conduct a test, users mount specimens in adjustable clamps, set cycle parameters and speed via the touchscreen, and start the machine. The device will automatically actuate the specimens, counting each cycle and stopping at the preset value or upon user intervention.

Q: How does the machine ensure accurate results?

A: The system delivers single-cycle resolution and instant digital feedback. Its sturdy construction minimizes vibrations, and fixture adjustments ensure consistent load and positioning, providing repeatable and accurate durability data.

Q: What are the main benefits of using this Key Life Testing Machine?

A: Key benefits include multi-sample capability, programmable testing profiles, accurate cycle counting, robust safety features, and compatibility with diverse key sizes. This results in efficient, reliable, and thorough durability assessment for product development and quality assurance.
